Simpson Strong-Tie SSWBS21 Description

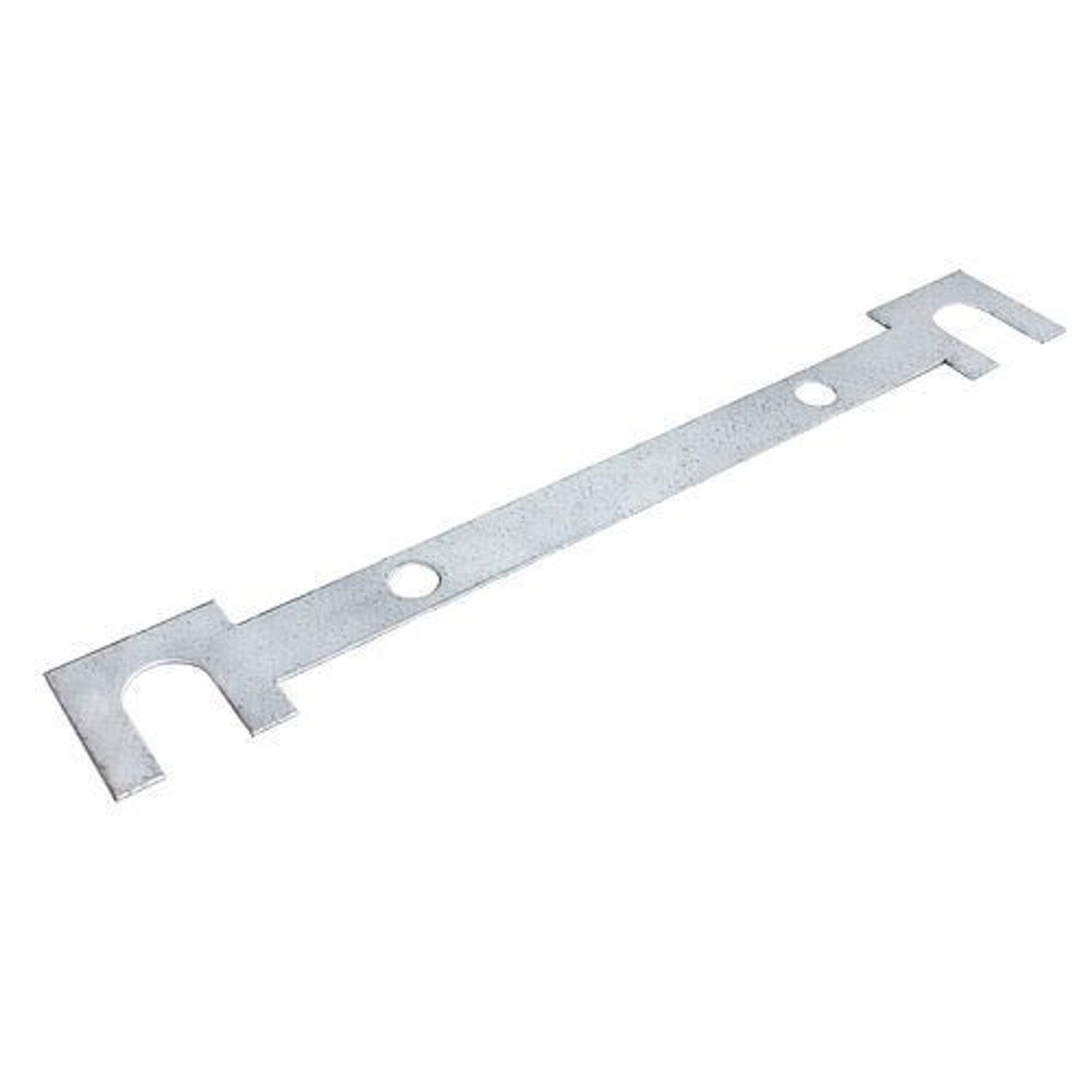

The Strong-Wall Anchor Bolt Stabilizer is designed for use with Steel Strong-Wall systems, providing stability and alignment during installation.
Simpson Strong-Tie SSWBS21 Includes
- (1) Strong-Wall Anchor Bolt Stabilizer
Simpson Strong-Tie SSWBS21 Features
- Compatible with SSWTEL extended leg template for flush placement in 2x6 framed exterior walls
- Available in different widths to match SSWT anchor bolt templates
- Includes holes for 1/2"-diameter dowels for stabilization
Simpson Strong-Tie SSWBS21 Applications
- Seismic (new construction)
- Seismic retrofit
- Anchorage solutions
- Shearwalls
- Wood/residential construction
Simpson Strong-Tie SSWBS21 Installation Overview
- Use two bolt stabilizers for each SSW anchor assembly; one at the embedded plate washer and the other above the template
- Drive 1/2"-diameter dowels through the bolt stabilizers into the ground to ensure plumb installation of the anchors and prevent movement during concrete placement
- Remove the dowels immediately following concrete placement for reuse
Simpson Strong-Tie SSWBS21 Specifications
| Material | 14 gauge |
| Finish | Galvanized (G90) |
| Application | Seismic (New Construction) |
| API Approval | Approved - Full |
NOTE: The height of the garage curb above the garage slab is critical for rough header opening at garage return walls. Templates are recommended and are required in some jurisdictions. Foundation design by designer.
Toolup Part # :
819010
