Simpson Strong-Tie SSWHSR1X2KT Description
The Strong-Wall Shearwall Rod Extension Kit is designed for steel shearwalls, providing high-strength anchorage solutions with easy installation and reliable performance.
Simpson Strong-Tie SSWHSR1X2KT Includes
- (1) Strong-Wall Shearwall Rod Extension Kit
Simpson Strong-Tie SSWHSR1X2KT Features
- Fixed-in-place compression nut to improve performance
- Head stamp for easy identification and inspection
- High-strength coupler for attachment to SSWAB or SSWABHS
Simpson Strong-Tie SSWHSR1X2KT Applications
- Anchorage solutions for steel shearwalls
- Structural reinforcement in construction projects

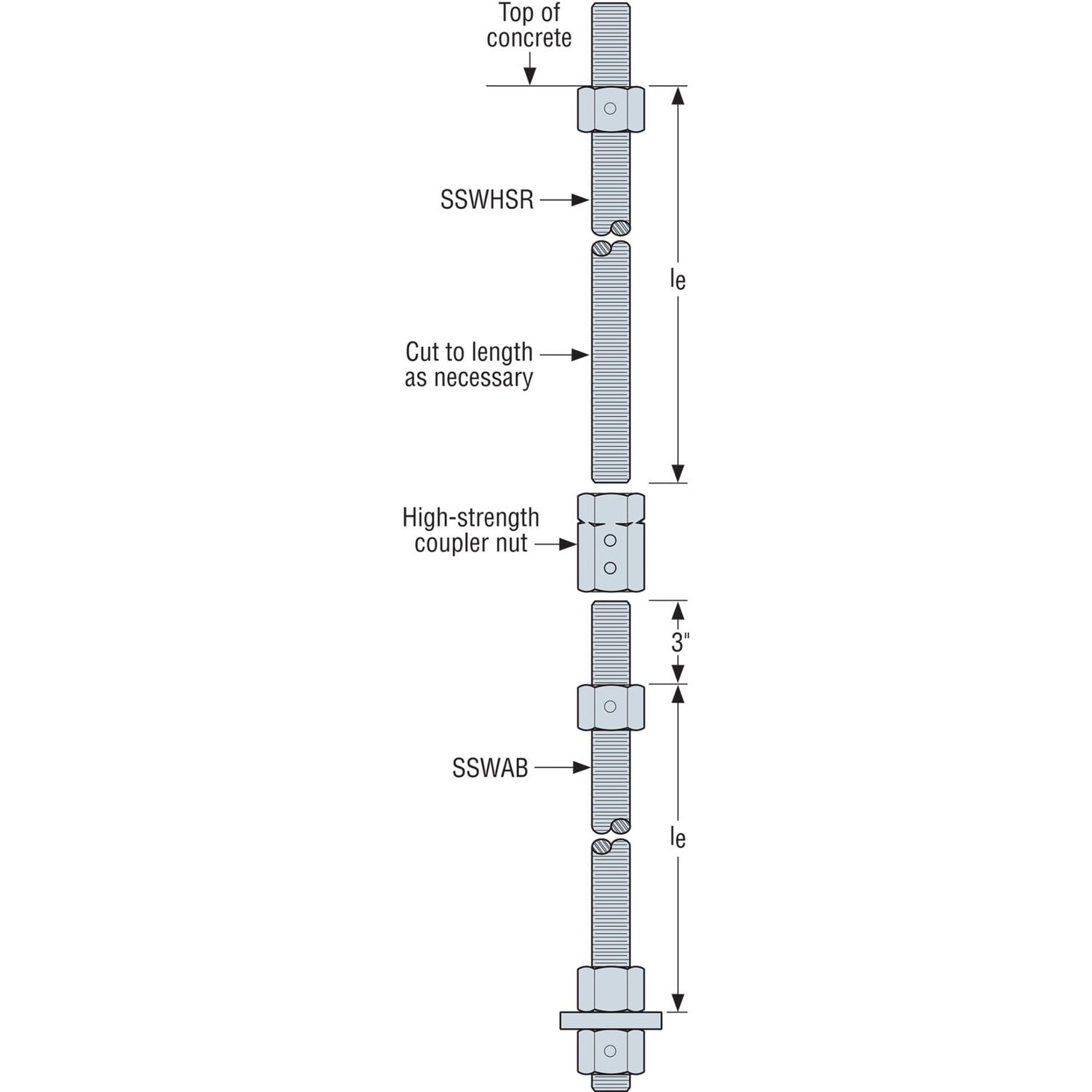

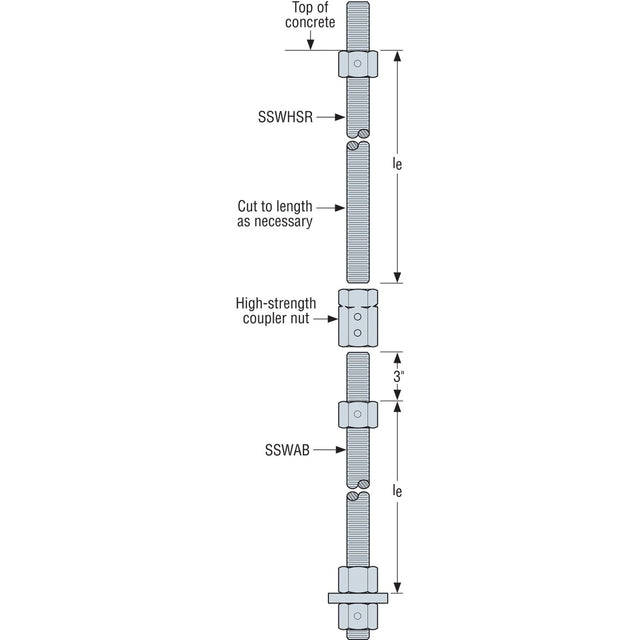

Simpson Strong-Tie SSWHSR1X2KT Installation Overview
- Install coupler nut and high-strength all-thread rod with fixed nut on SSWAB
- Install SSWHSR and SSWAB assembly before the concrete is poured using the appropriate SSWT template and supplied nut; locate per designer
- Install shear reinforcement per designer before concrete is poured
- SSW bolt stabilizers may be used to prevent movement of the assembly during concrete pour
- Foundation design by designer
Simpson Strong-Tie SSWHSR1X2KT Specifications
| Material | High-strength (HS) ASTM A449 |
| Application | Anchorage Solutions |
| API Approval | Approved - Full |
Toolup Part # :
820238
