Simpson Strong-Tie SSWHSR1X3KT Description
The Simpson Strong-Tie Rod Extension Kit provides high-strength anchorage for steel shearwalls, featuring a fixed-in-place compression nut and easy identification head stamp.
Simpson Strong-Tie SSWHSR1X3KT Includes
- (1) High-Strength Rod Extension Kit
Simpson Strong-Tie SSWHSR1X3KT Features
- Fixed-in-place compression nut for improved performance
- Head stamp for easy identification and inspection
- High-strength coupler for secure attachment to SSWAB or SSWABHS
Simpson Strong-Tie SSWHSR1X3KT Applications
- Anchorage solutions for steel shearwalls
- Structural reinforcement in concrete foundations
Simpson Strong-Tie SSWHSR1X3KT Installation Overview

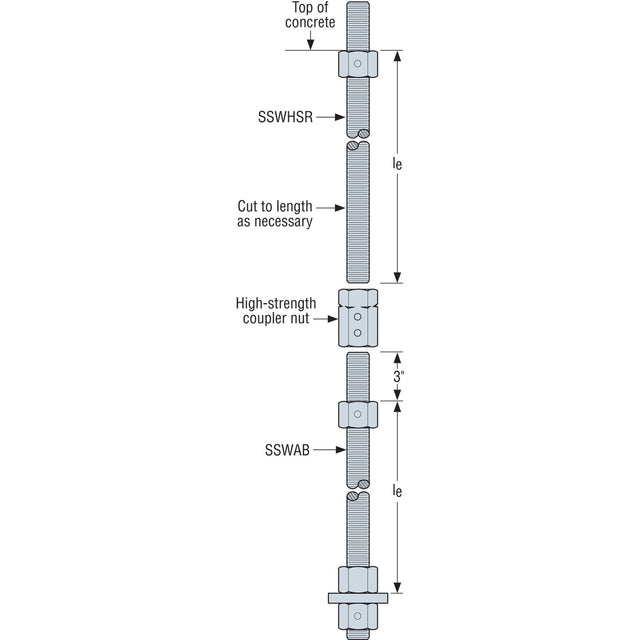

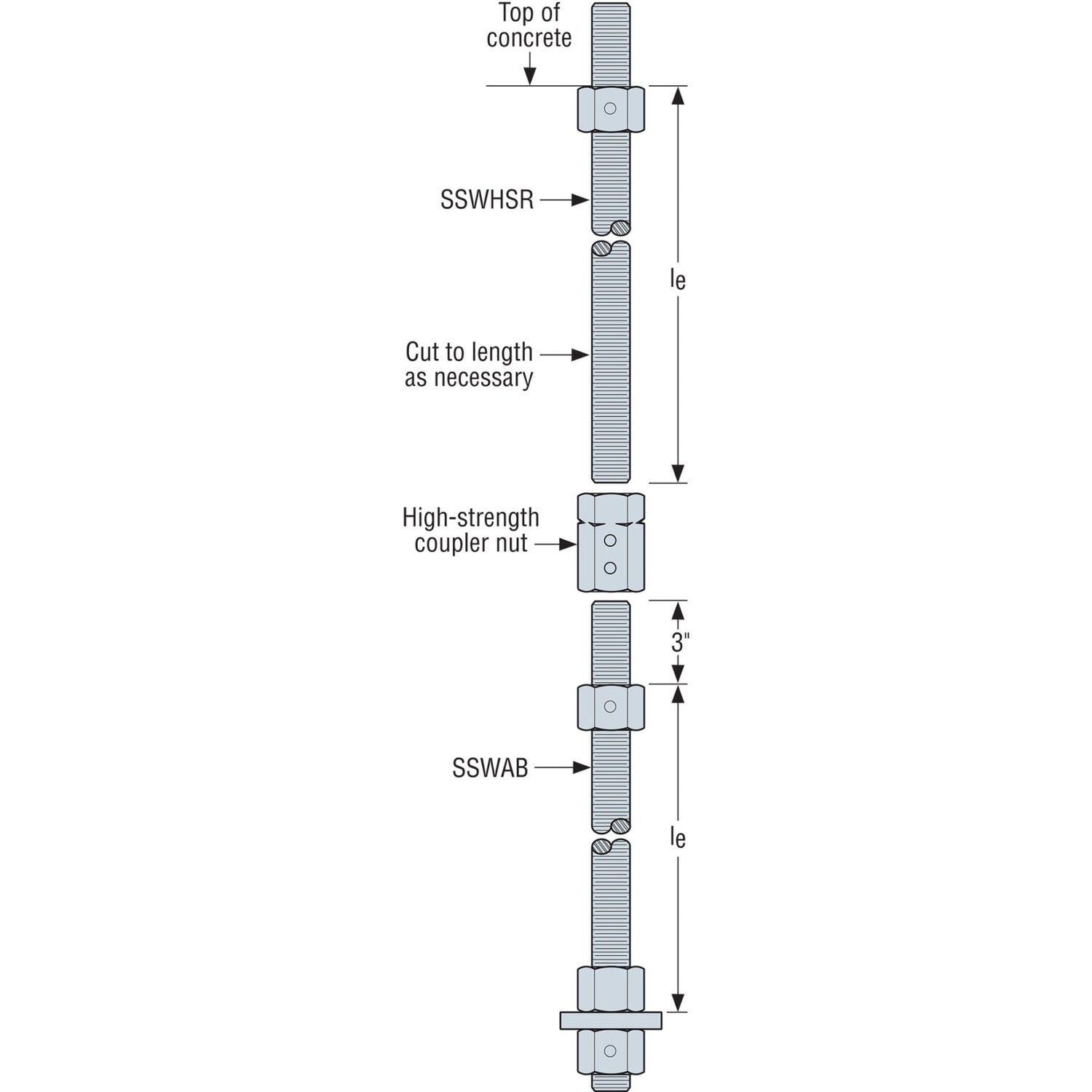

- Attach coupler nut and high-strength all-thread rod with fixed nut on SSWAB
- Position the assembly using the SSWT template and supplied nut before pouring concrete
- Install shear reinforcement as per designer specifications
- Use SSW bolt stabilizers to prevent movement during concrete pour
- Foundation design should be completed by the designer
Simpson Strong-Tie SSWHSR1X3KT Specifications
| Material | High-strength (HS) ASTM A449 |
| Application | Anchorage Solutions |
| API Approval | Approved - Full |
NOTE: Ensure the assembly is stabilized during concrete pouring to prevent movement.
