Simpson Strong-Tie SSWHSR3/4X3KT Description
The Simpson Strong-Tie SSWHSR3/4X3KT Shearwall Rod Extension Kit is designed for steel shearwalls, providing high-strength anchorage solutions with easy installation and reliable performance.
Simpson Strong-Tie SSWHSR3/4X3KT Includes
- (1) Shearwall Rod Extension Kit
Simpson Strong-Tie SSWHSR3/4X3KT Features
- Fixed-in-place compression nut to improve performance
- Head stamp for easy identification and inspection
- High-strength coupler for attachment to SSWAB or SSWABHS
Simpson Strong-Tie SSWHSR3/4X3KT Applications
- Anchorage solutions for steel shearwalls

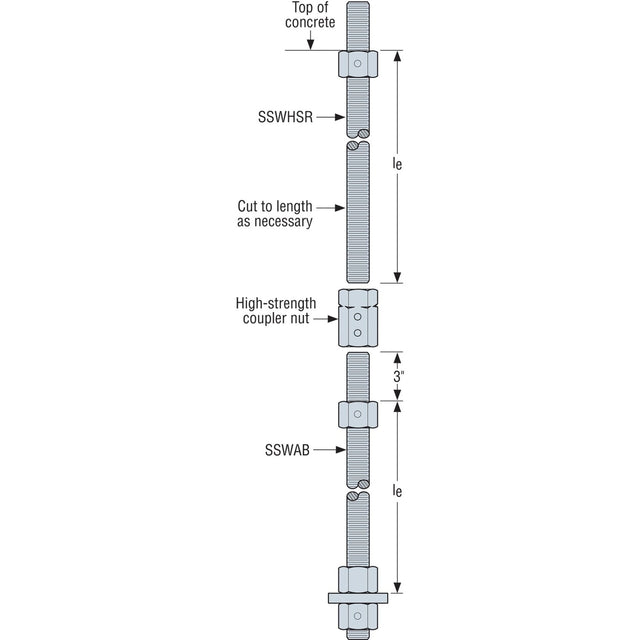

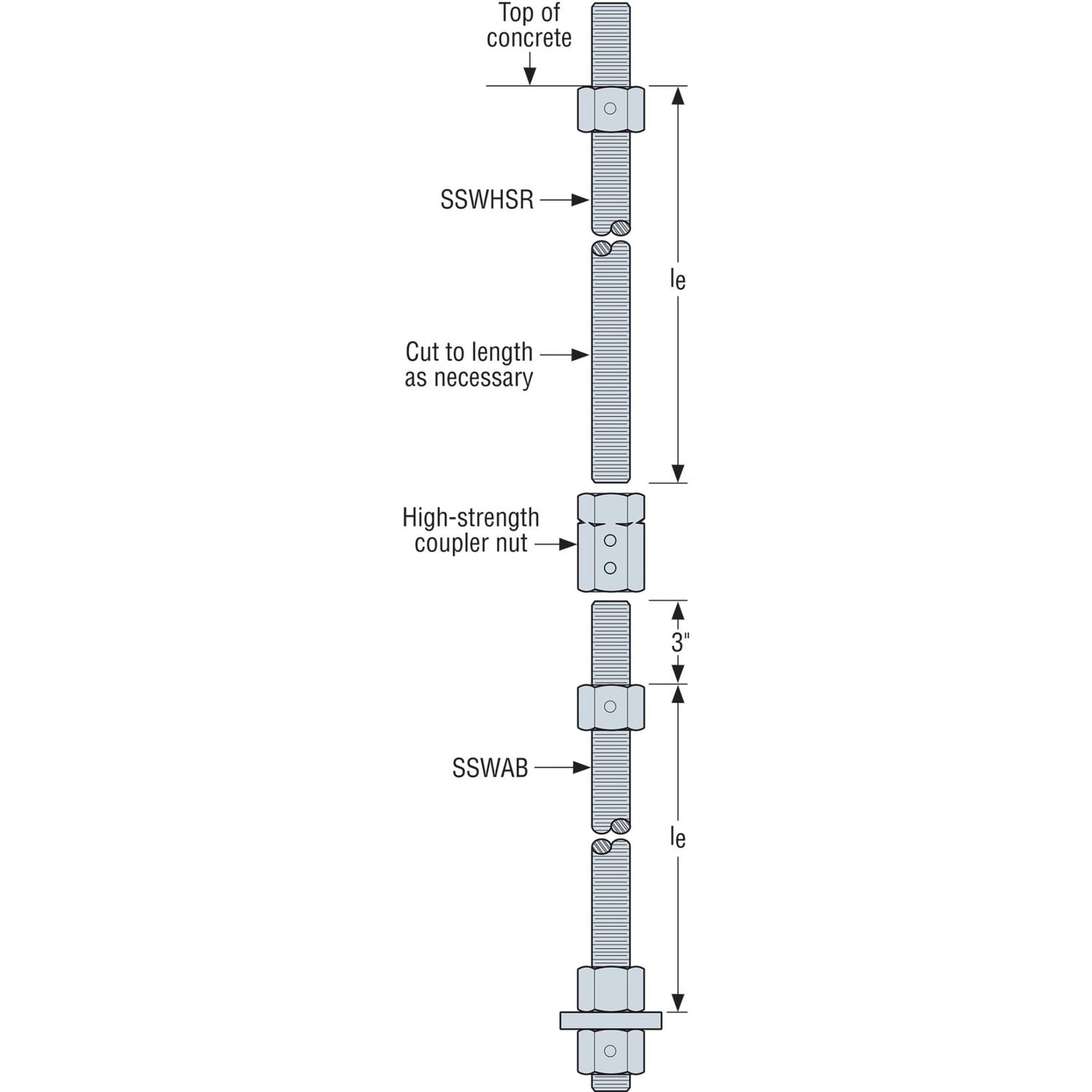

Simpson Strong-Tie SSWHSR3/4X3KT Installation Overview
- Install coupler nut and high-strength all-thread rod with fixed nut on SSWAB
- Install SSWHSR and SSWAB assembly before the concrete is poured using the appropriate SSWT template and supplied nut; locate per designer
- Install shear reinforcement per designer before concrete is poured
- SSW bolt stabilizers may be used to prevent movement of the assembly during concrete pour
- Foundation design by designer
Simpson Strong-Tie SSWHSR3/4X3KT Specifications
| Material | High-strength (HS) ASTM A449 |
| Diameter | 3/4 in. |
| Total Length | 36 in. |
Toolup Part # :
820126
