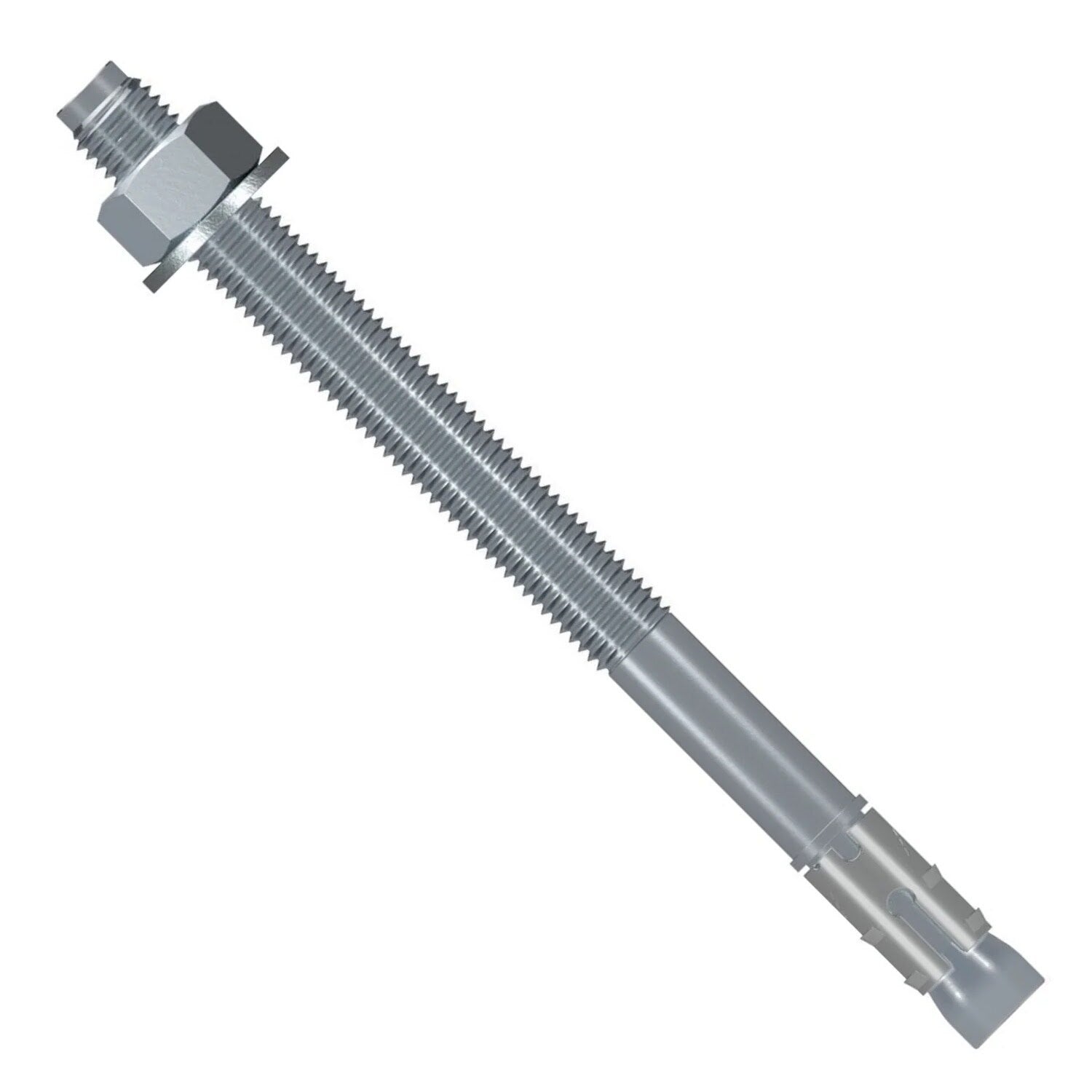

Simpson Strong-Tie STB2-1001300 Strong-Bolt (1" x 13") Carbon Steel 2 Wedge Anchor - Fully Assembled (5 Pack)

Simpson Strong-Tie STB2-1001300 Features

• Chamfered top designed to prevent mushrooming during installation
• Qualified for static and seismic loading conditions (seismic design categories A through F)
• Suitable for horizontal, vertical and overhead applications
• Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-steel deck thickness of 2 1/2" and 3 1/4"
• Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
• Tested per ACI355.2 and AC193

Simpson Strong-Tie STB2-1001300 Applications

• Anchoring structural and non-structural elements such as pipes, struts, fixtures, and overhead indoor construction
• Mounting electrical equipment
• Warehouse racking

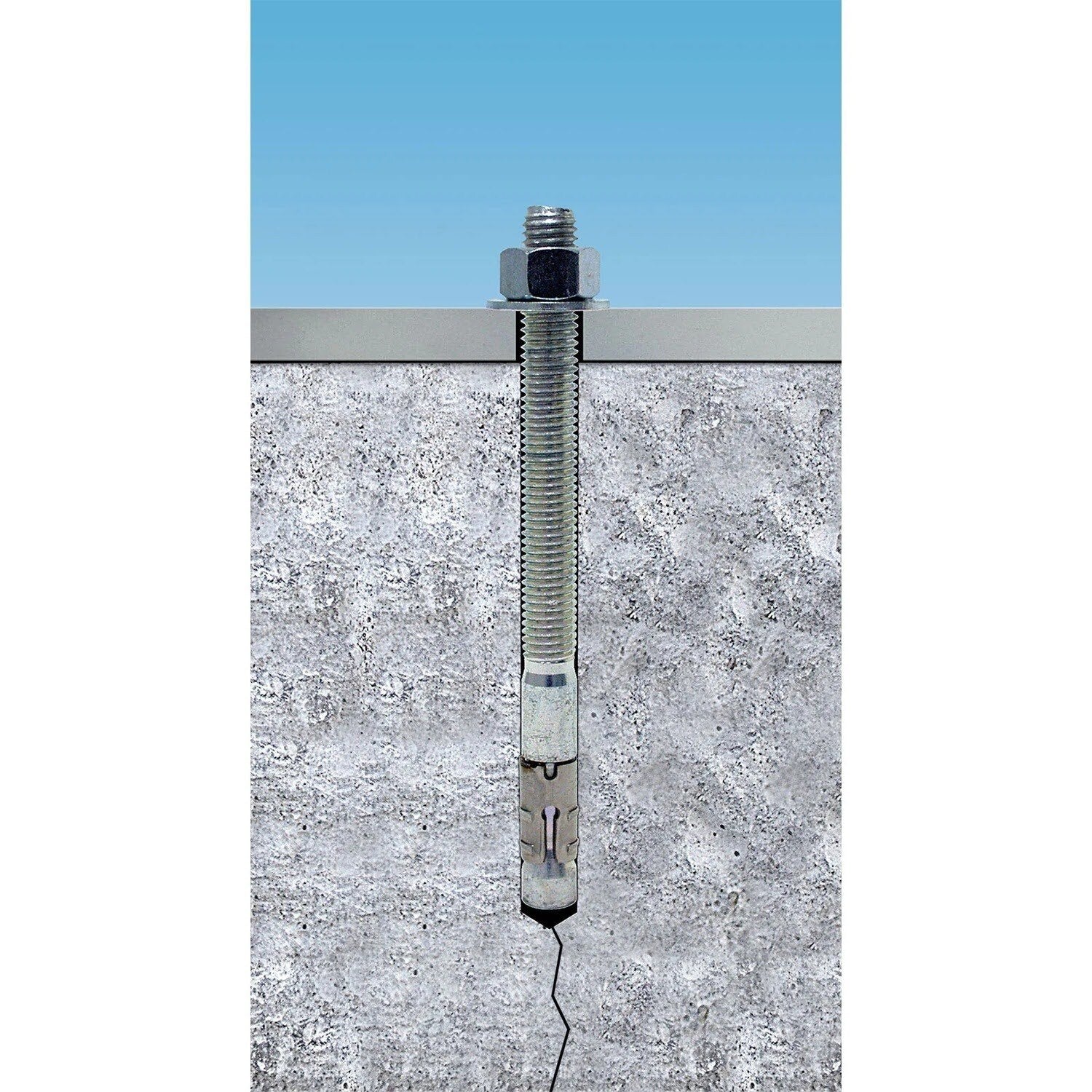

Simpson Strong-Tie STB2-1001300 Installation Overview

1. Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
2. Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor.
3. Place the anchor in the fixture, and drive it into the hole until the washer and nut are tight against the fixture.
4. Tighten to the required installation torque.
