Simpson Anchors | SKU:
STB2-25134

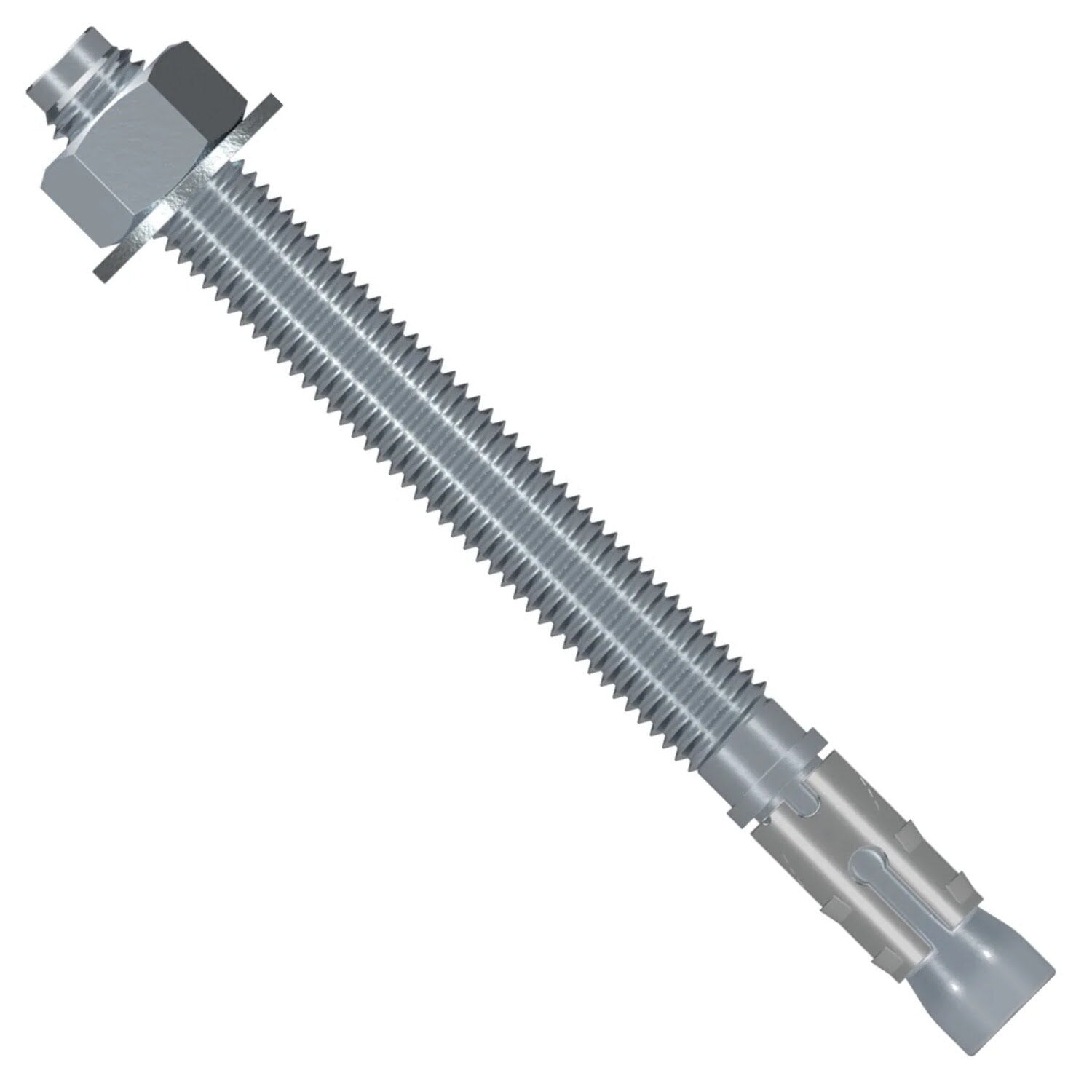

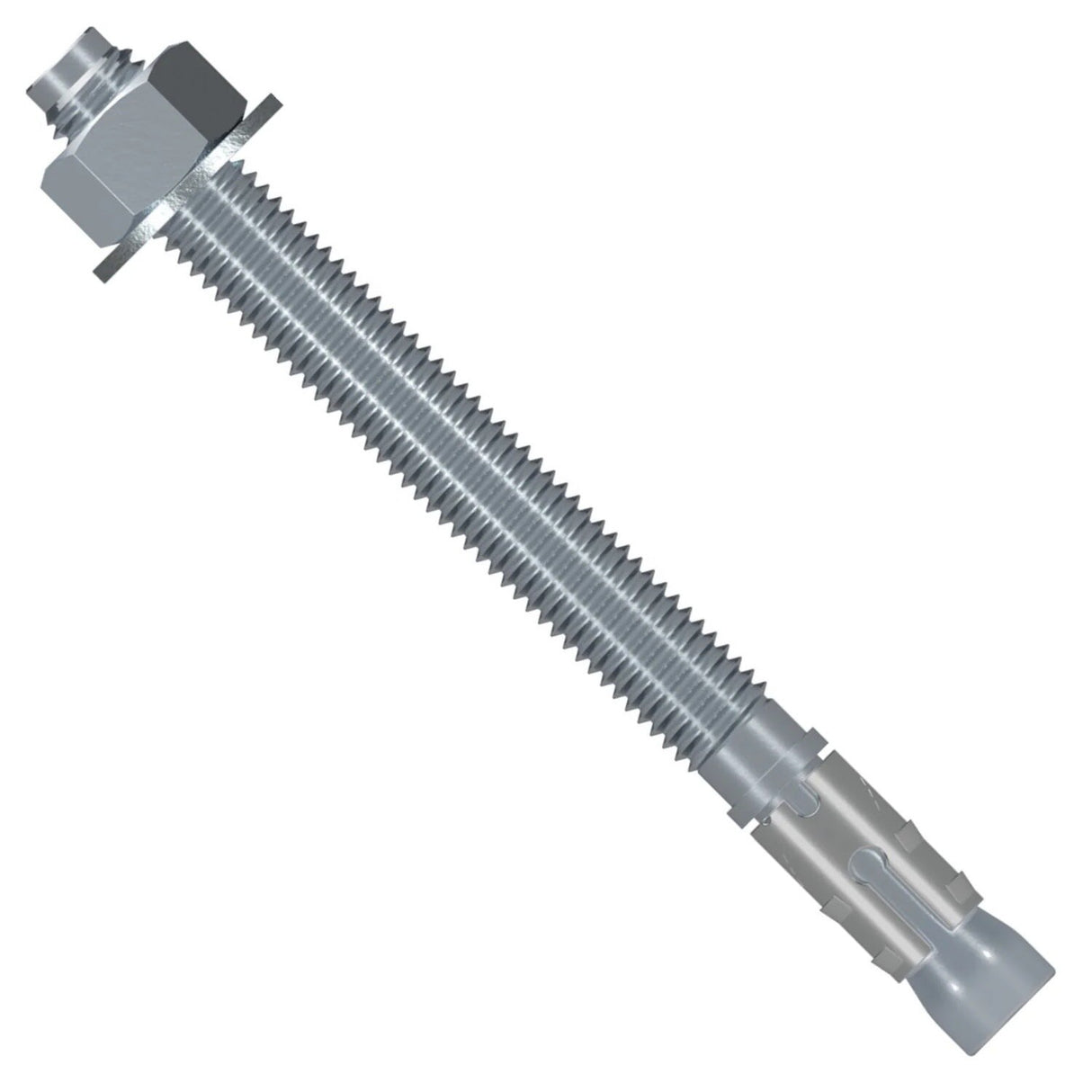

Simpson Strong-Tie STB2-25134 Strong Bolt (1/4" x 1-3/4") Carbon Steel 2 Wedge Anchor - Fully Assembled (100 Pack)
$32.85
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-25134 Description
The Strong-Bolt 2 Wedge Anchor is a reliable solution for anchoring in cracked and uncracked concrete, featuring a zinc-plated finish for durability.
Simpson Strong-Tie STB2-25134 Includes
- (100) Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-25134 Features
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Tested per ACI355.2 and AC193
Simpson Strong-Tie STB2-25134 Applications
- Anchoring structural and non-structural elements such as pipes, struts, and fixtures
- Overhead indoor construction
- Mounting electrical equipment
- Warehouse racking
Simpson Strong-Tie STB2-25134 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air.
- Assemble the anchor with nut and washer, ensuring the nut is flush with the top of the anchor.
- Insert the anchor into the hole and tighten to the required torque.
Simpson Strong-Tie STB2-25134 Specifications
| Material | Zinc-plated carbon steel |
| Diameter | 1/4" |
| Length | 1 3/4" |
| Thread Length | 15/16" |
| Drill Bit Size | 1/4" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
