Simpson Anchors | SKU:
STB2-252144SS
Simpson Strong-Tie STB2-252144SS Strong Bolt (1/4" x 2-1/4") Stainless Steel 2 Wedge Anchor - Unassembled (100 Pack)
$107.17
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-252144SS Description

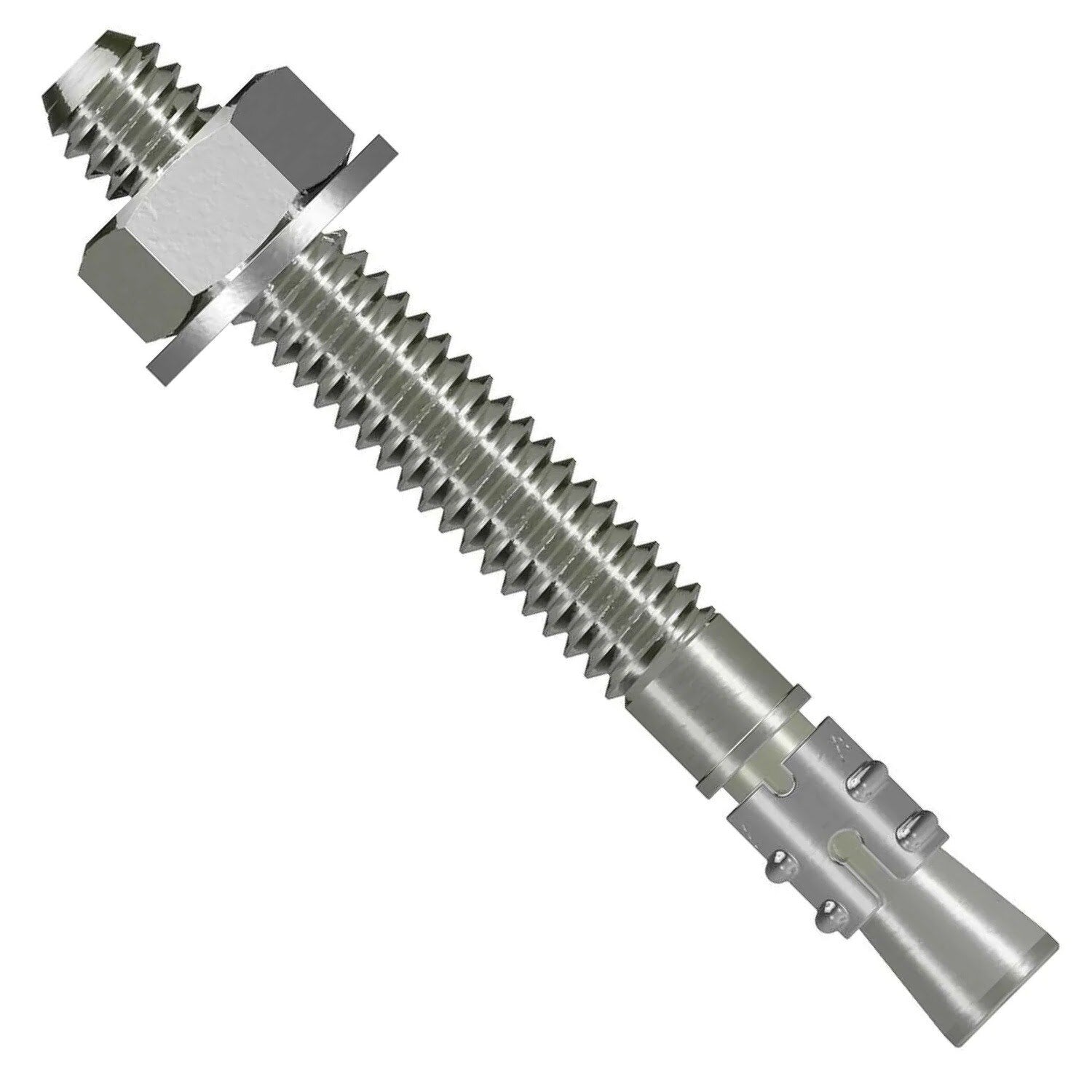

The Strong-Bolt 2 Wedge Anchor is a reliable and durable anchoring solution made from Type 304 stainless steel, suitable for various applications including static and seismic loading conditions.
Simpson Strong-Tie STB2-252144SS Includes
- (100) Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-252144SS Features
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications
- Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-steel deck
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested per ACI355.2 and AC193
Simpson Strong-Tie STB2-252144SS Applications
- Concrete anchoring in static and seismic conditions
- Horizontal, vertical, and overhead installations
- Lightweight concrete-over-steel deck applications
Simpson Strong-Tie STB2-252144SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air or ensure it is deep enough to accommodate embedment depth and dust.
- Assemble the anchor with nut and washer, place it in the fixture, and drive it into the hole.
- Tighten the anchor to the required installation torque.
Simpson Strong-Tie STB2-252144SS Specifications
| Material | Type 304 Stainless Steel |
| Size | 1/4 x 2 1/4 |
| Drill Bit Size | 4-Jan |
| Thread Length | 1 7/16 |
| Packaging Quantity | 100 |
