Simpson Strong-Tie STB2-25214C25 Description

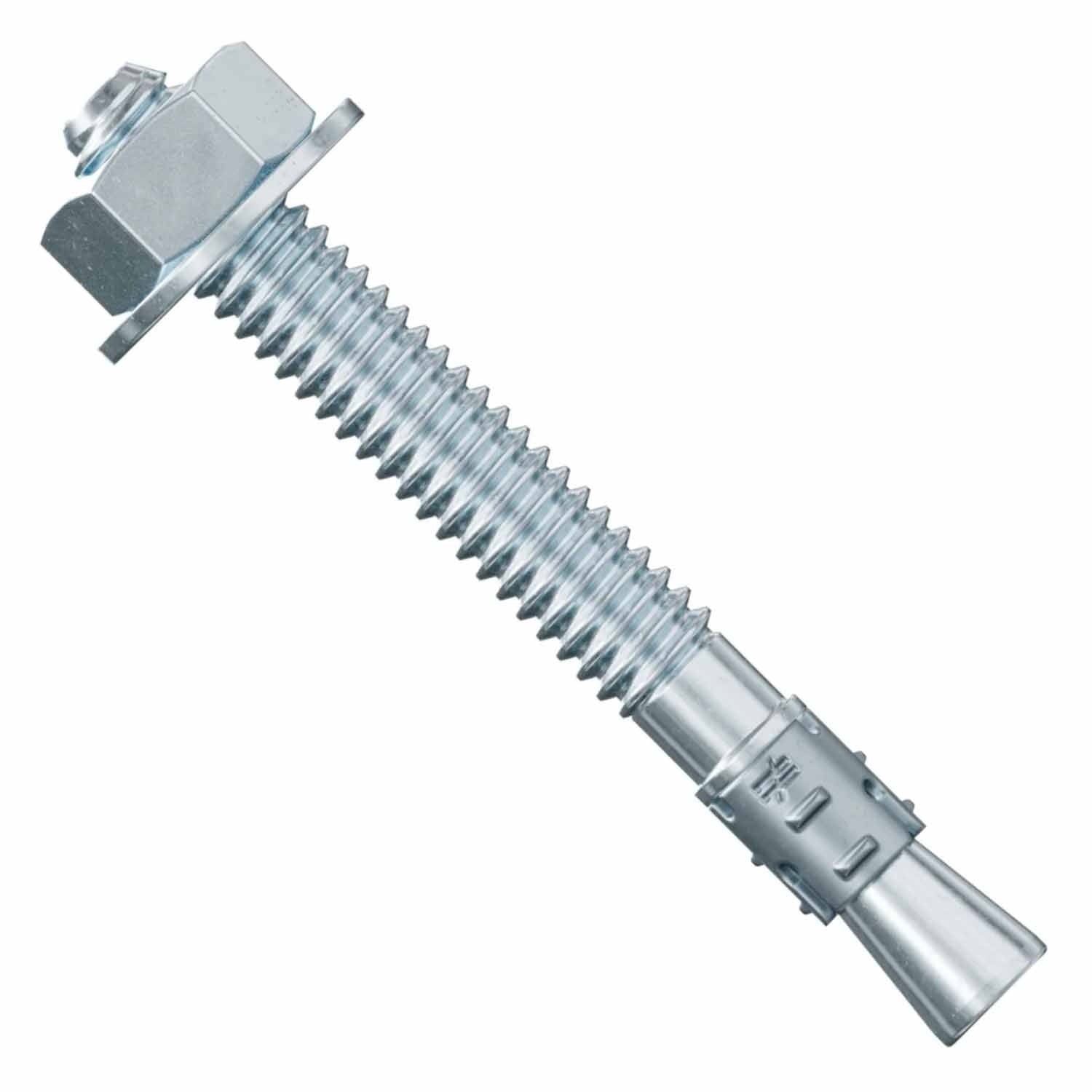

The Simpson Strong-Bolt 2 Wedge Anchor is a reliable, ICC-ES code compliant anchor designed for use in cracked or uncracked concrete. It is suitable for static and seismic loading in horizontal, vertical, and overhead applications.
Simpson Strong-Tie STB2-25214C25 Includes
- (25) 1/4 in. x 2-1/4 in. Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-25214C25 Features
- Non-bottom-bearing design for versatile installation
- ICC-ES code compliant for cracked and uncracked concrete
- Qualified for static and seismic loading
- Zinc plated for corrosion resistance
- Suitable for horizontal, vertical, and overhead applications
Simpson Strong-Tie STB2-25214C25 Applications
- Concrete anchoring in cracked or uncracked surfaces
- Seismic and static load applications
- Horizontal, vertical, and overhead installations
Simpson Strong-Tie STB2-25214C25 Installation Overview
- Drill a hole using a 1/4 in. drill bit to the specified depth.
- Insert the anchor into the hole.
- Tighten the anchor using a wrench to the specified torque of 4 ft. lbs.
- Ensure the anchor is securely set.
Simpson Strong-Tie STB2-25214C25 Specifications
| Diameter | 1/4" |
| Finish | Zinc Plated |
| Length | 2-1/4" |
| Material | Carbon Steel |
| Drill bit size | 1/4" |
| Installation torque | 4 ft. lbs |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 25 |
Toolup Part # :
822167
