Simpson Strong-Tie STB2-25214S4F100 Description
The Simpson Strong-Tie Strong-Bolt 2 Wedge Anchors in 304 stainless steel deliver powerful performance and dependable holding strength for concrete anchoring projects.
Simpson Strong-Tie STB2-25214S4F100 Includes

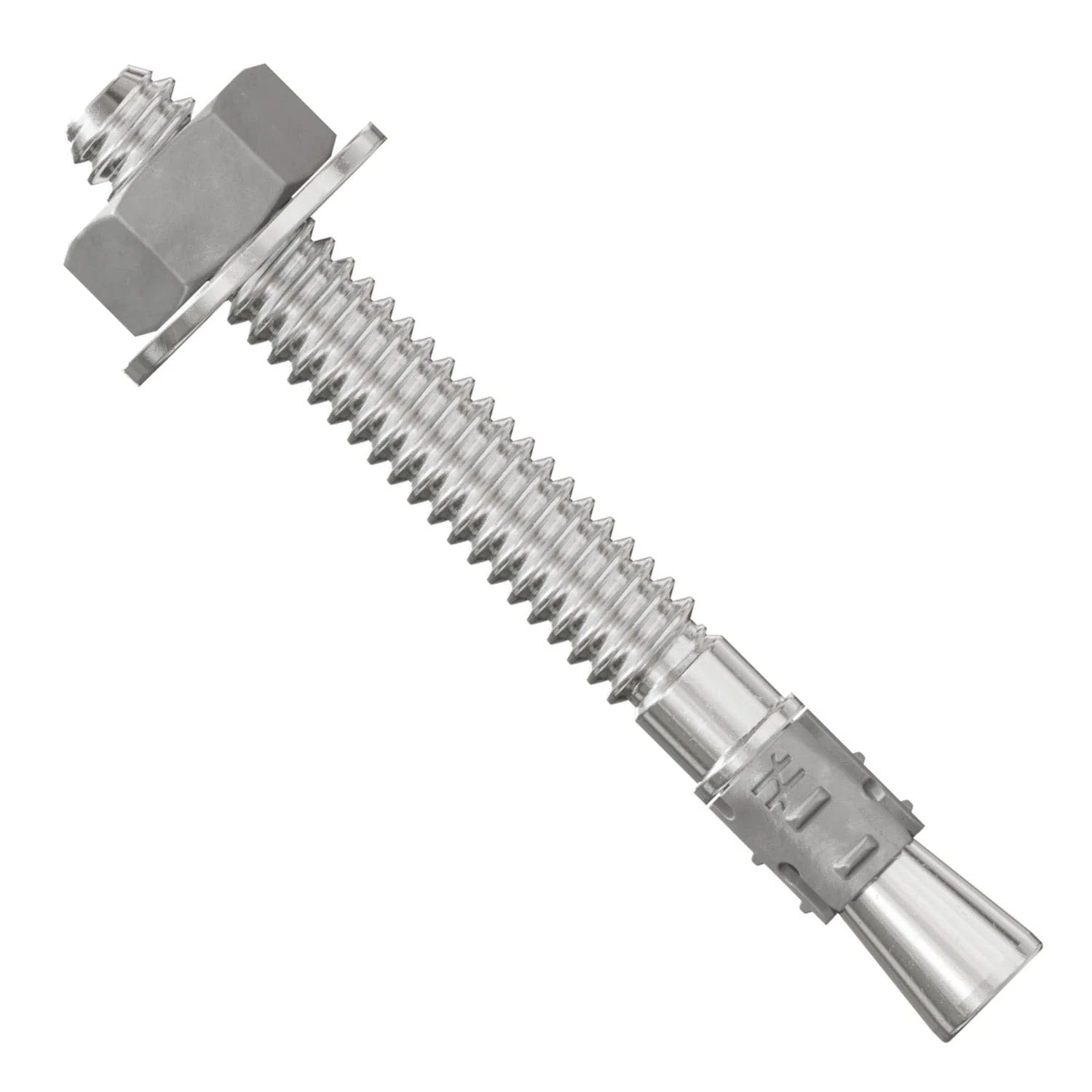

- (100) 1/4 in. x 2-1/4 in. Type 304 Stainless-Steel Wedge Anchor
Simpson Strong-Tie STB2-25214S4F100 Features
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical and overhead applications
- Qualified for minimum concrete thickness of 3 1/4 in.
- Standard fractional sizes for easy installation
- Tested per ACI355.2 and AC193
Simpson Strong-Tie STB2-25214S4F100 Applications
- Concrete anchoring for structural steel
- Securing machinery
- Racking systems
- Post bases
- Ledger attachments
Simpson Strong-Tie STB2-25214S4F100 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air.
- Assemble the anchor with nut and washer, ensuring the nut is flush with the anchor.

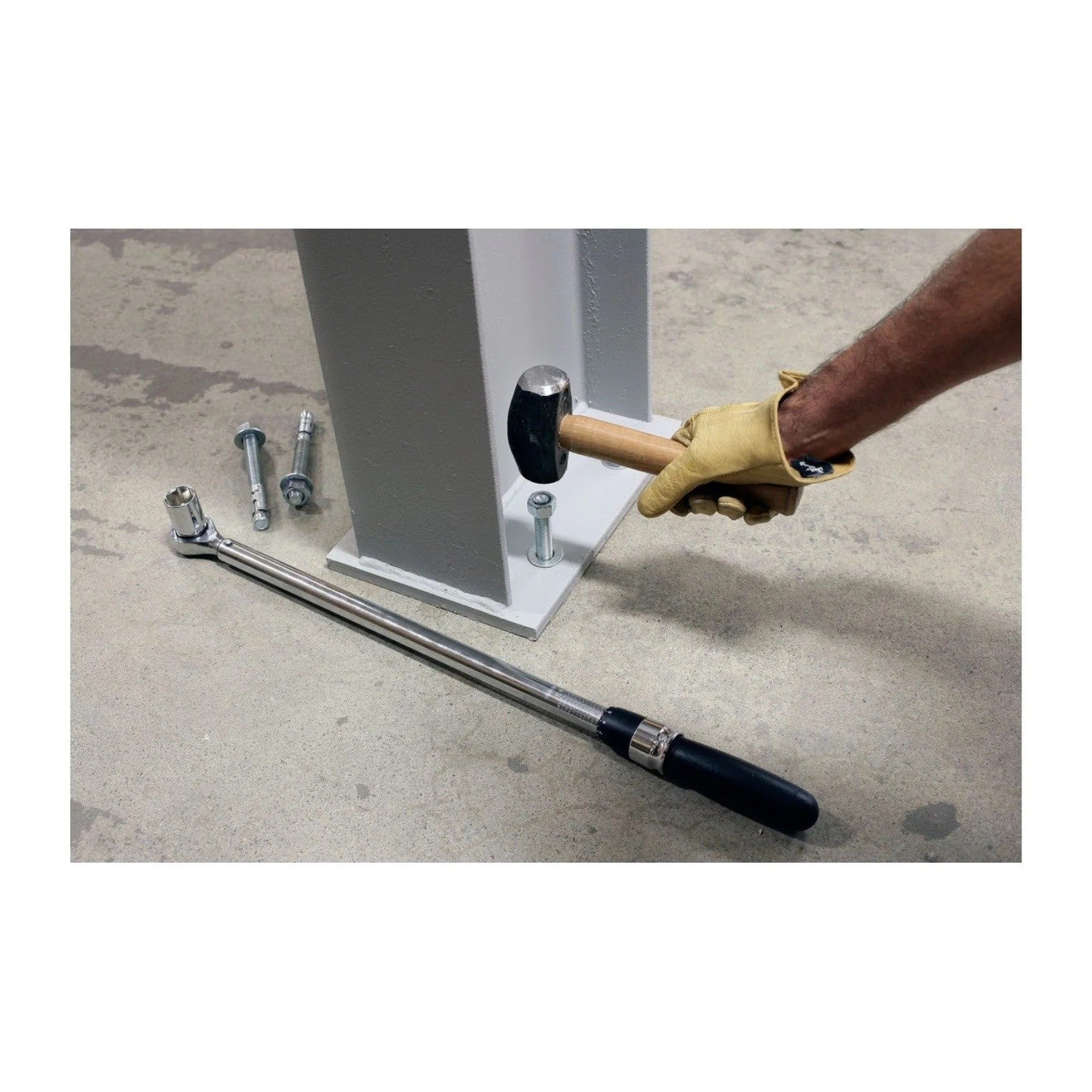

- Place the anchor in the fixture and drive it into the hole.

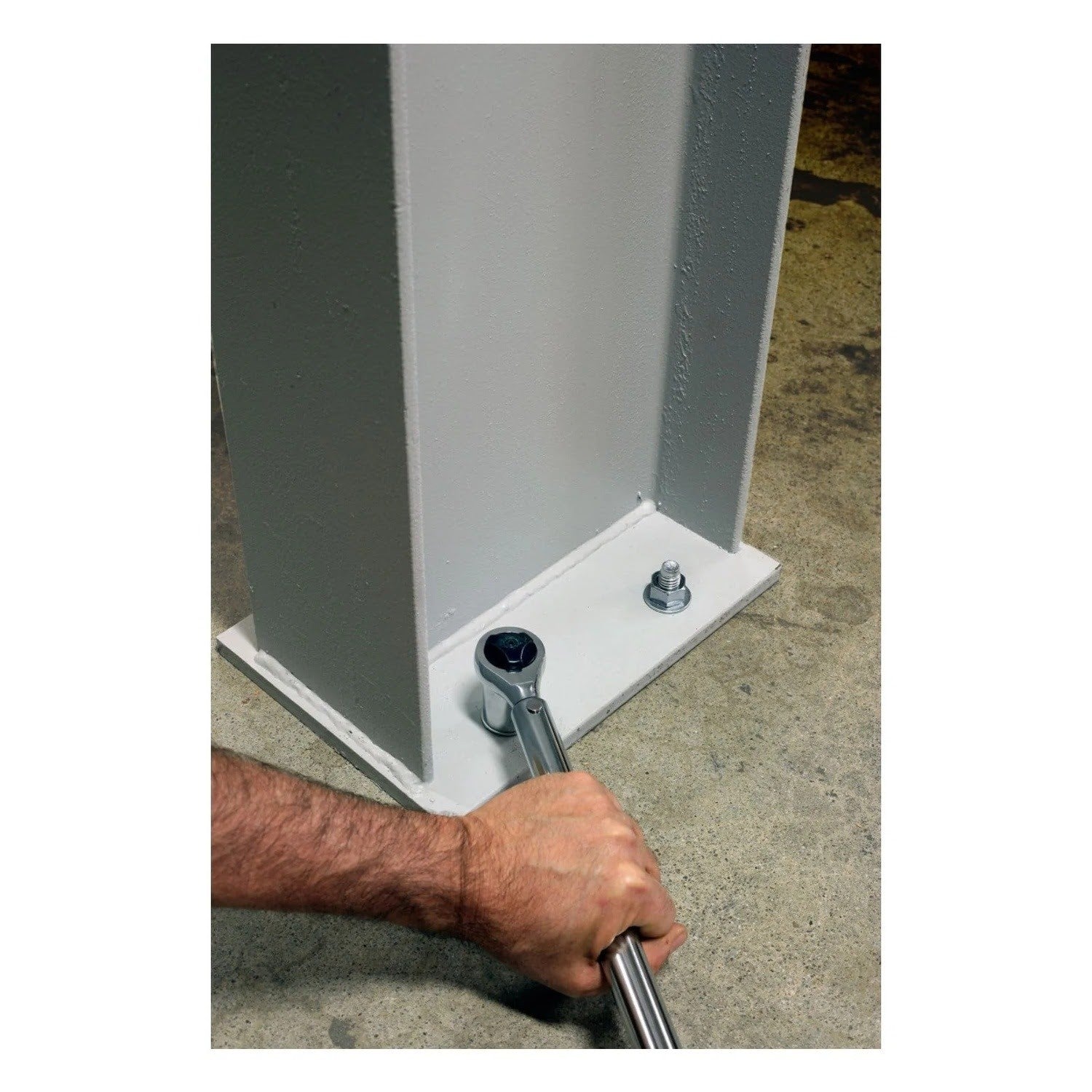

- Tighten to the required installation torque.
Simpson Strong-Tie STB2-25214S4F100 Specifications
| Diameter | 1/4 in. |
| Length | 2-1/4 in. |
| Material | 304 Stainless Steel |
| Drill bit size | 1/4 in. |
| Fixture hole size | 5/16 in. |
| Installation torque | 4 ft. lbf. |
| Thread length | 1-7/16 in. |
| Wrench size | 7/16 in. |
NOTE: Ensure the anchor is installed with the correct torque to achieve optimal performance.
