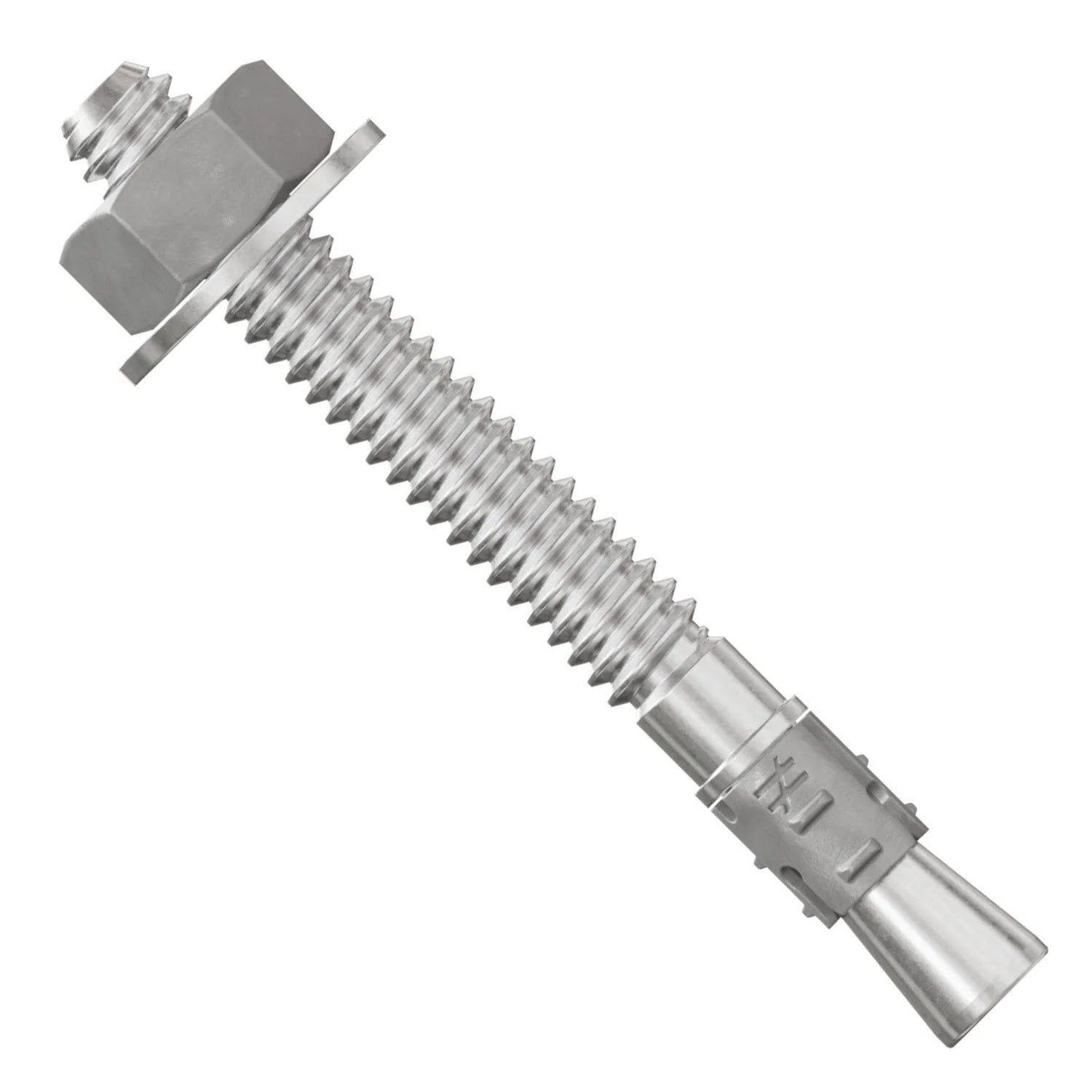

Simpson Strong-Tie STB2-25214S6F100 Strong-Bolt (1/4" x 2-1/4") Stainless Steel 2 Wedge Anchor - Fully Assembled (100 Pack)

Simpson Strong-Tie STB2-25214S6F100 Features

• 316 Stainless Steel Construction: Exceptional corrosion resistance for long-lasting durability in harsh environments.
• Fully Assembled: Includes nut and washer for faster, easier installation out of the box.
• Code-Compliant Performance: ICC-ES ESR-3037 code listed for cracked and uncracked concrete applications.
• Versatile Use: Suitable for anchoring structural supports, machinery, railing systems, and more.
• Variety of Sizes Available: Multiple diameter and length options help you get the right fit for any job.

Simpson Strong-Tie STB2-25214S6F100 Applications

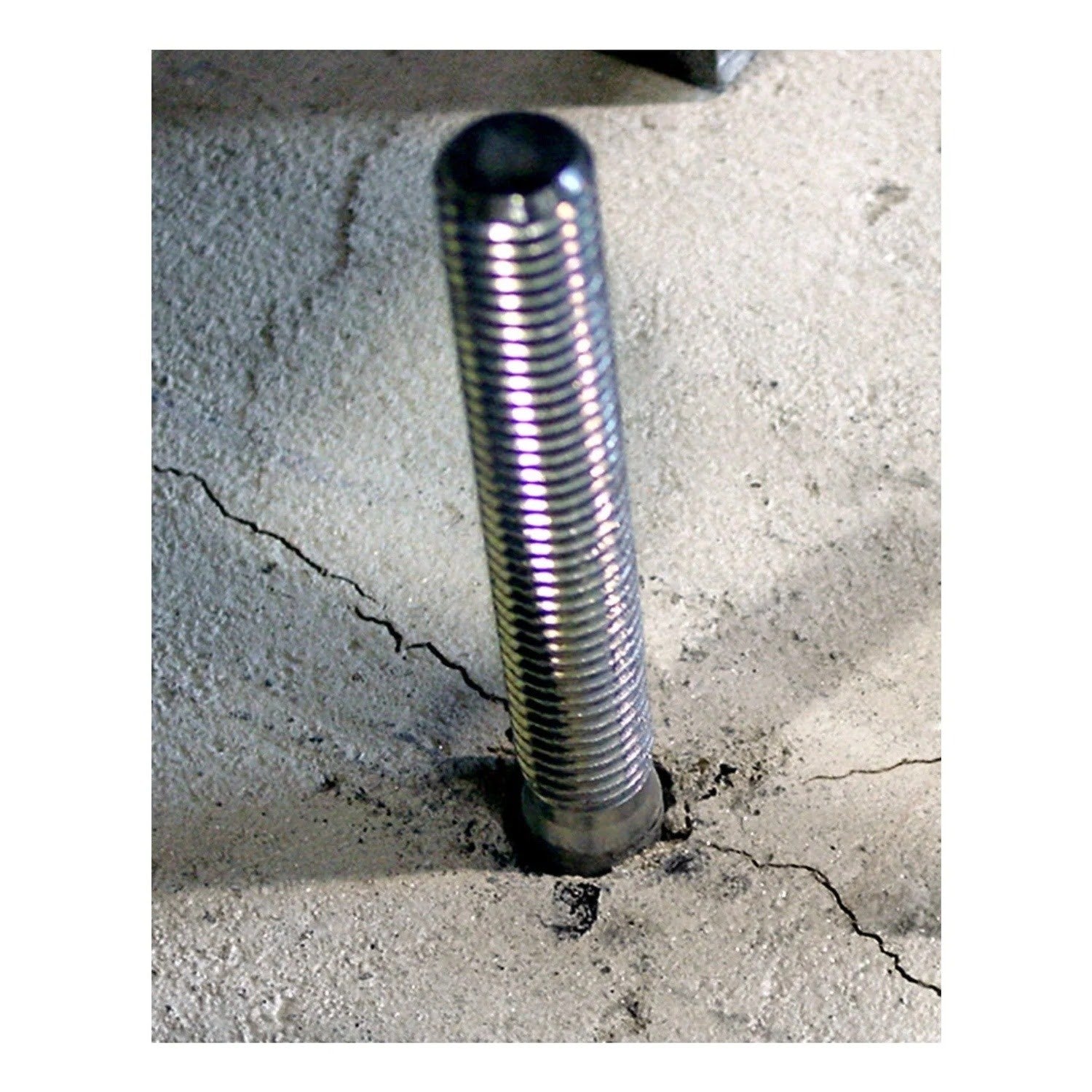

• Heavy-duty fastening into cracked or uncracked concrete.
• Reinforcing structural connections in coastal commercial builds.
• Anchoring handrails in residential garages.
• Marine, wastewater, and chemical exposure environments.

Simpson Strong-Tie STB2-25214S6F100 Installation Overview

1. Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
2. Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor.

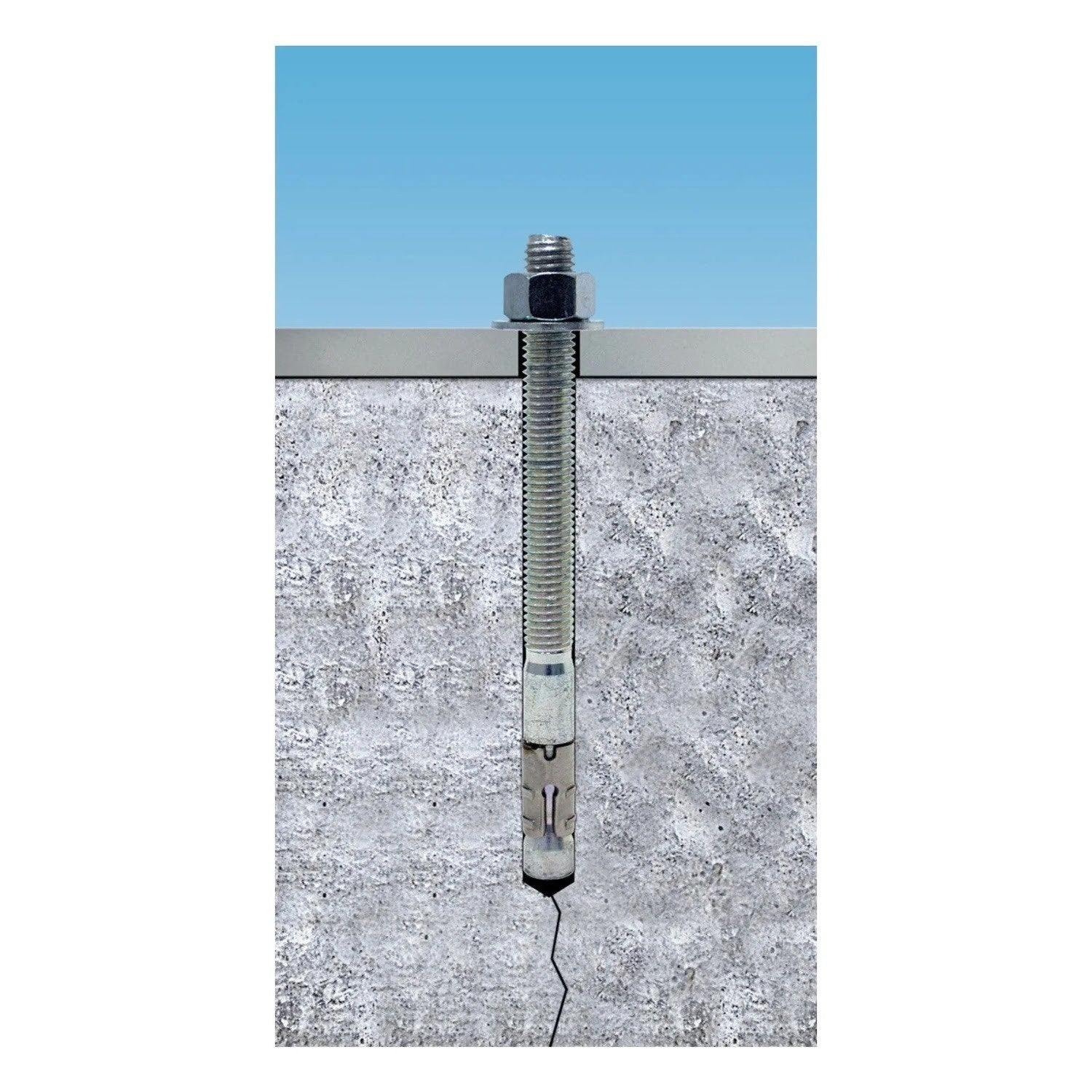

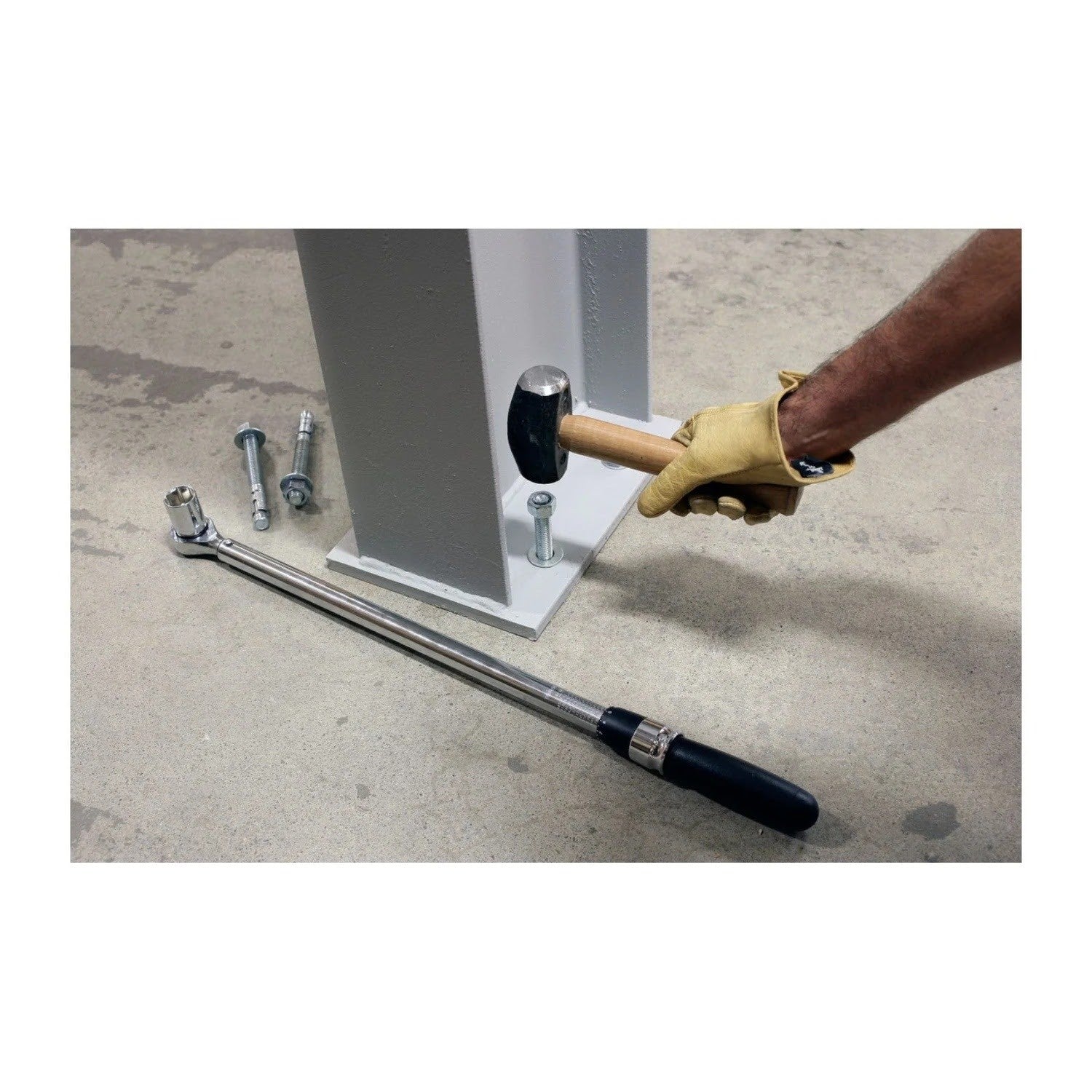

3. Place the anchor in the fixture, and drive it into the hole until the washer and nut are tight against the fixture.

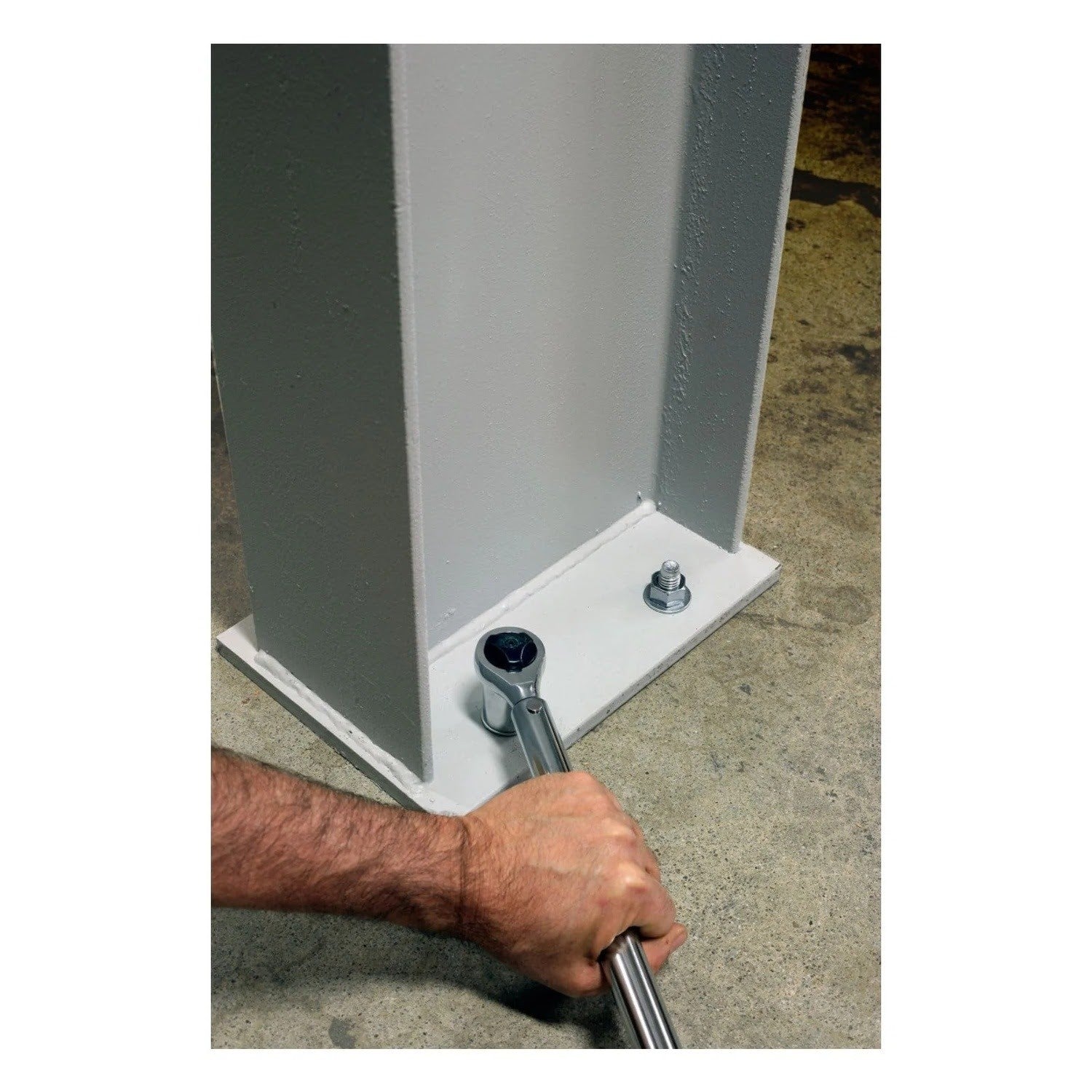

4. Tighten to the required installation torque.
