Simpson Anchors | SKU:
STB2-25314S6F100

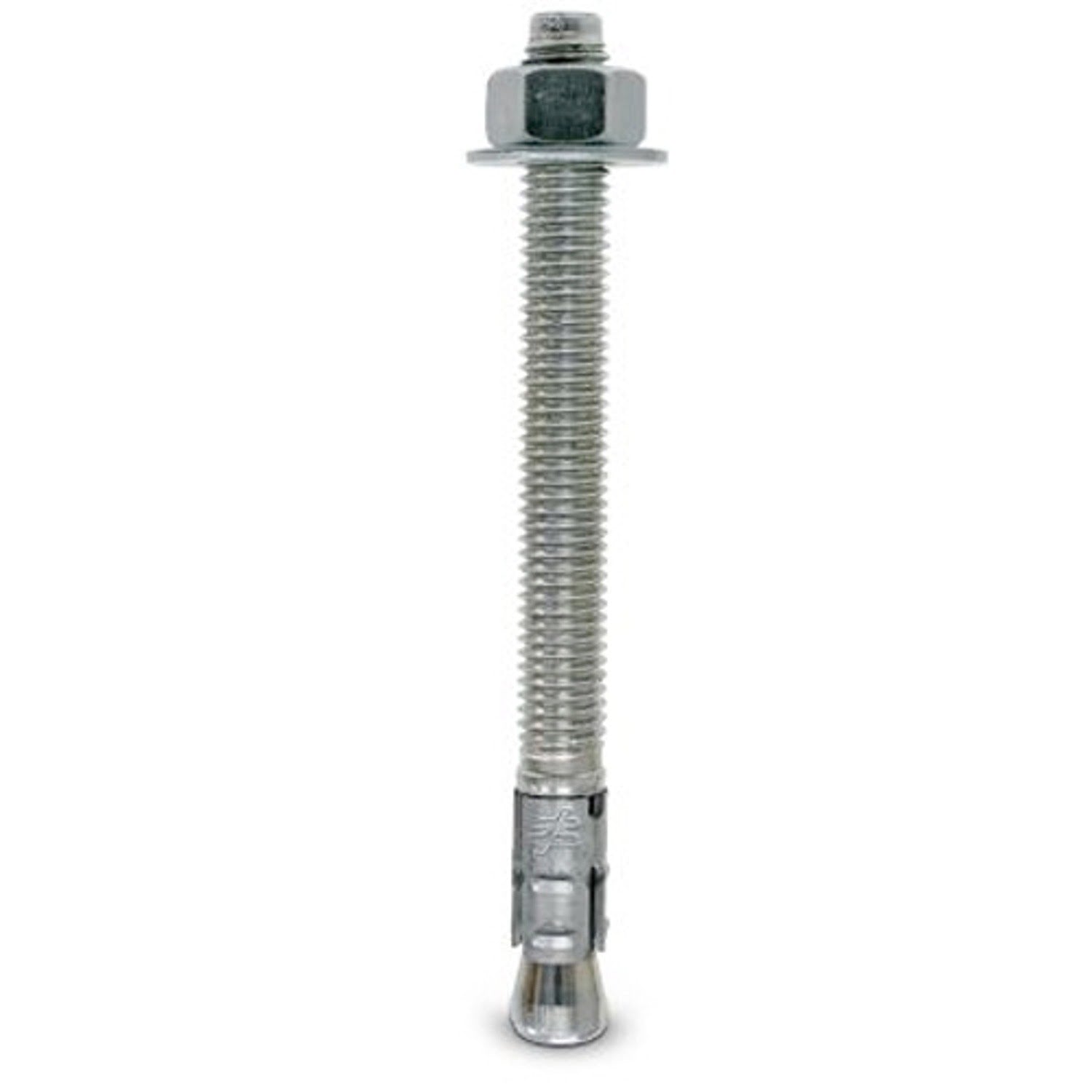

Simpson Strong-Tie STB2-25314S6F100 Strong Bolt (1/4" x 3-1/4") Fully Assembled 2 Wedge Anchor - Type 316 (100 Pack)
Free Shipping
$218.37
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-25314S6F100 Description
The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors are designed for maximum performance in corrosive environments, ideal for heavy-duty fastening into cracked or uncracked concrete.
Simpson Strong-Tie STB2-25314S6F100 Includes
- (100) 1/4 in. x 3-1/4 in. Type 316 Stainless-Steel Wedge Anchor
Simpson Strong-Tie STB2-25314S6F100 Features
- 316 Stainless Steel Construction for corrosion resistance

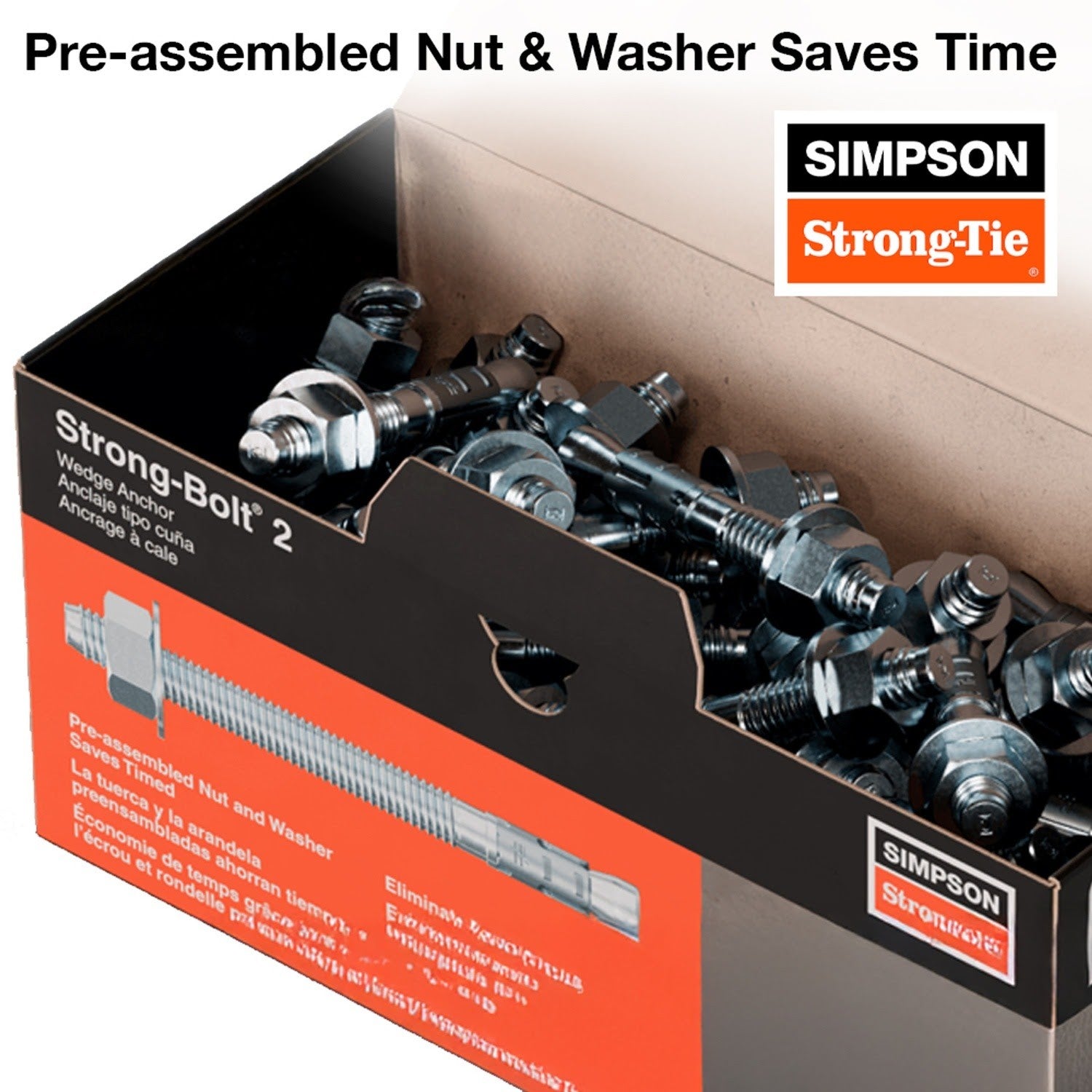

- Fully Assembled with nut and washer for ease of installation
- Code-Compliant Performance for cracked and uncracked concrete
- Versatile Use for structural supports, machinery, and railing systems
- Variety of Sizes Available for different applications
Simpson Strong-Tie STB2-25314S6F100 Applications
- Marine environments for structural reinforcement
- Wastewater facilities for secure anchoring
- Chemical exposure areas for reliable fastening
- Residential garages for handrail anchoring
- Coastal commercial builds for structural connections
Simpson Strong-Tie STB2-25314S6F100 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air or ensure it is deep enough to accommodate embedment depth.
- Assemble the anchor with nut and washer, place it in the fixture, and drive it into the hole.
- Tighten the nut to the required installation torque.
Simpson Strong-Tie STB2-25314S6F100 Specifications
| Diameter | 1/4 in. |
| Length | 3-1/4 in. |
| Material | 316 Stainless Steel |
| Drill bit size | 1/4 in. |
| Fixture hole size | 5/16 in. |
| Installation torque | 4 ft. lbf. |
| Thread length | 2-7/16 in. |
| Wrench size | 7/16 in. |
