Simpson Anchors | SKU:
STB2-372144SSR50

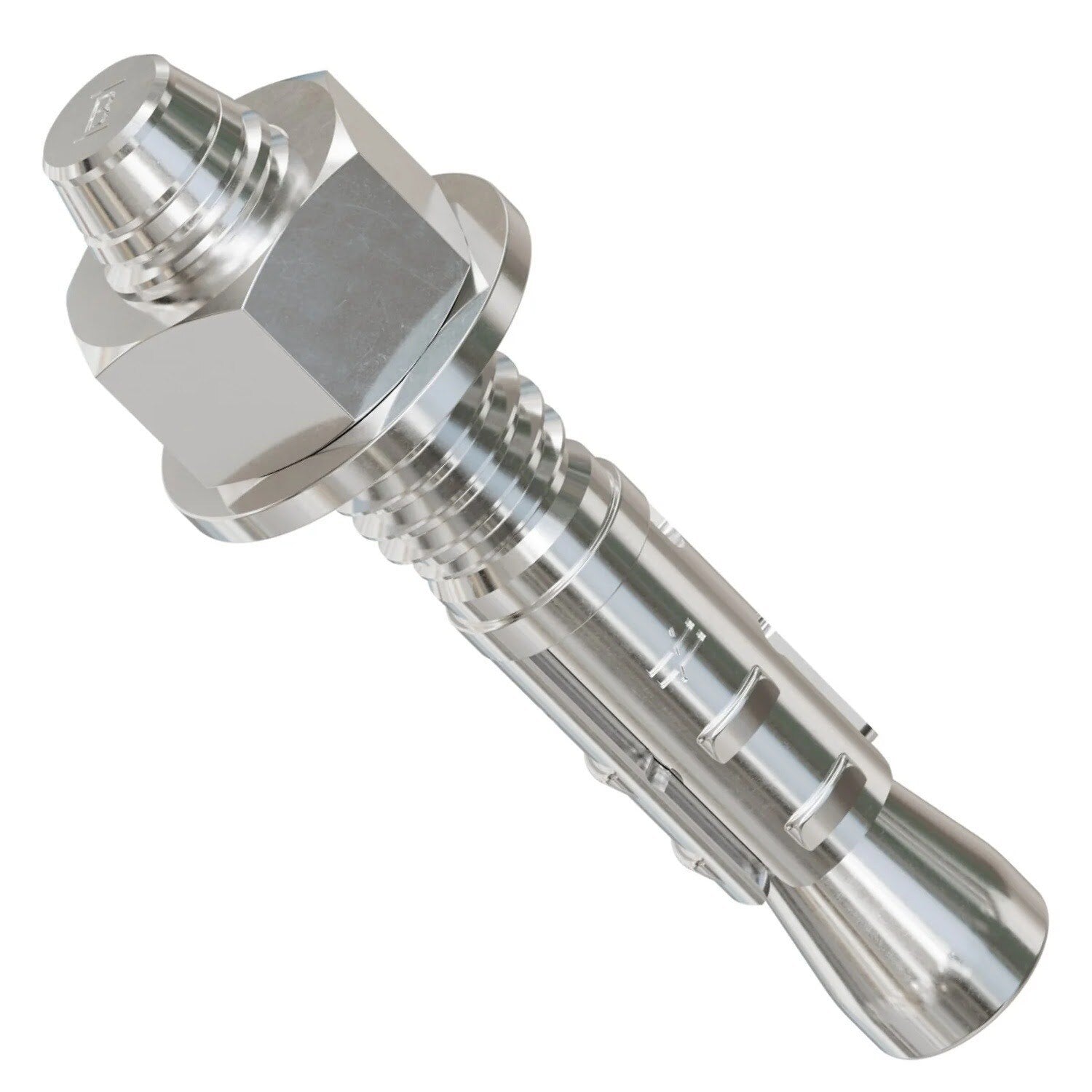

Simpson Strong-Tie STB2-372144SSR50 Strong Bolt (3/8" x 2-1/4") Stainless Steel 2 Wedge Anchor - Unassembled (50 Pack)
$107.71
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-372144SSR50 Description
The Strong-Bolt 2 Wedge Anchor is a Type 304 stainless steel anchor designed for concrete applications, offering reliability in static and seismic conditions.
Simpson Strong-Tie STB2-372144SSR50 Includes
- (50) Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-372144SSR50 Features
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications
- Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-steel deck
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested per ACI355.2 and AC193
Simpson Strong-Tie STB2-372144SSR50 Applications
- Concrete anchoring in cracked or uncracked concrete
- Seismic loading applications
- Horizontal, vertical, and overhead installations
Simpson Strong-Tie STB2-372144SSR50 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air.
- Assemble the anchor with nut and washer, ensuring the nut is flush with the anchor top.
- Place the anchor in the fixture and drive it into the hole until tight.
- Tighten to the required installation torque.
Simpson Strong-Tie STB2-372144SSR50 Specifications
| Material | Type 304 Stainless Steel |
| Length | 2-1/4" |
| Drill bit size | 3/8" |
| Fixture hole size | 7/16" |
| Installation torque | 30 ft. lbf. |
| Thread length | 1" |
NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity.
