Simpson Anchors | SKU:
STB2-37214R50

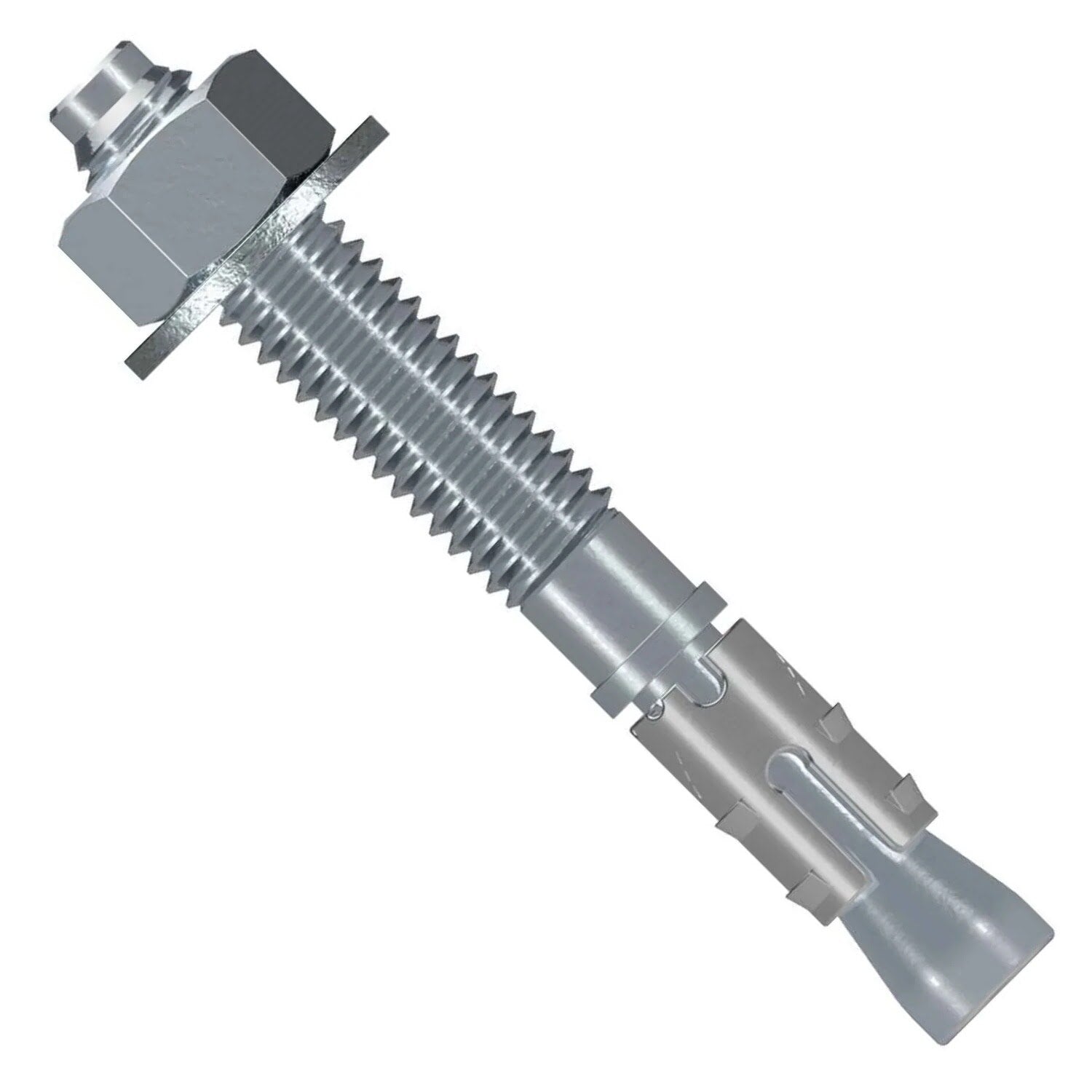

Simpson Strong-Tie STB2-37214R50 Strong Bolt (3/8" x 2-1/4") Carbon Steel 2 Wedge Anchor (50 Pack)
$22.39
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-37214R50 Description
The Strong-Bolt 2 Wedge Anchor is a zinc-plated, high-performance anchor designed for static and seismic loading conditions, suitable for various applications including horizontal, vertical, and overhead installations.
Simpson Strong-Tie STB2-37214R50 Includes
- (50) 3/8 in. x 2-1/4 in. Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-37214R50 Features
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical, and overhead applications
- Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-steel deck thickness of 2 1/2" and 3 1/4"
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested per ACI355.2 and AC193
Simpson Strong-Tie STB2-37214R50 Applications
- Cracked and uncracked concrete anchoring
- Horizontal, vertical, and overhead installations
- Seismic and static load applications
Simpson Strong-Tie STB2-37214R50 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air or ensure it is deep enough to accommodate embedment depth and dust.
- Assemble the anchor with nut and washer, place it in the fixture, and drive it into the hole.
- Tighten the nut to the required installation torque.
Simpson Strong-Tie STB2-37214R50 Specifications
| Diameter | 3/8" |
| Finish | Zinc Plated |
| Length | 2-1/4" |
| Material | Carbon Steel |
| Drill bit size | 3/8" |
| Installation torque | 30 ft. lbs |
| Quantity | 50 |
NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity.
