Simpson Anchors | SKU:
STB2-372344SS
Simpson Strong-Tie STB2-372344SS Strong Bolt (3/8" x 2-3/4") Stainless Steel 2 Wedge Anchor - Uassembled (50 Pack)
$109.17
Unit price
/
Unavailable
Description
Description
Simpson STB2-372344SS Description

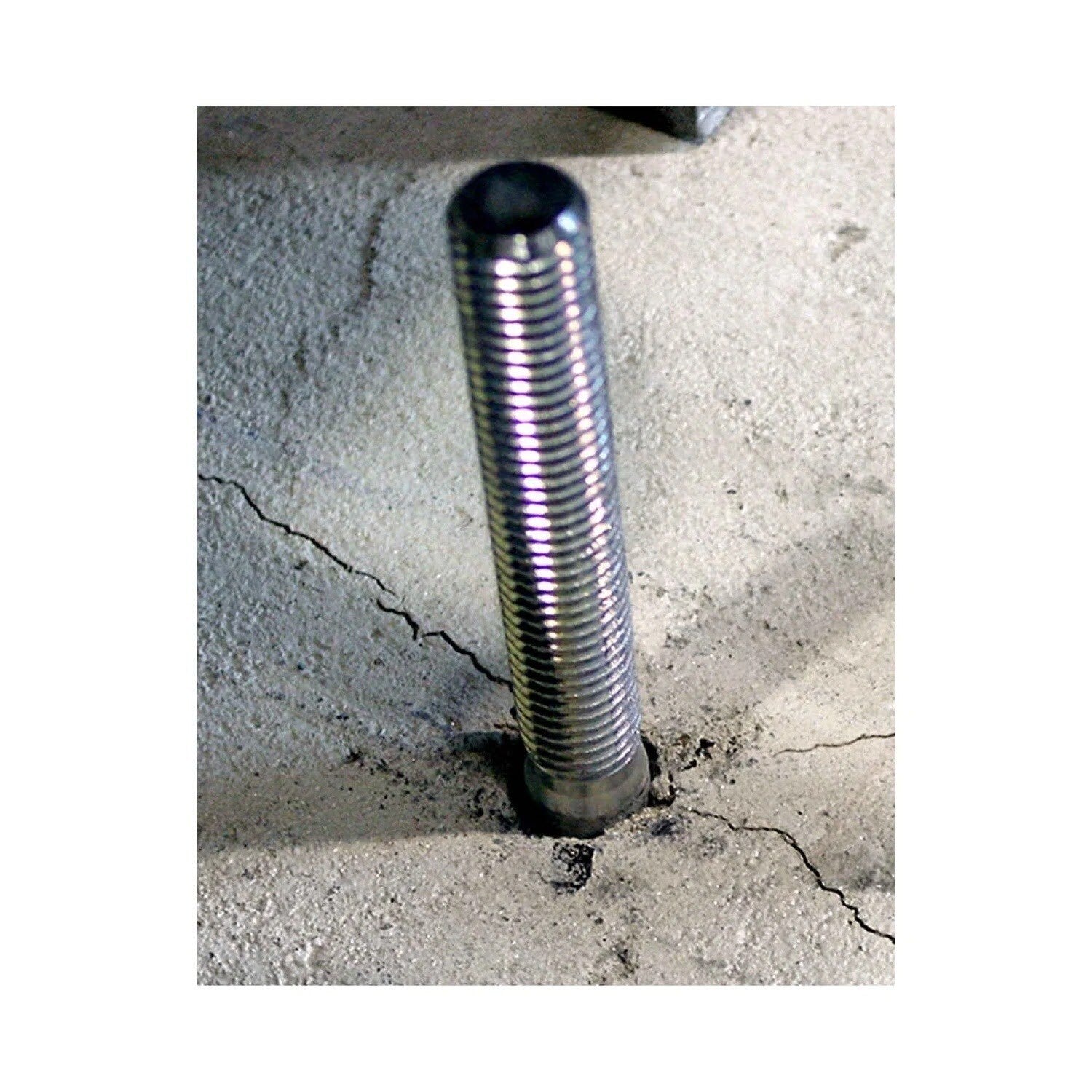

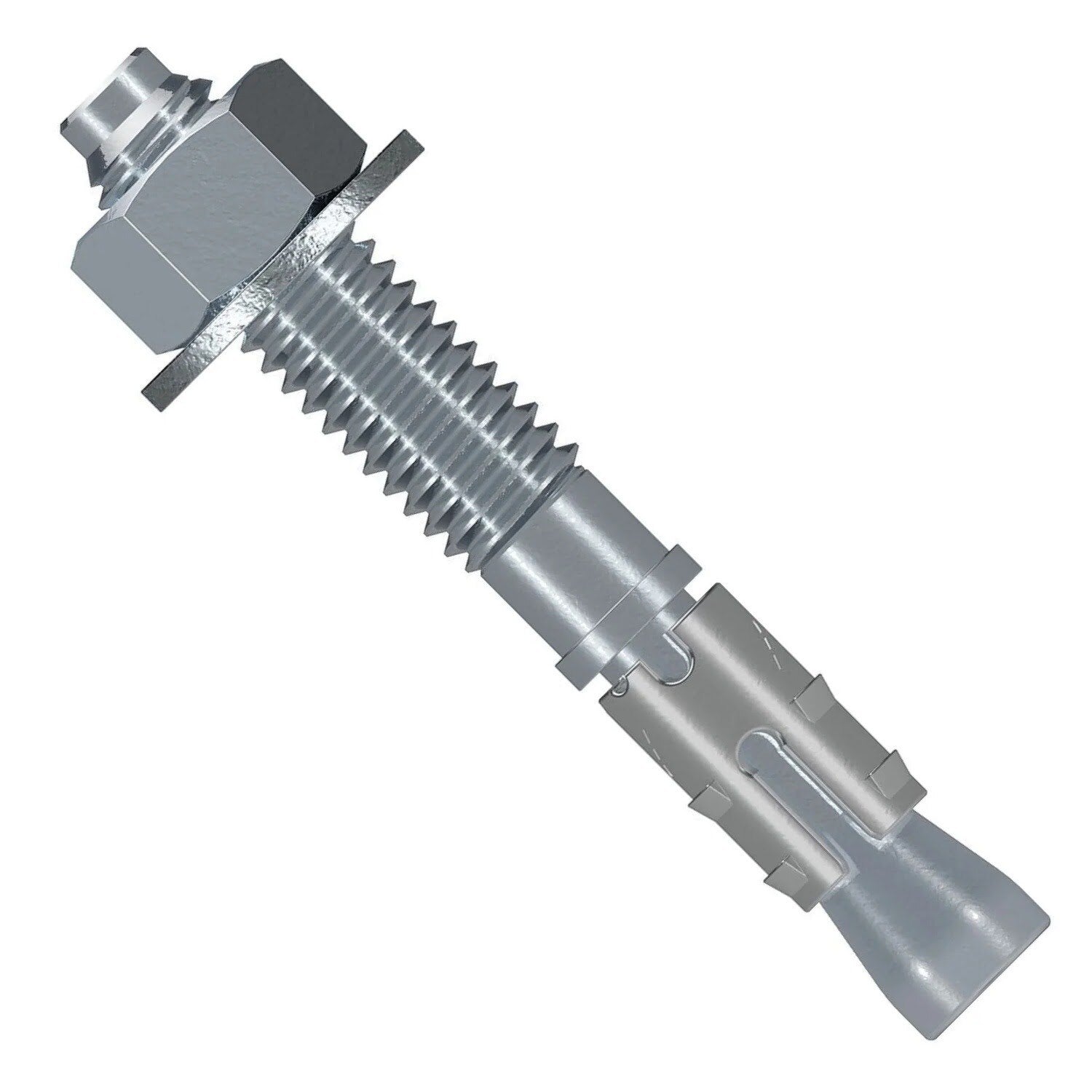

Simpson Strong-Bolt 2 Wedge Anchors are ICC-ES code compliant, suitable for cracked or uncracked concrete, and qualified for static and seismic loading.
Simpson STB2-372344SS Includes
- (50) 3/8" x 2-3/4" Strong-Bolt 2 Wedge Anchor
Simpson STB2-372344SS Features
- Non-bottom-bearing design
- ICC-ES code compliant
- Suitable for cracked and uncracked concrete
- Qualified for static and seismic loading
- Applicable for horizontal, vertical, and overhead installations
Simpson STB2-372344SS Applications

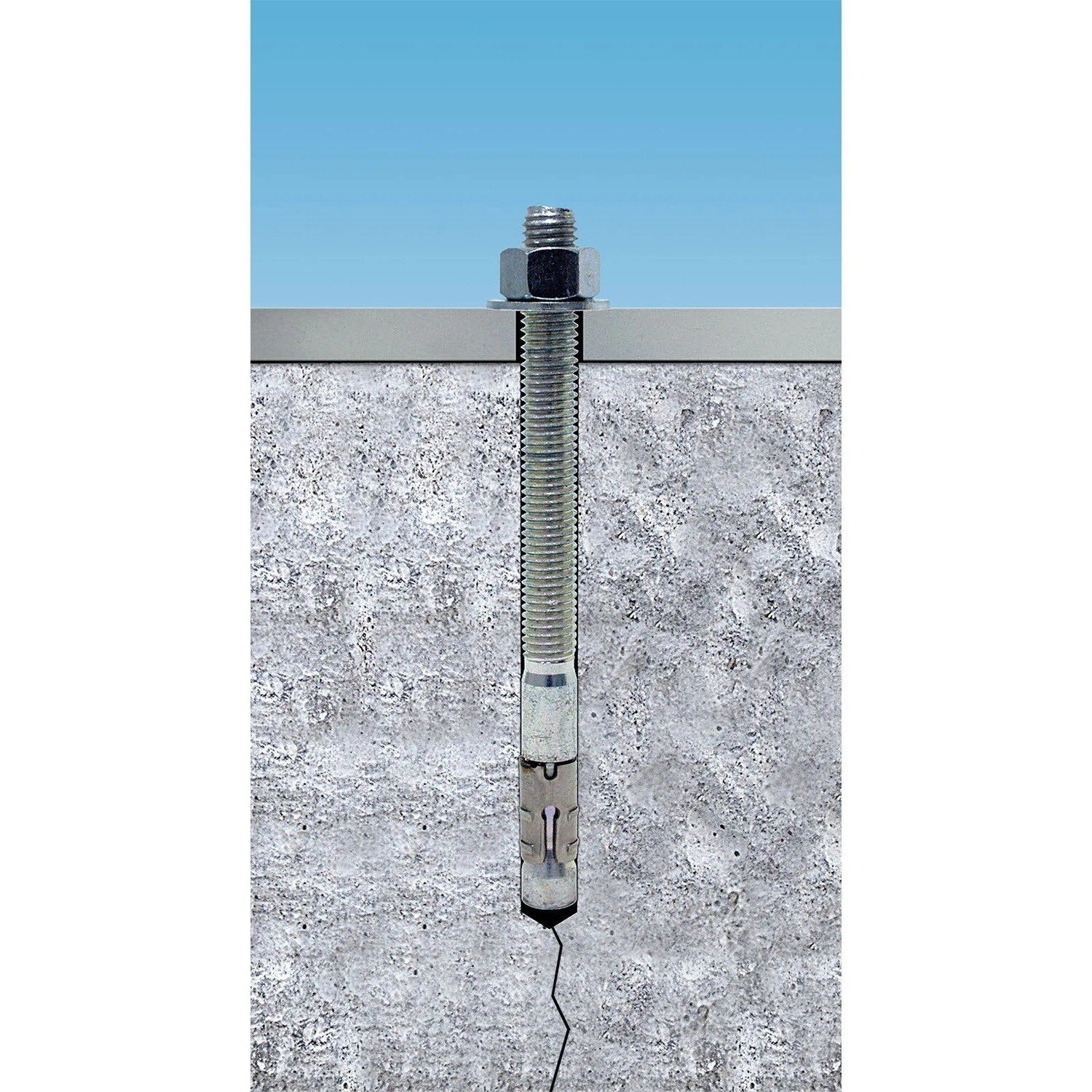

- Concrete anchoring in cracked or uncracked surfaces

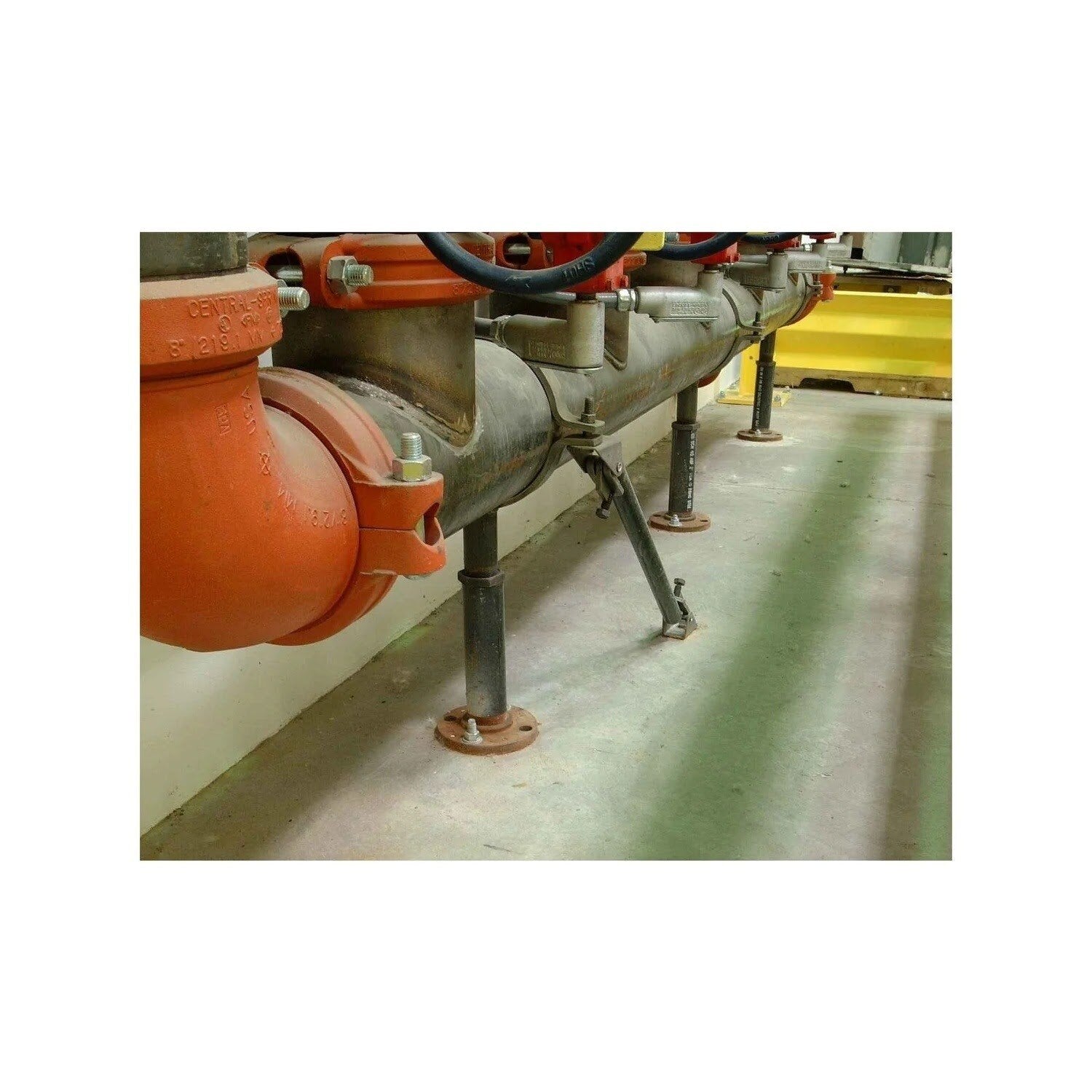

- Seismic load applications

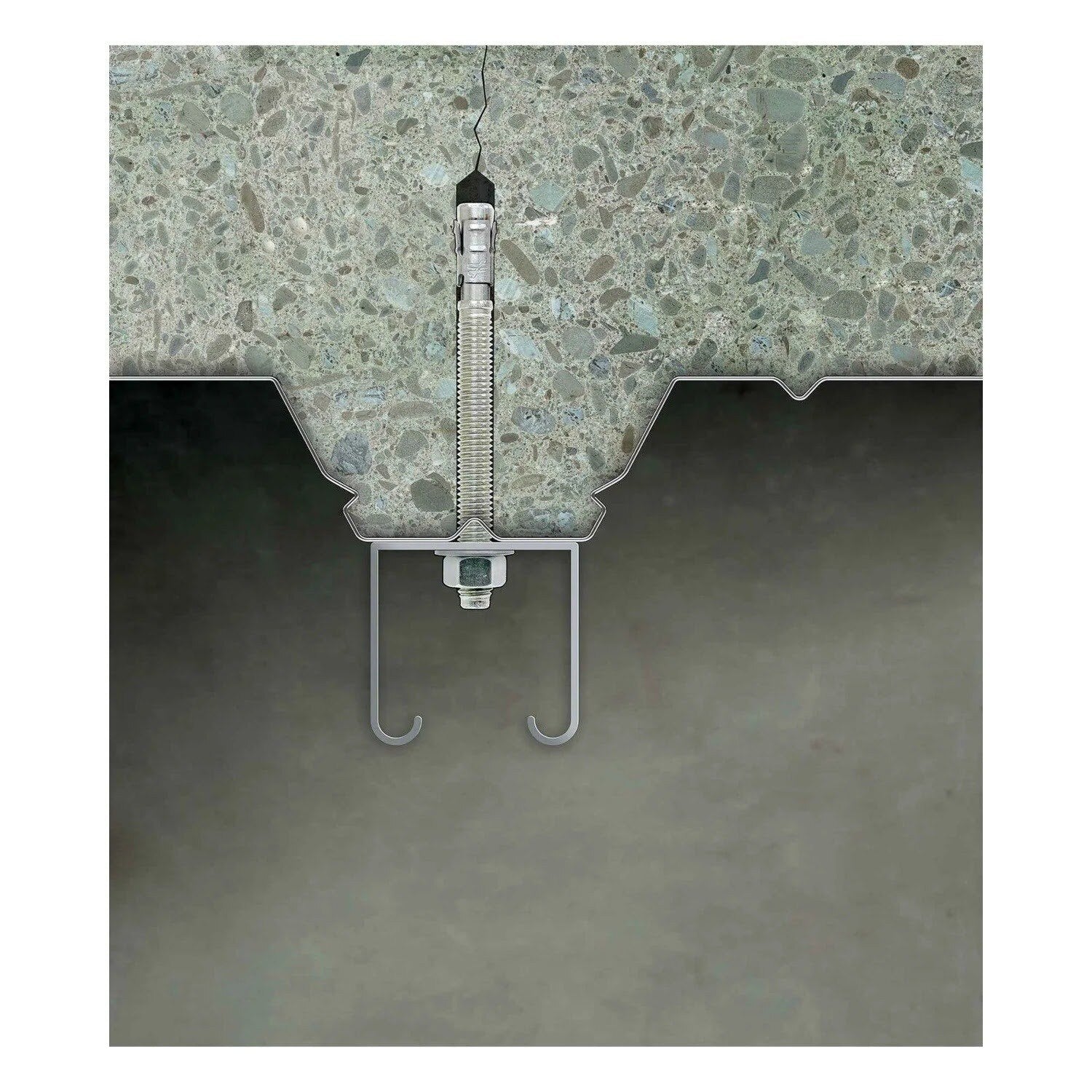

- Horizontal, vertical, and overhead anchoring

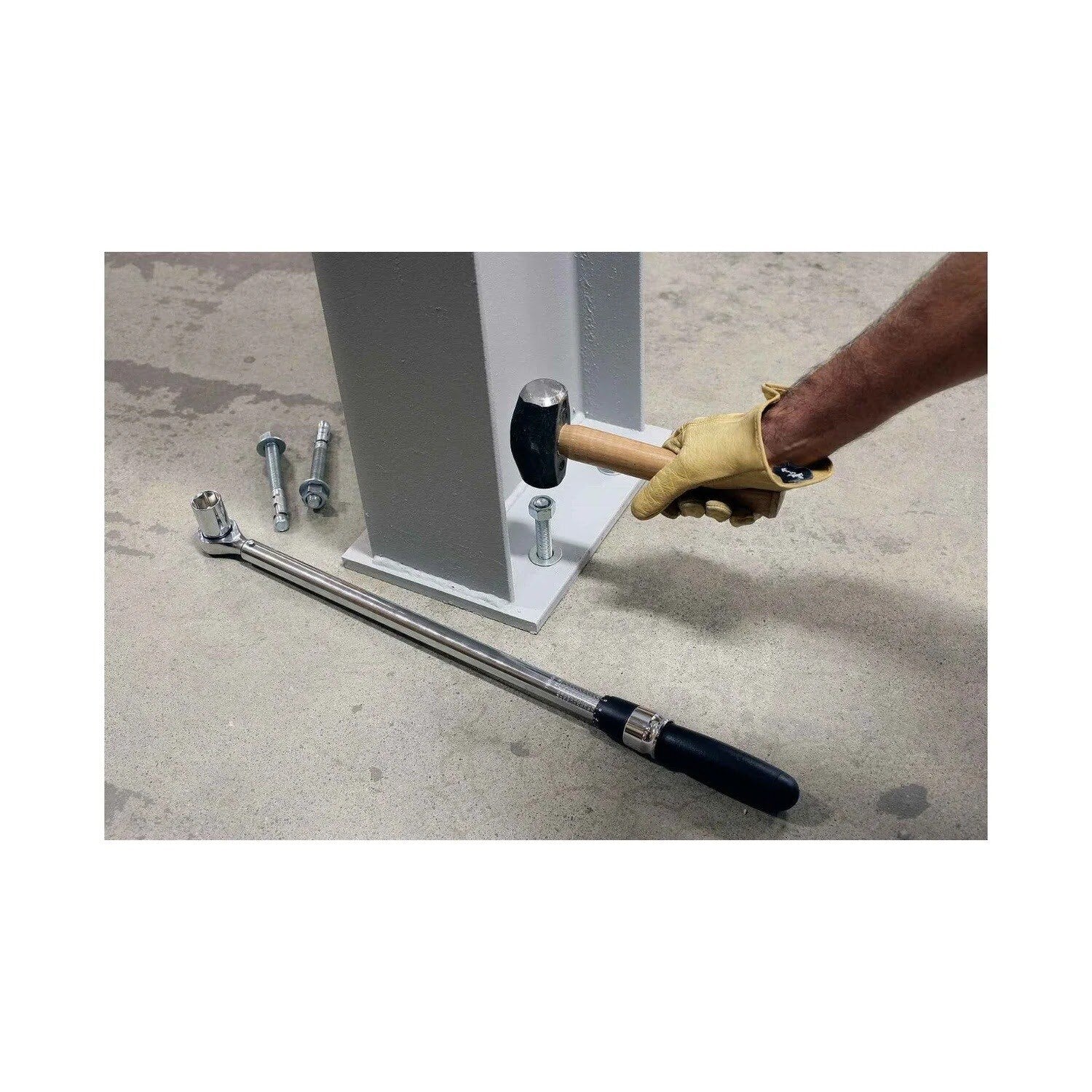

Simpson STB2-372344SS Installation Overview
- Drill a hole using a 3/8" drill bit
- Insert the anchor into the hole

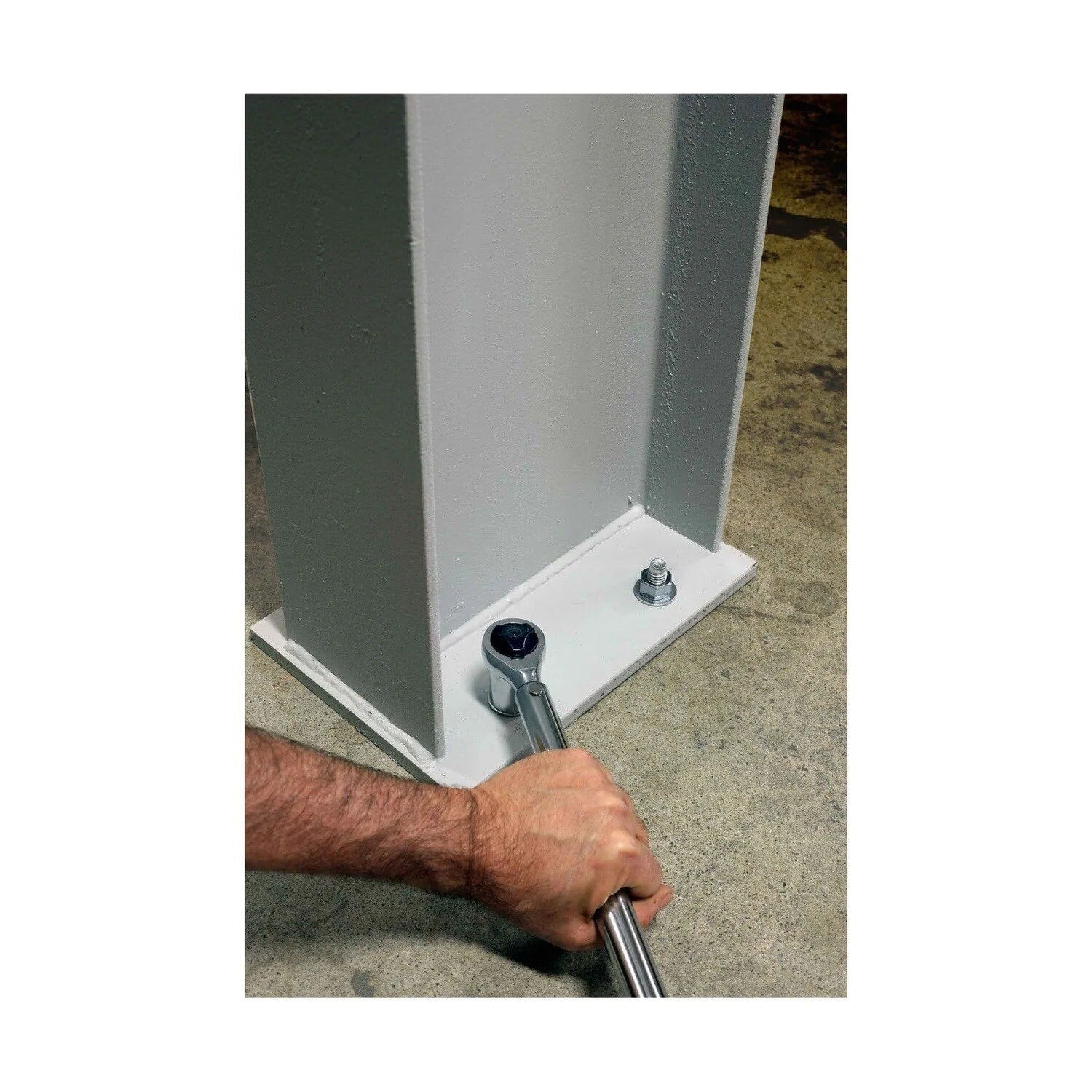

- Tighten the anchor using a torque wrench to 30 ft. lbs
Simpson STB2-372344SS Specifications
| Diameter | 3/8" |
| Length | 2-3/4" |
| Material | 304 Stainless Steel |
| Drill bit size | 3/8" |
| Installation torque | 30 ft. lbs |
| Thread length | 1-5/16" |
NOTE: Do not use an impact wrench to set or tighten anchors. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity
