Simpson Anchors | SKU:
STB2-37234F50

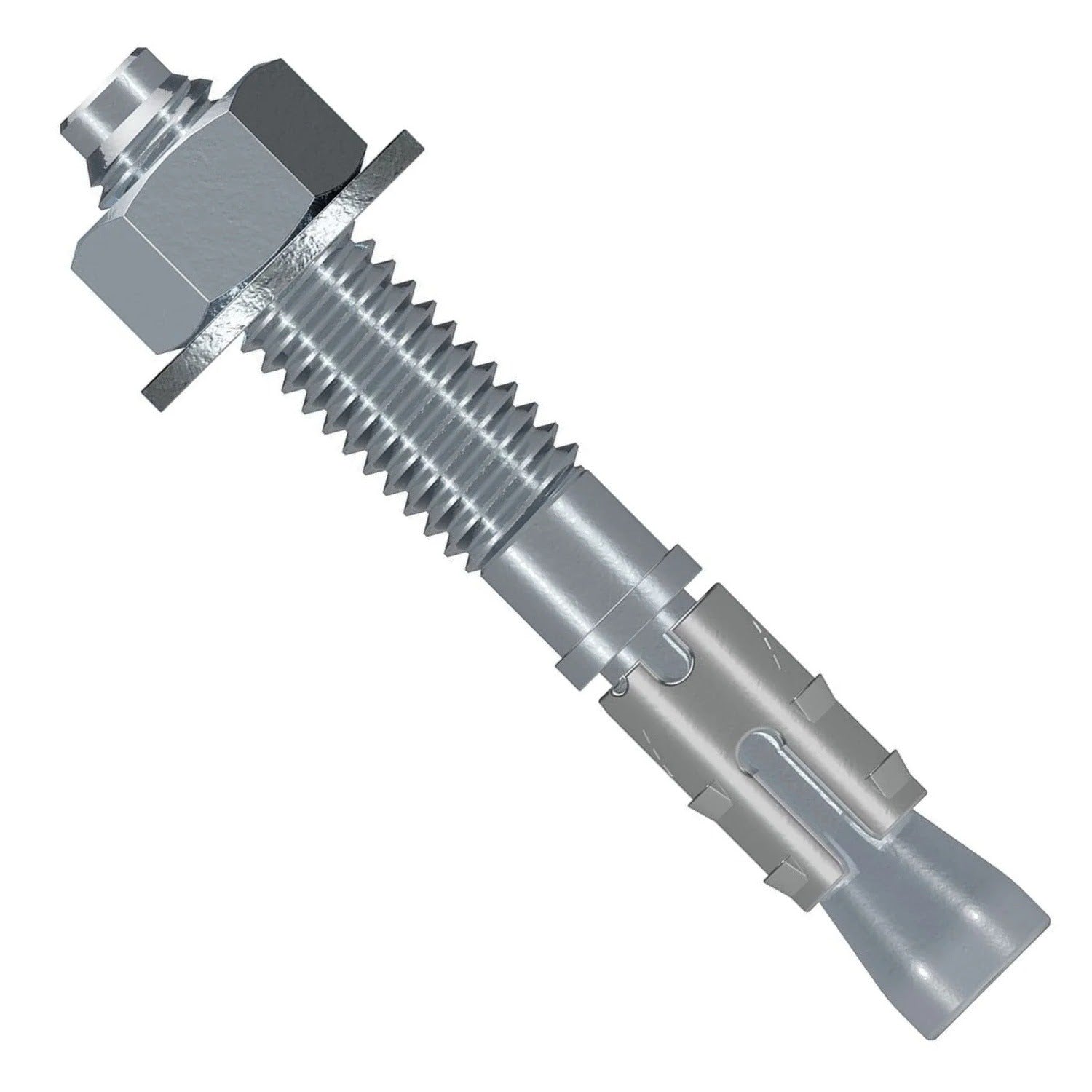

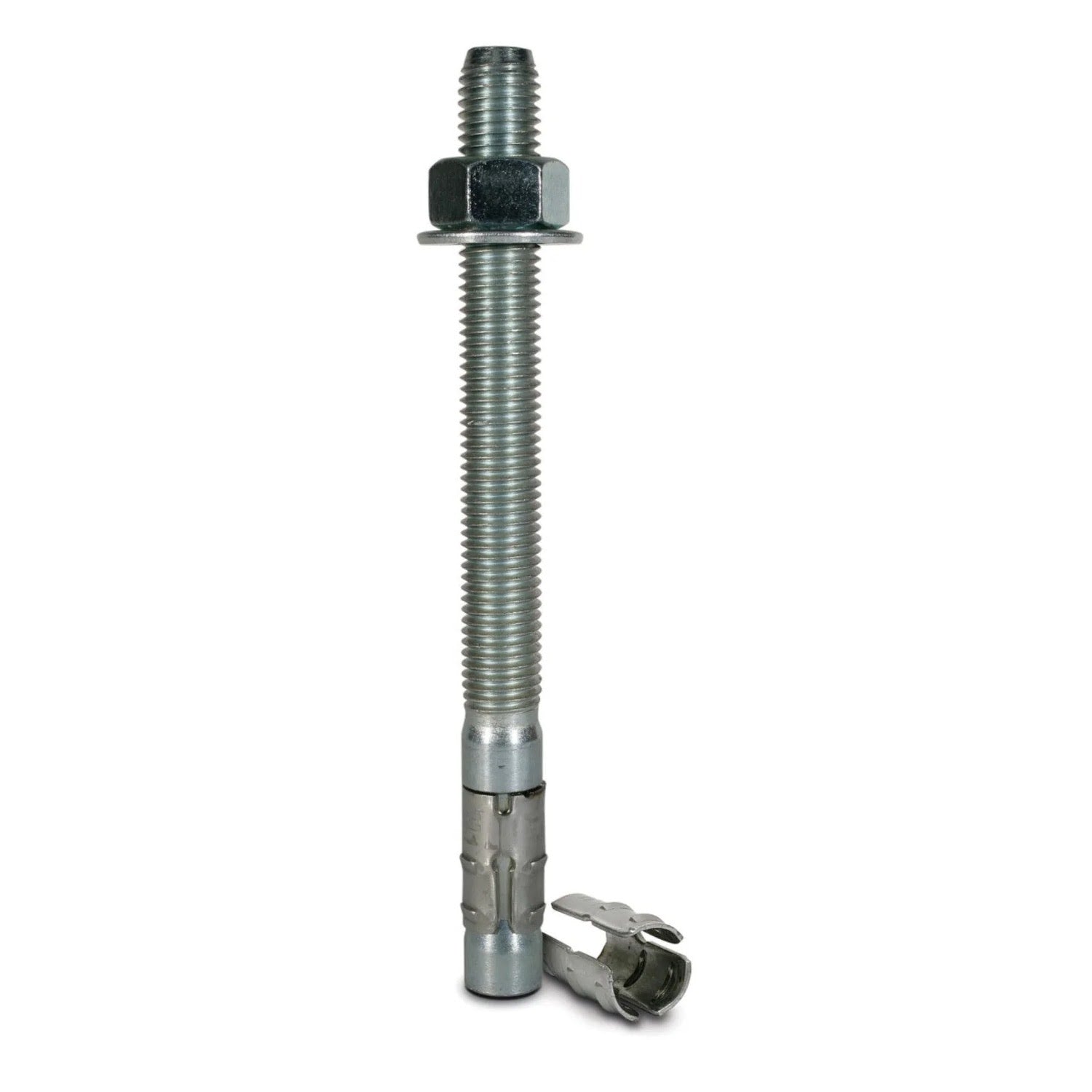

Simpson Strong-Tie STB2-37234F50 Strong-Bolt (3/8" x 2-3/4") 2 Wedge Anchor - Fully Assembled (50 Pack)
$23.74
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-37234F50 Description
The Simpson Strong-Tie Strong-Bolt 2 Wedge Anchors are engineered for reliable performance in both cracked and uncracked concrete, and masonry applications. These fully assembled anchors are suitable for static and seismic loading conditions, making them ideal for a variety of construction projects.
Simpson Strong-Tie STB2-37234F50 Includes
- (50) 3/8 in. x 2-3/4 in. Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-37234F50 Features

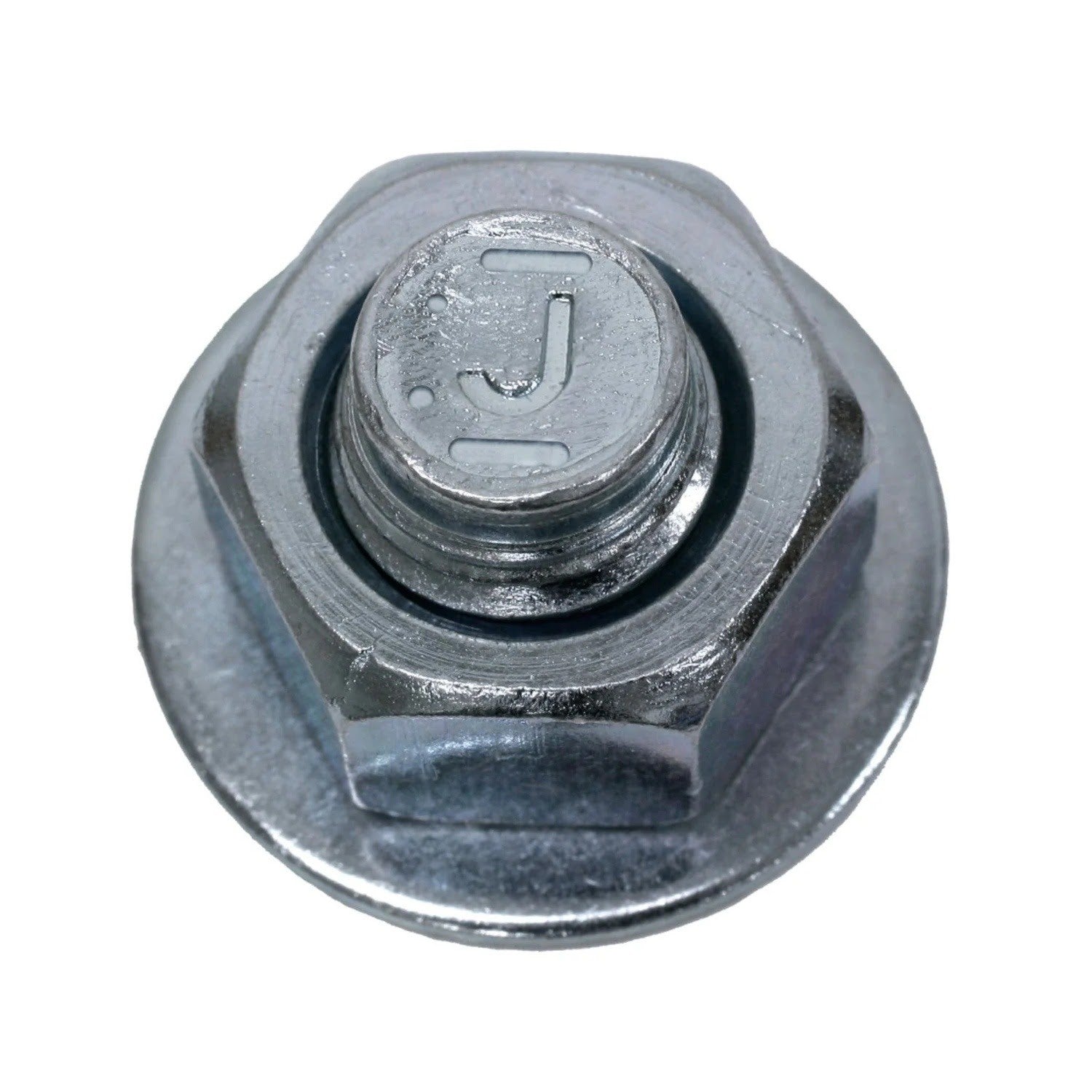

- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications
- Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-steel deck thickness of 2 1/2" and 3 1/4"
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested per ACI355.2 and AC193
Simpson Strong-Tie STB2-37234F50 Applications

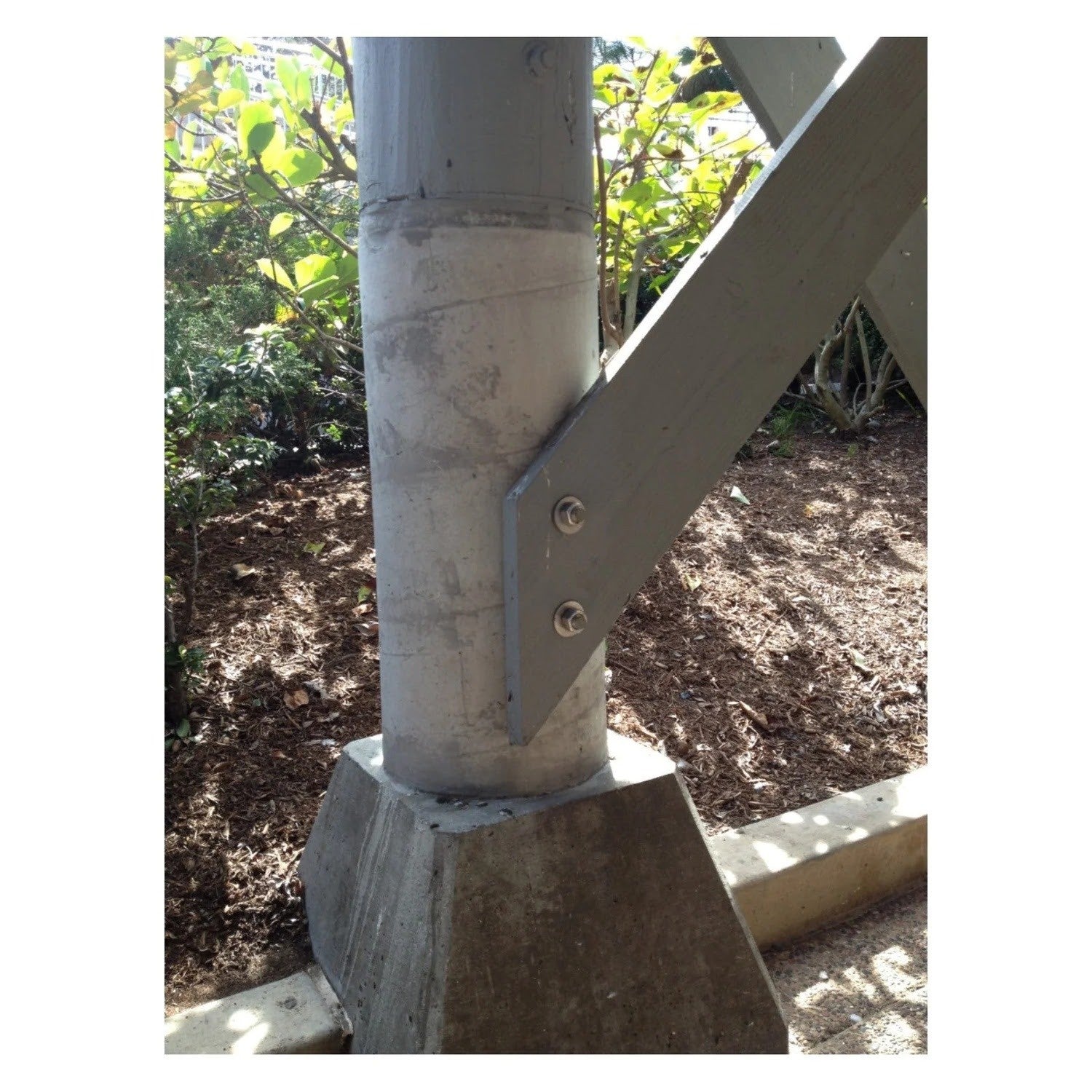

- Anchoring structural and non-structural elements such as pipes, struts, and fixtures
- Overhead indoor construction
- Mounting electrical equipment
- Warehouse racking

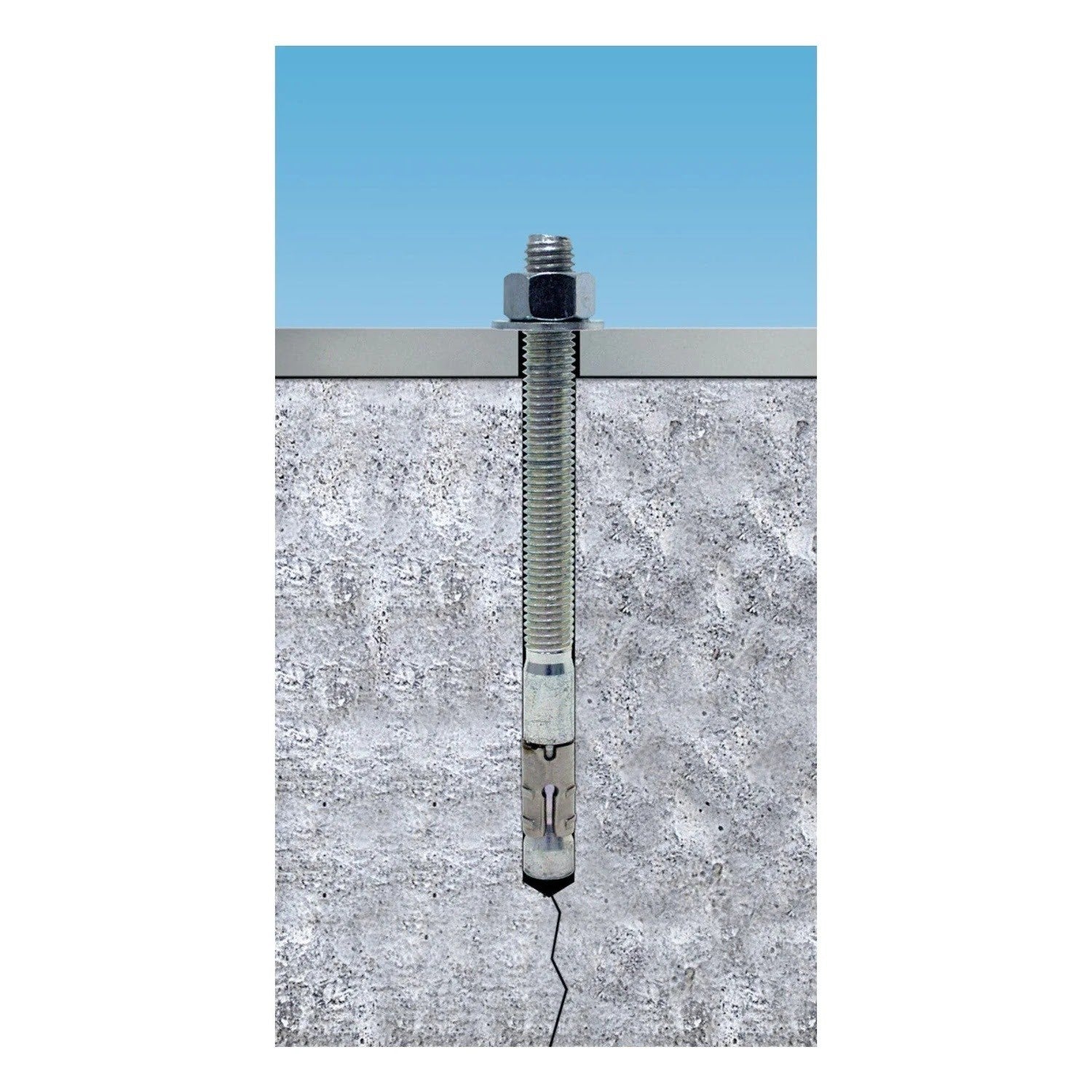

Simpson Strong-Tie STB2-37234F50 Installation Overview
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to the specified minimum hole depth, and blow it clean using compressed air.
- Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor. Place the anchor in the fixture, and drive it into the hole until the washer and nut are tight against the fixture.
- Tighten to the required installation torque.
Simpson Strong-Tie STB2-37234F50 Specifications
| Material | Zinc-plated carbon steel |
| Diameter | 3/8 in. |
| Length | 2-3/4 in. |
| Thread Length | 1-5/16 in. |
| Drill Bit Size | 3/8 in. |
| Quantity | 50 |
NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity.
