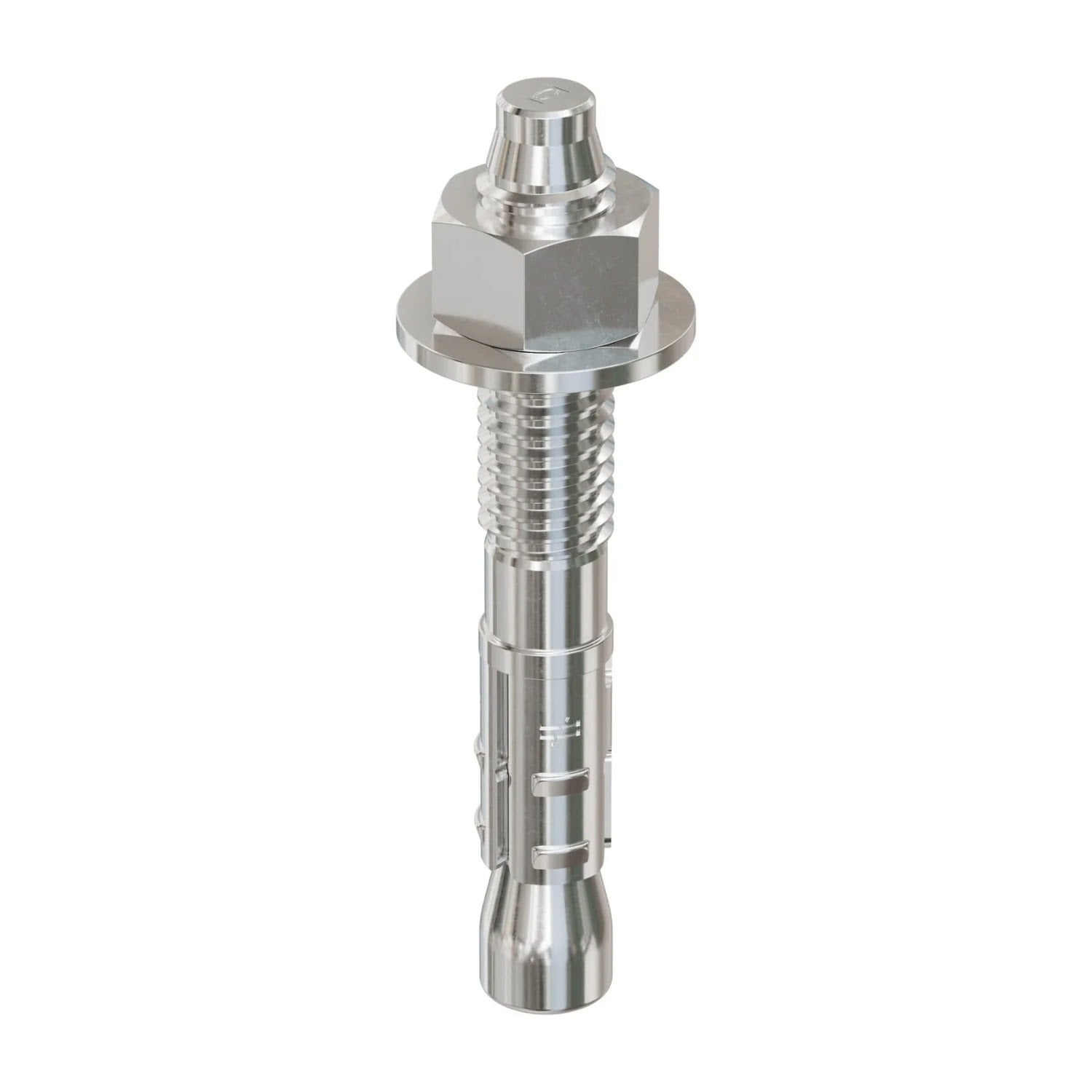

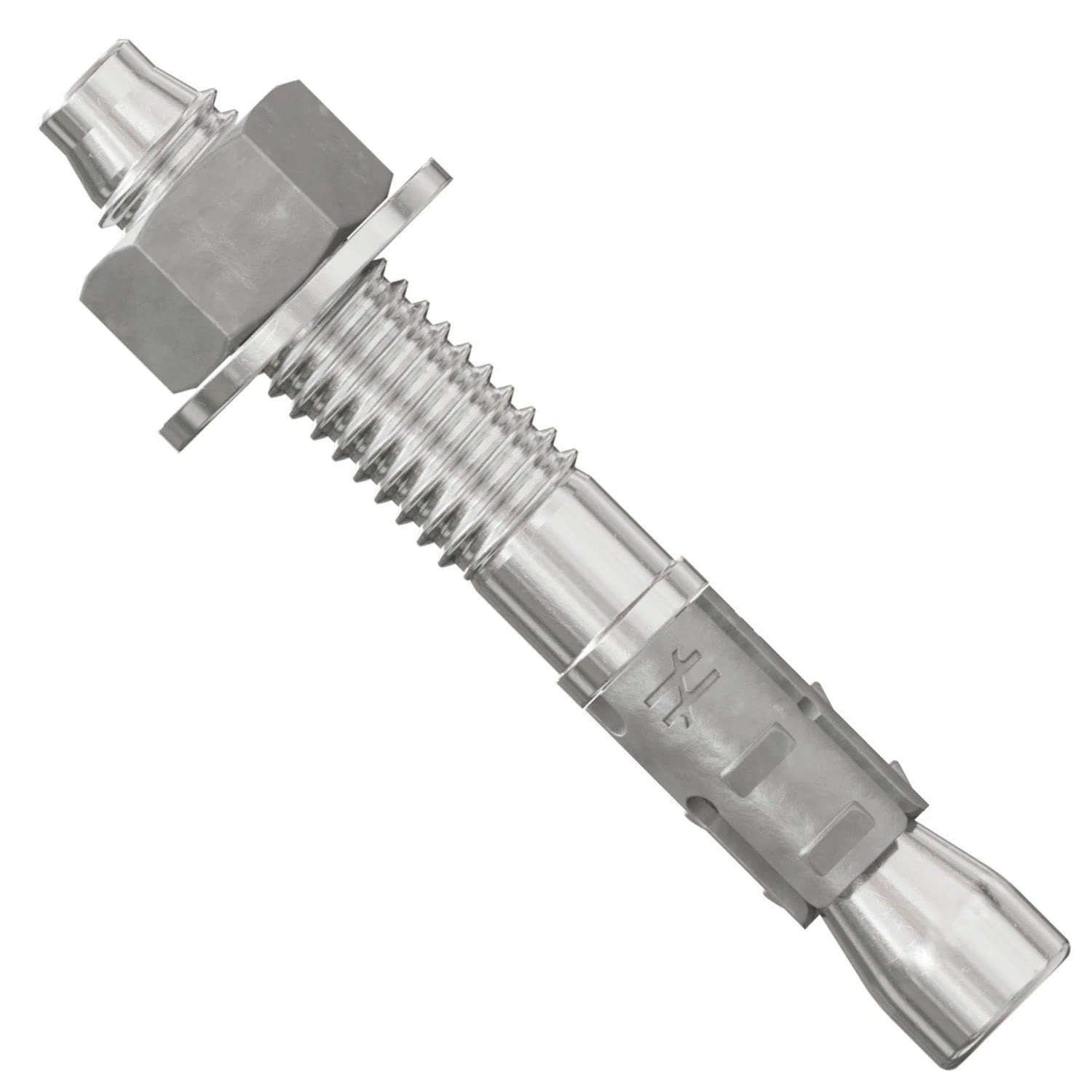

Simpson Strong-Tie STB2-37234S4F50 Description
The Simpson Strong-Tie Strong-Bolt 2 Wedge Anchors in 304 stainless steel deliver powerful performance and dependable holding strength for concrete anchoring projects.
Simpson Strong-Tie STB2-37234S4F50 Includes

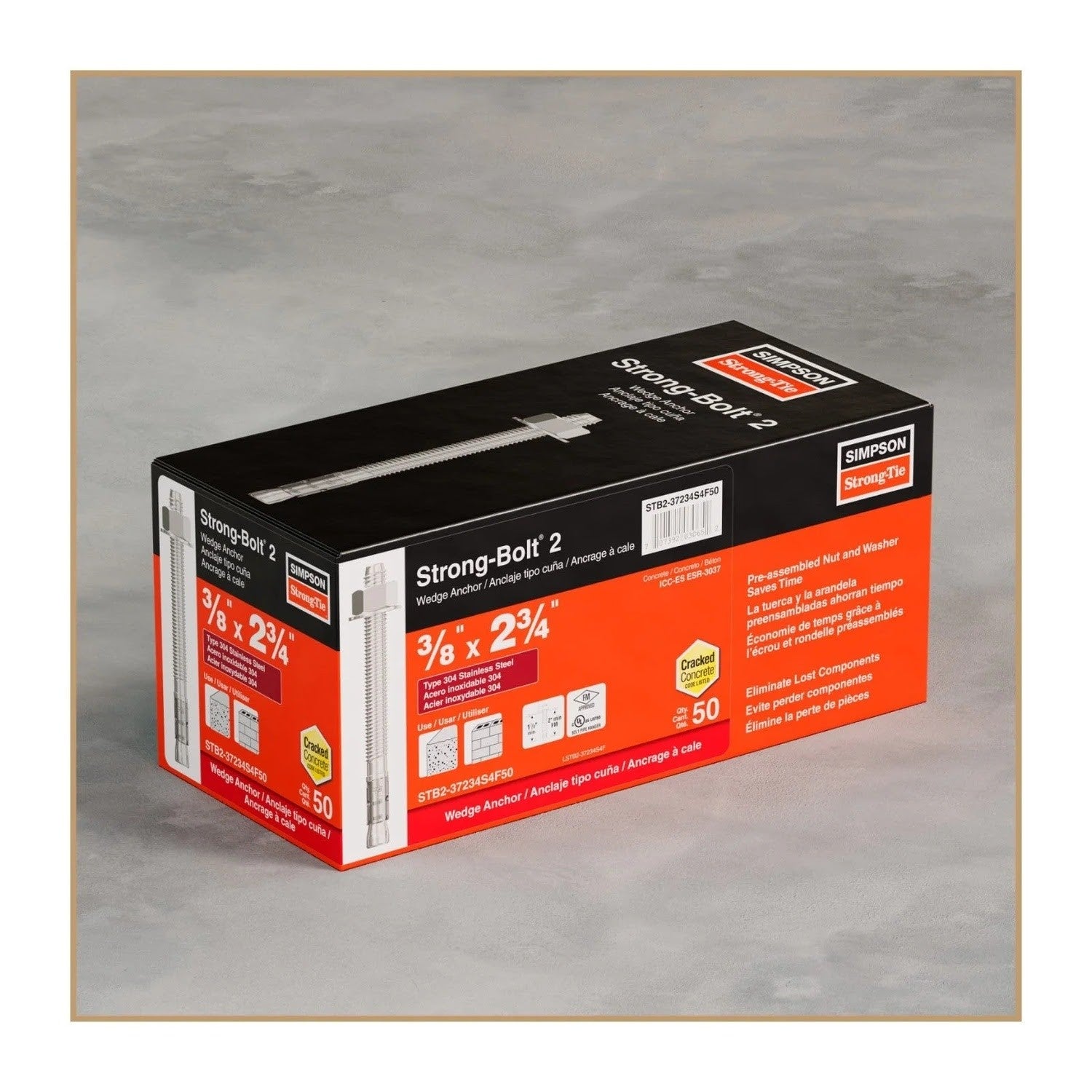

- (50) 3/8" x 2-3/4" Strong-Bolt 2 Fully Assembled Wedge Anchor
Simpson Strong-Tie STB2-37234S4F50 Features

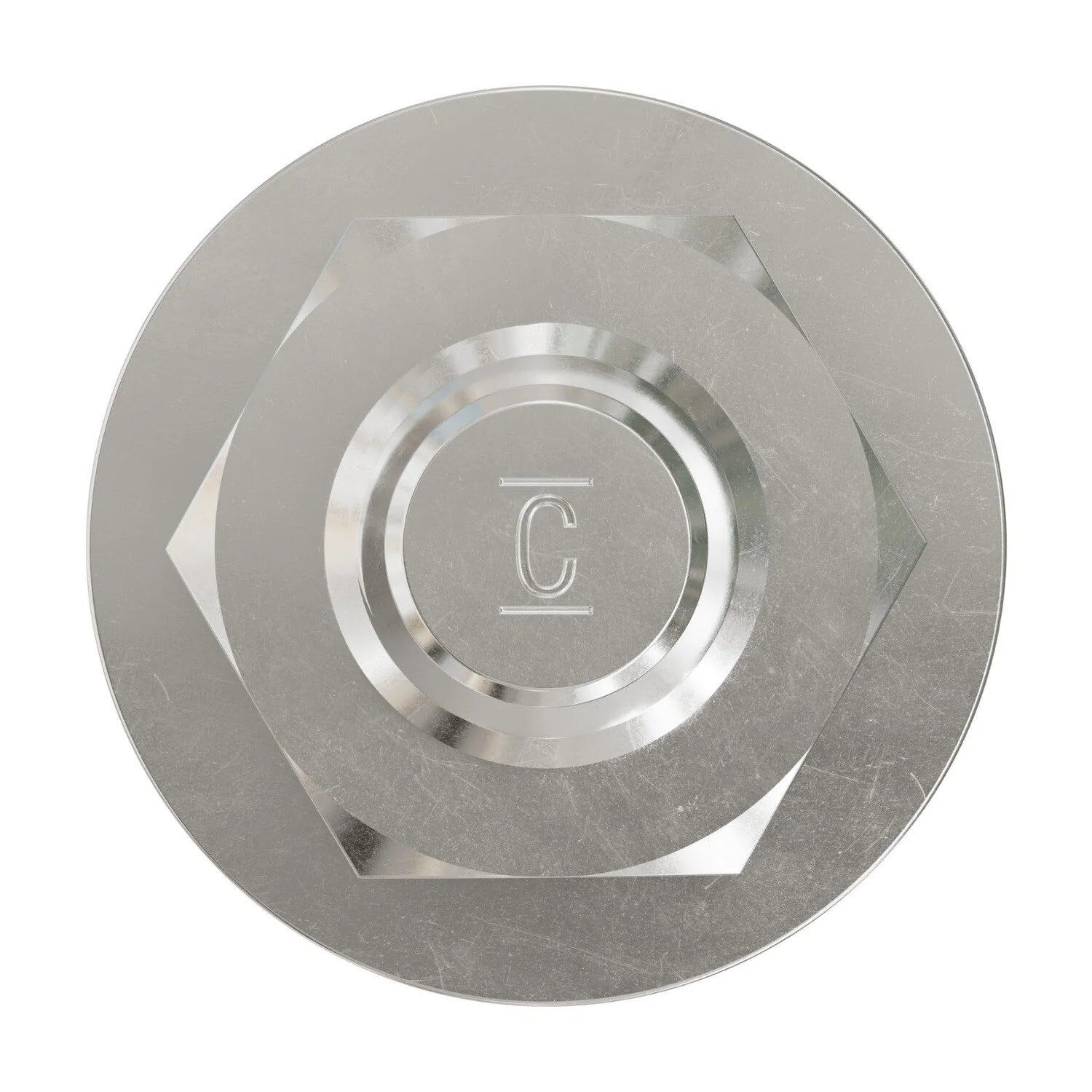

- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Made from high-quality 304 stainless steel for corrosion resistance
- Pre-assembled for faster installation
Simpson Strong-Tie STB2-37234S4F50 Applications
- Structural steel anchoring
- Machinery and equipment fastening
- Racking systems installation
- Ledger attachments
- Post bases anchoring
Simpson Strong-Tie STB2-37234S4F50 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air.
- Assemble the anchor with nut and washer, ensuring the nut is flush with the anchor top.
- Place the anchor in the fixture and drive it into the hole.
- Tighten the anchor to the required installation torque.
Simpson Strong-Tie STB2-37234S4F50 Specifications
| Diameter | 3/8" |
| Length | 2-3/4" |
| Material | 304 Stainless Steel |
| Drill bit size | 3/8" |
| Fixture hole size | 7/16" |
| Installation torque | 20 ft. lbf. |
| Thread length | 1-5/16" |
| Wrench size | 9/16" |
NOTE: Ensure the anchor is installed with the correct torque and in properly sized holes to achieve optimal performance.
