Simpson Anchors | SKU:
STB2-37300C50

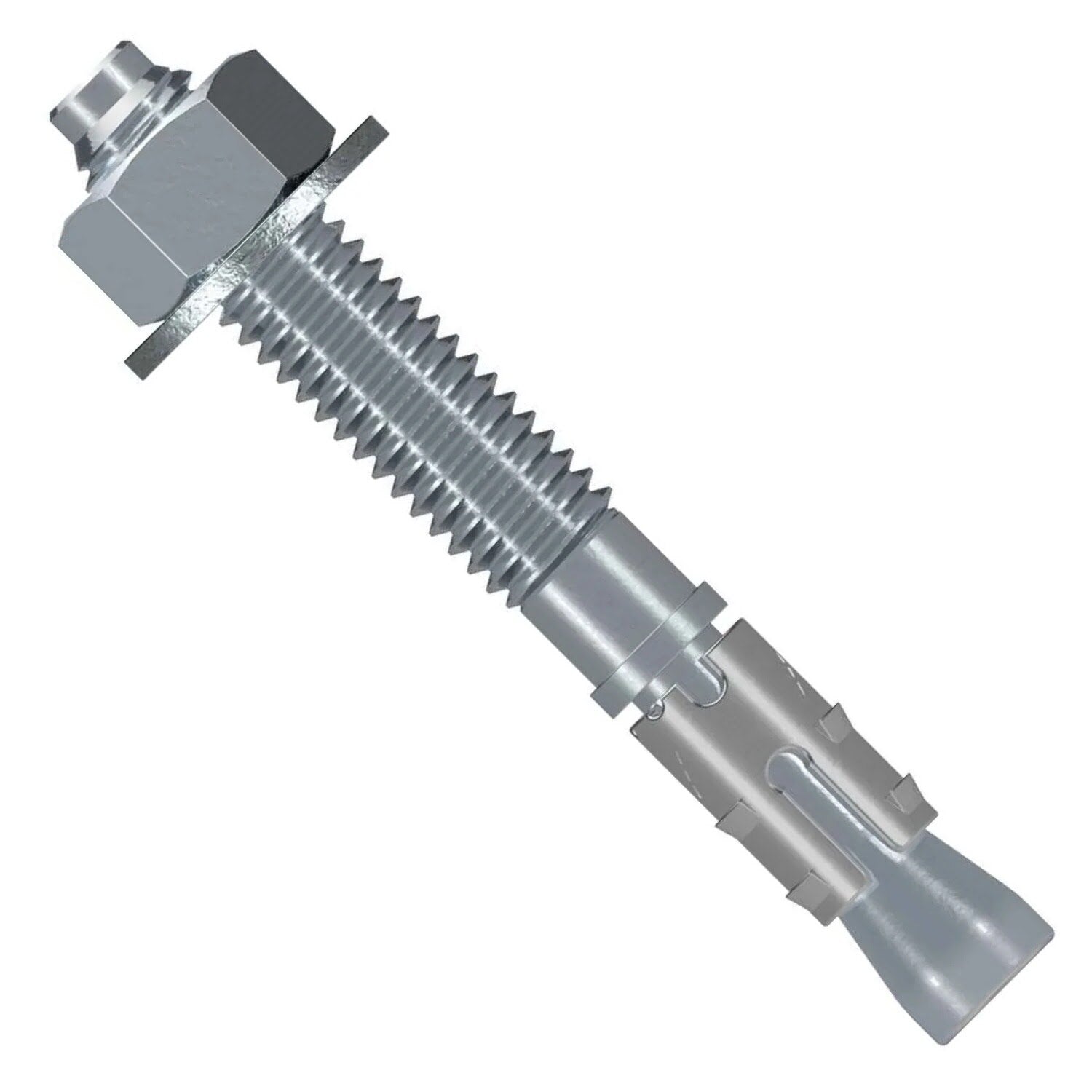

Simpson Strong-Tie STB2-37300C50 Strong Bolt (3/8" x 3") Zinc-Plated Carbon Steel Wedge Anchor (50 Pack)
$30.97
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-37300C50 Description
The Simpson Strong-Bolt 2 Wedge Anchor is a reliable, ICC-ES code compliant anchor designed for cracked and uncracked concrete. It is suitable for static and seismic loading in horizontal, vertical, and overhead applications.
Simpson Strong-Tie STB2-37300C50 Includes
- (50) 3/8" x 3" Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-37300C50 Features
- Non-bottom-bearing design for versatile installation
- ICC-ES code compliant for cracked and uncracked concrete
- Qualified for static and seismic loading
- Zinc-plated for corrosion resistance
- Suitable for horizontal, vertical, and overhead applications

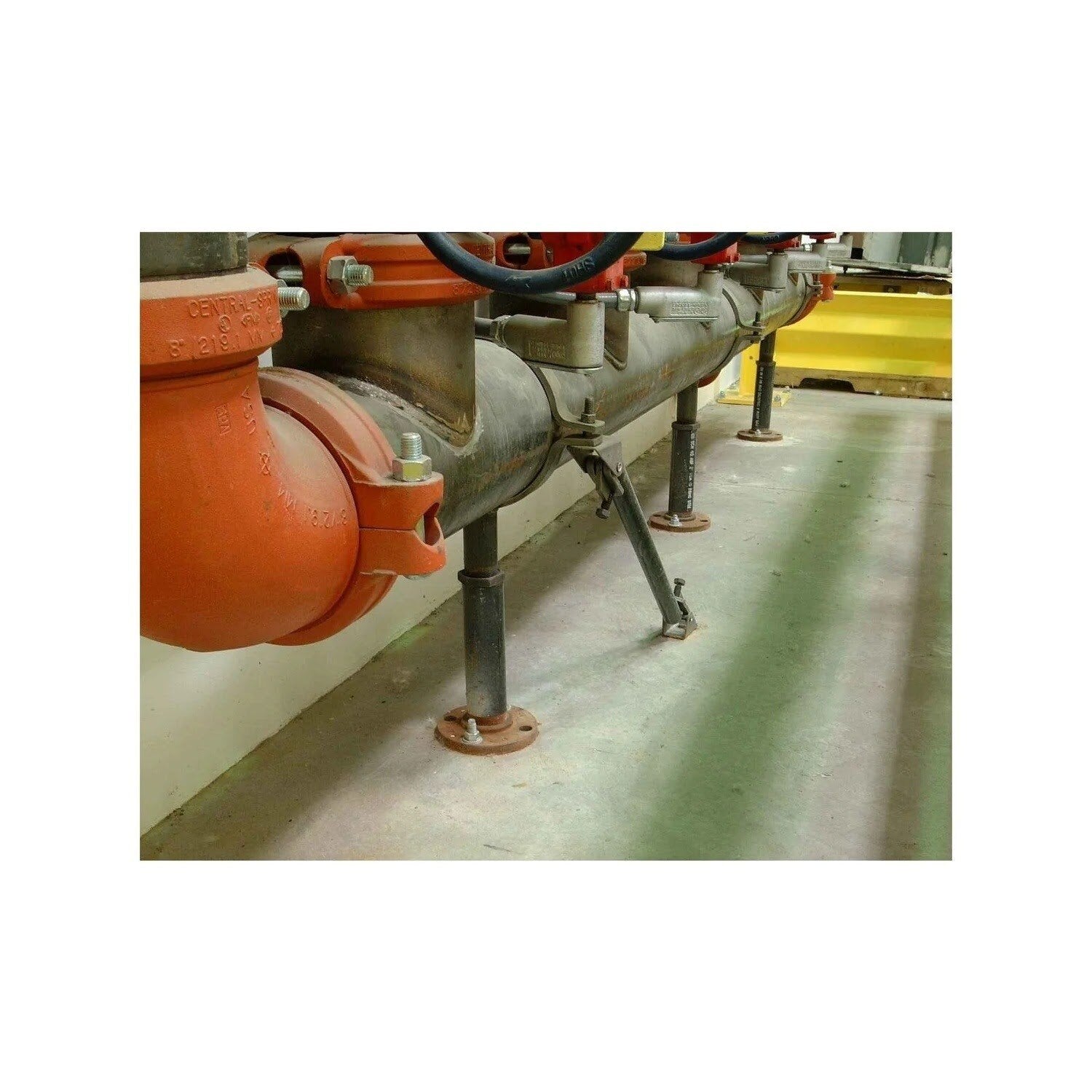

Simpson Strong-Tie STB2-37300C50 Applications

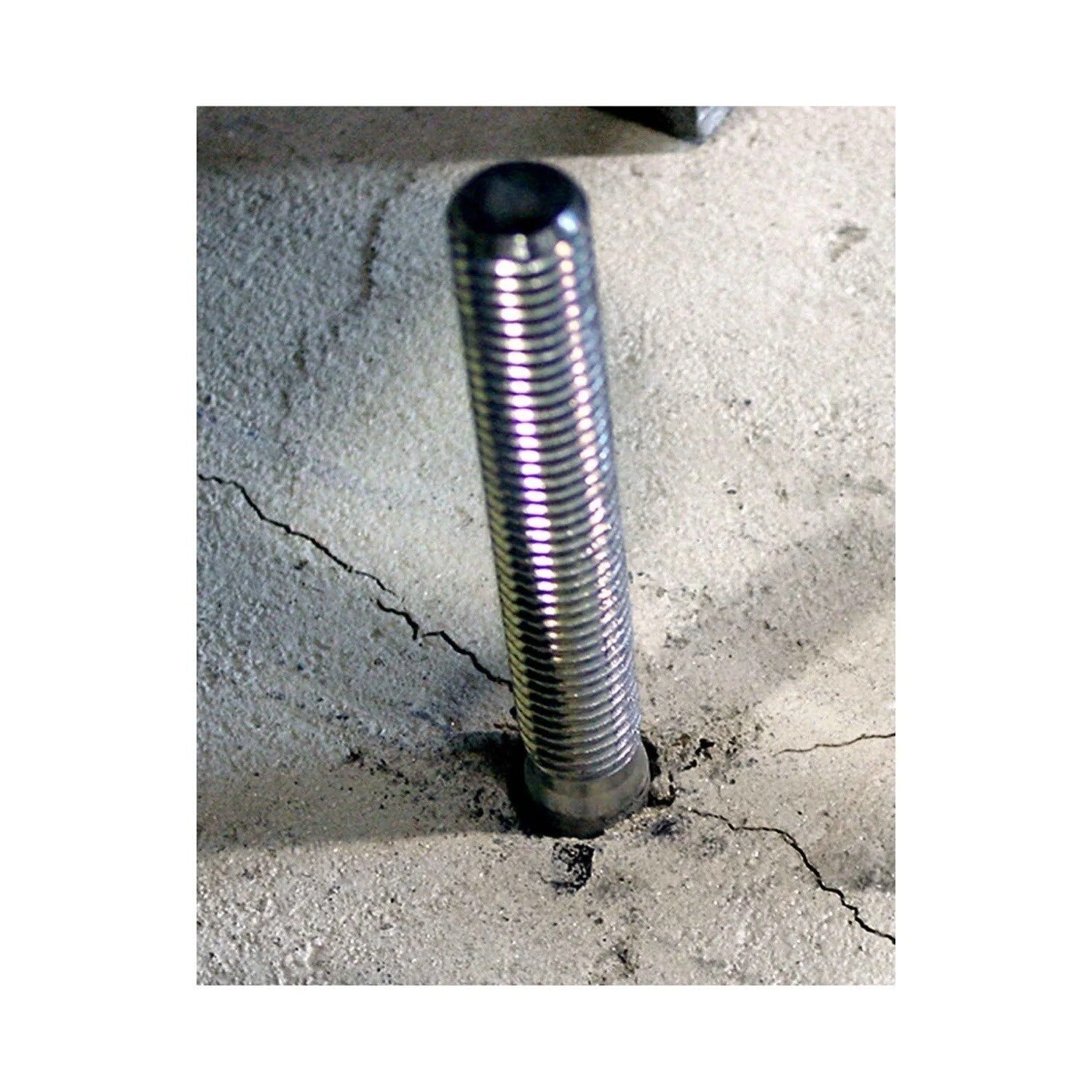

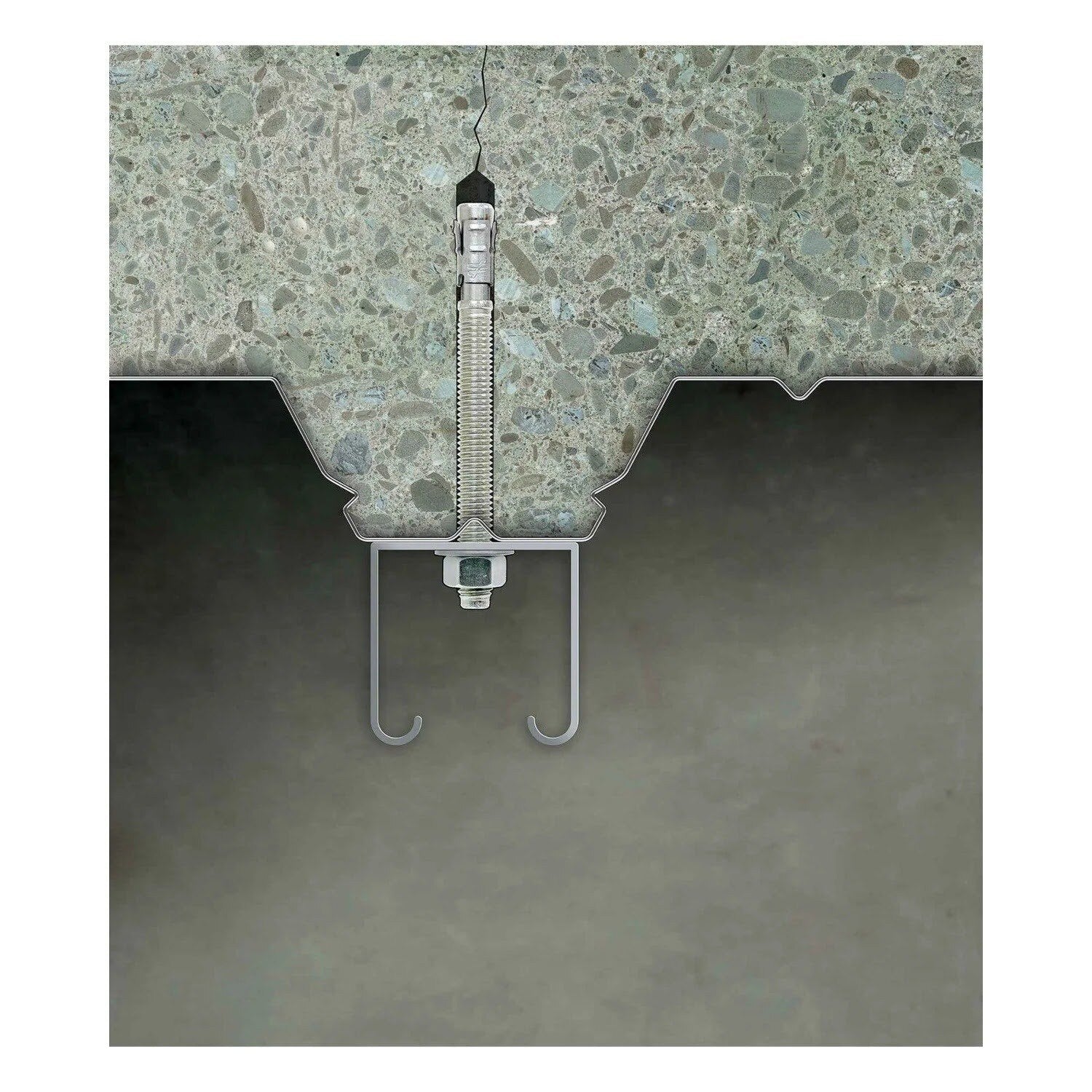

- Cracked and uncracked concrete anchoring
- Seismic and static load applications
- Horizontal, vertical, and overhead installations

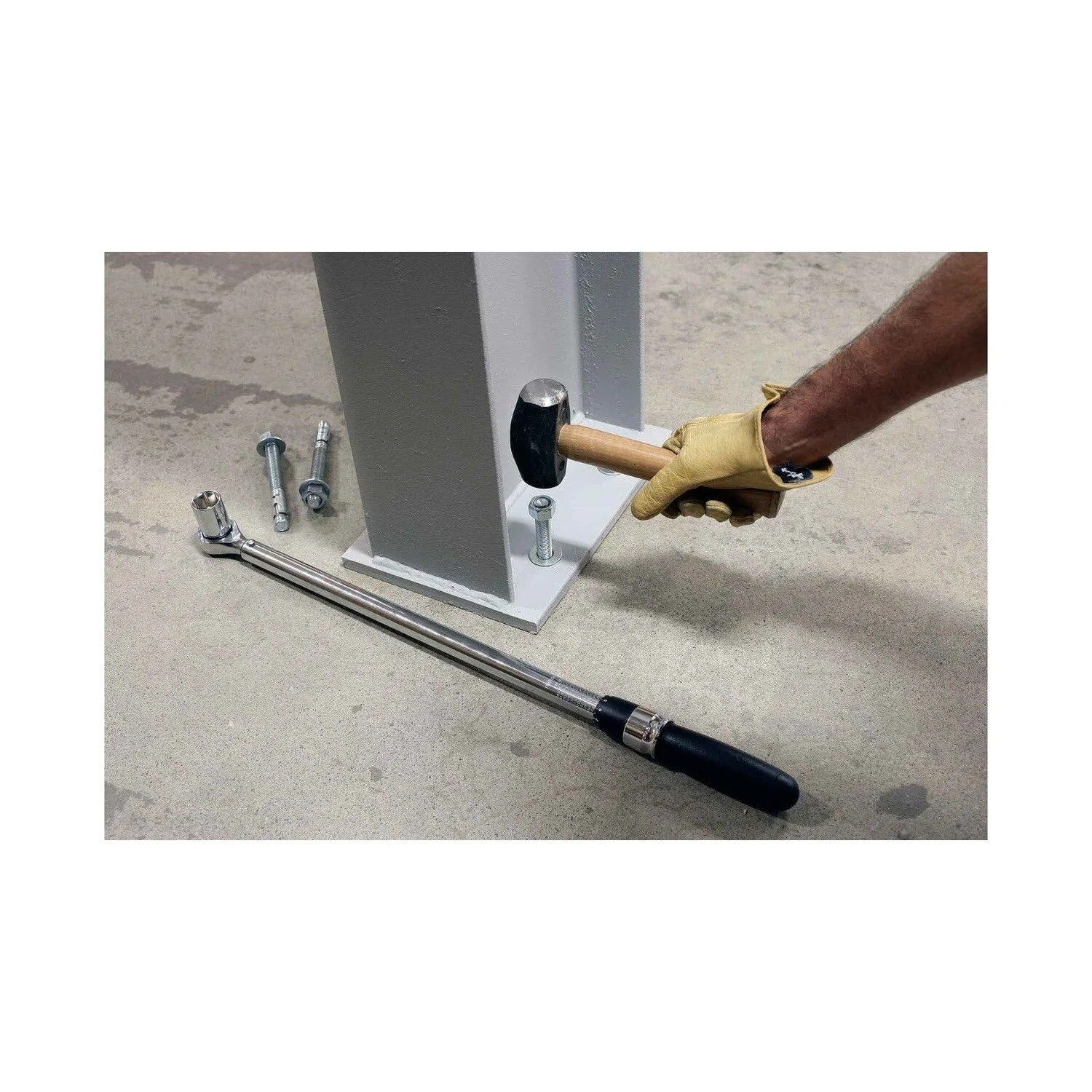

Simpson Strong-Tie STB2-37300C50 Installation Overview
- Drill a hole using a 3/8" drill bit to the specified depth.
- Insert the anchor into the hole.

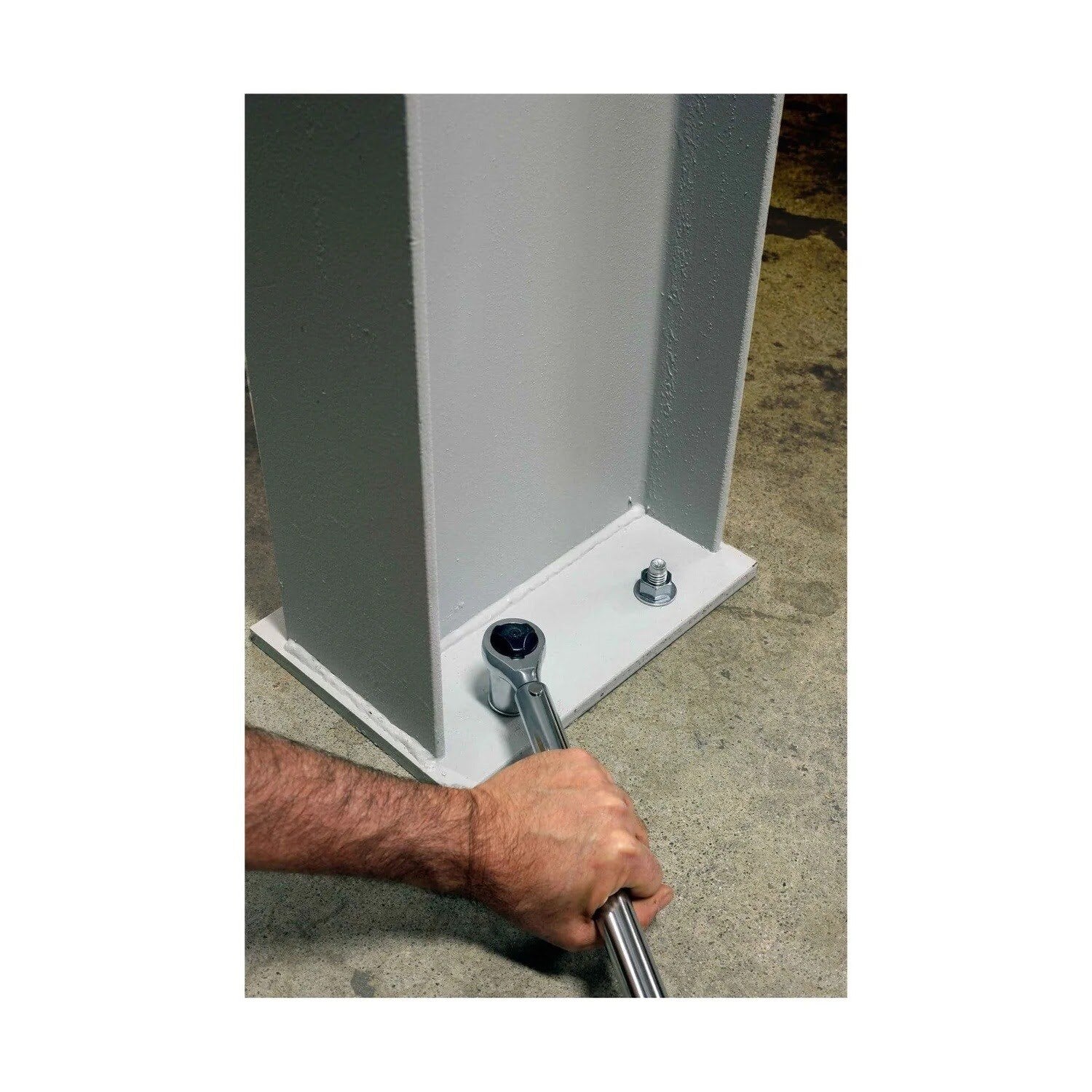

- Tighten the anchor using a wrench to the specified torque of 30 ft. lbs.
- Ensure the anchor is securely set and properly aligned.
Simpson Strong-Tie STB2-37300C50 Specifications
| Diameter | 3/8" |
| Finish | Zinc Plated |
| Length | 3" |
| Material | Carbon Steel |
| Drill bit size | 3/8" |
| Installation torque | 30 ft. lbs |
| Quantity | 50 |
