Simpson Anchors | SKU:
STB2-37300S6F50

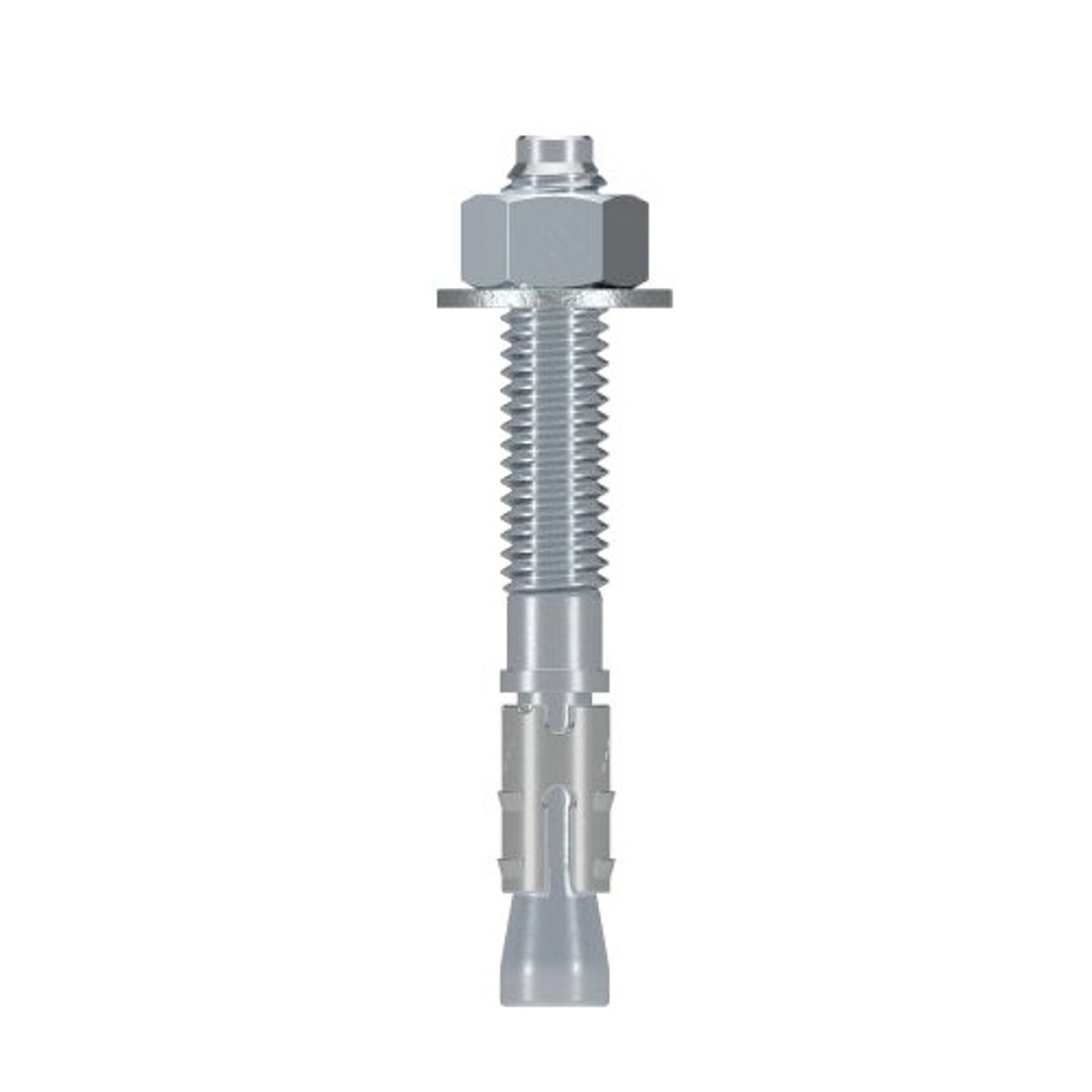

Simpson Strong-Tie STB2-37300S6F50 Strong Bolt (3/8" x 3") Fully Assembled 2 Wedge Anchor - Type 316 (50 Pack)
$177.86
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-37300S6F50 Description
The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors are engineered for maximum performance in corrosive environments, ideal for heavy-duty fastening into cracked or uncracked concrete.
Simpson Strong-Tie STB2-37300S6F50 Includes
- (50) 3/8 in. x 3 in. Type 316 Stainless-Steel Wedge Anchor
Simpson Strong-Tie STB2-37300S6F50 Features
- 316 Stainless Steel Construction for exceptional corrosion resistance
- Fully Assembled with nut and washer for faster installation
- ICC-ES ESR-3037 code listed for cracked and uncracked concrete applications
- Suitable for anchoring structural supports, machinery, railing systems, and more
- Multiple diameter and length options available
Simpson Strong-Tie STB2-37300S6F50 Applications
- Marine environments requiring corrosion-resistant anchoring
- Heavy-duty fastening in cracked or uncracked concrete
- Structural connections in coastal commercial builds
- Anchoring handrails in residential garages
- Reinforcing structural supports in wastewater and chemical exposure environments
Simpson Strong-Tie STB2-37300S6F50 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air.
- Assemble the anchor with nut and washer, ensuring the nut is flush with the top of the anchor.
- Place the anchor in the fixture and drive it into the hole until the washer and nut are tight against the fixture.
- Tighten to the required installation torque.
Simpson Strong-Tie STB2-37300S6F50 Specifications
| Diameter | 3/8" |
| Length | 3" |
| Material | 316 Stainless Steel |
| Drill bit size | 3/8" |
| Fixture hole size | 7/16" |
| Installation torque | 20 ft. lbf. |
| Thread length | 1-9/16" |
| Wrench size | 9/16" |
NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity.
