Simpson Anchors | SKU:
STB2-37312S6F50

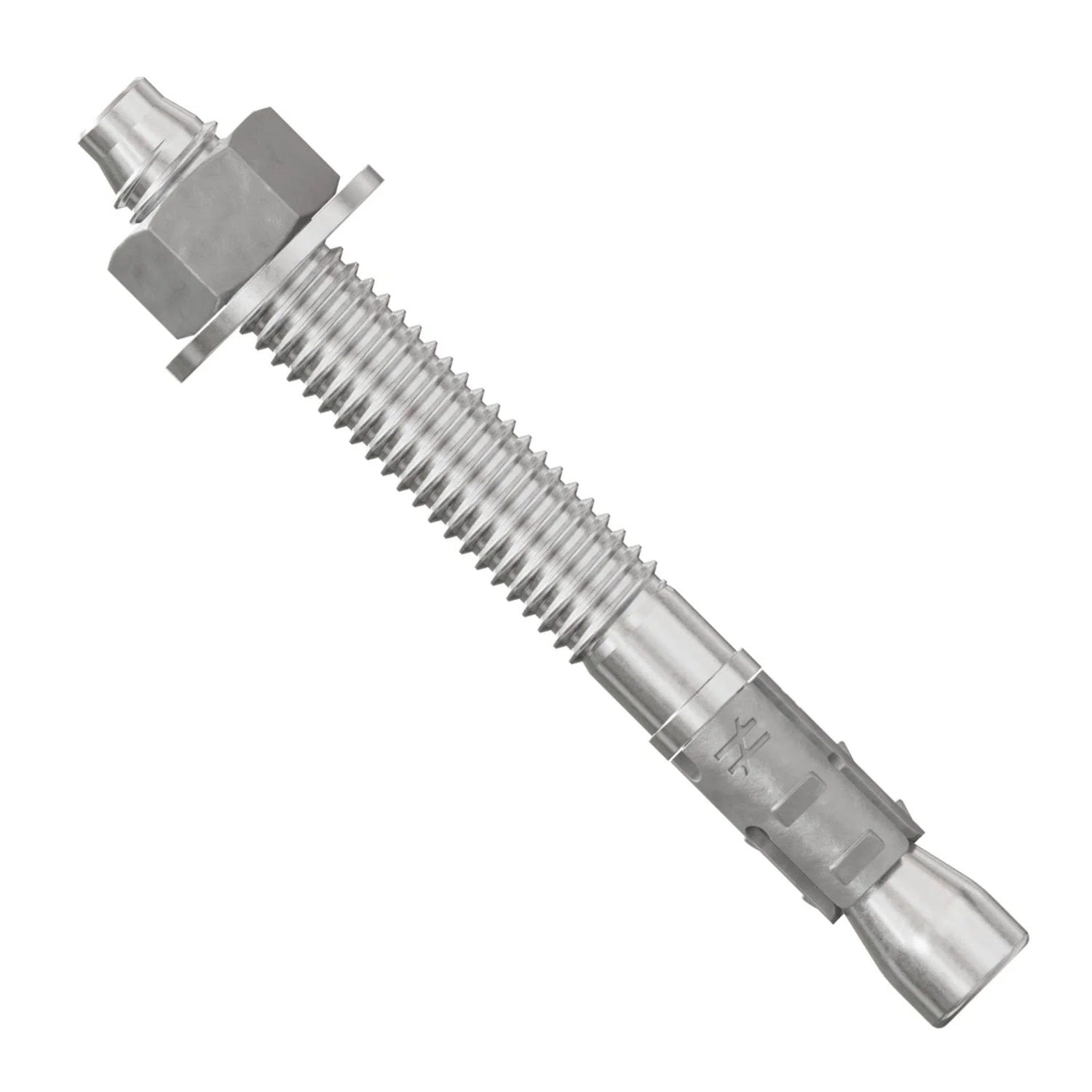

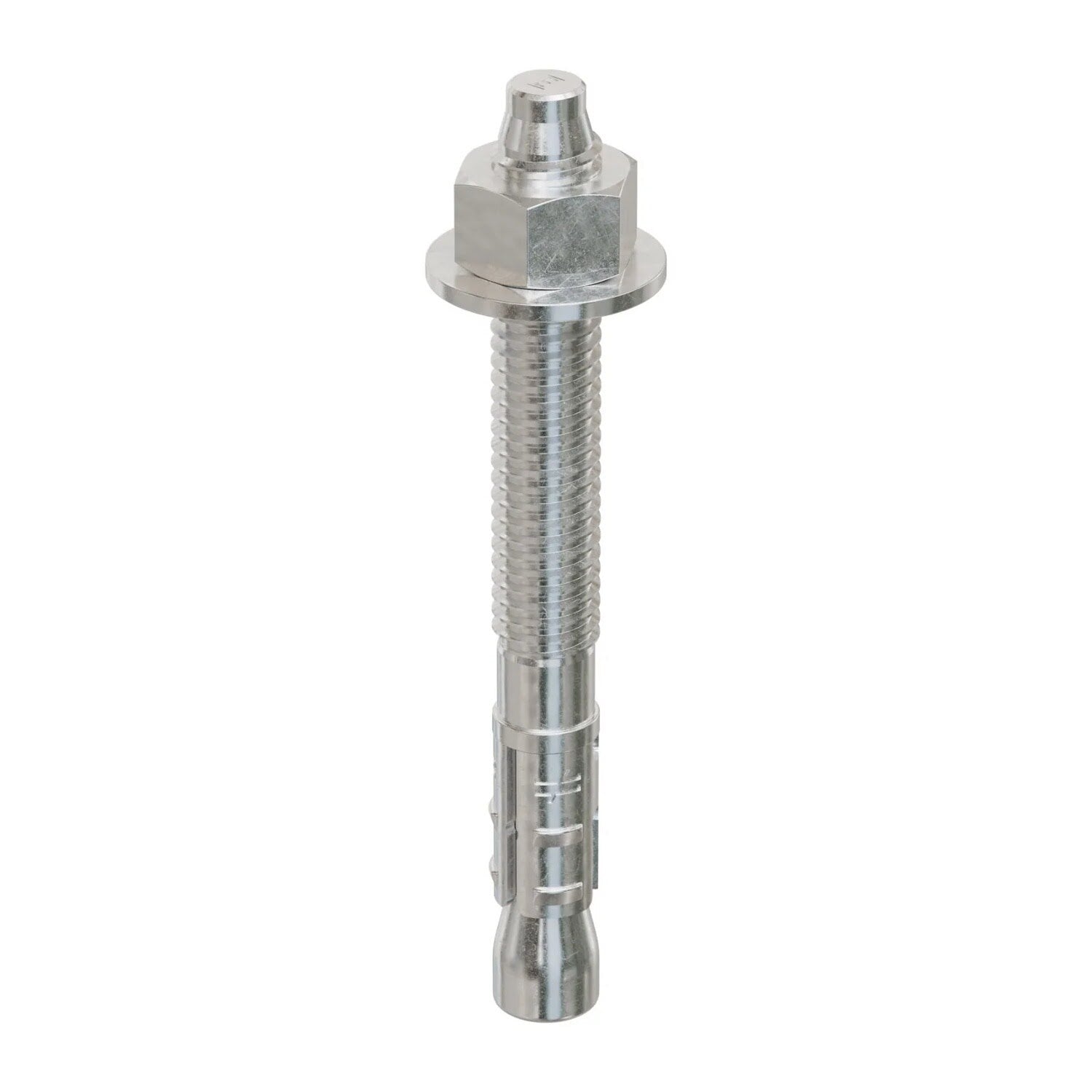

Simpson Strong-Tie STB2-37312S6F50 Strong Bolt (3/8" x 3-1/2") Fully Assembled 2 Wedge Anchor - Type 316 (50 Pack)
$192.85
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-37312S6F50 Description
The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors are engineered for maximum performance in corrosive environments, ideal for heavy-duty fastening into cracked or uncracked concrete.
Simpson Strong-Tie STB2-37312S6F50 Includes
- (50) 3/8 in. x 3-1/2 in. Type 316 Stainless-Steel Wedge Anchor
Simpson Strong-Tie STB2-37312S6F50 Features
- 316 Stainless Steel Construction for exceptional corrosion resistance
- Fully assembled with nut and washer for ease of installation
- Code-compliant performance for cracked and uncracked concrete
- Suitable for structural supports, machinery, and railing systems
- Available in multiple sizes for various applications
Simpson Strong-Tie STB2-37312S6F50 Applications
- Marine environments: Ideal for coastal and offshore structures
- Wastewater facilities: Reliable in chemical exposure conditions
- Residential and commercial construction: Anchoring structural supports and machinery
Simpson Strong-Tie STB2-37312S6F50 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air or ensure it is deep enough to accommodate embedment depth.

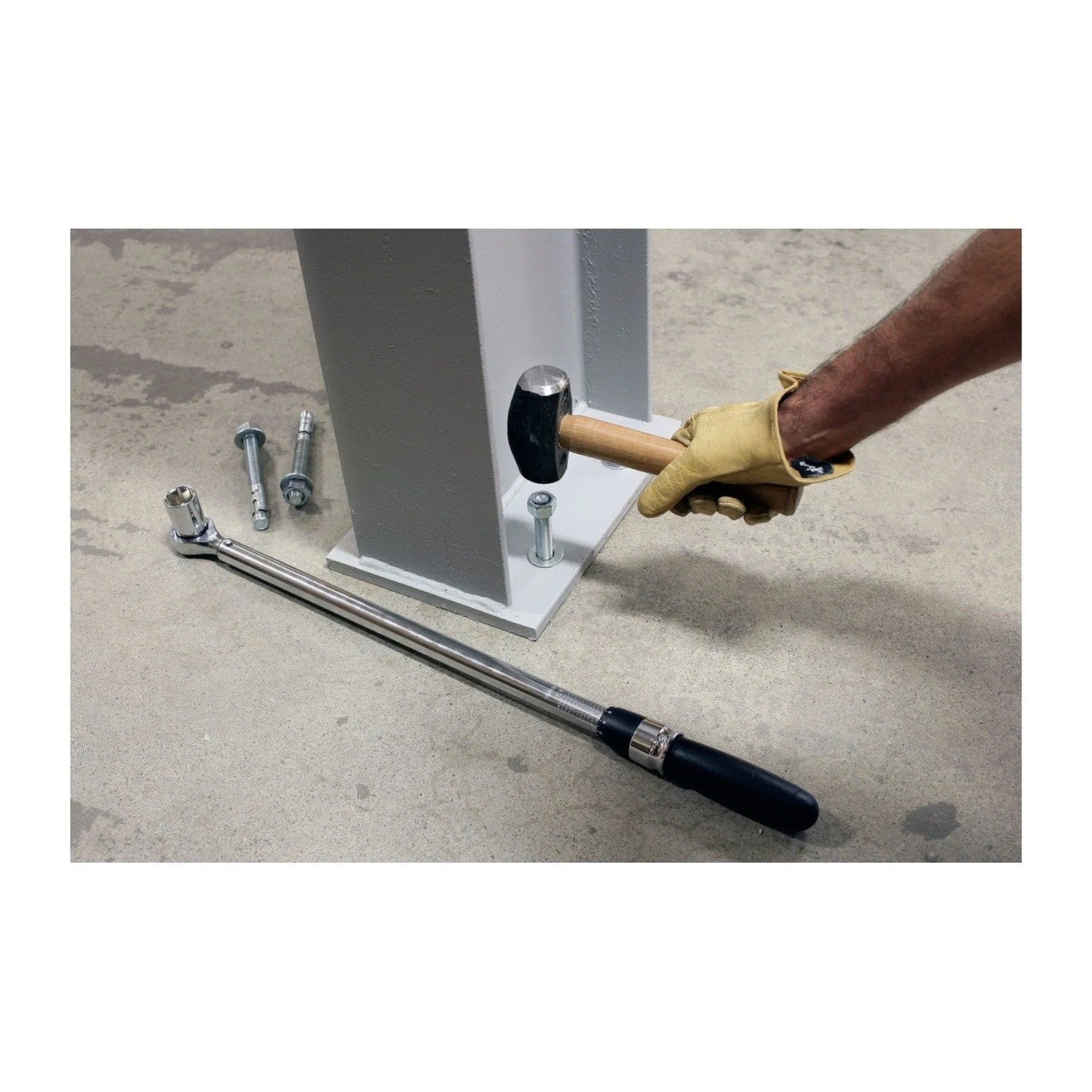

- Assemble the anchor with the nut and washer, place it in the fixture, and drive it into the hole.

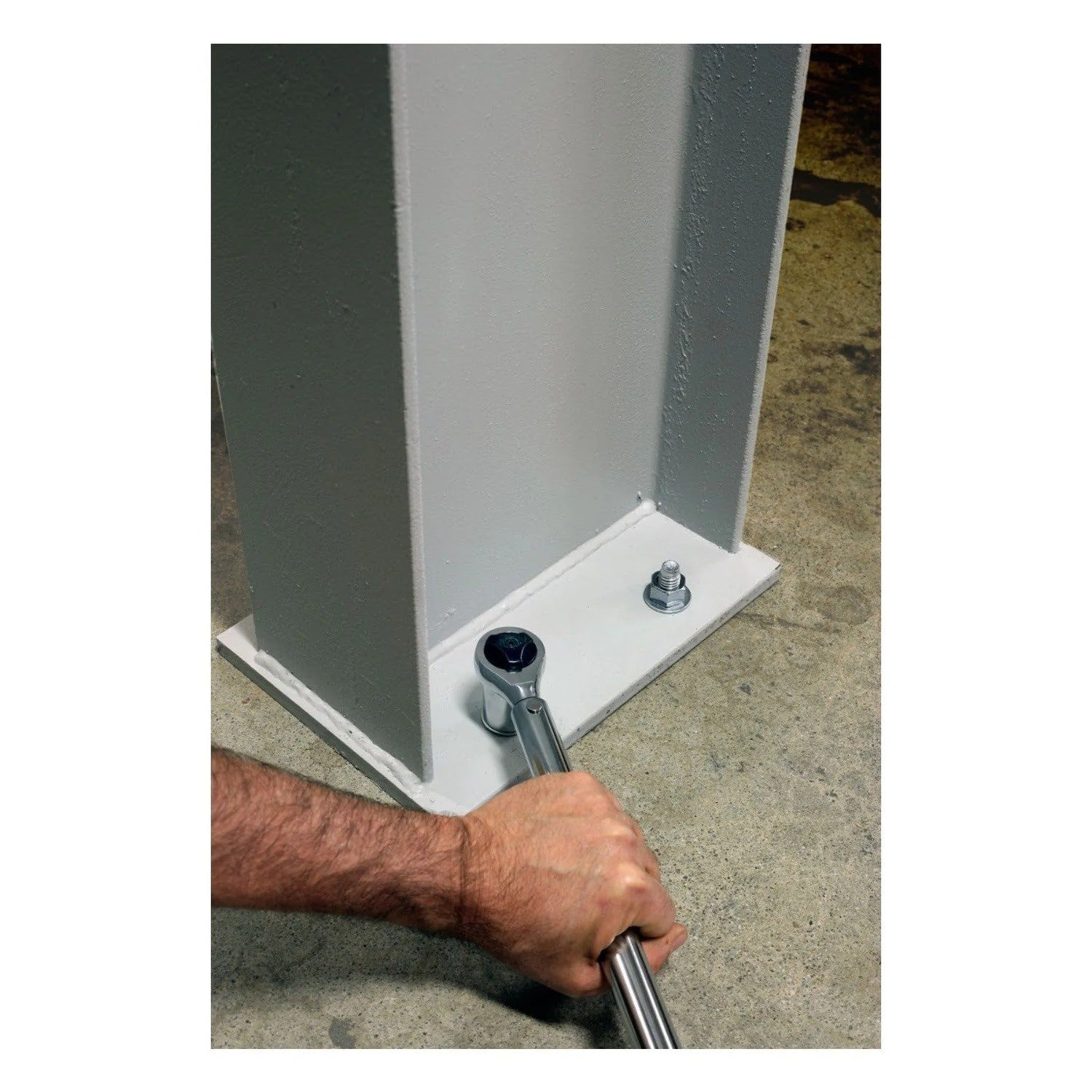

- Tighten the nut to the required installation torque.
Simpson Strong-Tie STB2-37312S6F50 Specifications
| Diameter | 3/8 in. |
| Length | 3-1/2 in. |
| Material | 316 Stainless Steel |
| Drill bit size | 3/8 in. |
| Fixture hole size | 7/16 in. |
| Installation torque | 20 ft. lbf. |
| Thread length | 2-1/16 in. |
| Wrench size | 9/16 in. |
