Simpson Anchors | SKU:
STB2-373344SS

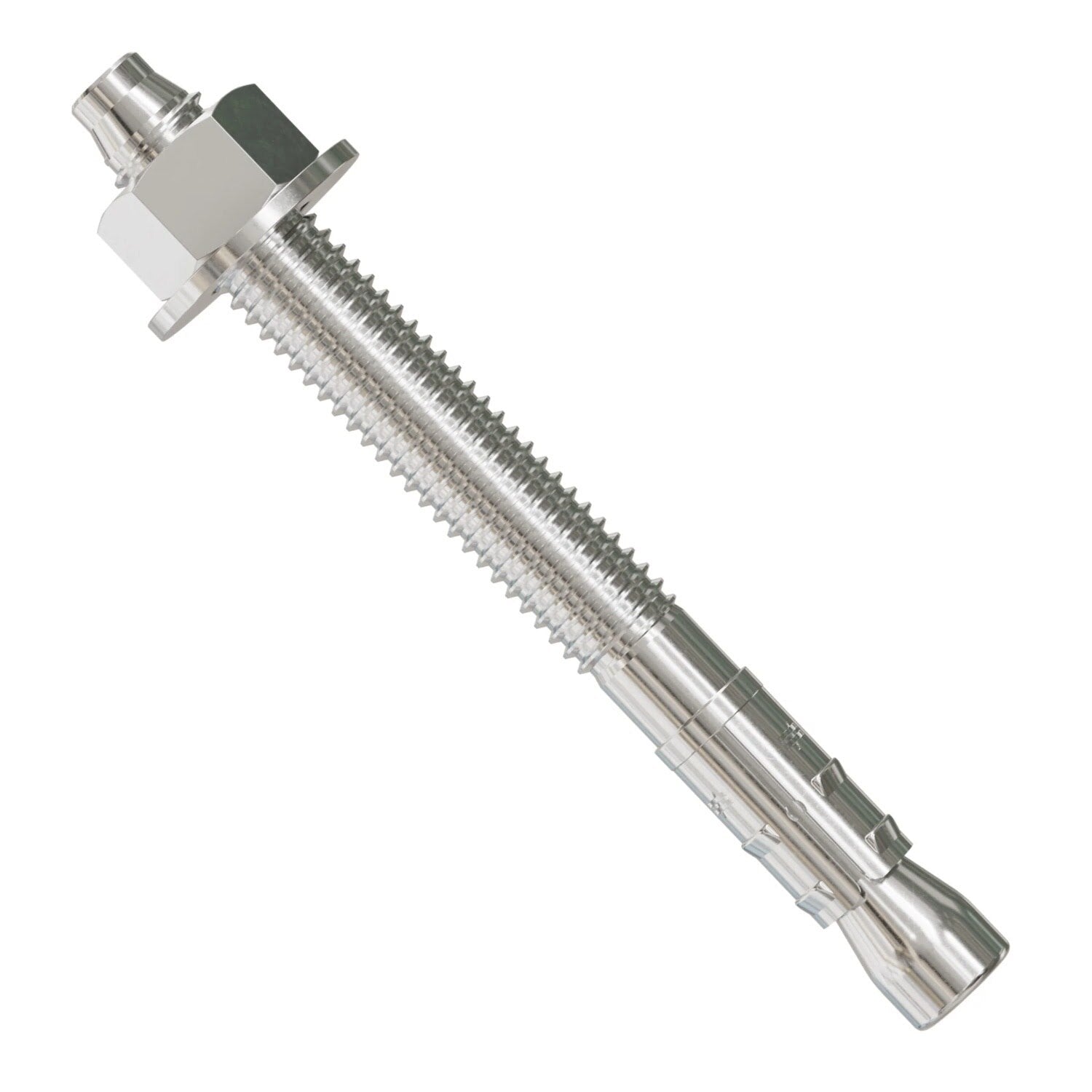

Simpson Strong-Tie STB2-373344SS Strong-Bolt (3/8" x 3-3/4") Stainless Steel 2 Wedge Anchor - Uassembled (50 Pack)
$122.48
Unit price
/
Unavailable
Description
Description
Simpson STB2-373344SS Description
The Strong-Bolt 2 Wedge Anchor is a high-performance anchor designed for use in cracked and uncracked concrete. Made from 304 stainless steel, it is suitable for static and seismic loading conditions.
Simpson STB2-373344SS Includes
- (50) Strong-Bolt 2 Wedge Anchor 304 Stainless Steel
Simpson STB2-373344SS Features
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Qualified for minimum concrete thickness of 3 1/4"
- Standard fractional sizes for compatibility with common tools
- Tested per ACI355.2 and AC193
Simpson STB2-373344SS Applications
- Concrete anchoring in cracked and uncracked concrete
- Seismic applications requiring reliable anchoring
- Horizontal, vertical, and overhead installations
Simpson STB2-373344SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air.
- Assemble the anchor with nut and washer, ensuring the nut is flush with the anchor top.
- Place the anchor in the fixture and drive it into the hole.
- Tighten to the required installation torque.
Simpson STB2-373344SS Specifications
| Diameter | 3/8" |
| Length | 3-3/4" |
| Material | 304 Stainless Steel |
| Drill bit size | 3/8" |
| Installation torque | 30 ft. lbs |
| Thread length | 2-5/16" |
NOTE: Ensure proper installation torque is applied to achieve optimal performance.
