Simpson STB2-373346SS Description

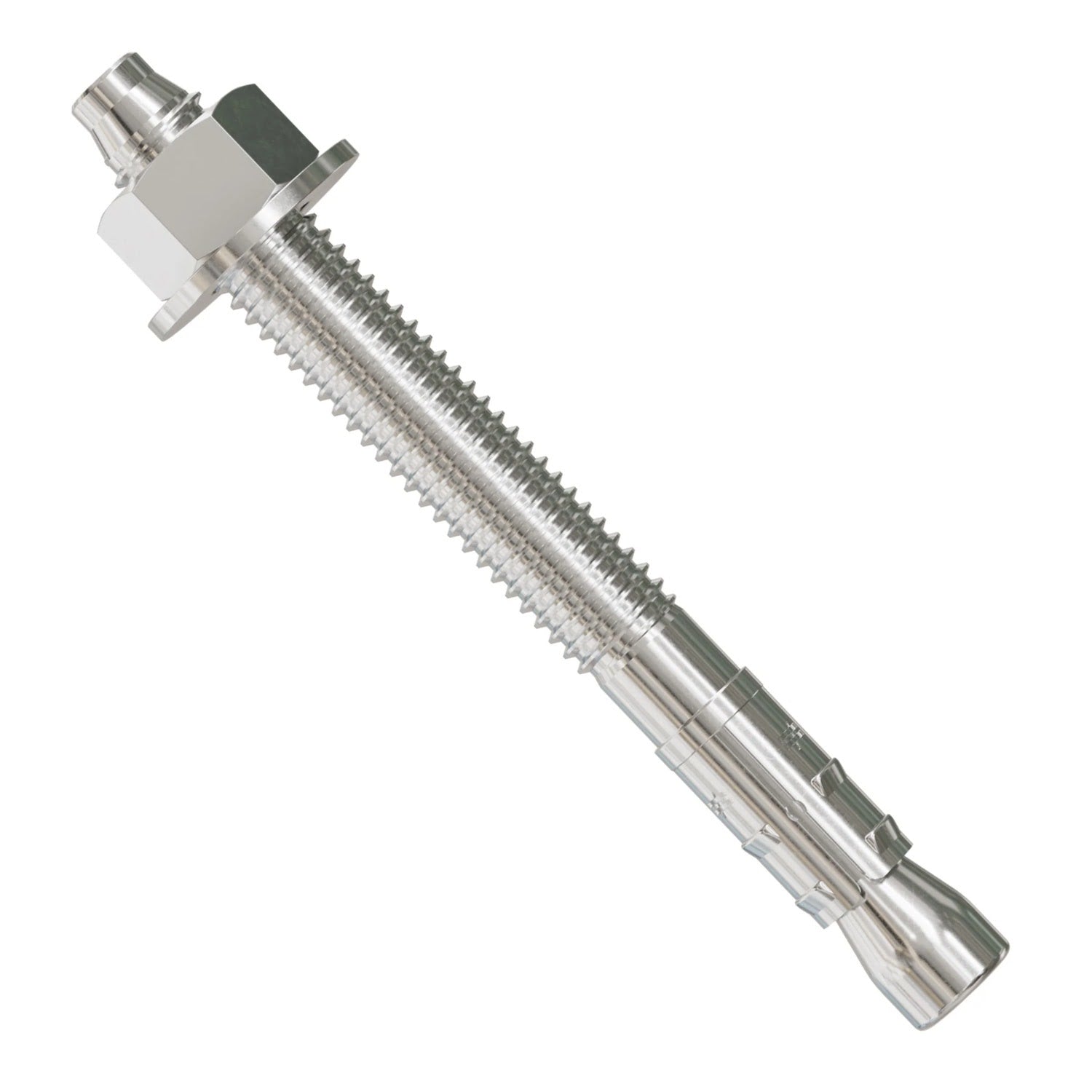

The Strong-Bolt 2 Wedge Anchor is a high-performance anchor designed for use in cracked and uncracked concrete. Made from 316 stainless steel, it is suitable for static and seismic loading conditions.
Simpson STB2-373346SS Includes
- (50) Strong-Bolt 2 Wedge Anchor 316 Stainless Steel
Simpson STB2-373346SS Features
- Chamfered top prevents mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Fits standard fixtures and installs with common drill bit sizes
- Tested per ACI355.2 and AC193
Simpson STB2-373346SS Applications
- Concrete anchoring in cracked and uncracked surfaces
- Seismic applications requiring reliable anchoring
- Horizontal, vertical, and overhead installations
Simpson STB2-373346SS Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter
- Clean the hole using compressed air
- Assemble the anchor with nut and washer
- Drive the anchor into the hole until tight against the fixture
- Tighten to the specified installation torque
Simpson STB2-373346SS Specifications
| Material | 316 Stainless Steel |
| Diameter | 3/8" |
| Length | 3-3/4" |
| Drill Bit Size | 3/8" |
| Installation Torque | 30 ft. lbs |
| Thread Length | 2-5/16" |
| Quantity | 50 |
NOTE: Ensure proper installation torque is applied to achieve optimal performance.
