Simpson Anchors | SKU:
STB2-37334C15
Simpson Strong-Tie STB2-37334C15 Strong Bolt (3/8" x 3-3/4") 2 Wedge Anchor - Carbon Steel (15 Pack)
$13.17
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-37334C15 Description

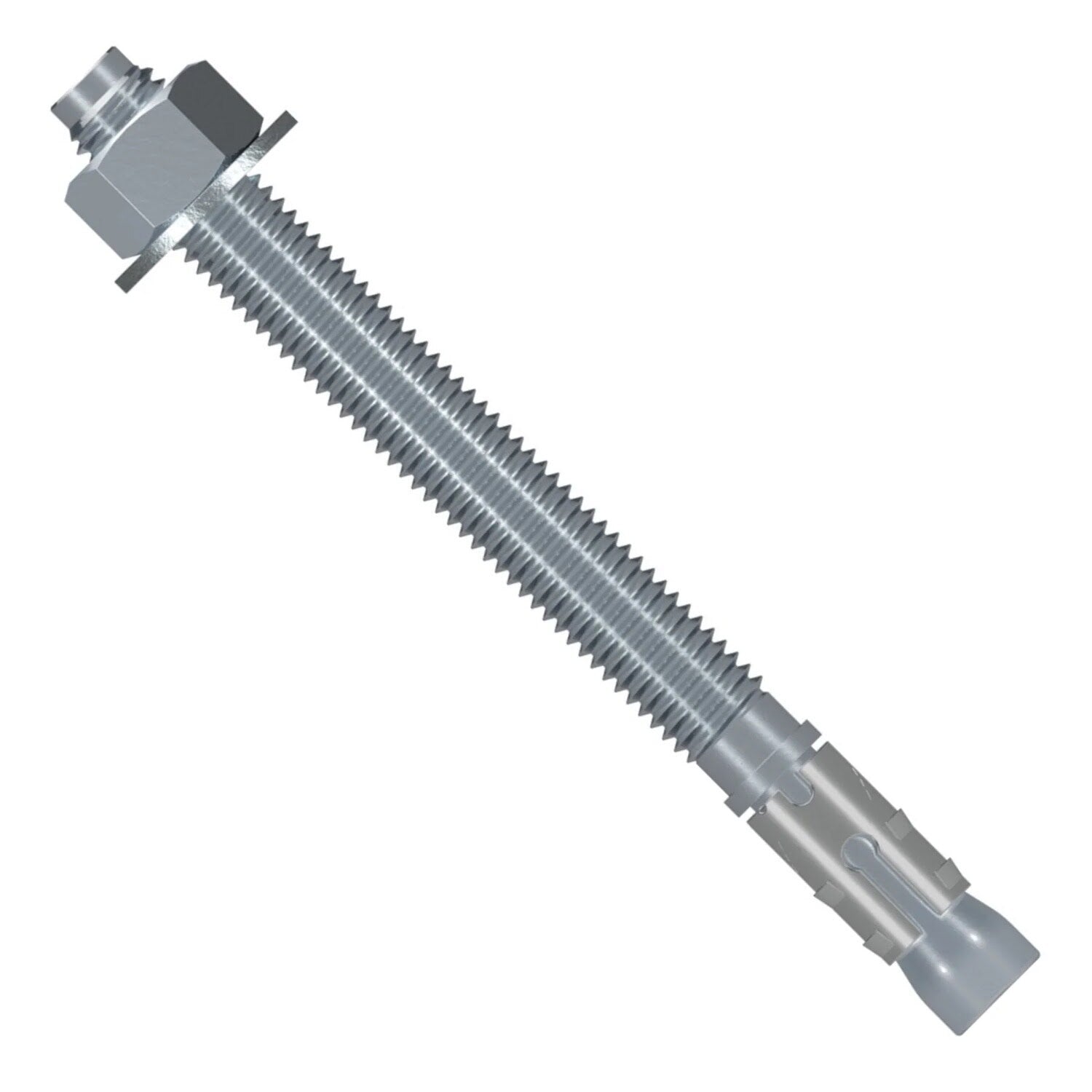

The Simpson Strong-Bolt 2 Wedge Anchor is a reliable, ICC-ES code compliant anchor designed for cracked and uncracked concrete. It is suitable for static and seismic loading in various applications.
Simpson Strong-Tie STB2-37334C15 Includes

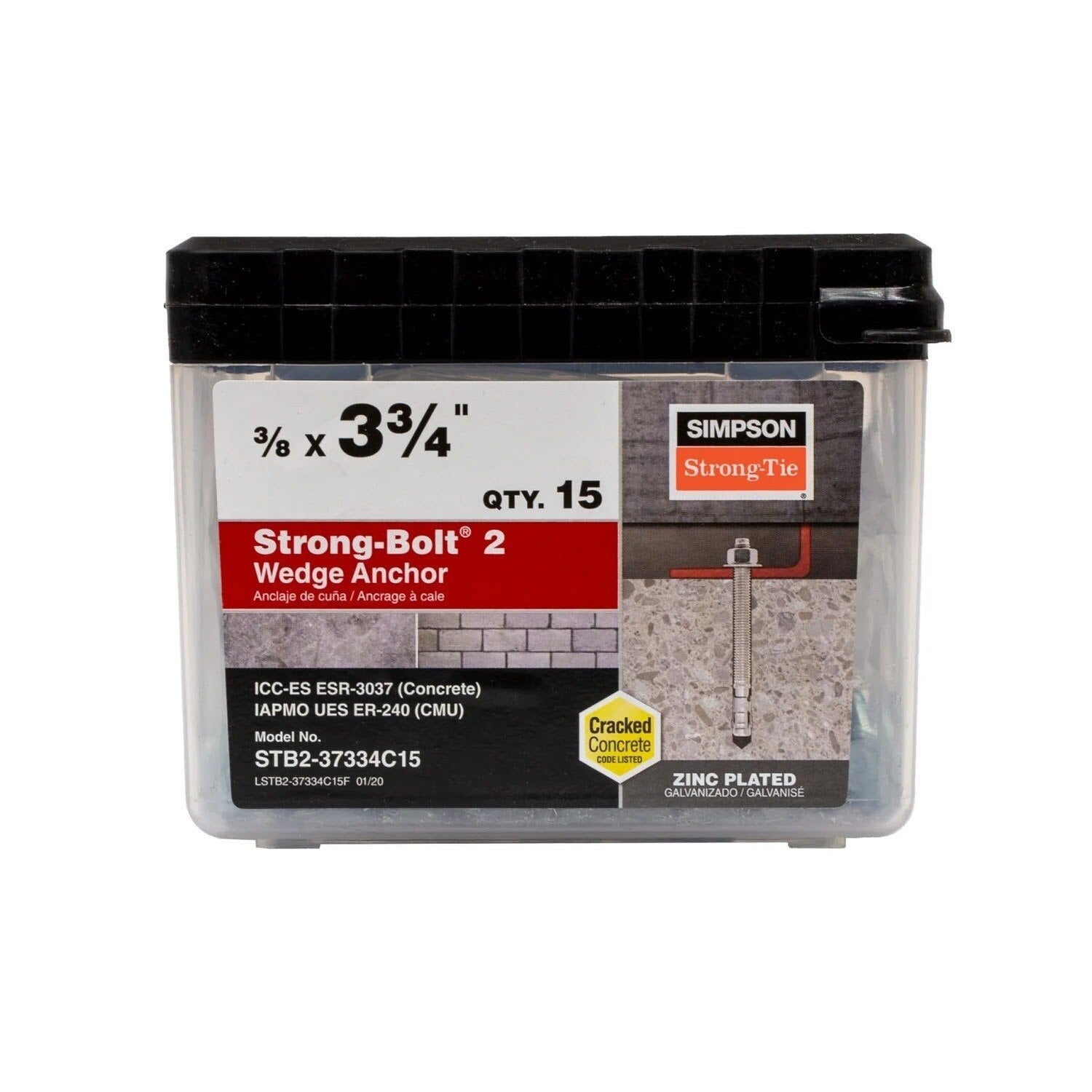

- (15) 3/8" x 3-3/4" Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-37334C15 Features
- Non-bottom-bearing design for versatile installation
- ICC-ES code compliant for cracked and uncracked concrete
- Qualified for static and seismic loading
- Suitable for horizontal, vertical, and overhead applications
- Zinc-plated for corrosion resistance
Simpson Strong-Tie STB2-37334C15 Applications

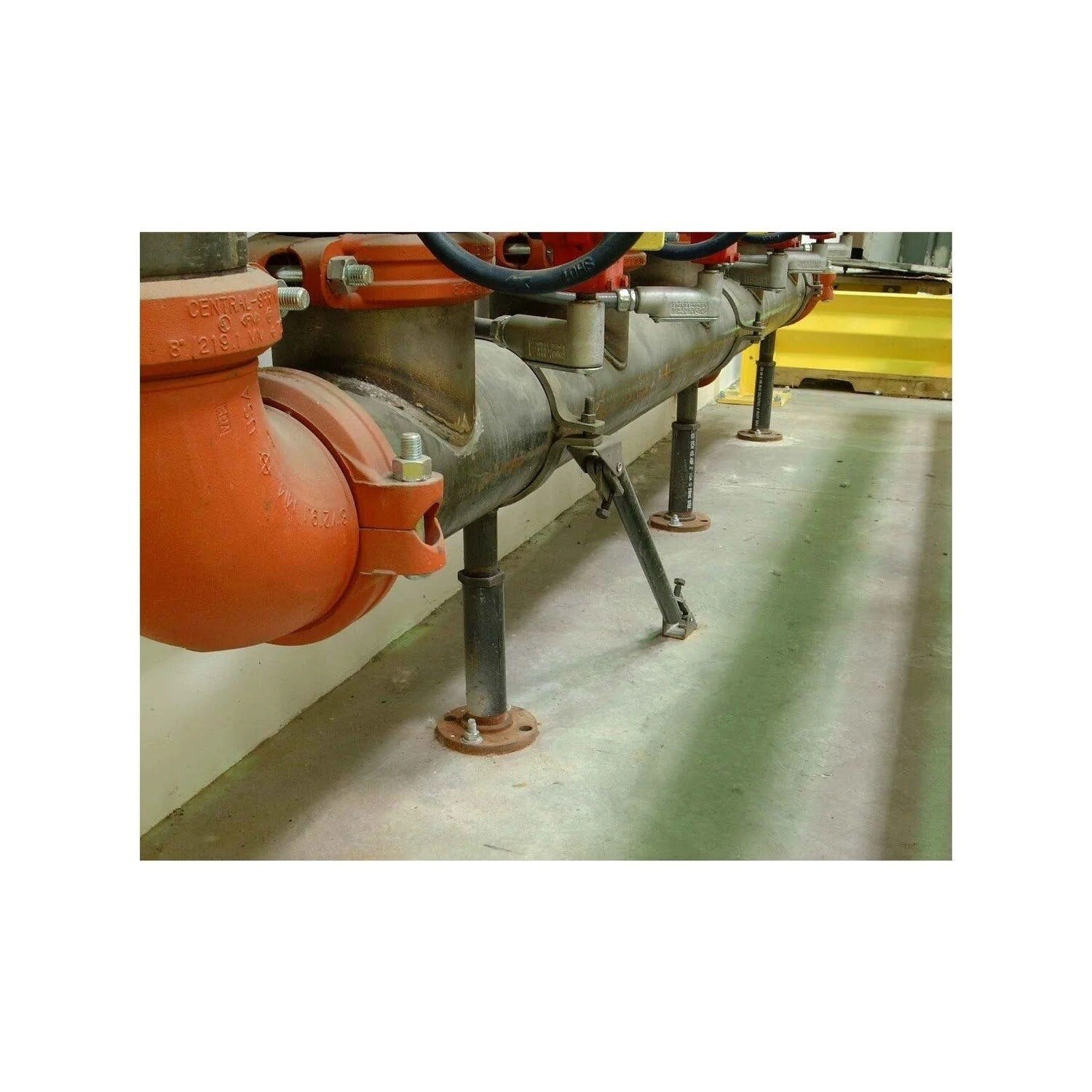

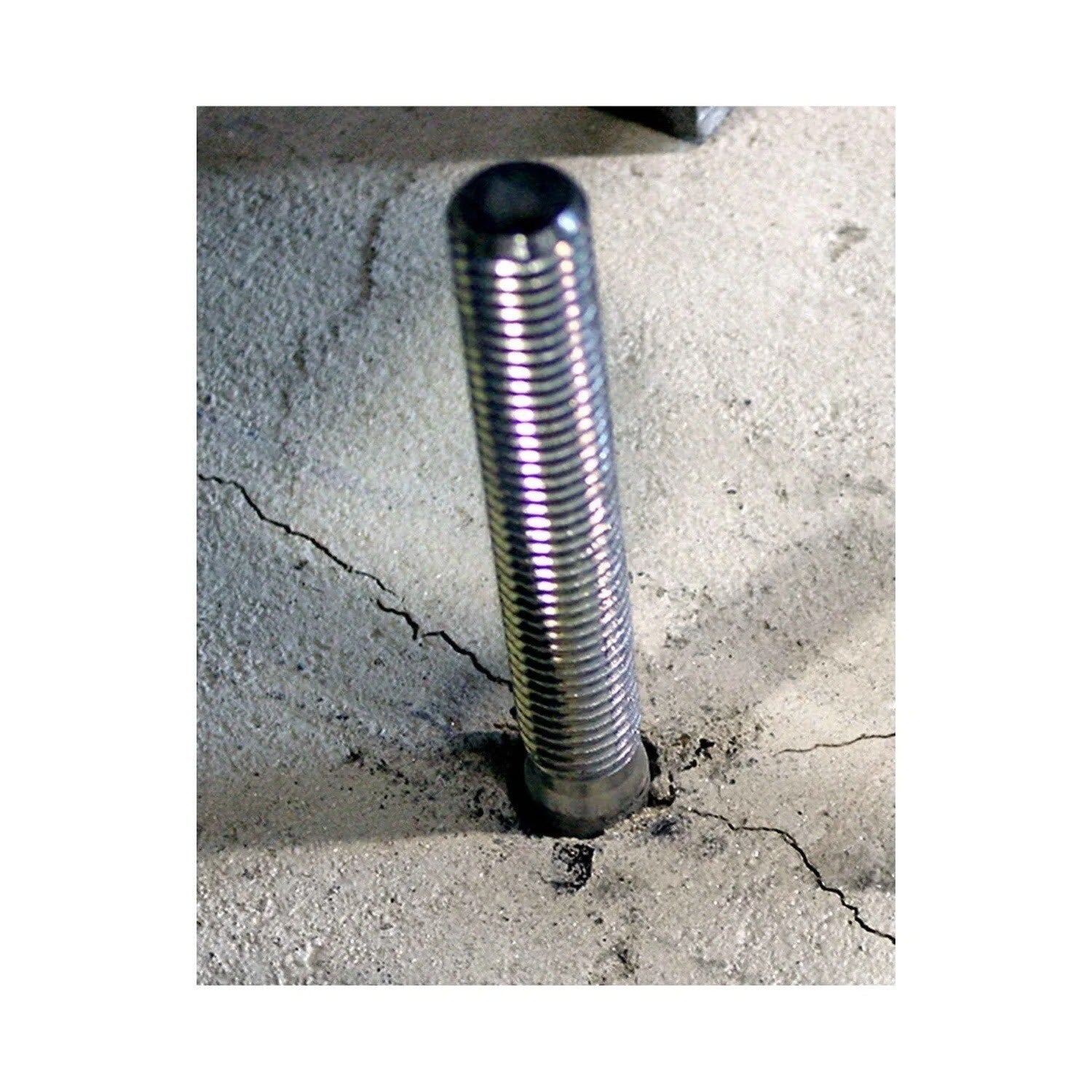

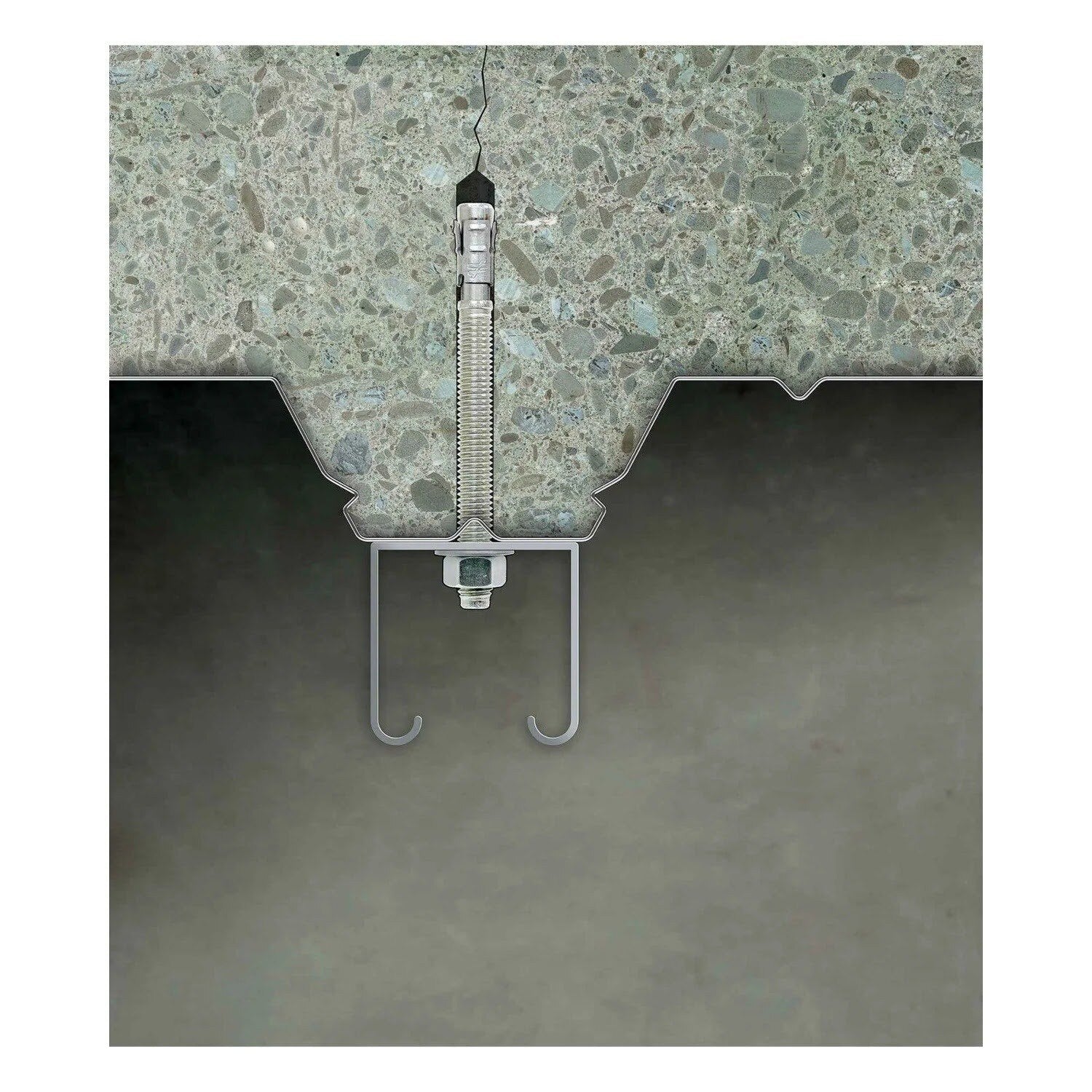

- Cracked and uncracked concrete anchoring
- Seismic and static load applications
- Horizontal, vertical, and overhead installations

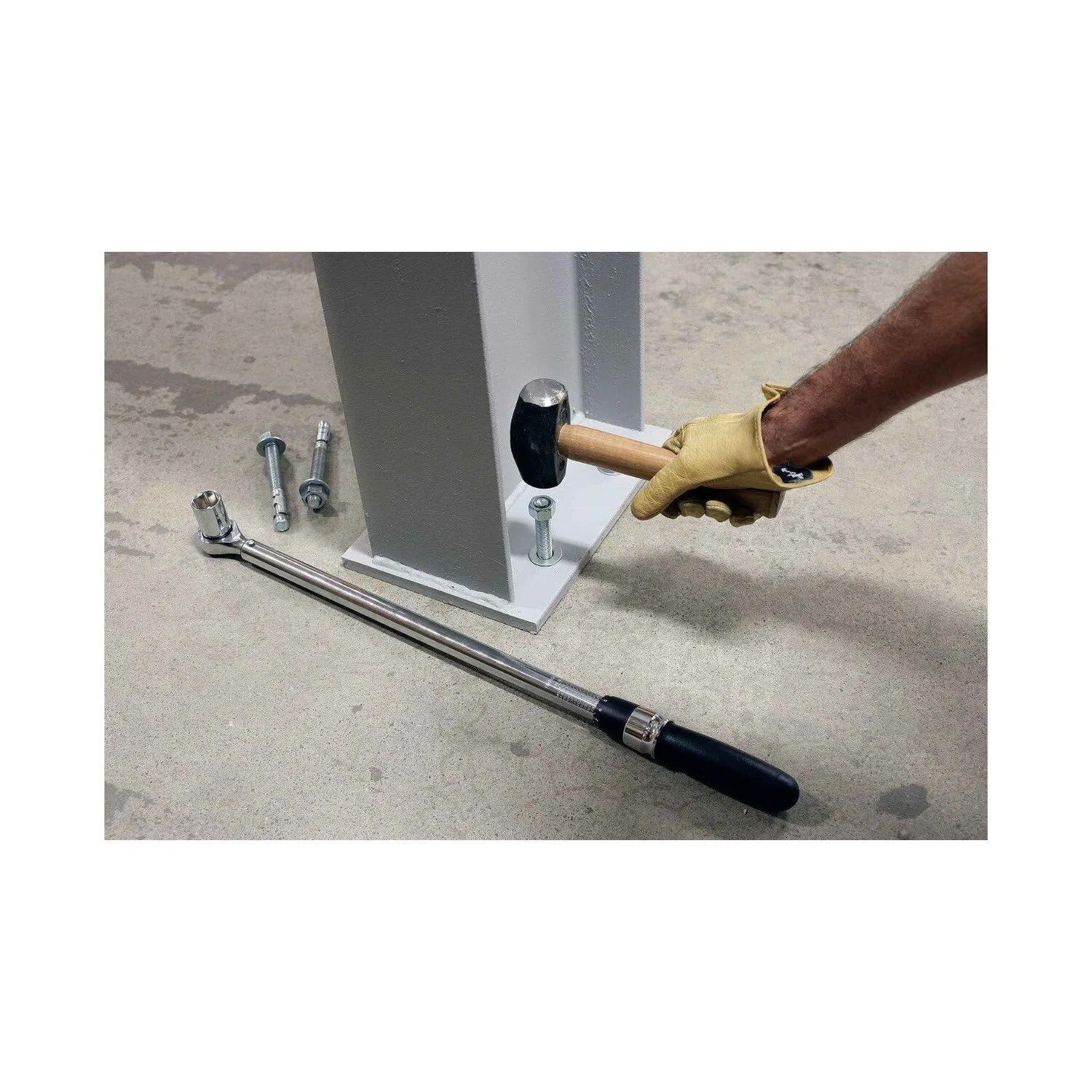

Simpson Strong-Tie STB2-37334C15 Installation Overview
- Drill a 3/8" hole into the concrete to the specified depth
- Insert the anchor into the hole

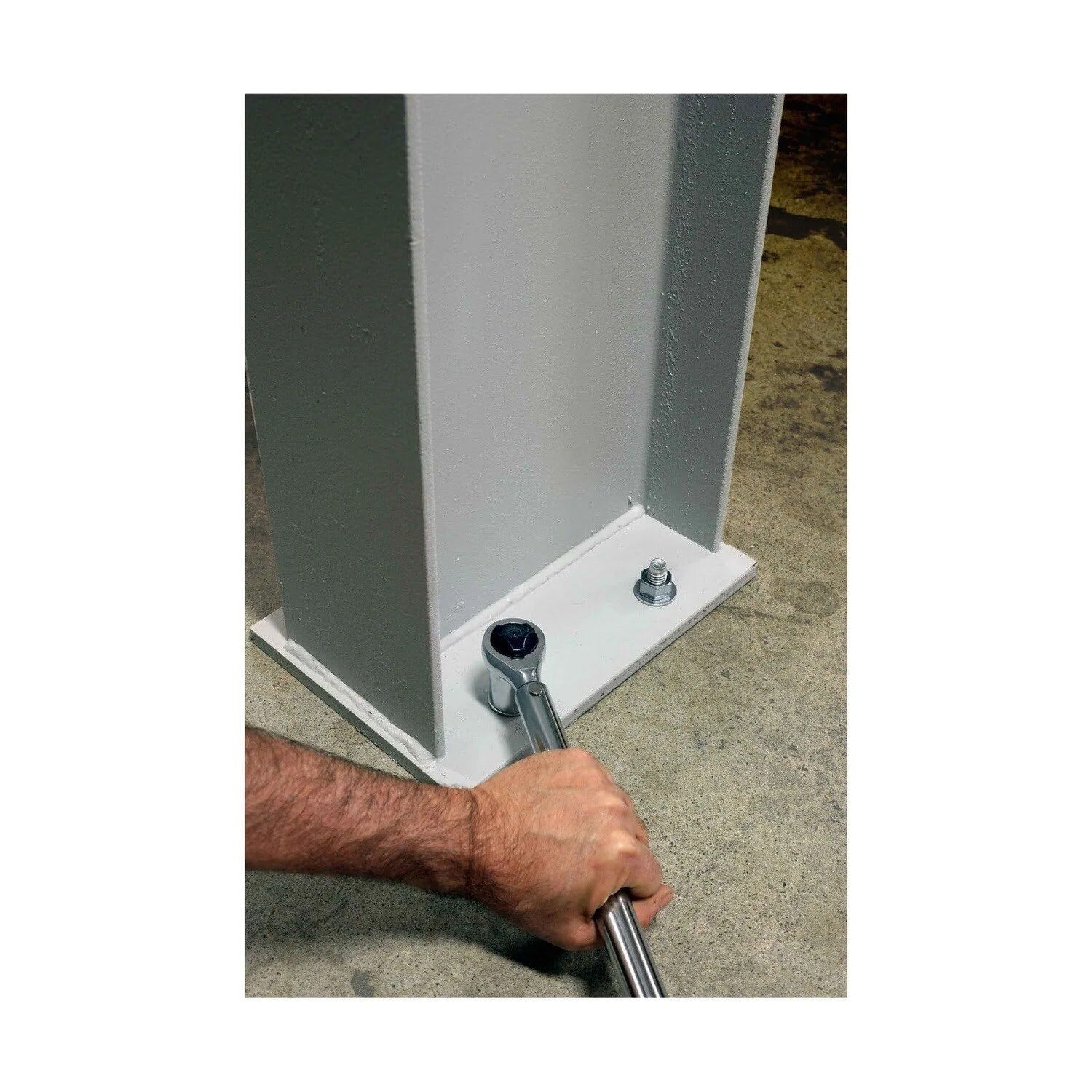

- Tighten the anchor using a wrench to the specified torque of 30 ft. lbs
- Avoid using an impact wrench to set or tighten anchors
- Ensure the hole is not oversized to maintain load capacity
Simpson Strong-Tie STB2-37334C15 Specifications
| Diameter | 3/8" |
| Finish | Zinc Plated |
| Length | 3-3/4" |
| Material | Carbon Steel |
| Drill bit size | 3/8" |
| Installation torque | 30 ft. lbs |
| Quantity | 15 |
