Simpson Anchors | SKU:
STB2-37334S4F50

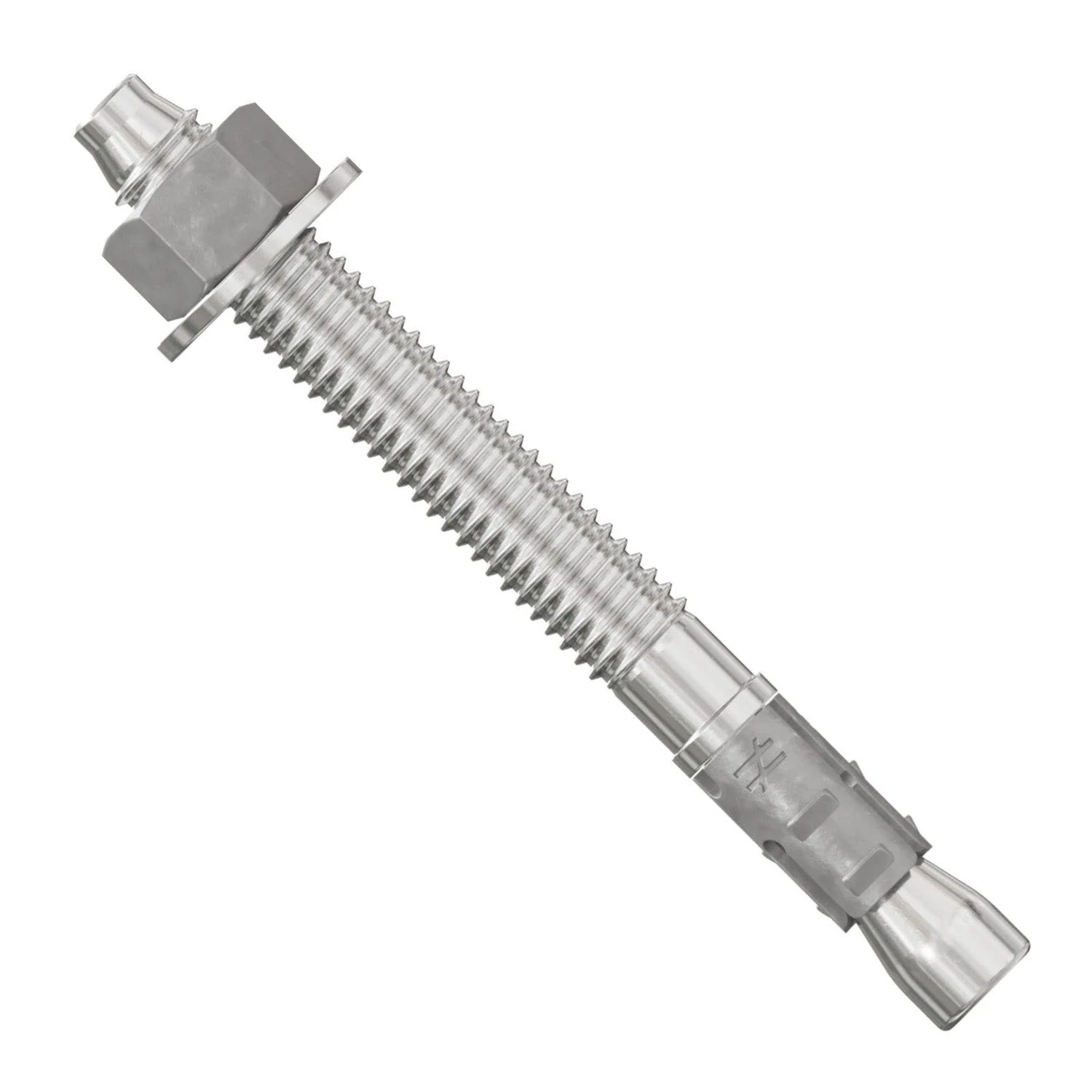

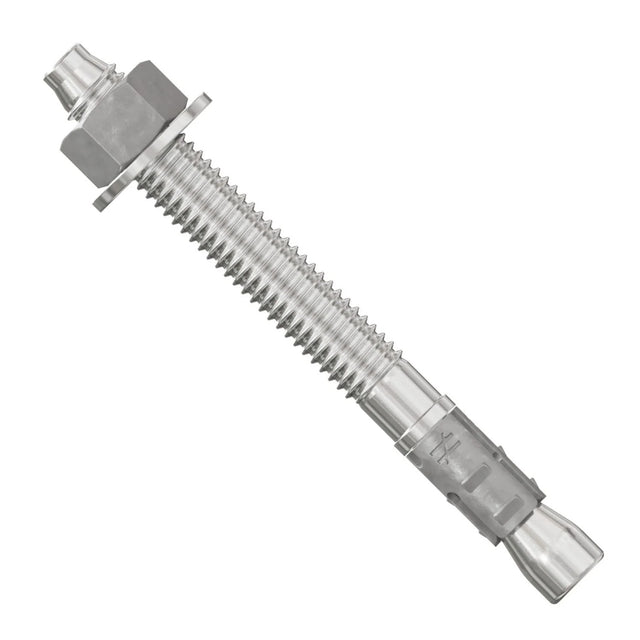

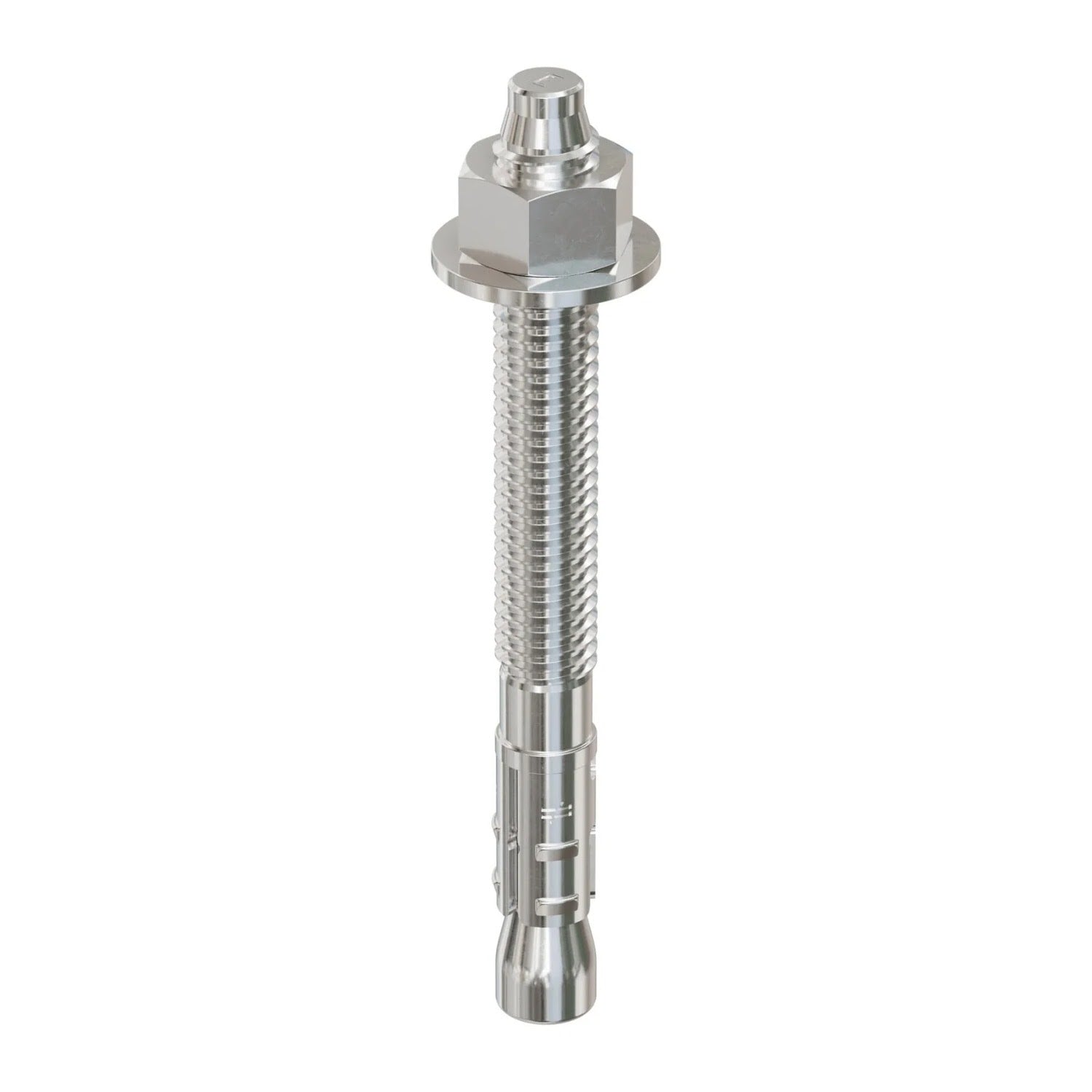

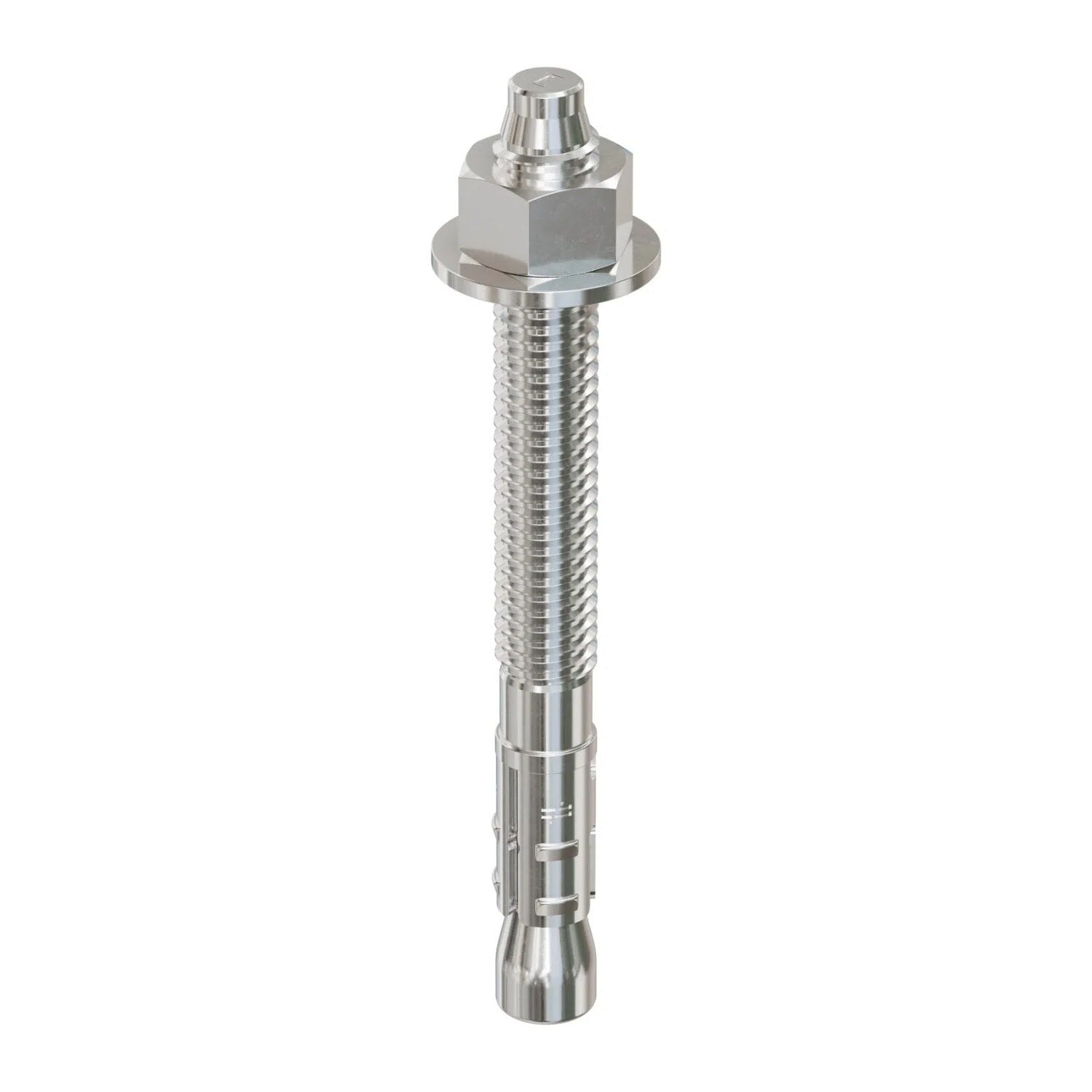

Simpson Strong-Tie STB2-37334S4F50 Strong Bolt (3/8" x 3-3/4") Fully Assembled 2 Wedge Anchor - Type 304 (50 Pack)
$110.69
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-37334S4F50 Description
The Simpson Strong-Tie Strong-Bolt 2 Wedge Anchors in 304 stainless steel deliver powerful performance and dependable holding strength for concrete anchoring projects. Designed for versatility, this anchor system arrives fully assembled, streamlining installation and minimizing prep time.
Simpson Strong-Tie STB2-37334S4F50 Includes
- (50) 3/8 in. x 3-3/4 in. Type 304 Stainless-Steel Wedge Anchor
Simpson Strong-Tie STB2-37334S4F50 Features

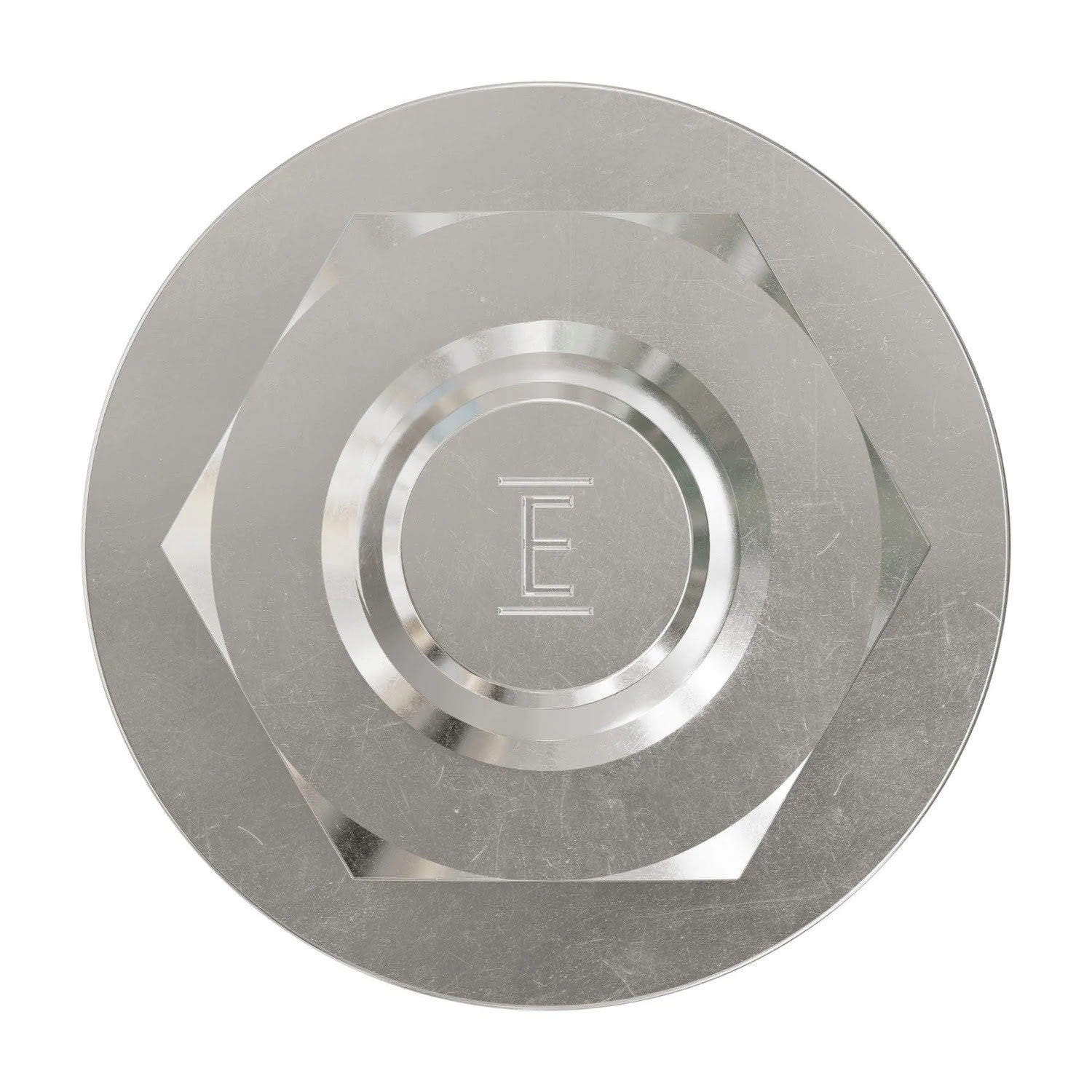

- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Made from high-quality 304 stainless steel for corrosion resistance
- Pre-assembled for faster and easier installation
Simpson Strong-Tie STB2-37334S4F50 Applications
- Concrete anchoring for structural steel, machinery, and racking systems
- Ideal for both interior and exterior applications
- Suitable for cracked and uncracked concrete environments

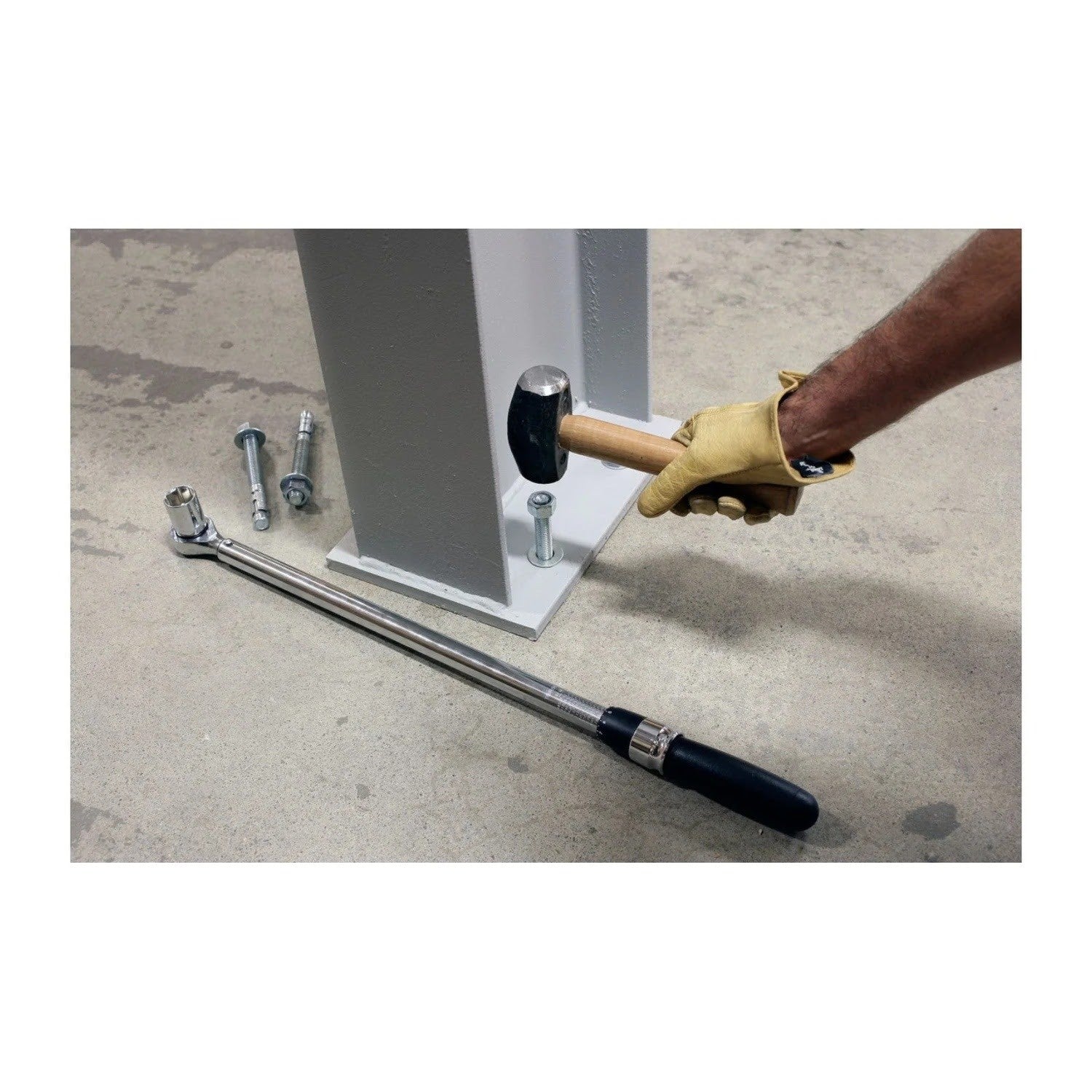

Simpson Strong-Tie STB2-37334S4F50 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air or ensure it is deep enough to accommodate dust.
- Assemble the anchor with the nut and washer, place it in the fixture, and drive it into the hole.

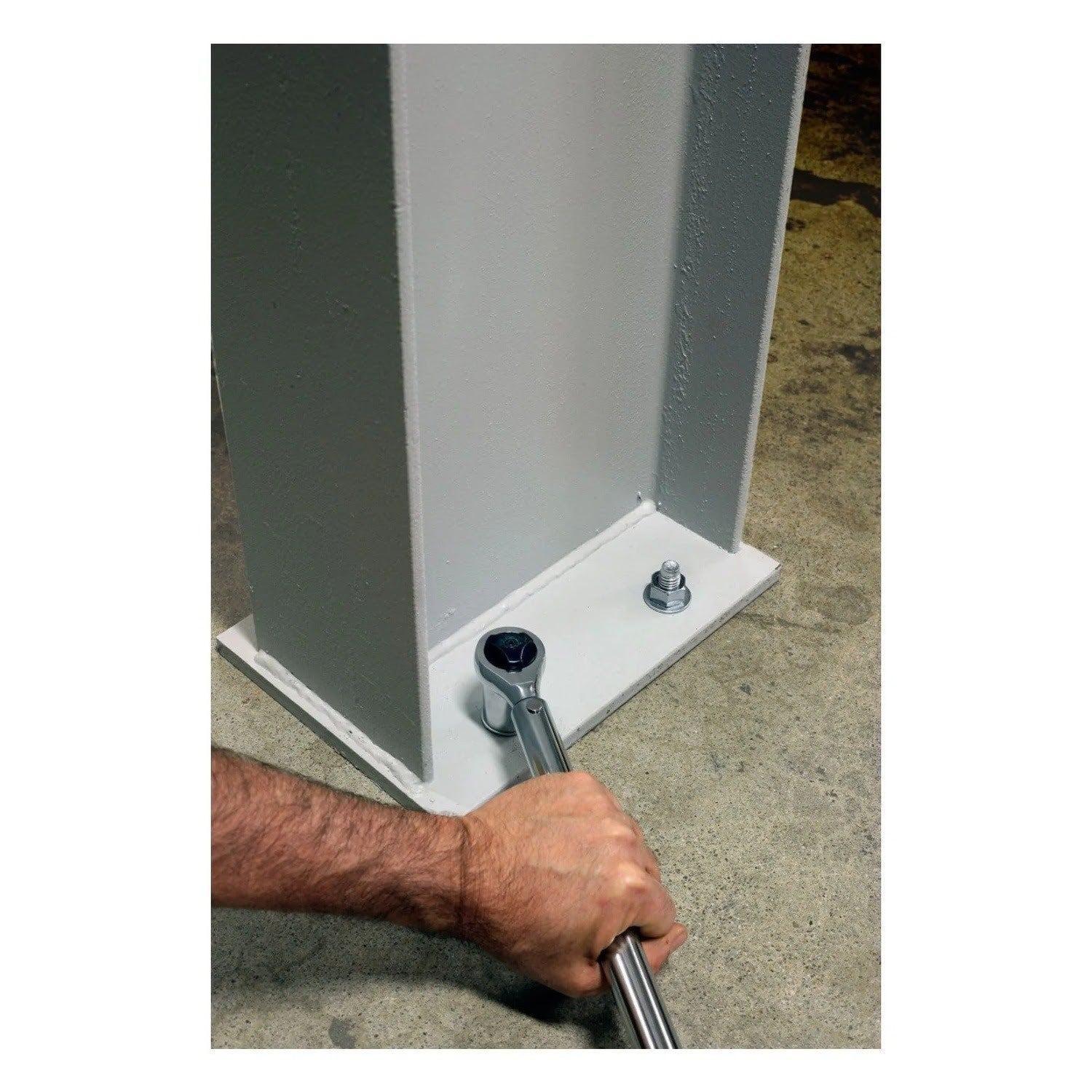

- Tighten the nut to the required installation torque.
Simpson Strong-Tie STB2-37334S4F50 Specifications
| Diameter | 3/8 in. |
| Length | 3-3/4 in. |
| Material | 304 Stainless Steel |
| Drill Bit Size | 3/8 in. |
| Fixture Hole Size | 7/16 in. |
| Installation Torque | 20 ft. lbf. |
| Thread Length | 2-5/16 in. |
| Wrench Size | 9/16 in. |
