Simpson Anchors | SKU:
STB2-375004SS

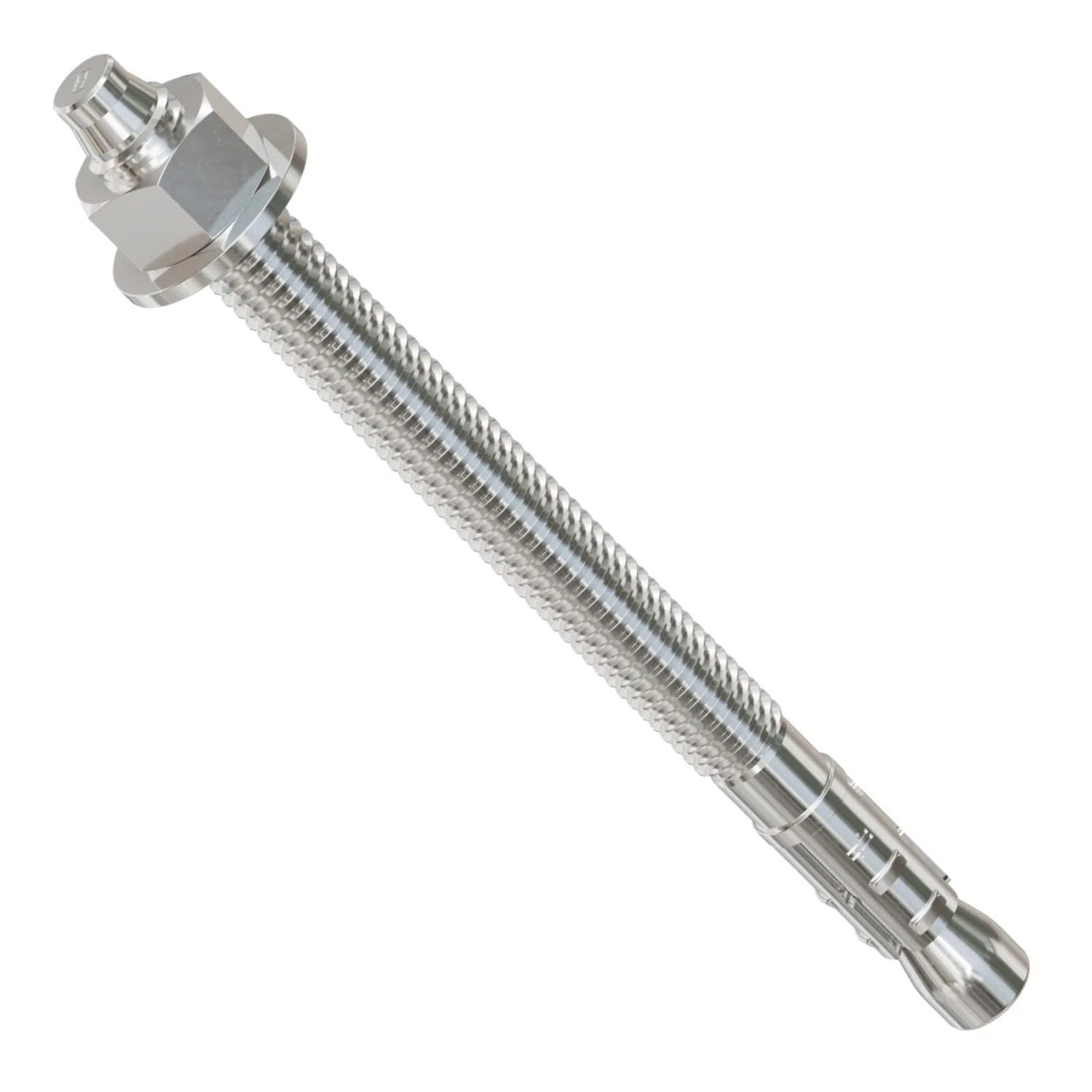

Simpson Strong-Tie STB2-375004SS Strong Bolt (3/8" x 5") Unassembled 2 Wedge Anchor - Type 304 (50 Pack)
$144.05
Unit price
/
Unavailable
Description
Description
Simpson STB2-375004SS Description
The Strong-Bolt 2 Wedge Anchor is a reliable solution for anchoring in cracked or uncracked concrete, made from durable Type 304 stainless steel.
Simpson STB2-375004SS Includes
- (50) Strong-Bolt 2 Wedge Anchor Type 304 Stainless Steel
Simpson STB2-375004SS Features
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Qualified for minimum concrete thickness of 3 1/4"
- Standard fractional sizes for compatibility with common tools
- Tested per ACI355.2 and AC193
Simpson STB2-375004SS Applications
- Concrete anchoring in cracked or uncracked surfaces
- Seismic and static load applications
- Horizontal, vertical, and overhead installations
Simpson STB2-375004SS Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter.
- Clean the hole using compressed air.
- Assemble the anchor with nut and washer, ensuring alignment.
- Insert the anchor into the hole and tighten to specified torque.
Simpson STB2-375004SS Specifications
| Diameter | 3/8" |
| Length | 5" |
| Material | 304 Stainless Steel |
| Drill bit size | 3/8" |
| Installation torque | 30 ft. lbs |
| Thread length | 3-9/16" |
NOTE: Ensure proper installation torque is applied to achieve optimal performance.
