Simpson Anchors | SKU:
STB2-375006SS

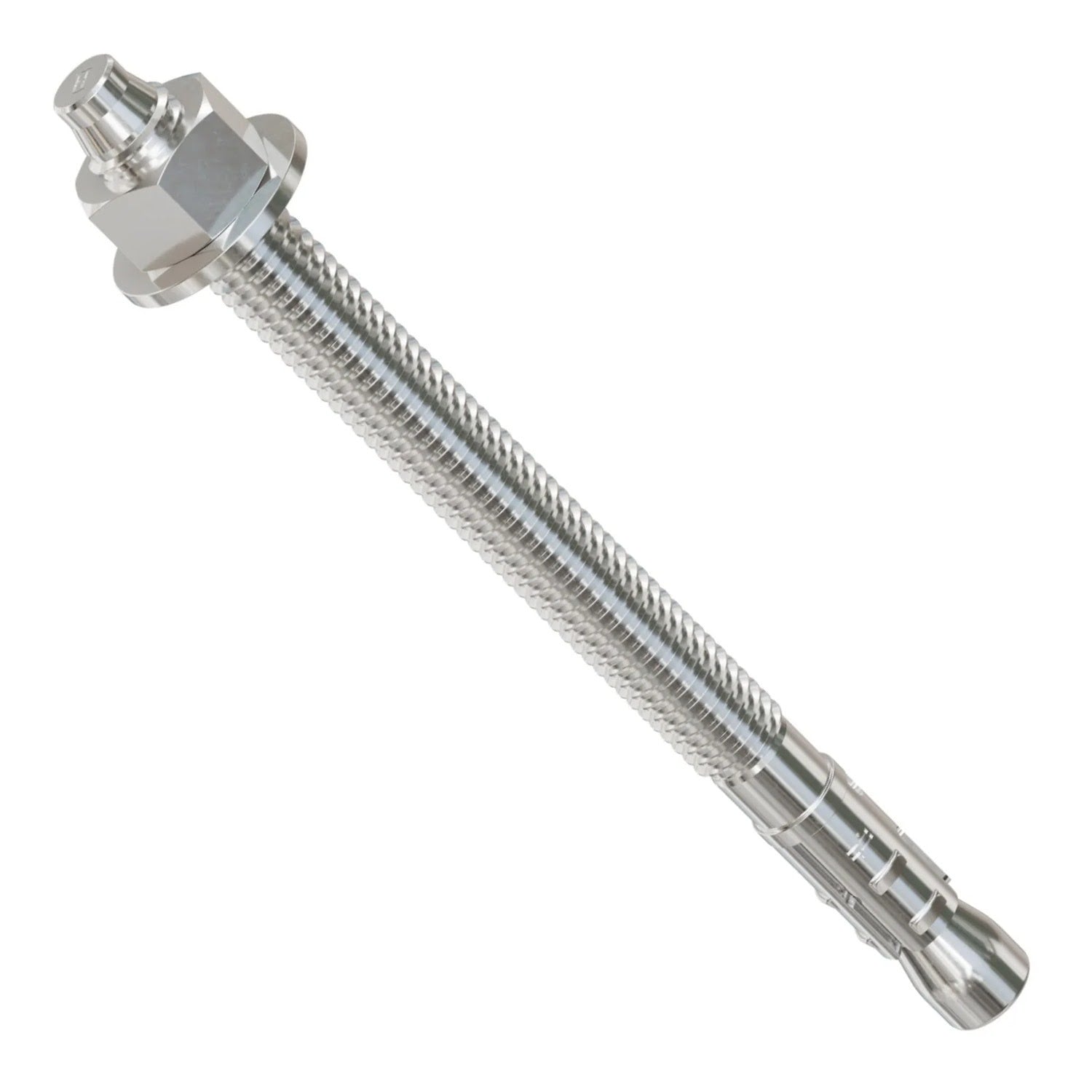

Simpson Strong-Tie STB2-375006SS Strong-Bolt (3/8" x 5") Unassembled 2 Wedge Anchor - Type 316 (50 Pack)
Free Shipping
$226.12
Unit price
/
Unavailable
Description
Description
Simpson STB2-375006SS Description
The Strong-Bolt 2 Wedge Anchor is a high-performance anchor designed for cracked and uncracked concrete applications, offering reliability in static and seismic conditions.
Simpson STB2-375006SS Includes
- (50) Strong-Bolt 2 Wedge Anchor 316 Stainless Steel
Simpson STB2-375006SS Features

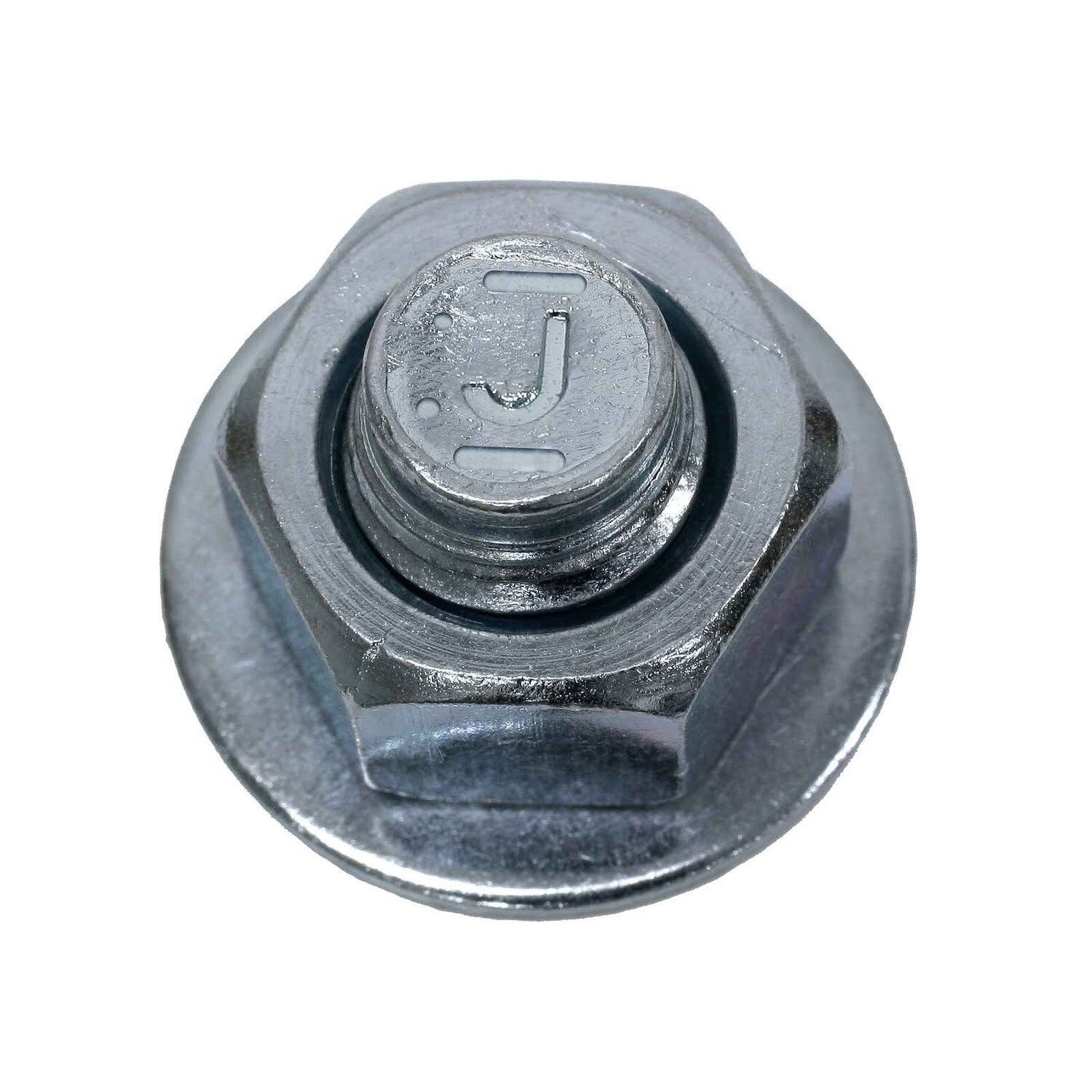

- Chamfered top prevents mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Fits standard fixtures and installs with common drill bit sizes
- Made from durable 316 stainless steel
Simpson STB2-375006SS Applications
- Concrete anchoring in cracked and uncracked conditions

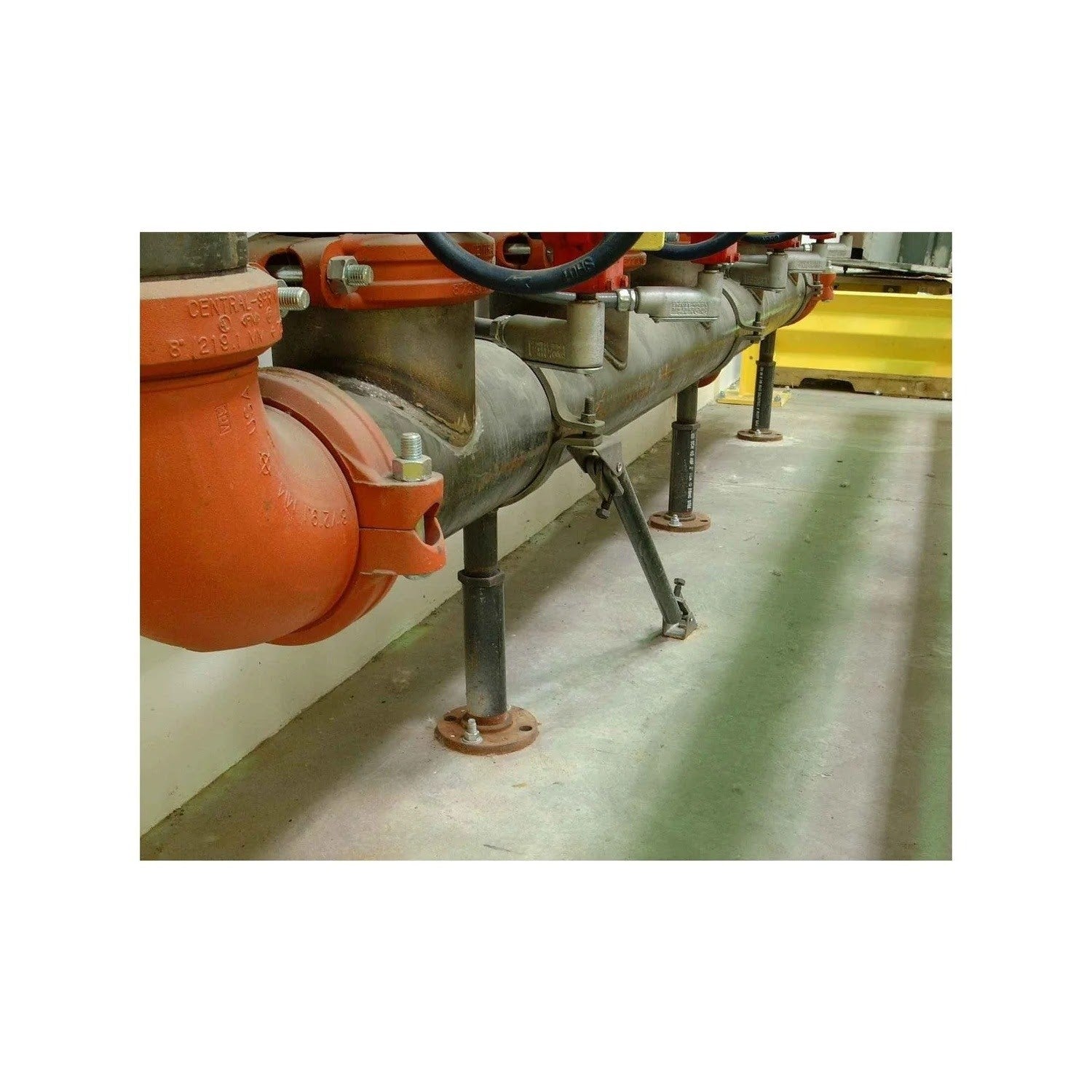

- Seismic applications requiring reliable anchoring
- Horizontal, vertical, and overhead installations

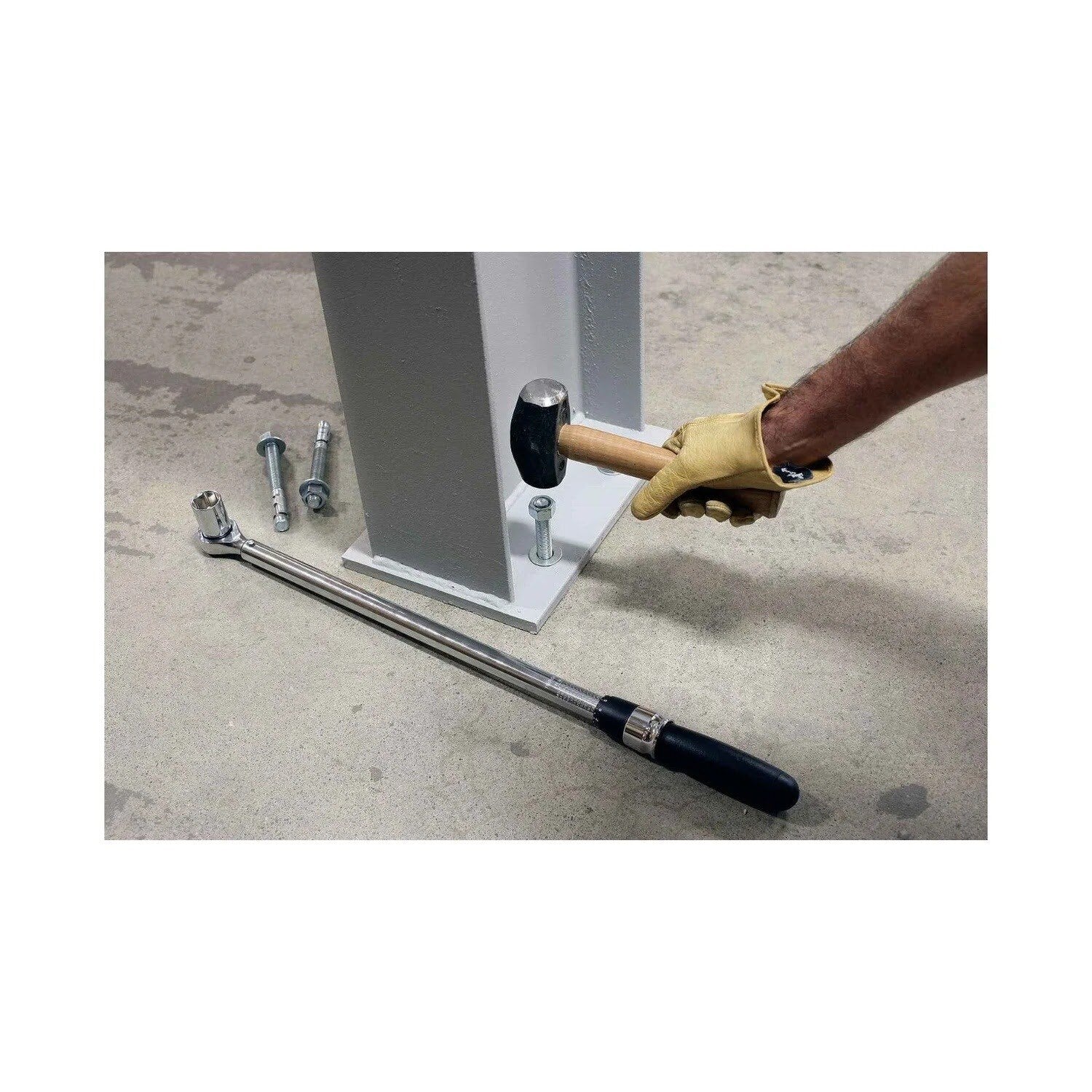

Simpson STB2-375006SS Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter
- Clean the hole using compressed air
- Assemble the anchor with nut and washer

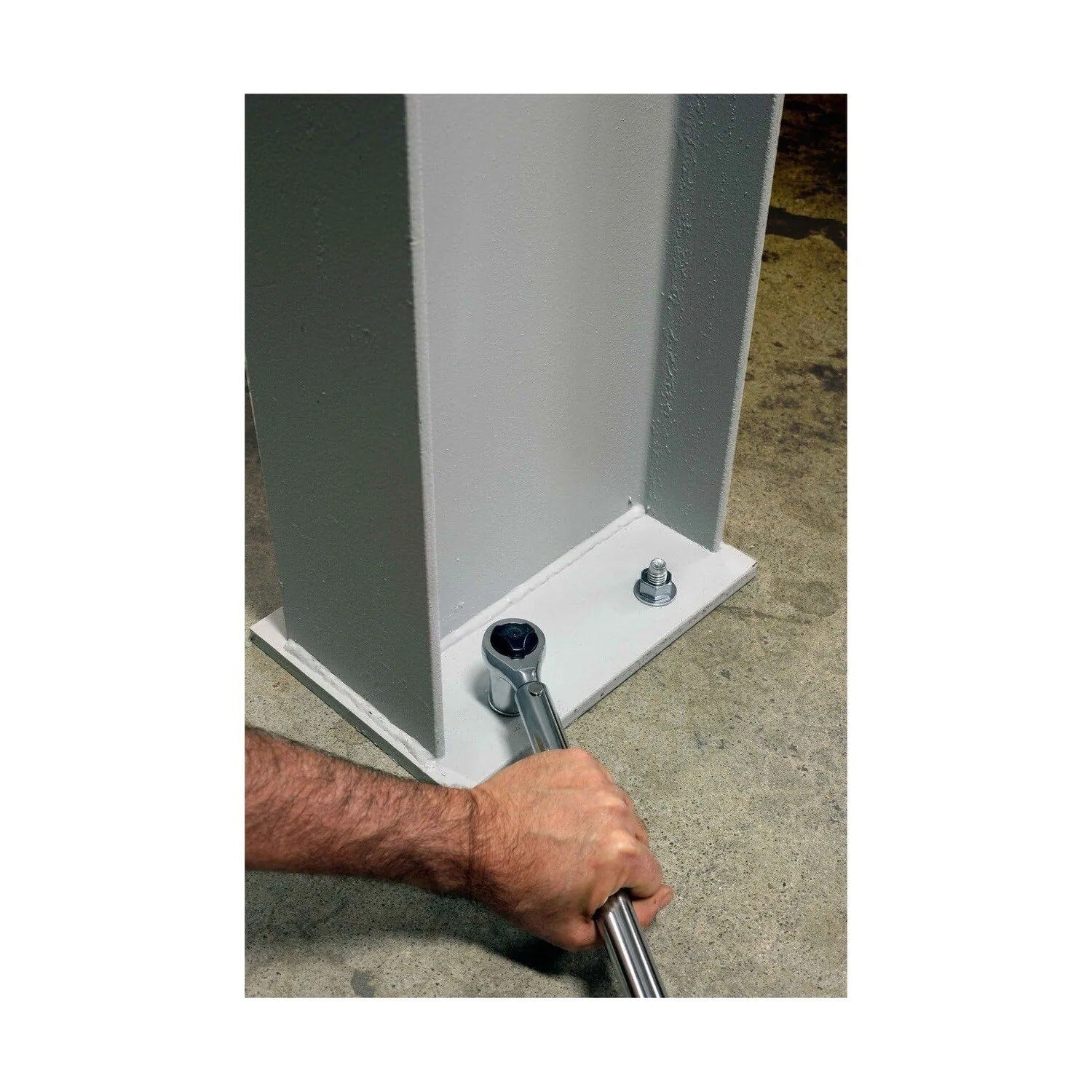

- Insert the anchor into the hole and tighten to specified torque
Simpson STB2-375006SS Specifications
| Material | 316 Stainless Steel |
| Diameter | 3/8" |
| Length | 5" |
| Drill Bit Size | 3/8" |
| Installation Torque | 30 ft. lbs |
| Thread Length | 3-9/16" |
| Quantity | 50 |
NOTE: Ensure proper installation torque is applied to achieve optimal performance.
