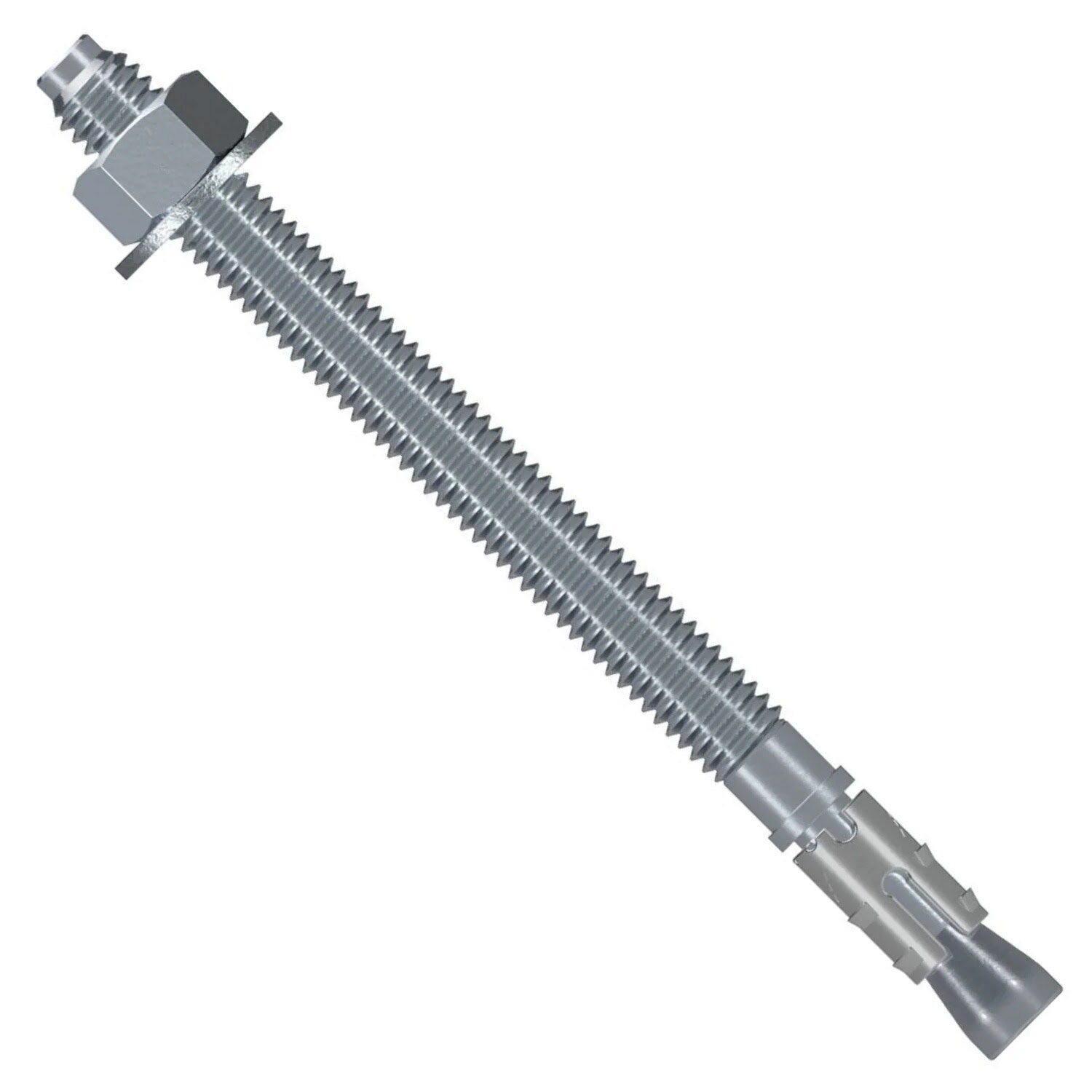

Simpson Strong-Tie STB2-37500C40 Description
Simpson Strong-Bolt 2 anchors are non-bottom-bearing, ICC-ES code compliant anchors made to be installed in cracked or uncracked concrete. They are qualified for both static and seismic loading and suitable for horizontal, vertical, and overhead applications.
Simpson Strong-Tie STB2-37500C40 Includes
- (40) 3/8" x 5" Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-37500C40 Features
- Non-bottom-bearing design
- ICC-ES code compliant
- Suitable for cracked and uncracked concrete
- Qualified for static and seismic loading
- Applicable for horizontal, vertical, and overhead installations
Simpson Strong-Tie STB2-37500C40 Applications
- Concrete anchoring in cracked or uncracked surfaces
- Seismic load applications
- Horizontal, vertical, and overhead anchoring
Simpson Strong-Tie STB2-37500C40 Installation Overview
- Drill a hole using a 3/8" drill bit
- Insert the anchor into the hole
- Tighten using a torque wrench to 30 ft. lbs
- Ensure the anchor is securely set
Simpson Strong-Tie STB2-37500C40 Specifications
| Diameter | 3/8" |
| Finish | Zinc Plated |
| Length | 5" |
| Material | Carbon Steel |
| Drill bit size | 3/8" |
| Installation torque | 30 ft. lbs |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 40 |
NOTE: Do not use an impact wrench to set or tighten anchors. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity.
Toolup Part # :
825836
