Simpson Anchors | SKU:
STB2-37500MGF50
Simpson Strong-Tie STB2-37500MGF50 Strong Bolt (3/8" x 5") Mechanically Galvanized Wedge Anchor, Fully Assembled (50 Pack)
$72.03
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-37500MGF50 Description

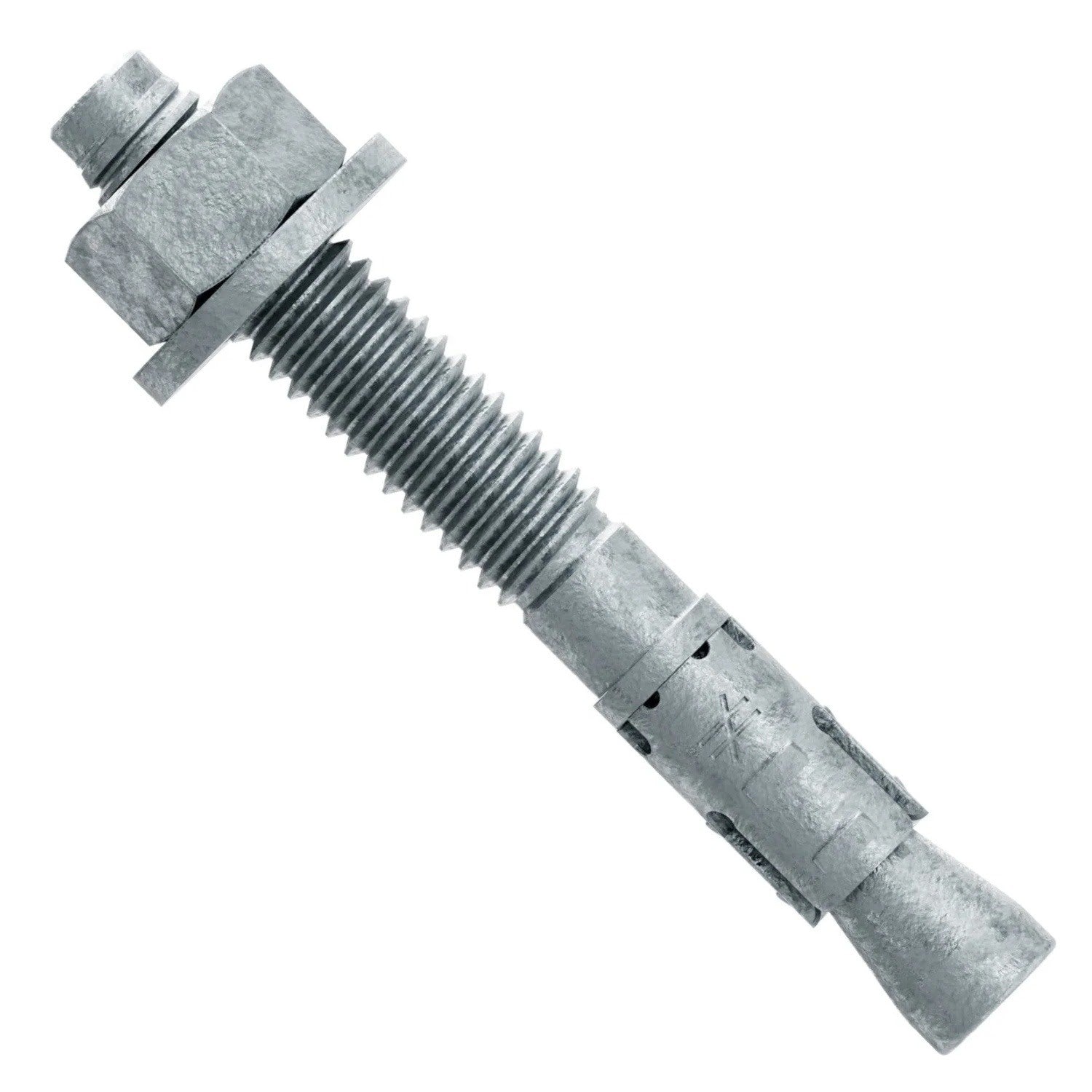

The Strong-Bolt 2 Wedge Anchor is a fully assembled, mechanically galvanized anchor designed for reliable tension and shear loads in cracked and uncracked concrete.
Simpson Strong-Tie STB2-37500MGF50 Includes
- (50) 3/8 in. x 5 in. Mechanically Galvanized Wedge Anchor
Simpson Strong-Tie STB2-37500MGF50 Features
- Chamfered top designed to prevent mushrooming during installation
- Suitable for horizontal, vertical, and overhead applications
- Tested for minimum concrete thickness of 3 1/4 in.
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested in uncracked concrete per ACI355.2 and AC193
Simpson Strong-Tie STB2-37500MGF50 Applications
- Anchoring structural columns, racking systems, machinery, or heavy-duty fixtures
- Basement renovations
- Large commercial applications
Simpson Strong-Tie STB2-37500MGF50 Installation Overview
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
- Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor.
- Place the anchor in the fixture, and drive it into the hole until the washer and nut are tight against the fixture.
- Tighten to the required installation torque.
Simpson Strong-Tie STB2-37500MGF50 Specifications
| Diameter | 3/8 in. |
| Length | 5 in. |
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Drill Bit Size | 3/8 in. |
| Fixture Hole Size | 7/16 in. |
| Installation Torque | 20 ft. lbf. |
| Thread Length | 3-9/16 in. |
| Wrench Size | 9/16 in. |
NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity.
