Simpson Anchors | SKU:
STB2-37500MGR50

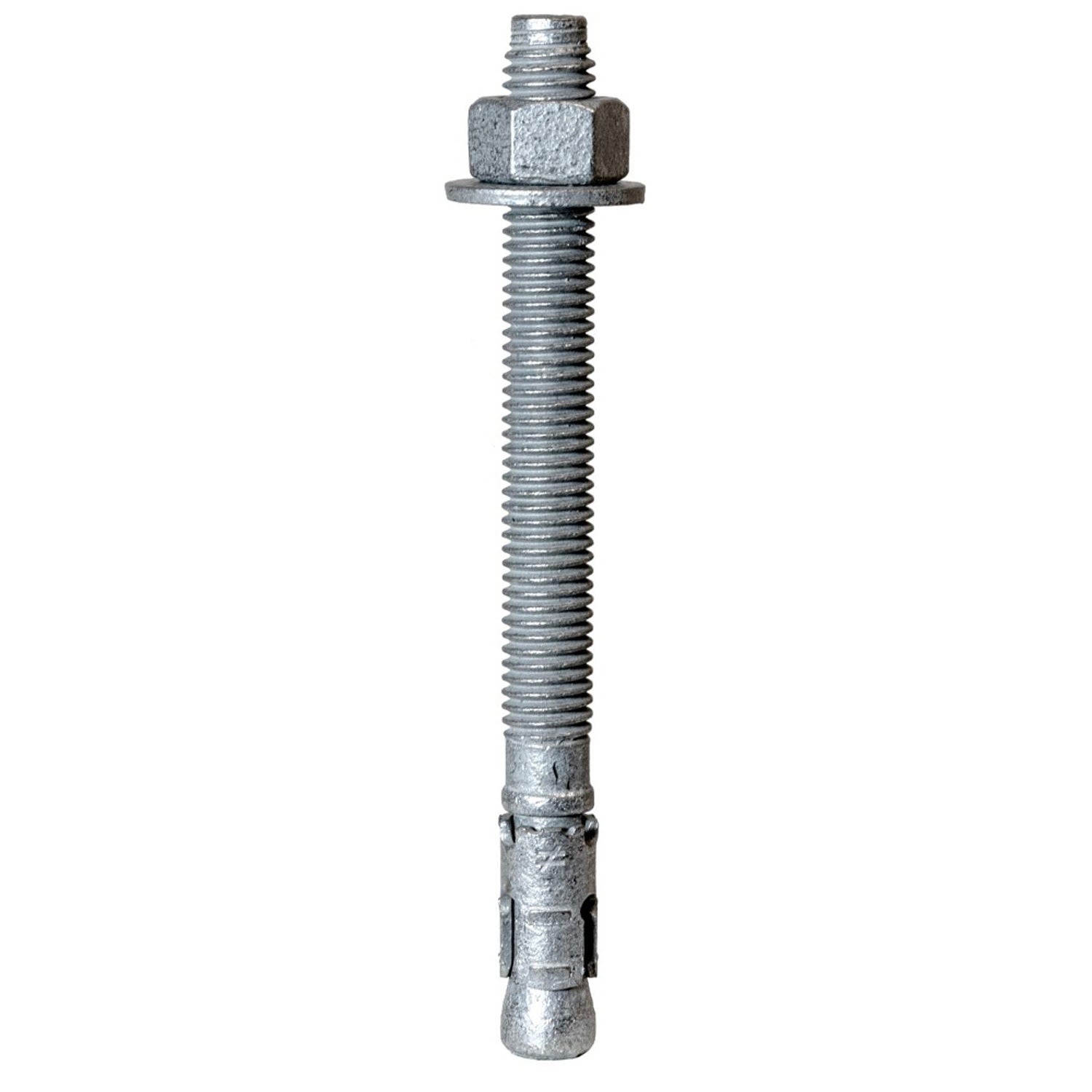

Simpson Strong-Tie STB2-37500MGR50 Strong Bolt (3/8" x 5") Mechanically Galvanized Wedge Anchor (50 Pack)
$67.39
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-37500MGR50 Description
The Strong-Bolt 2 Wedge Anchor is a mechanically galvanized anchor designed for secure fastening in concrete applications.
Simpson Strong-Tie STB2-37500MGR50 Includes
- (50) 3/8 in. x 5 in. Wedge Anchor
Simpson Strong-Tie STB2-37500MGR50 Features
- Chamfered top designed to prevent mushrooming during installation
- Suitable for horizontal, vertical and overhead applications
- Tested for minimum concrete thickness of 3 1/4"
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested in uncracked concrete per ACI355.2 and AC193
Simpson Strong-Tie STB2-37500MGR50 Applications
- Concrete fastening for structural and non-structural applications
- Ideal for horizontal, vertical, and overhead installations
Simpson Strong-Tie STB2-37500MGR50 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air or ensure it is deep enough to accommodate dust.
- Assemble the anchor with nut and washer, place it in the fixture, and drive it into the hole.
- Tighten the nut to the required installation torque.
Simpson Strong-Tie STB2-37500MGR50 Specifications
| Material | Carbon steel |
| Finish | Mechanically galvanized |
| Anchor Diameter | 3/8 in. |
| Anchor Length | 5 in. |
| Packaging Quantity | 50 |
NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity.
