Simpson Anchors | SKU:
STB2-37500S6F50
Simpson Strong-Tie STB2-37500S6F50 Strong-Bolt (3/8" x 5") Fully Assembled 2 Wedge Anchor - Type 316 (50 Pack)
Free Shipping
$211.54
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-37500S6F50 Description

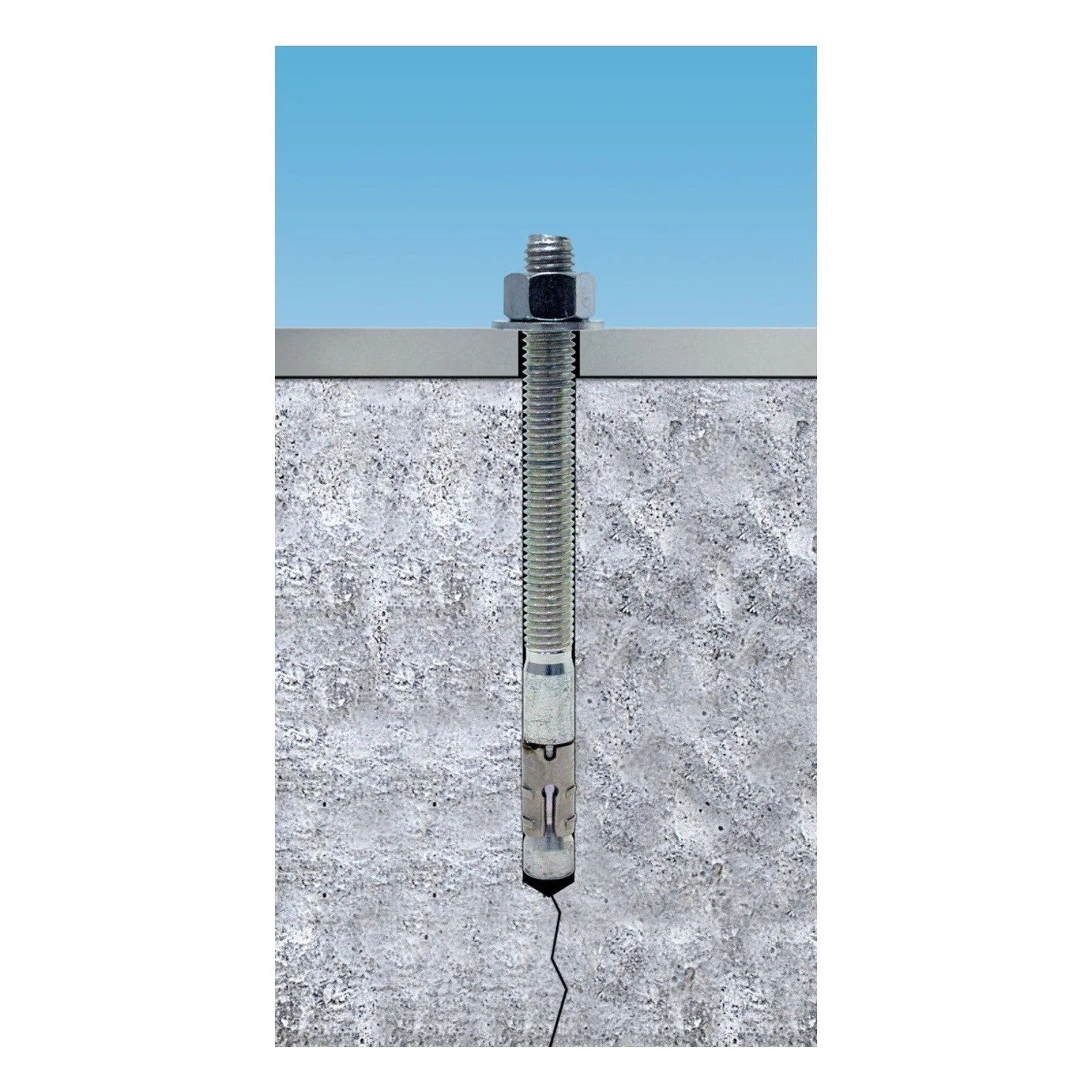

The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors are engineered for maximum performance in corrosive environments, ideal for heavy-duty fastening into cracked or uncracked concrete.
Simpson Strong-Tie STB2-37500S6F50 Includes

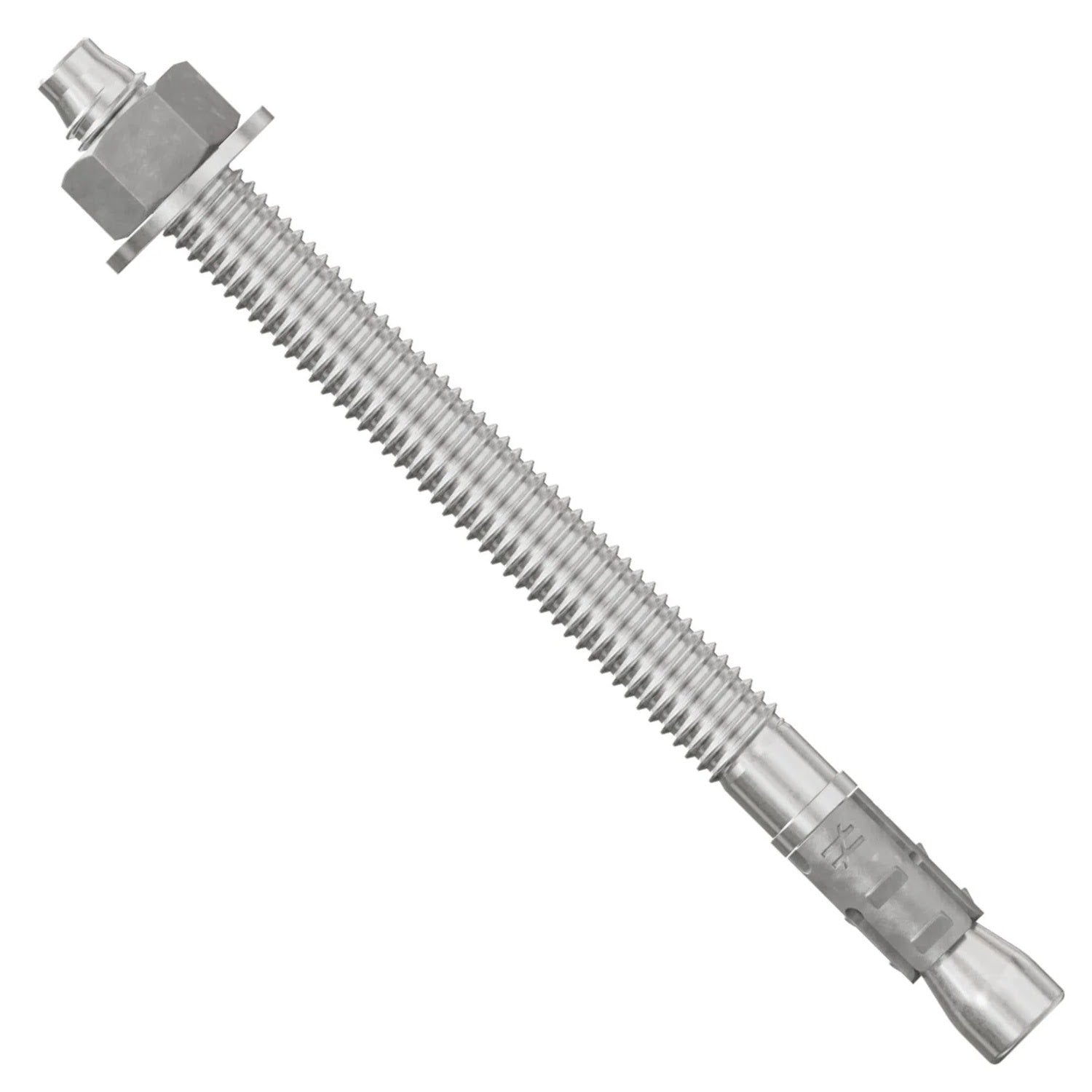

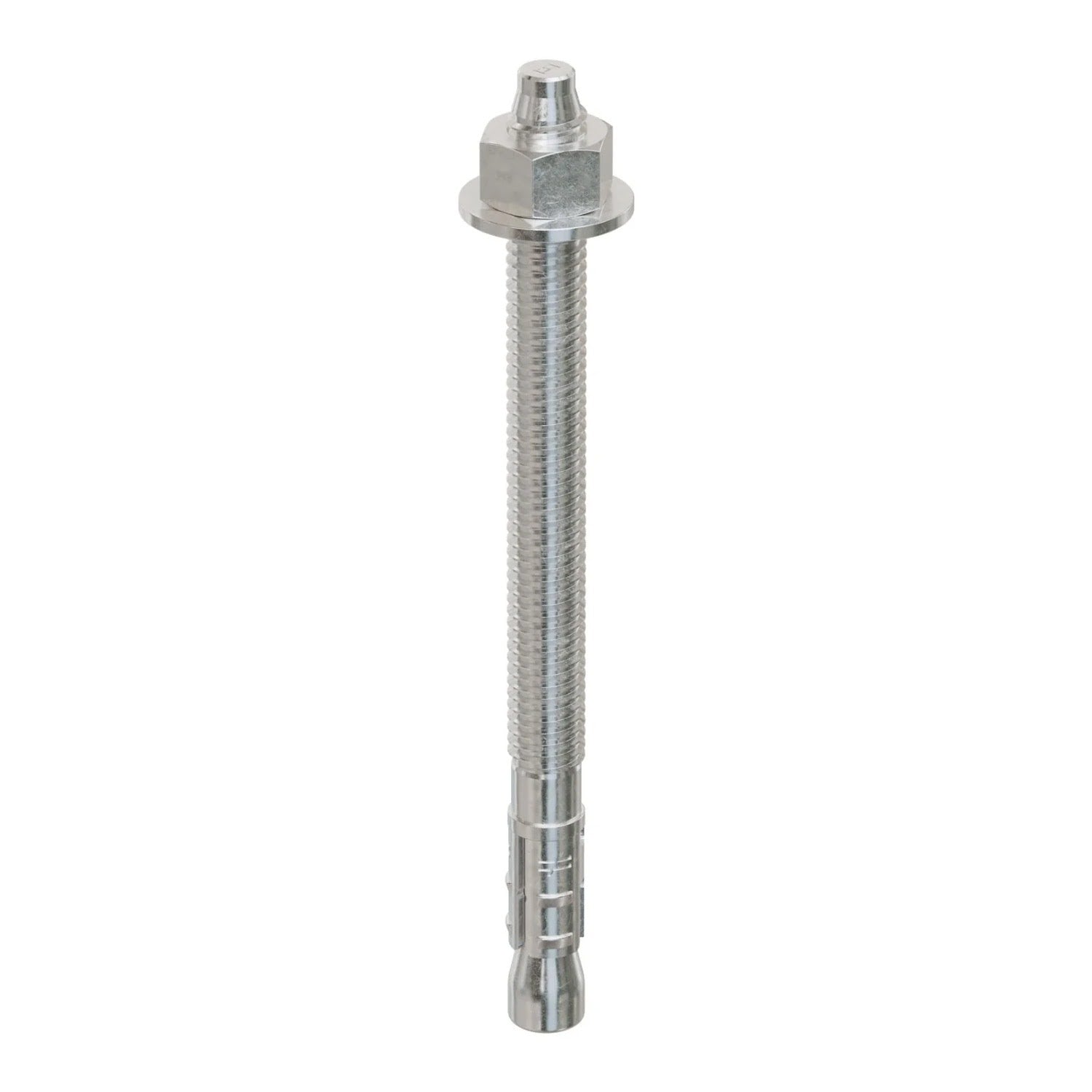

- (50) 3/8 in. x 5 in. Type 316 Stainless-Steel Wedge Anchor
Simpson Strong-Tie STB2-37500S6F50 Features
- 316 Stainless Steel Construction for exceptional corrosion resistance
- Fully Assembled with nut and washer for faster installation
- ICC-ES ESR-3037 code listed for cracked and uncracked concrete applications
- Suitable for anchoring structural supports, machinery, railing systems, and more
- Available in multiple diameter and length options
Simpson Strong-Tie STB2-37500S6F50 Applications
- Marine environments requiring corrosion-resistant anchoring

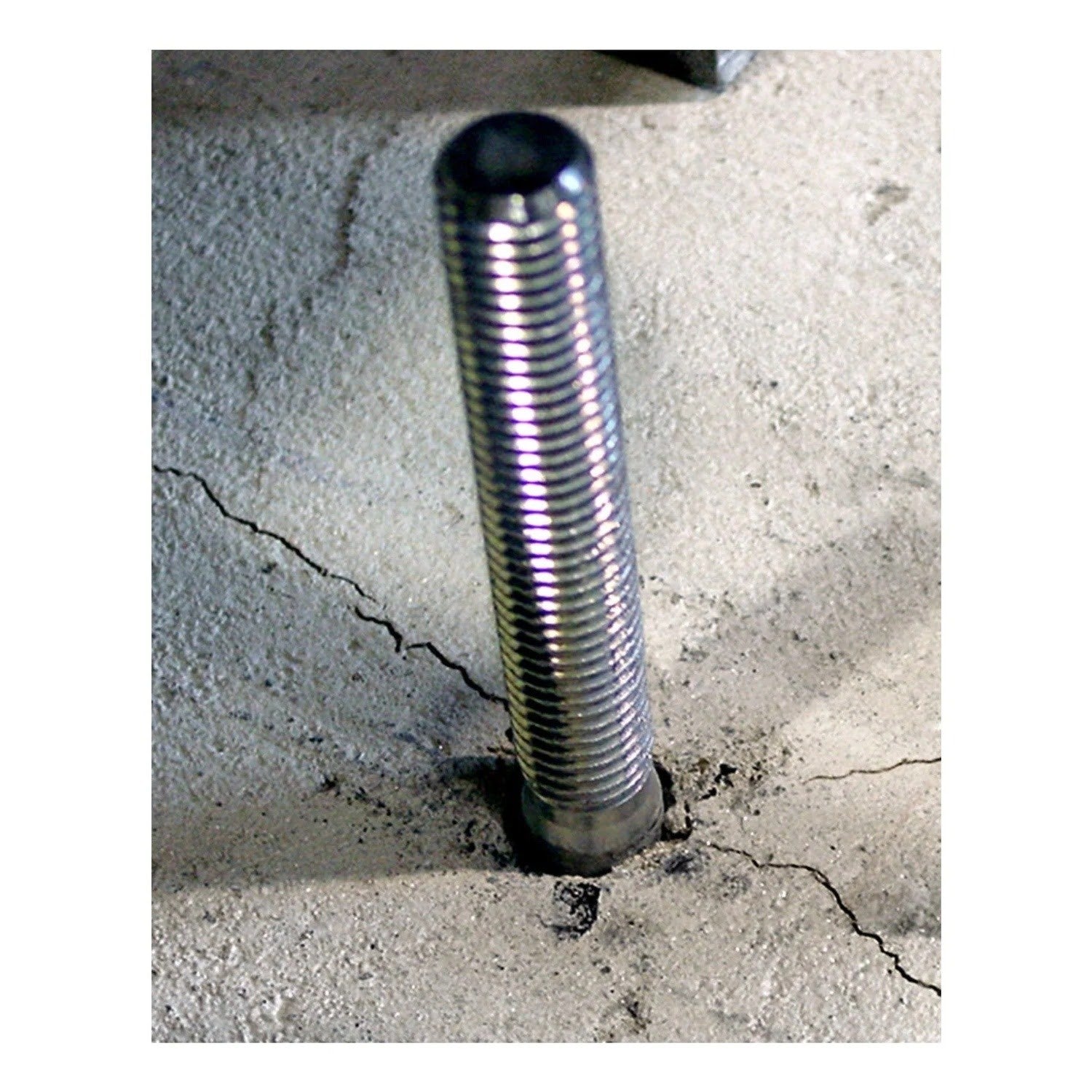

- Heavy-duty fastening in cracked or uncracked concrete
- Structural connections in coastal commercial builds
- Anchoring handrails in residential garages
- Industrial applications involving wastewater and chemical exposure
Simpson Strong-Tie STB2-37500S6F50 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air.
- Assemble the anchor with nut and washer, ensuring the nut is flush with the top of the anchor.

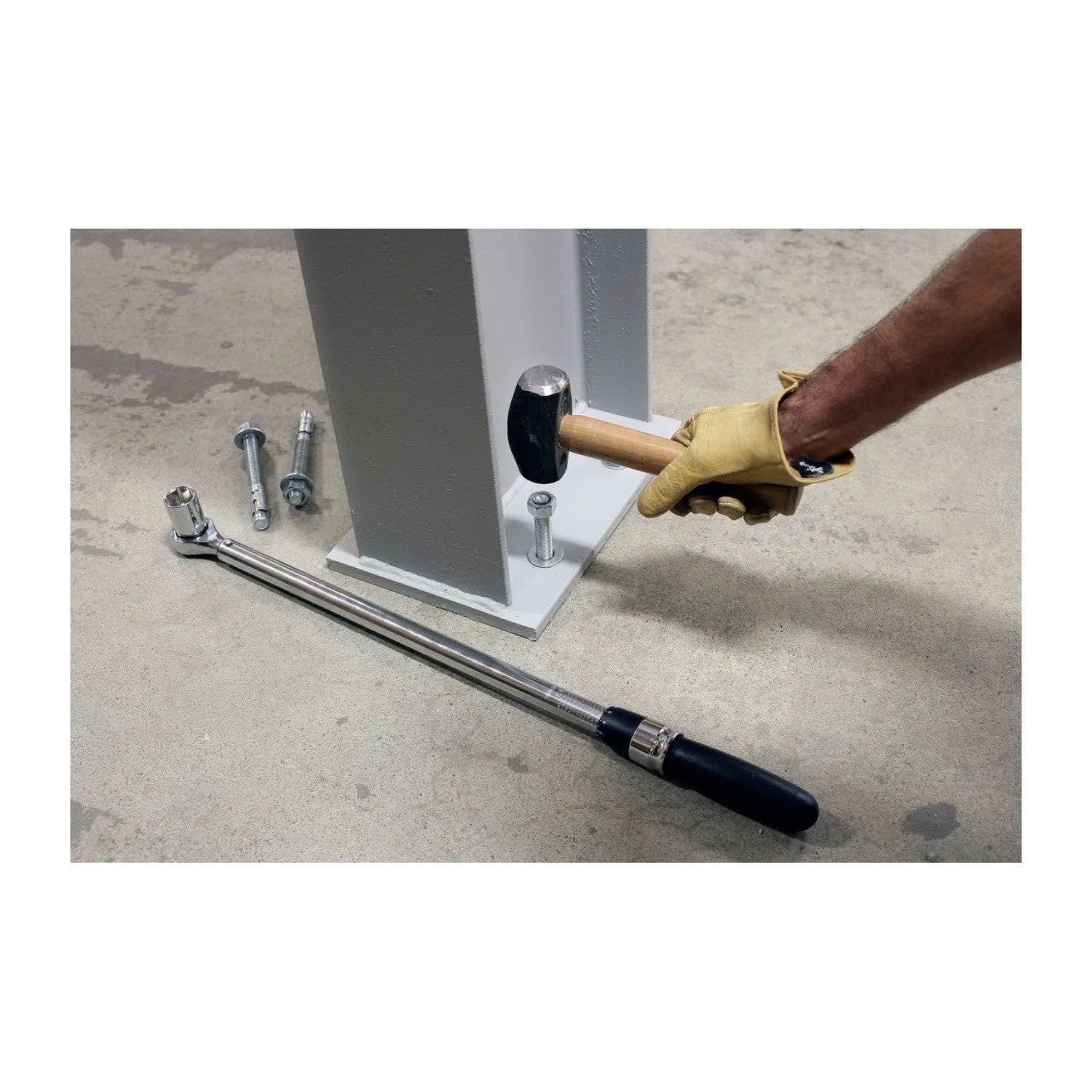

- Place the anchor in the fixture and drive it into the hole until the washer and nut are tight against the fixture.

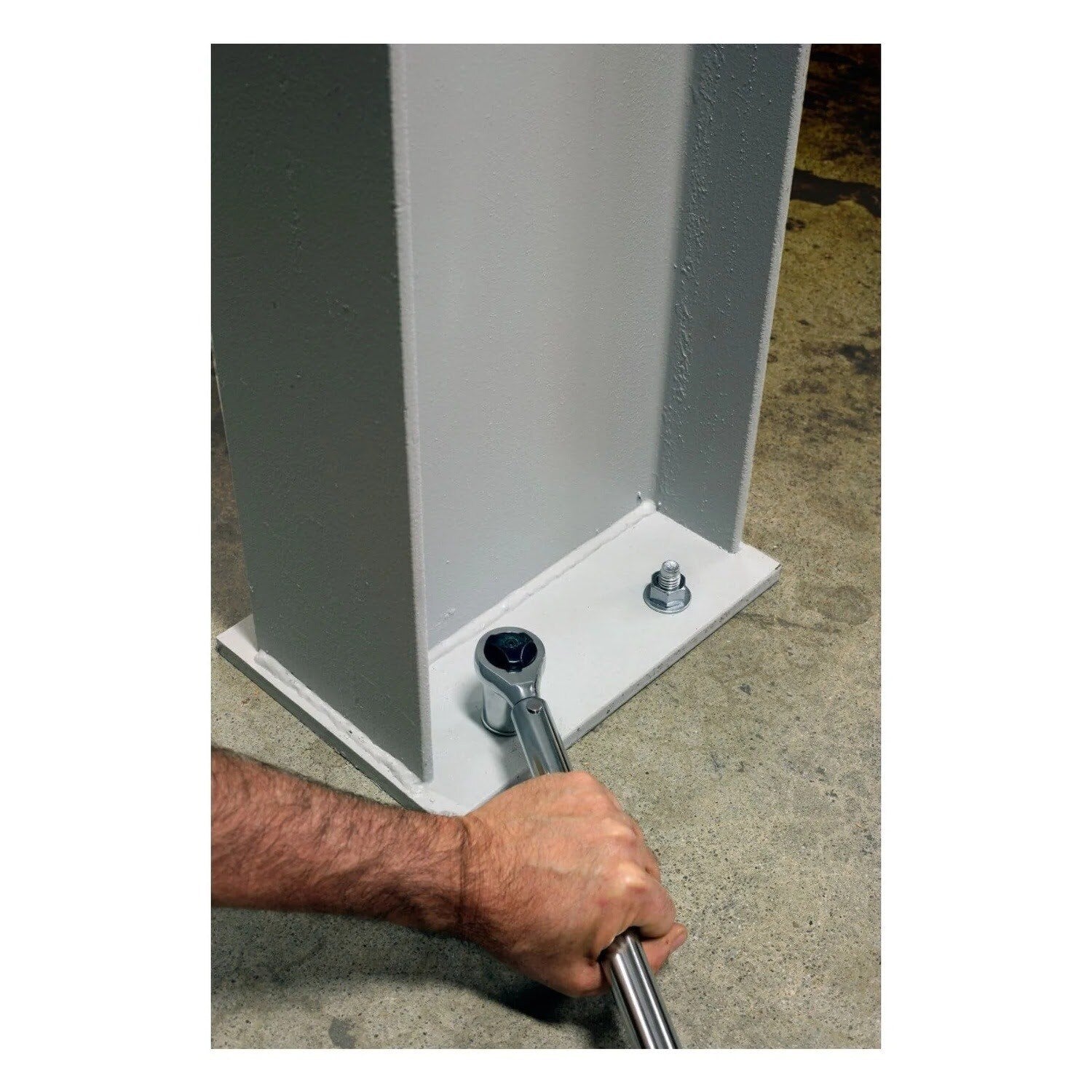

- Tighten to the required installation torque.
Simpson Strong-Tie STB2-37500S6F50 Specifications
| Diameter | 3/8 in. |
| Length | 5 in. |
| Material | 316 Stainless Steel |
| Drill bit size | 3/8 in. |
| Fixture hole size | 7/16 in. |
| Installation torque | 20 ft. lbf. |
| Thread length | 3-9/16 in. |
| Wrench size | 9/16 in. |
NOTE: Models STB2-25134xSS, STB2-37214xSSR50, STB2-50234xSSR25, STB2-62312xSSR20, and STB2-75434xSSR10 do not meet minimum embedment in code report.
