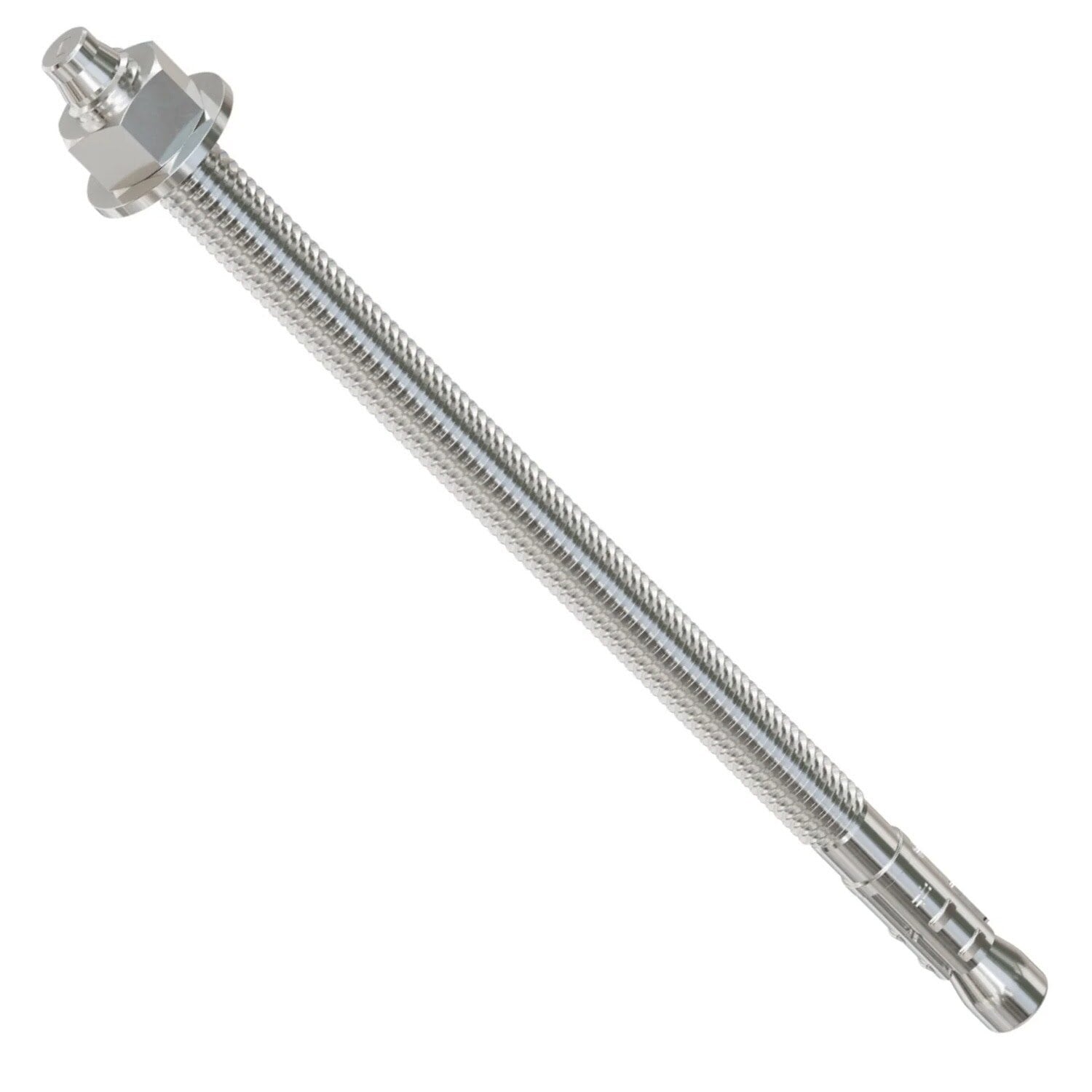

Simpson Strong-Tie STB2-377004SS Strong Bolt(3/8" x 7") Unassembled Wedge Anchor - Type 304 (50 Pack)
Description
Description
Simpson STB2-377004SS Description
Simpson Strong-Bolt 2 Wedge Anchors are ICC-ES code compliant, designed for cracked or uncracked concrete, and suitable for static and seismic loading.
Simpson STB2-377004SS Includes
- (50) 3/8" x 7" Strong-Bolt 2 Wedge Anchor
Simpson STB2-377004SS Features
- Non-bottom-bearing design for versatile installation
- ICC-ES code compliant for cracked and uncracked concrete
- Qualified for static and seismic loading
- Suitable for horizontal, vertical, and overhead applications
- Made from durable 304 stainless steel
Simpson STB2-377004SS Applications
- Concrete anchoring in cracked or uncracked surfaces
- Seismic and static load applications
- Horizontal, vertical, and overhead installations
Simpson STB2-377004SS Installation Overview
- Drill a hole using a 3/8" drill bit
- Insert the anchor into the hole
- Tighten the anchor using a torque wrench to 30 ft. lbs
- Avoid using impact wrenches for tightening
- Ensure the hole is not oversized to maintain load capacity
Simpson STB2-377004SS Specifications
Diameter | 3/8" |
Length | 7" |
Material | 304 Stainless Steel |
Drill bit size | 3/8" |
Installation torque | 30 ft. lbs |
Thread length | 5-9/16" |
NOTE: Ensure proper installation by avoiding oversized holes in the base material and refraining from using impact wrenches to set or tighten anchors
