Simpson Anchors | SKU:
STB2-377006SS

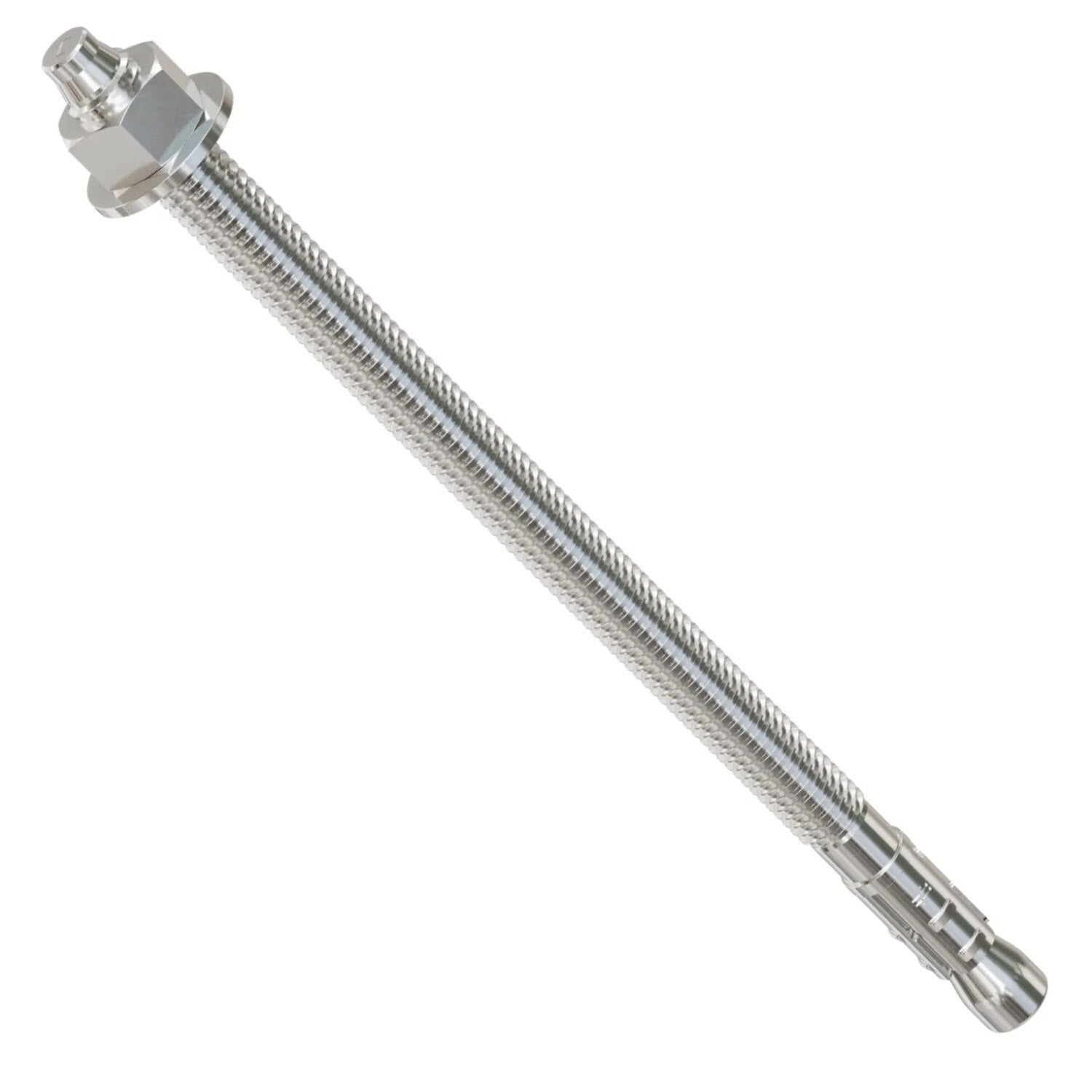

Simpson Strong-Tie STB2-377006SS Strong-Bolt 2 (3/8" x 3") Stainless Steel Wedge Anchor - Unassembled(50 Pack)
Free Shipping
$343.35
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-377006SS Description
The Strong-Bolt 2 Wedge Anchor is a high-performance anchor designed for use in cracked and uncracked concrete. Made from 316 stainless steel, it is suitable for static and seismic loading conditions.
Simpson Strong-Tie STB2-377006SS Includes
- (50) 3/8" x 7" Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-377006SS Features
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical, and overhead applications
- Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-steel deck
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested per ACI355.2 and AC193
Simpson Strong-Tie STB2-377006SS Applications
- Concrete anchoring in cracked and uncracked concrete
- Seismic and static load applications
- Horizontal, vertical, and overhead installations
Simpson Strong-Tie STB2-377006SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air or ensure it is deep enough to accommodate embedment depth and dust.
- Assemble the anchor with nut and washer, place it in the fixture, and drive it into the hole.
- Tighten the anchor to the required installation torque.
Simpson Strong-Tie STB2-377006SS Specifications
| Material | 316 Stainless Steel |
| Diameter | 3/8" |
| Length | 7" |
| Drill Bit Size | 3/8" |
| Thread Length | 5-9/16" |
| Installation Torque | 30 ft. lbs |
| Quantity | 50 |
NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity.
