Simpson Anchors | SKU:
STB2-37700MGF50

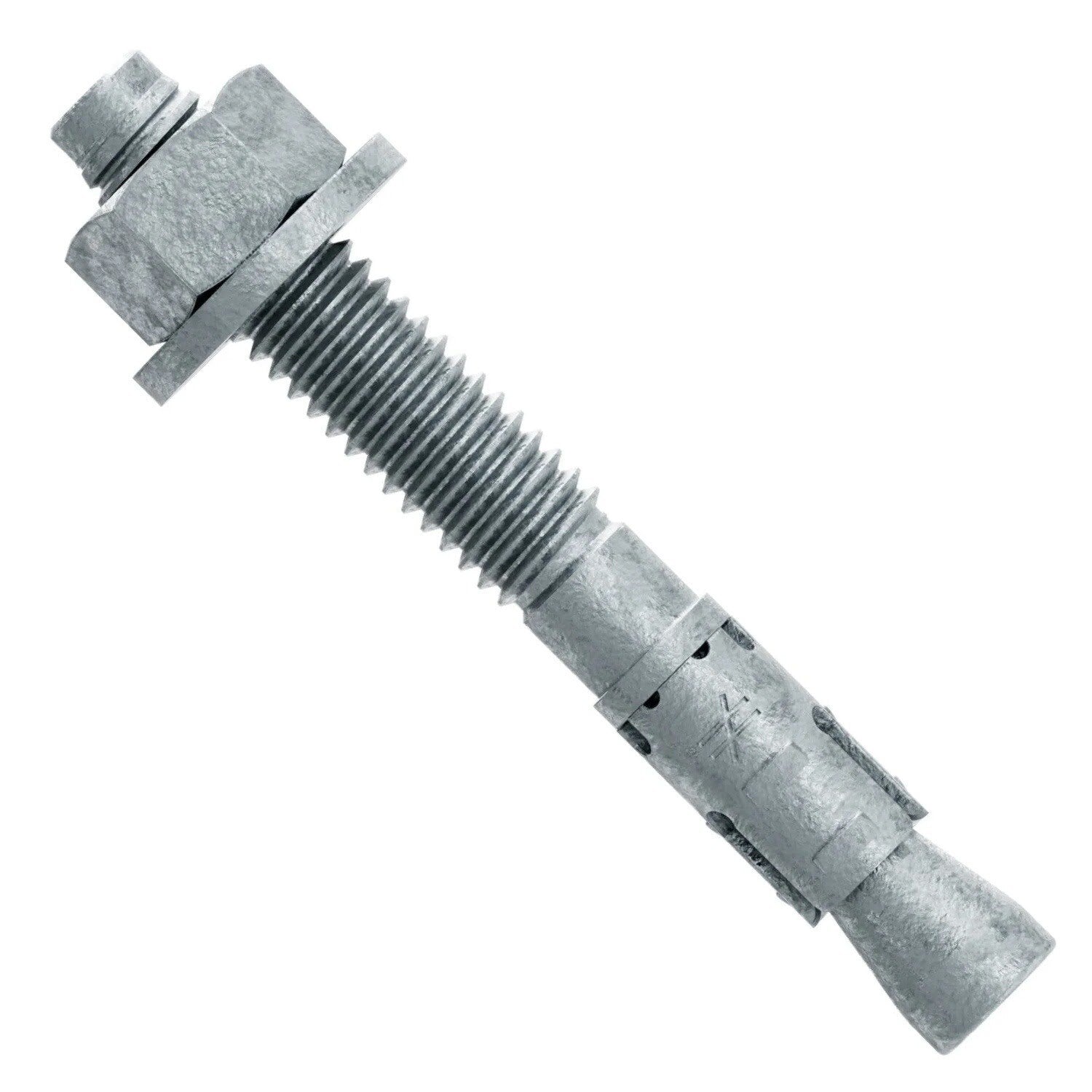

Simpson Strong-Tie STB2-37700MGF50 Strong-Bolt (3/8" x 7") Mechanically Galvanized Wedge Anchor, Fully Assembled (50 Pack)
$104.79
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-37700MGF50 Description
The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors are designed for reliable tension and shear loads in cracked and uncracked concrete, featuring a pre-assembled design for ease of use and a mechanically galvanized finish for enhanced corrosion resistance.
Simpson Strong-Tie STB2-37700MGF50 Includes
- (50) 3/8 in. x 7 in. Mechanically Galvanized Wedge Anchor
Simpson Strong-Tie STB2-37700MGF50 Features
- ICC-ES Code Approved for cracked and uncracked concrete applications
- Pre-Assembled Design: Includes nut and washer to simplify installation and save time on-site
- Mechanically Galvanized Finish: Enhances corrosion resistance for interior and select exterior conditions
- High Load Performance: Optimized for tension and shear in static and seismic environments (Categories A–F)
- Multiple Sizes Available: Select the best fit for your concrete anchoring needs
Simpson Strong-Tie STB2-37700MGF50 Applications
- Anchoring structural columns in concrete
- Securing racking systems
- Installing machinery
- Fastening heavy-duty fixtures
- Suitable for both residential and commercial construction projects
Simpson Strong-Tie STB2-37700MGF50 Installation Overview
- Drill a hole using a 3/8" drill bit
- Clean the hole of debris
- Insert the wedge anchor into the hole
- Tighten the nut using a 9/16" wrench to the specified torque of 20 ft. lbf.
- Ensure the fixture is securely fastened
Simpson Strong-Tie STB2-37700MGF50 Specifications
| Diameter | 3/8" |
| Finish | Mechanically Galvanized |
| Length | 7" |
| Material | Carbon Steel |
| Drill bit size | 3/8" |
| Fixture hole size | 7/16" |
| Installation torque | 20 ft. lbf. |
| Thread length | 5-9/16" |
| Wrench size | 9/16" |
