Simpson Anchors | SKU:
STB2-37700S6F50

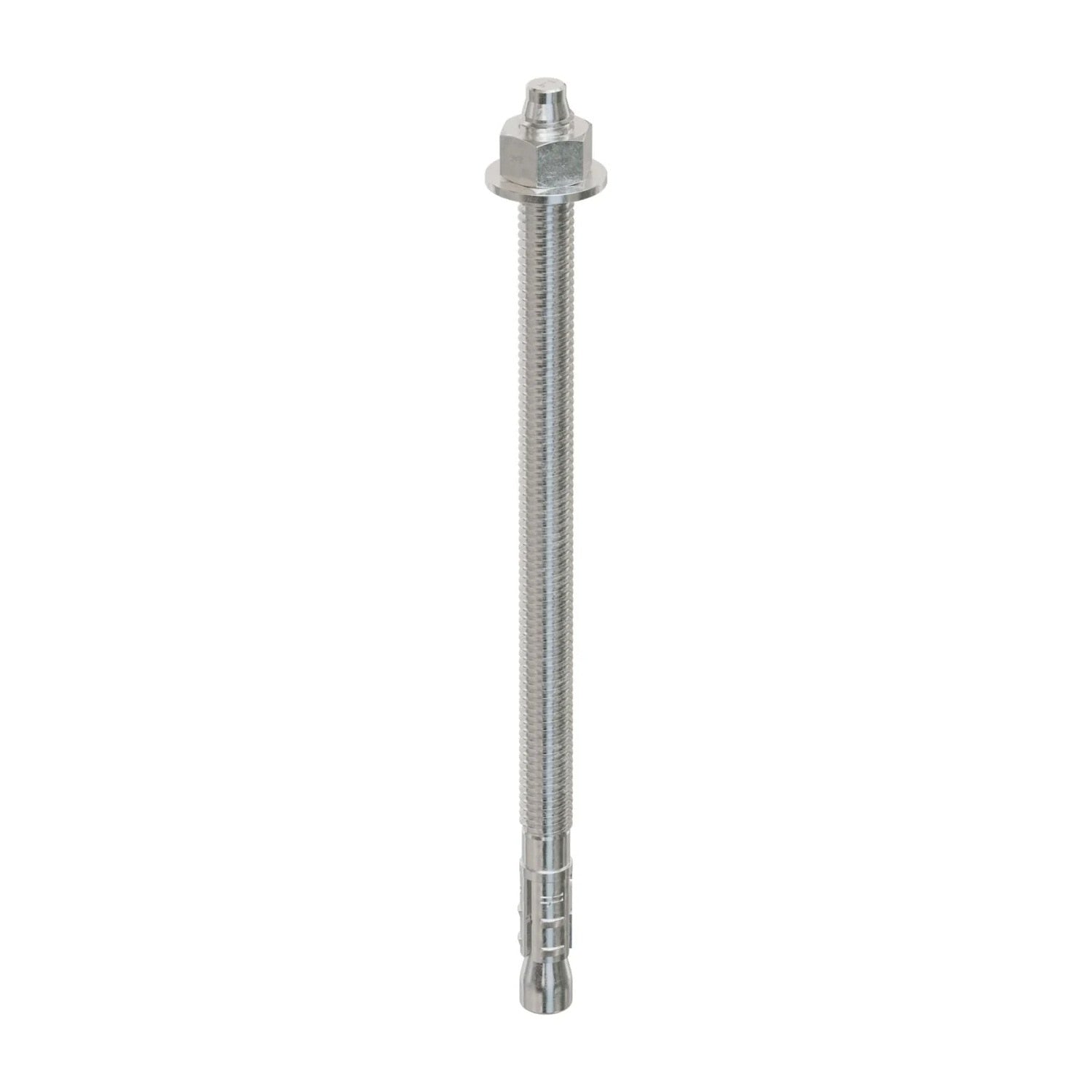

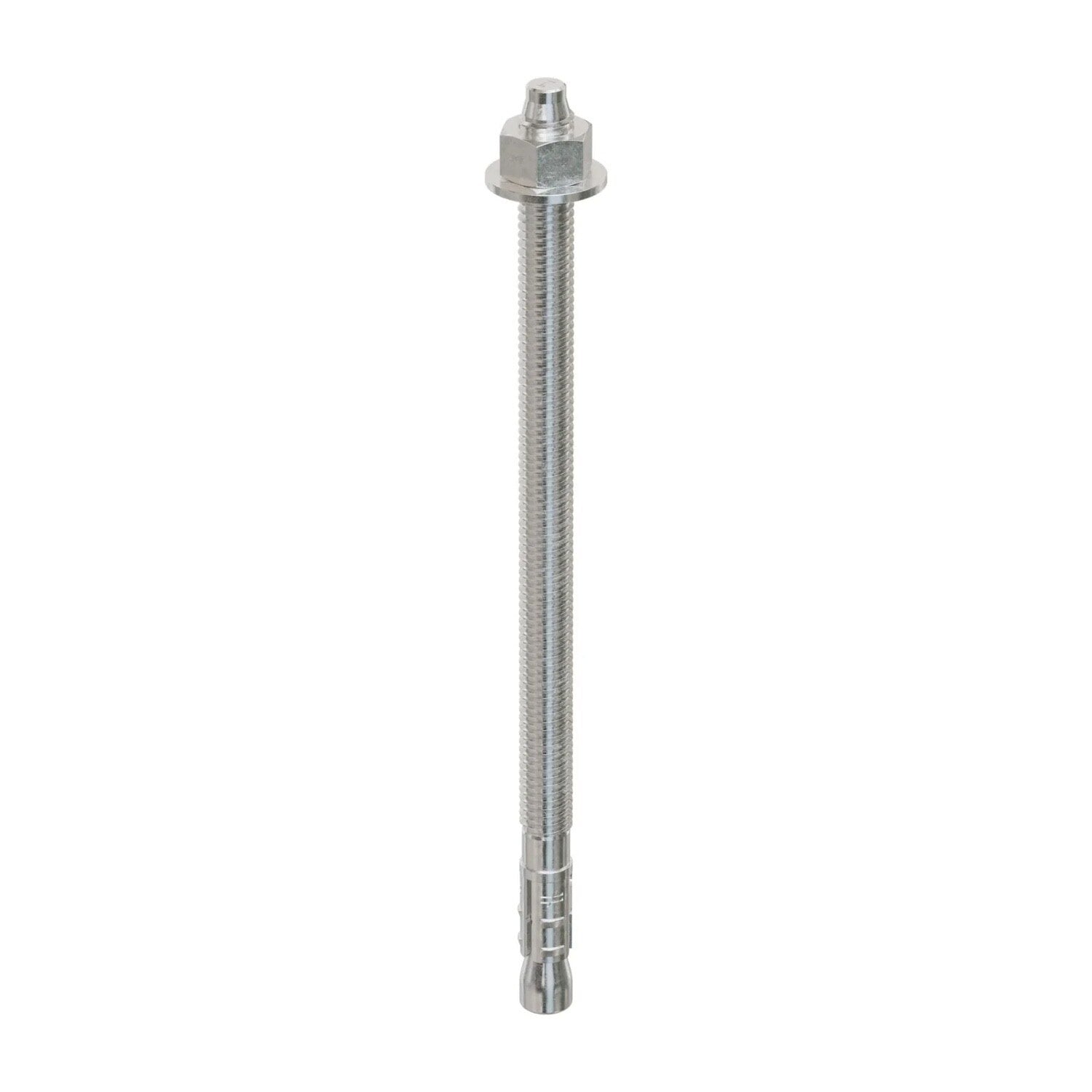

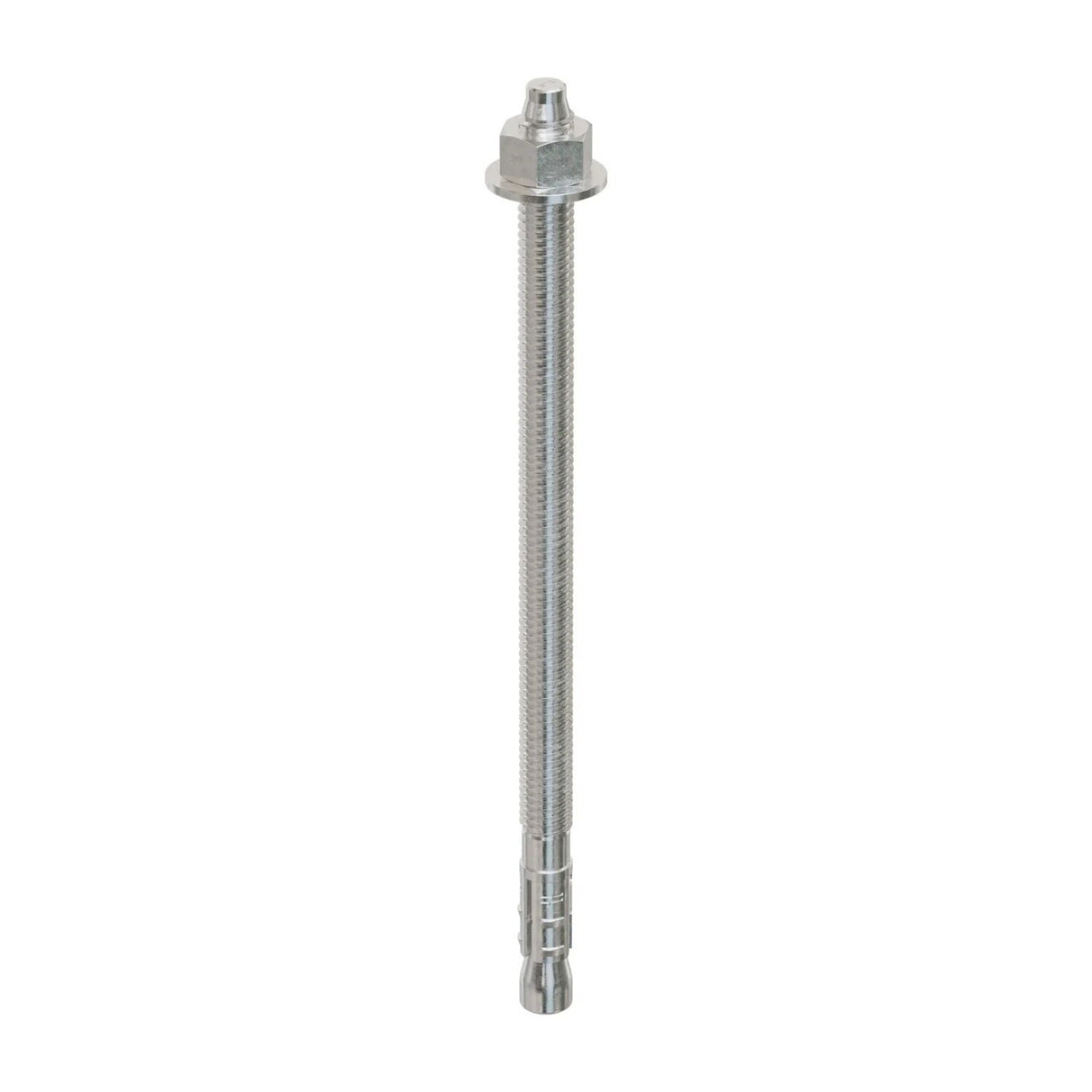

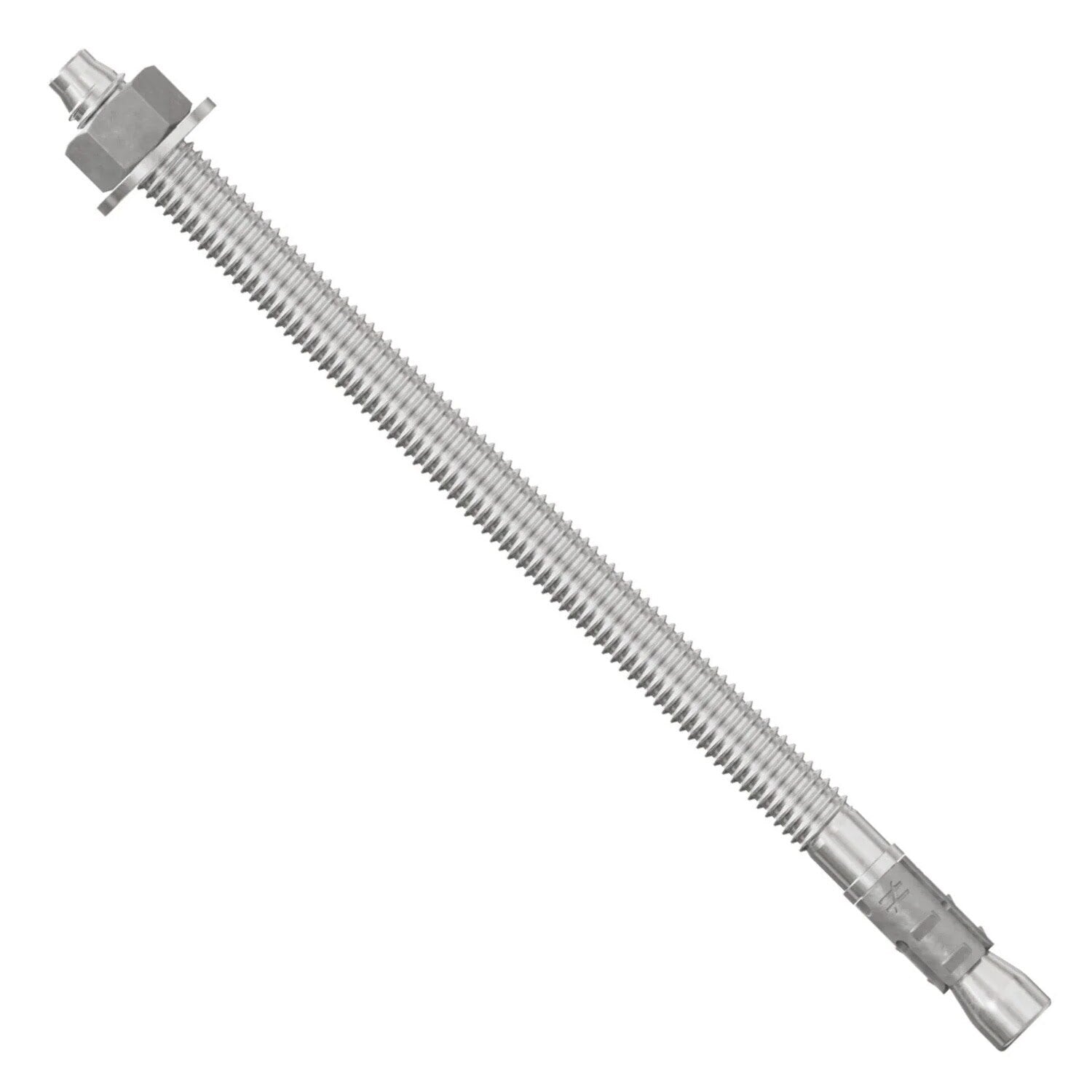

Simpson Strong-Tie STB2-37700S6F50 Strong-Bolt (3/8" x 7") Fully Assembled 2 Wedge Anchor - Type 316 (50 Pack)
Free Shipping
$373.35
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-37700S6F50 Description
The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors are designed for maximum performance in corrosive environments, offering high-strength fastening for cracked or uncracked concrete.
Simpson Strong-Tie STB2-37700S6F50 Includes
- (50) 3/8 in. x 7 in. Type 316 Stainless-Steel Wedge Anchor
Simpson Strong-Tie STB2-37700S6F50 Features
- 316 Stainless Steel Construction for corrosion resistance
- Fully assembled with nut and washer for easy installation

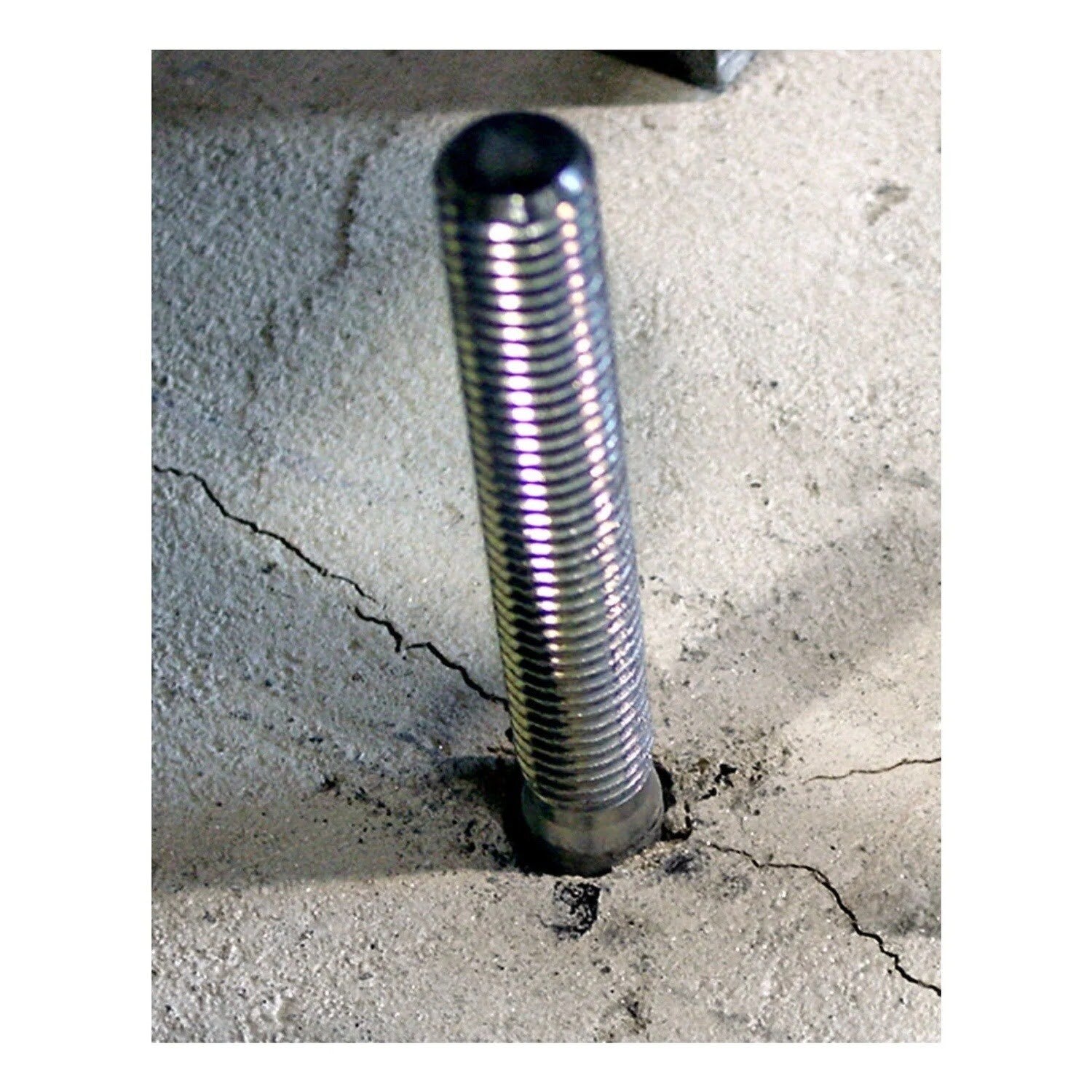

- ICC-ES ESR-3037 code listed for cracked and uncracked concrete
- Suitable for structural supports, machinery, and railing systems
- Available in multiple sizes for various applications
Simpson Strong-Tie STB2-37700S6F50 Applications
- Anchoring structural supports in corrosive environments
- Securing machinery and equipment
- Installing railing systems in residential and commercial settings
- Reinforcing connections in coastal or marine constructions

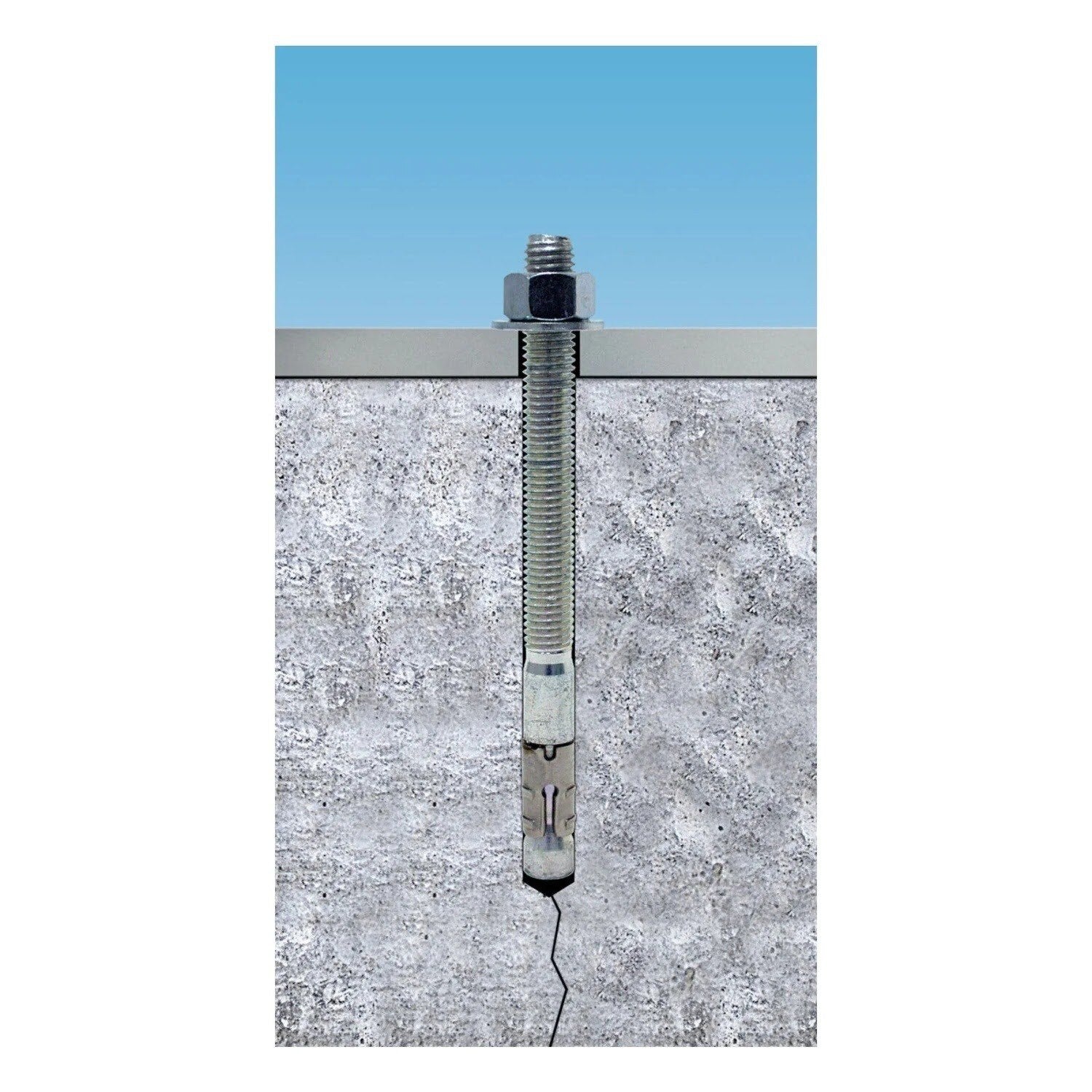

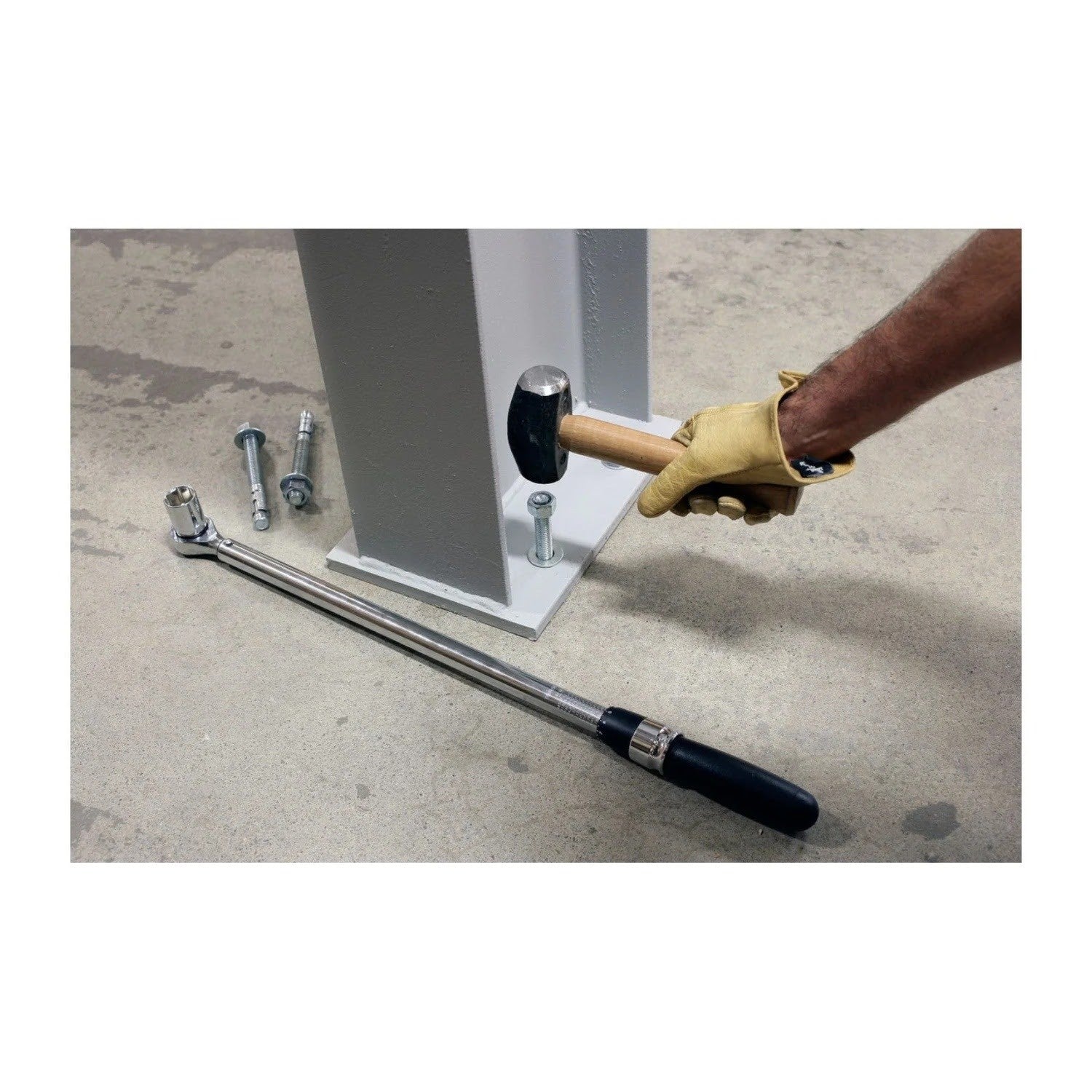

Simpson Strong-Tie STB2-37700S6F50 Installation Overview
- Drill a hole in the base material using a 3/8 in. carbide drill bit to the specified depth.
- Blow the hole clean using compressed air.
- Assemble the anchor with the nut and washer, ensuring the nut is flush with the anchor top.

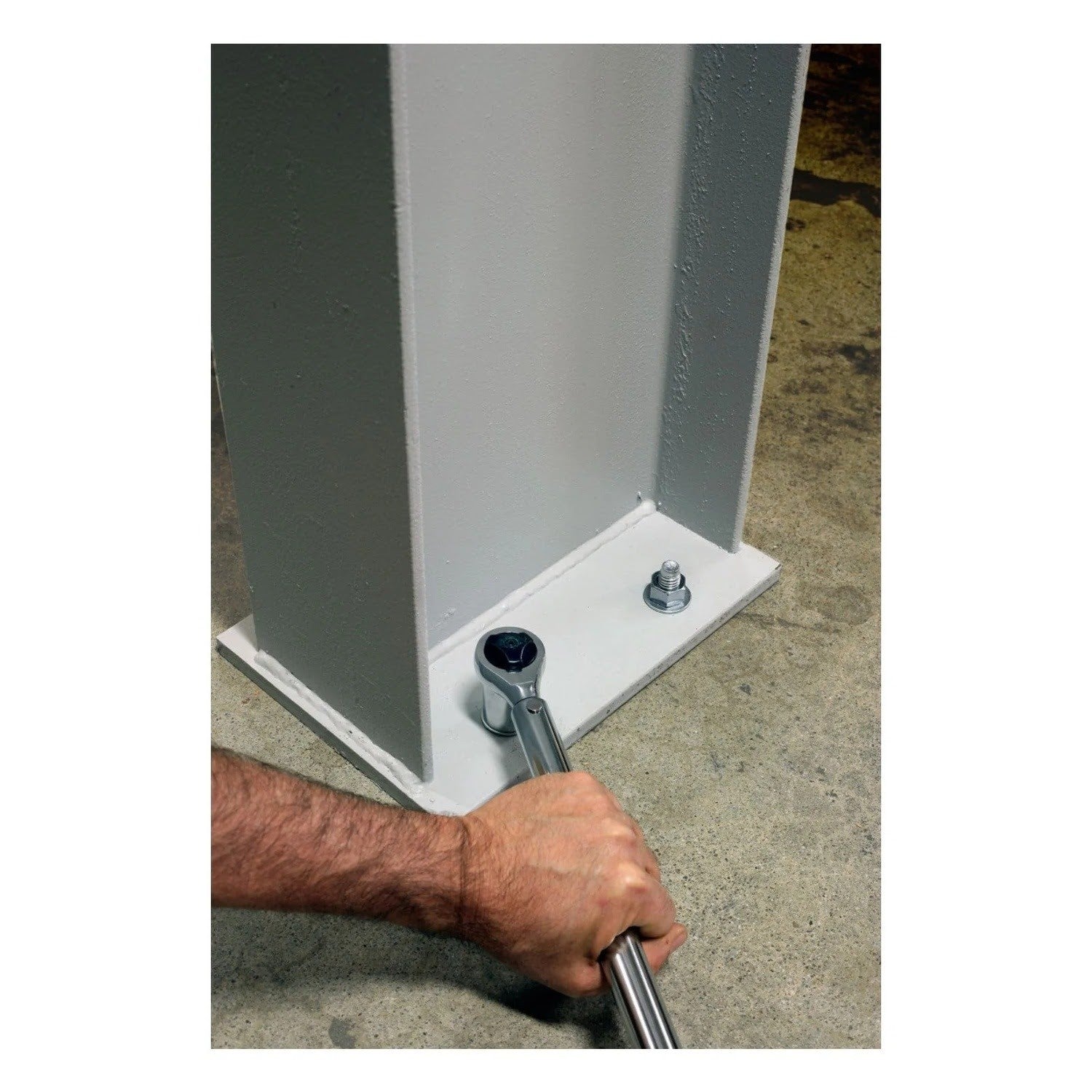

- Insert the anchor into the hole and tighten until the washer and nut are secure against the fixture.
- Tighten to the required installation torque of 20 ft. lbf.
Simpson Strong-Tie STB2-37700S6F50 Specifications
| Diameter | 3/8 in. |
| Length | 7 in. |
| Material | 316 Stainless Steel |
| Drill Bit Size | 3/8 in. |
| Fixture Hole Size | 7/16 in. |
| Installation Torque | 20 ft. lbf. |
| Thread Length | 5-9/16 in. |
| Wrench Size | 9/16 in. |
