Simpson Anchors | SKU:
STB2-501200R10

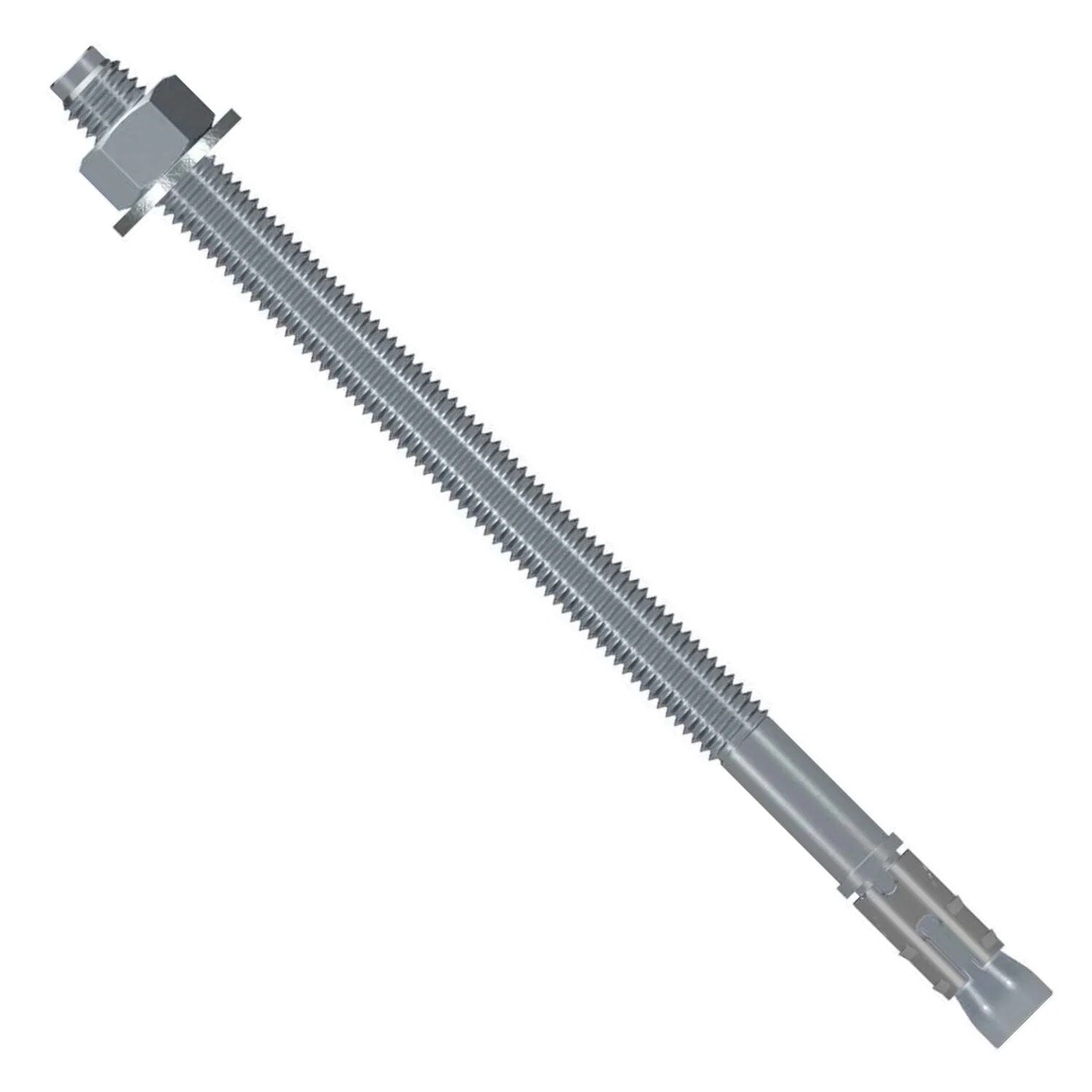

Simpson Strong-Tie STB2-501200R10 Strong-Bolt (1/2" x 12") Zinc-Plated Carbon Steel Wedge Anchor (10 Pack)
$48.25
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-501200R10 Description
The Strong-Bolt 2 Wedge Anchor is a reliable and durable solution for anchoring in cracked or uncracked concrete, suitable for static and seismic loading.
Simpson Strong-Tie STB2-501200R10 Includes
- (10) 1/2 in. x 12 in. Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-501200R10 Features
- Non-bottom-bearing design for versatile installation
- ICC-ES code compliant for safety and reliability
- Qualified for static and seismic loading
- Suitable for horizontal, vertical, and overhead applications
- Zinc-plated for corrosion resistance
Simpson Strong-Tie STB2-501200R10 Applications
- Anchoring in cracked or uncracked concrete
- Seismic and static load applications
- Horizontal, vertical, and overhead installations
Simpson Strong-Tie STB2-501200R10 Installation Overview
- Drill a hole using a 1/2 in. drill bit to the specified depth.
- Insert the anchor into the hole.
- Tighten the anchor using a torque wrench to 60 ft. lbs.
Simpson Strong-Tie STB2-501200R10 Specifications
| Diameter | 1/2" |
| Finish | Zinc Plated |
| Length | 12" |
| Material | Carbon Steel |
| Drill bit size | 1/2" |
| Installation torque | 60 ft. lbs |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 10 |
NOTE: Do not use an impact wrench to set or tighten anchors. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity.
