Simpson Anchors | SKU:
STB2-50334C10

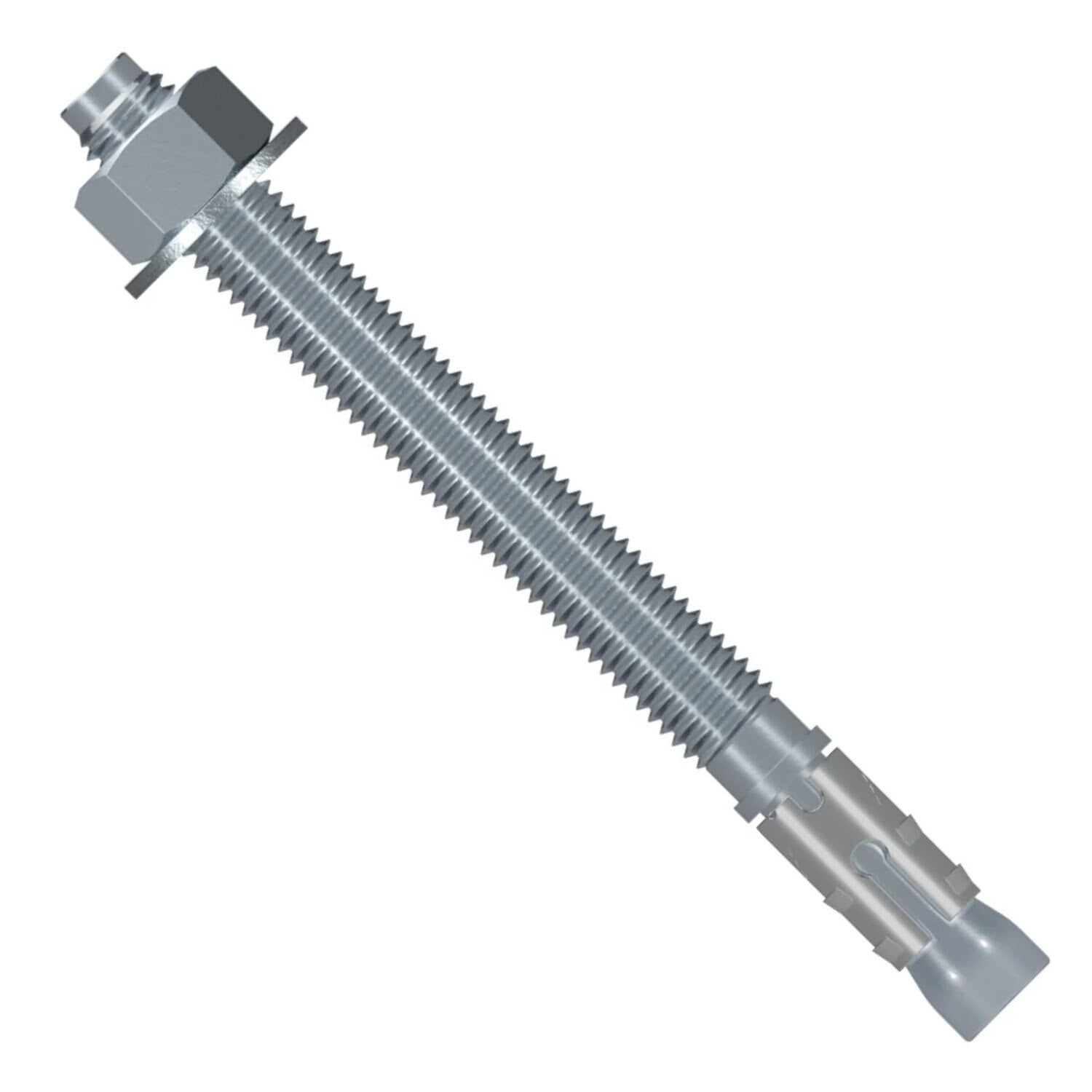

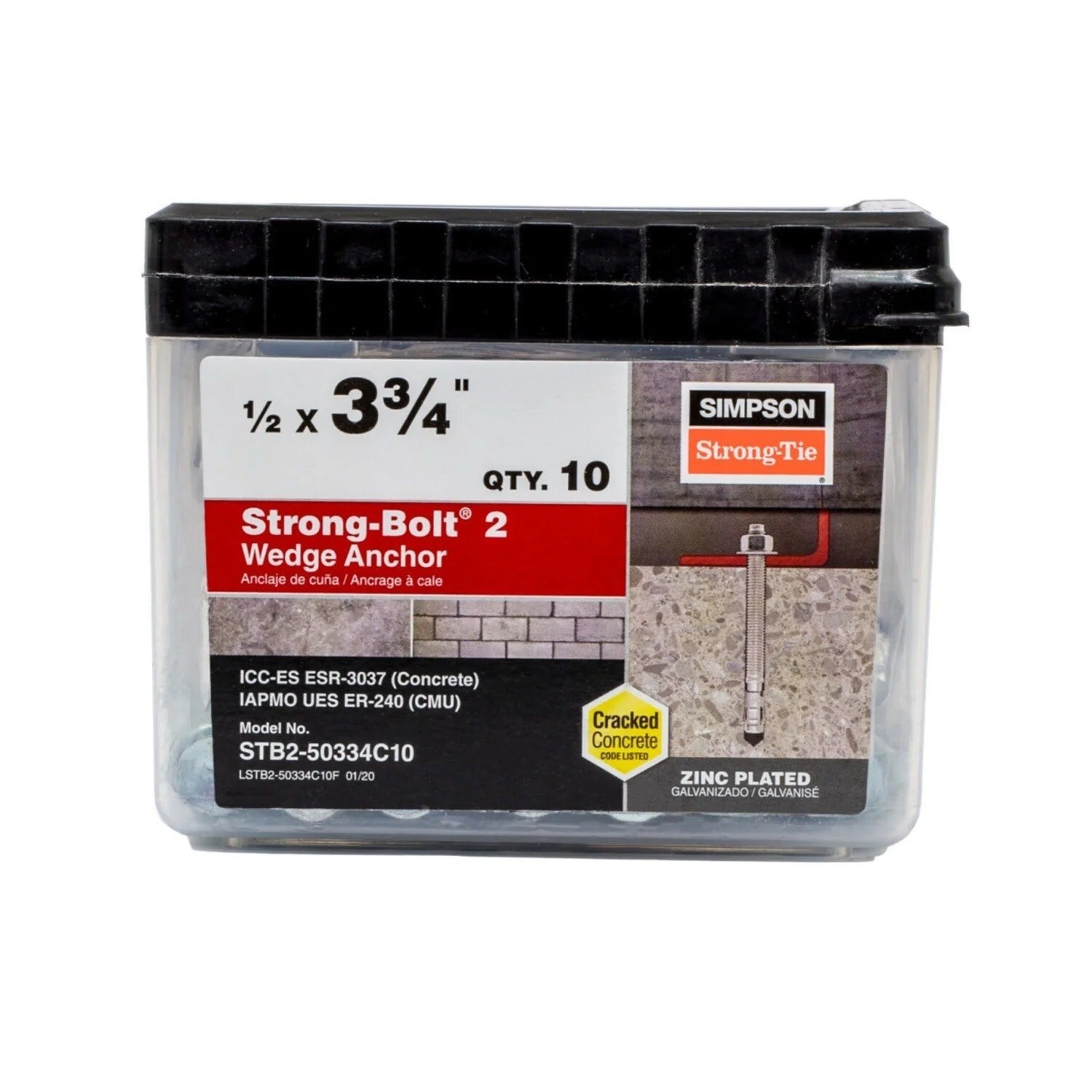

Simpson Strong-Tie STB2-50334C10 Strong Bolt (1/2" x 3-3/4") 2 Wedge Anchor - Zinc Plated (10 Pack)
$11.72
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-50334C10 Description
Simpson Strong-Bolt 2 anchors are non-bottom-bearing, ICC-ES code compliant anchors made to be installed in cracked or uncracked concrete. They are qualified for both static and seismic loading and suitable for horizontal, vertical, and overhead applications.
Simpson Strong-Tie STB2-50334C10 Includes
- (10) 1/2" x 3-3/4" Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-50334C10 Features
- Non-bottom-bearing design
- ICC-ES code compliant
- Qualified for static and seismic loading
- Suitable for horizontal, vertical, and overhead applications
- Zinc plated for corrosion resistance
Simpson Strong-Tie STB2-50334C10 Applications
- Cracked or uncracked concrete installations
- Seismic loading applications
- Horizontal, vertical, and overhead anchoring
Simpson Strong-Tie STB2-50334C10 Installation Overview
- Drill a hole using a 1/2" drill bit.
- Insert the anchor into the hole.
- Tighten the anchor using a wrench to the specified torque of 60 ft. lbs.
- Ensure the anchor is securely set.
Simpson Strong-Tie STB2-50334C10 Specifications
| Diameter | 1/2" |
| Finish | Zinc Plated |
| Length | 3-3/4" |
| Material | Carbon Steel |
| Drill bit size | 1/2" |
| Installation torque | 60 ft. lbs |
| Quantity | 10 |
NOTE: Do not use an impact wrench to set or tighten anchors. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity.
