Simpson Anchors | SKU:
STB2-50334MGR25

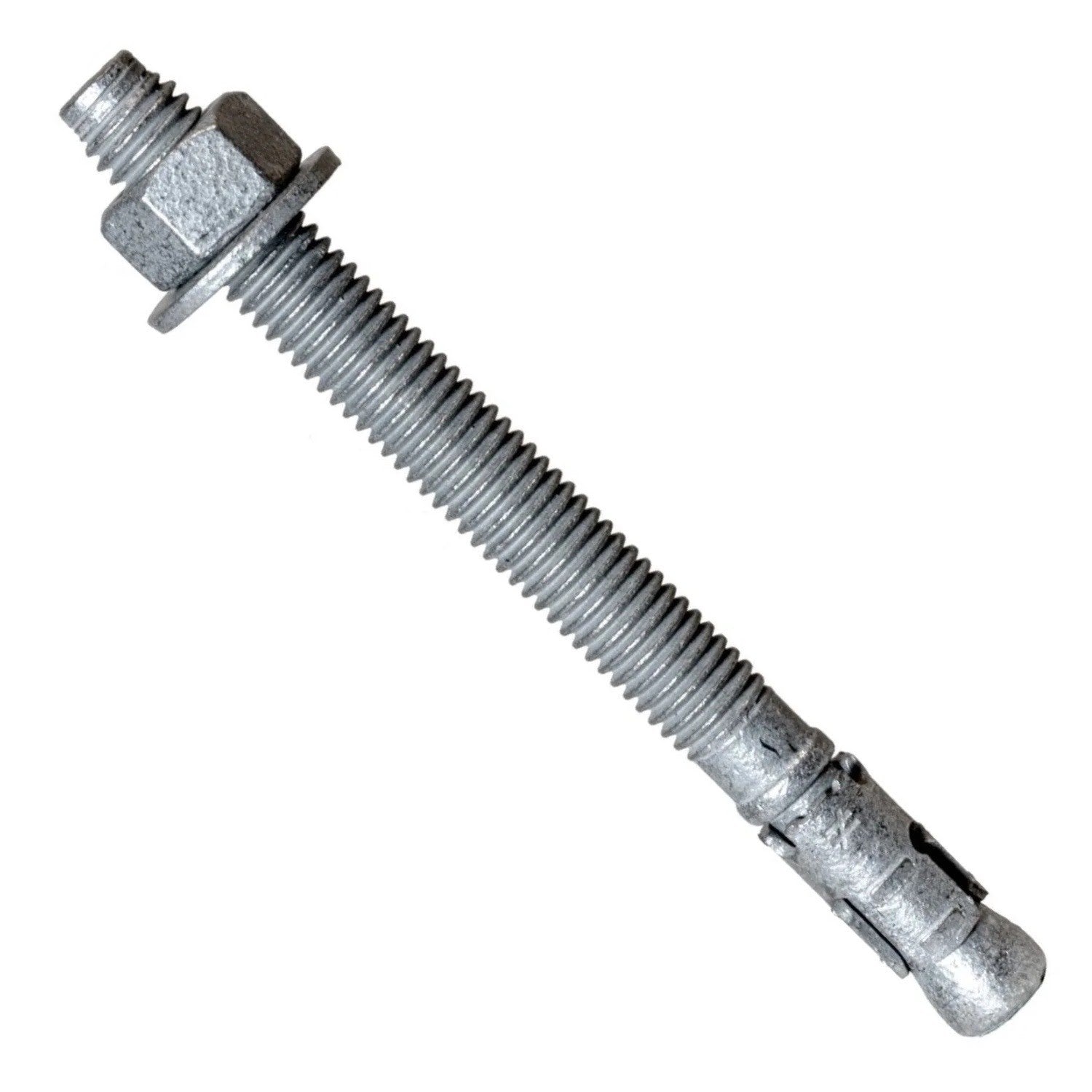

Simpson Strong-Tie STB2-50334MGR25 Strong-Bolt (1/2" x 3-3/4") Mechanically Galvanized Wedge Anchor (25 Pack)
$44.92
Unit price
/
Unavailable
Description
Description
Simpson STB2-50334MGR25 Description
Simpson Strong-Bolt 2 anchors are ICC-ES code compliant, designed for cracked or uncracked concrete, and suitable for static and seismic loading.
Simpson STB2-50334MGR25 Includes
- (25) 1/2 in. x 3-3/4 in. Mechanically Galvanized Wedge Anchor
Simpson STB2-50334MGR25 Features
- Chamfered top prevents mushrooming during installation
- Suitable for horizontal, vertical, and overhead applications
- Tested for minimum concrete thickness of 3 1/4"
- Fits standard fixtures and installs with common drill bit sizes
- Qualified for static and seismic loading
Simpson STB2-50334MGR25 Applications
- Concrete anchoring for structural support
- Seismic and static load applications
- Horizontal, vertical, and overhead installations
Simpson STB2-50334MGR25 Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter
- Clean the hole using compressed air
- Assemble the anchor with nut and washer
- Insert the anchor into the hole and tighten to specified torque
Simpson STB2-50334MGR25 Specifications
| Material | Carbon steel |
| Finish | Mechanically galvanized |
| Diameter | 1/2 in. |
| Length | 3-3/4 in. |
| Thread Length | 2-1/16 in. |
| Drill Bit Size | 1/2 in. |
| Quantity | 25 |
NOTE: Ensure proper installation torque is applied to achieve optimal performance.
