Simpson Anchors | SKU:
STB2-50334P1

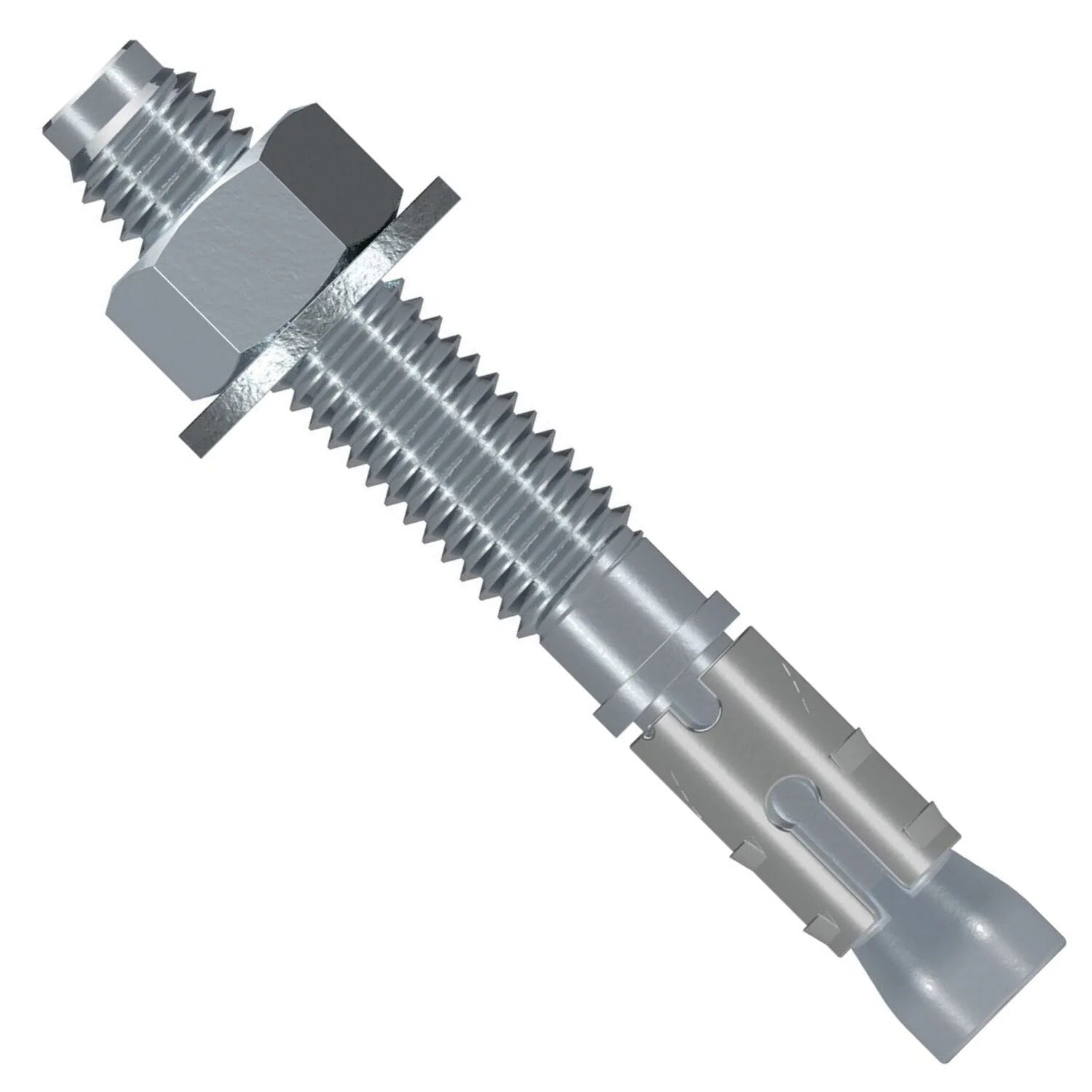

Simpson Strong-Tie STB2-50334P1 Strong Bolt (1/2" x 3-3/4") Zinc-Plated Carbon Steel Wedge Anchor (1 Piece)
$2.39
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-50334P1 Description
The Strong-Bolt 2 Wedge Anchor is a zinc-plated, high-performance anchor designed for static and seismic loading conditions, suitable for various applications including cracked and uncracked concrete.
Simpson Strong-Tie STB2-50334P1 Includes
- (1) Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-50334P1 Features
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications
- Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-steel deck thickness of 2 1/2" and 3 1/4"
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested per ACI355.2 and AC193
Simpson Strong-Tie STB2-50334P1 Applications
- Cracked and uncracked concrete anchoring
- Seismic and static load applications
- Horizontal, vertical, and overhead installations
Simpson Strong-Tie STB2-50334P1 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air or ensure it is deep enough to accommodate embedment depth and dust.
- Assemble the anchor with nut and washer, ensuring the nut is flush with the top of the anchor.
- Place the anchor in the fixture and drive it into the hole until the washer and nut are tight against the fixture.
- Tighten to the required installation torque.
Simpson Strong-Tie STB2-50334P1 Specifications
| Diameter | 1/2" |
| Finish | Zinc Plated |
| Length | 3-3/4" |
| Material | Carbon Steel |
| Drill bit size | 1/2" |
| Installation torque | 60 ft. lbs |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity.
