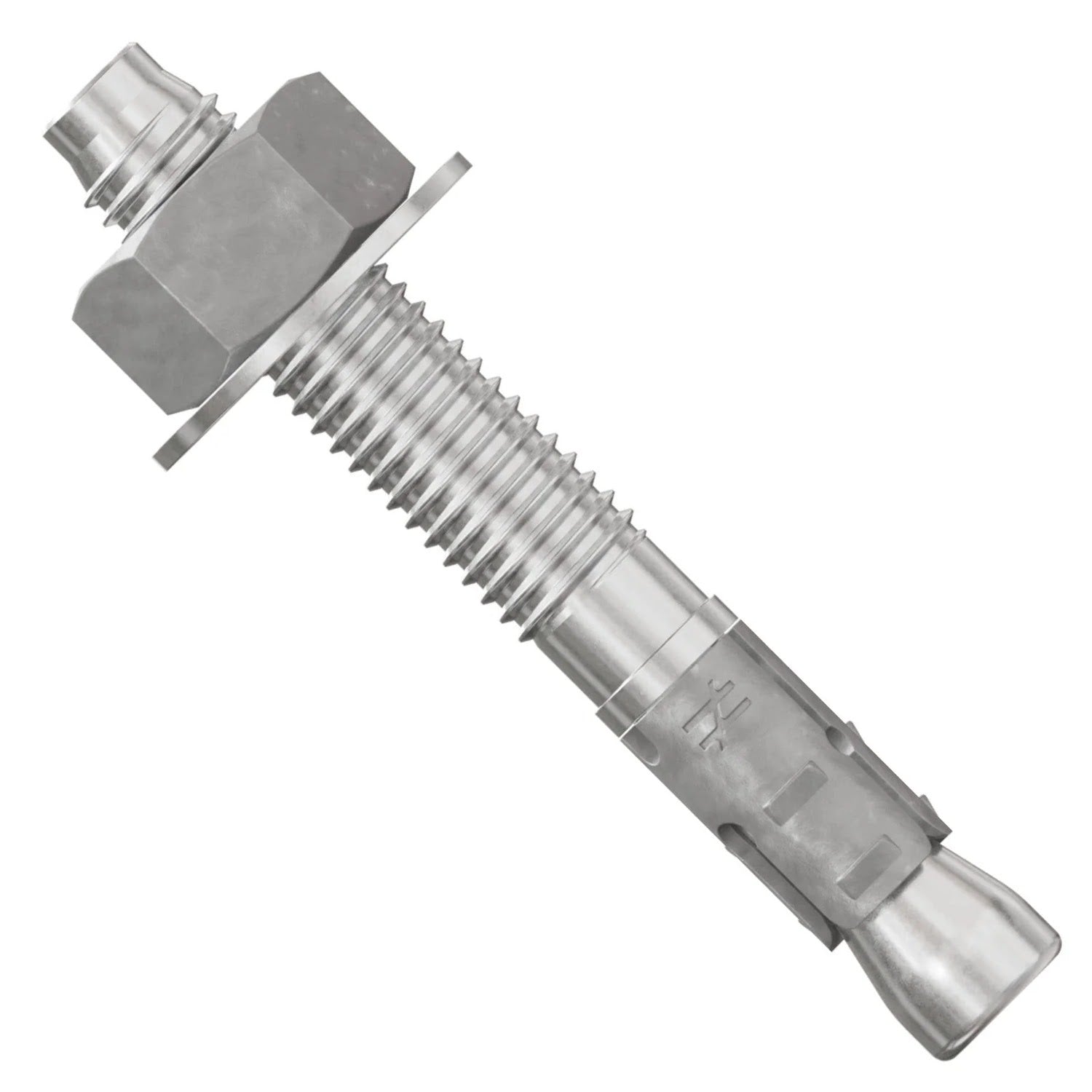

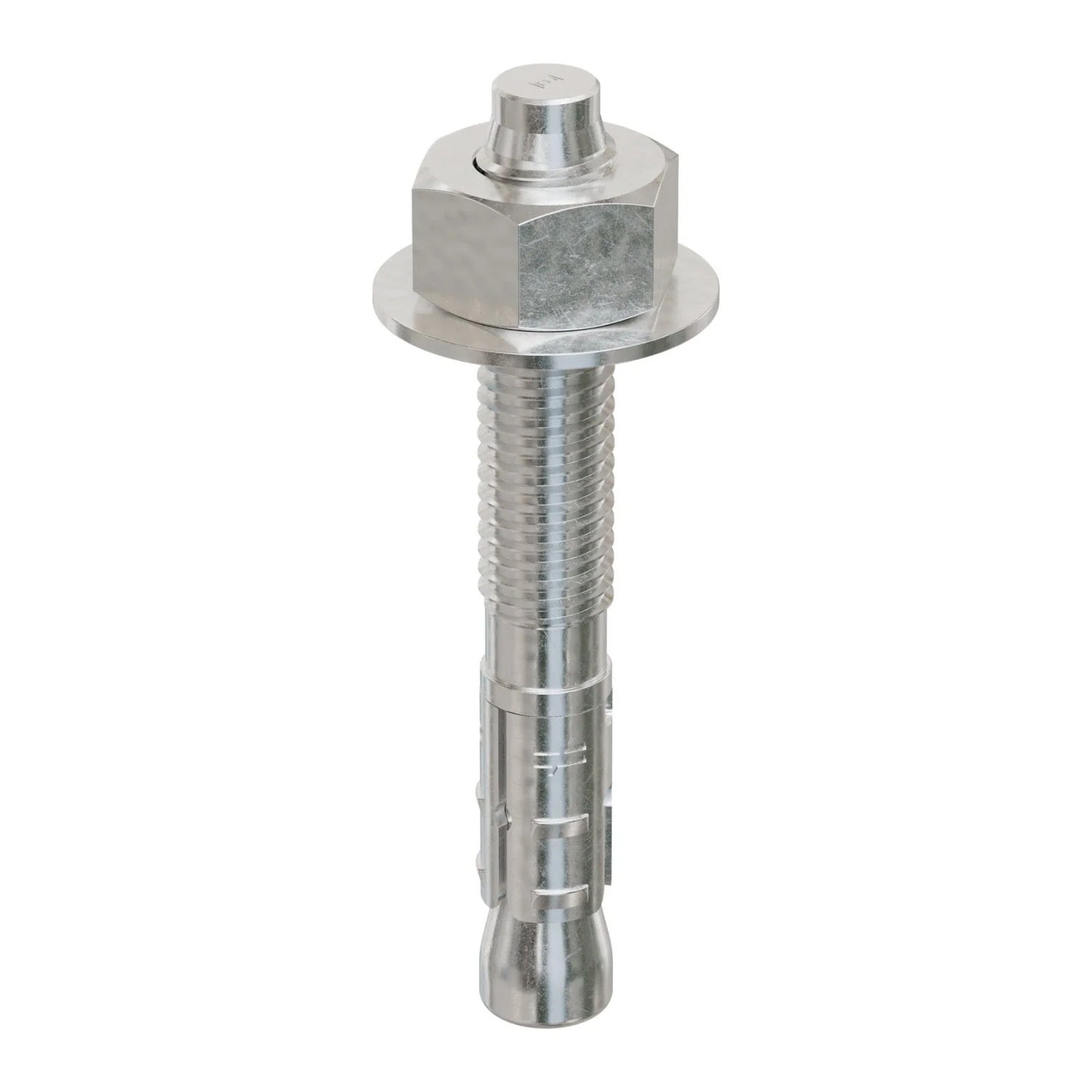

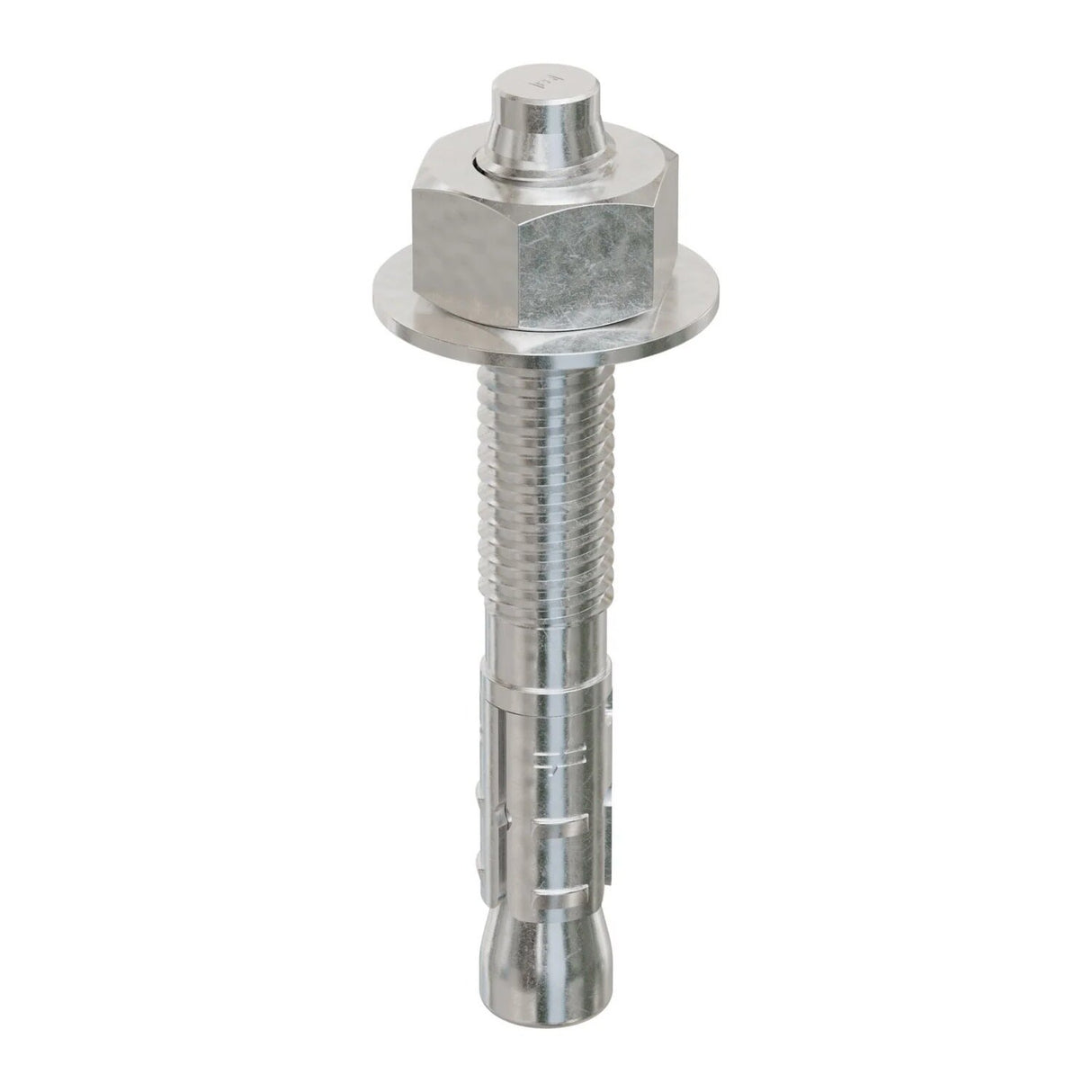

Simpson Strong-Tie STB2-50334S6F25 Strong Bolt (1/2" x 3-3/4") Fully Assembled Wedge Anchor - Type 304 (25 Pack)

$184.92

Description

Simpson Strong-Tie STB2-50334S6F25 Description

The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors – 316 Stainless Steel are engineered to deliver maximum performance in corrosive environments. These high-strength wedge anchors come fully assembled and ready to install, making them ideal for heavy-duty fastening into cracked or uncracked concrete.

Simpson Strong-Tie STB2-50334S6F25 Includes

  • (25) 1/2 in. x 3-3/4 in. Type 316 Stainless-Steel Wedge Anchor

Simpson Strong-Tie STB2-50334S6F25 Features

  • 316 Stainless Steel Construction: Exceptional corrosion resistance for long-lasting durability in harsh environments.
  • Fully Assembled: Includes nut and washer for faster, easier installation out of the box.
  • Code-Compliant Performance: ICC-ES ESR-3037 code listed for cracked and uncracked concrete applications.
  • Versatile Use: Suitable for anchoring structural supports, machinery, railing systems, and more.
  • Variety of Sizes Available: Multiple diameter and length options help you get the right fit for any job.

Simpson Strong-Tie STB2-50334S6F25 Applications

  • Anchoring structural supports in corrosive environments.
  • Securing machinery and equipment.
  • Installing railing systems in residential and commercial settings.
  • Reinforcing structural connections in coastal or marine environments.

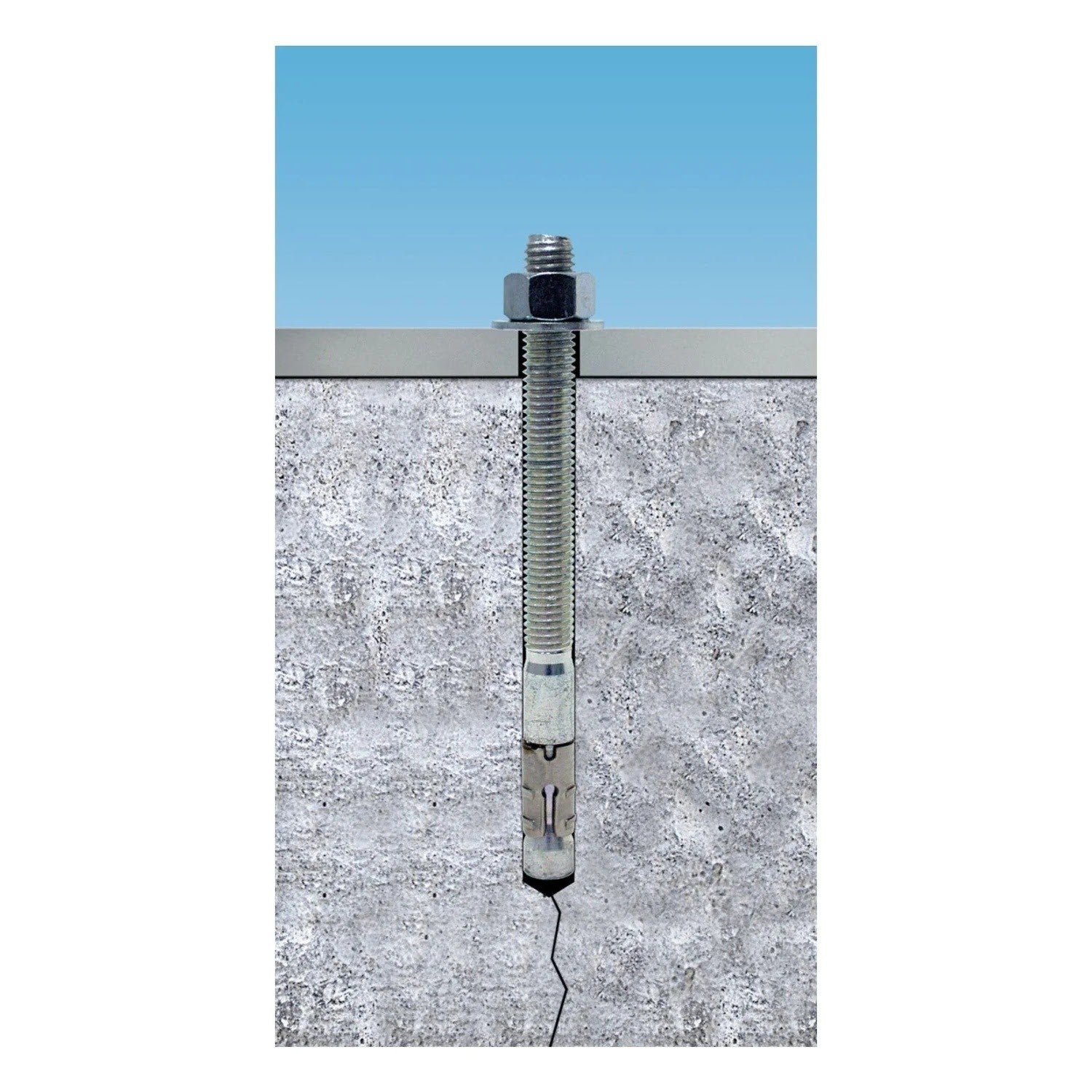

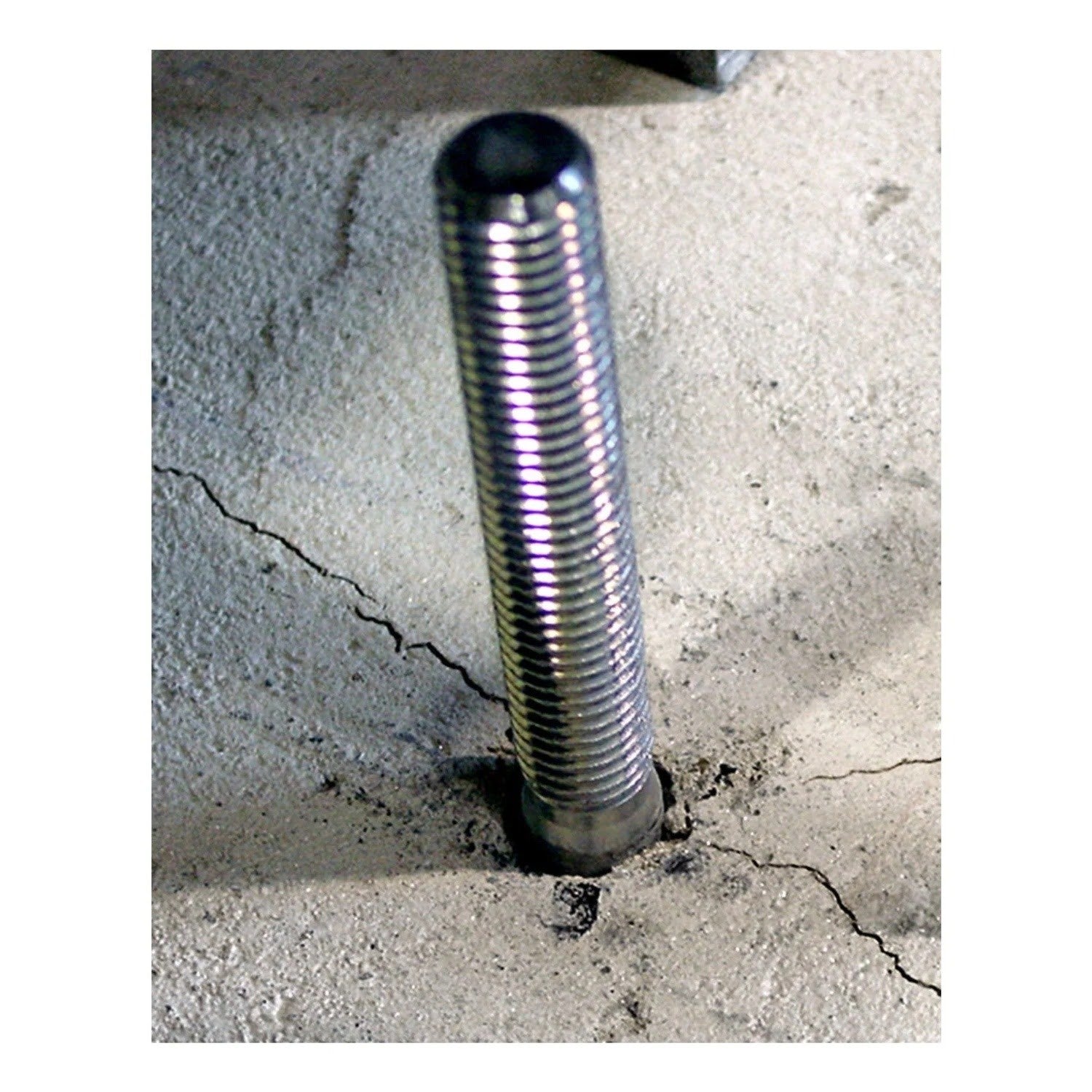

  • Fastening into cracked or uncracked concrete.

Simpson Strong-Tie STB2-50334S6F25 Installation Overview

  1. Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
  2. Blow the hole clean using compressed air or ensure it is deep enough to accommodate embedment depth and dust from drilling.
  3. Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor.

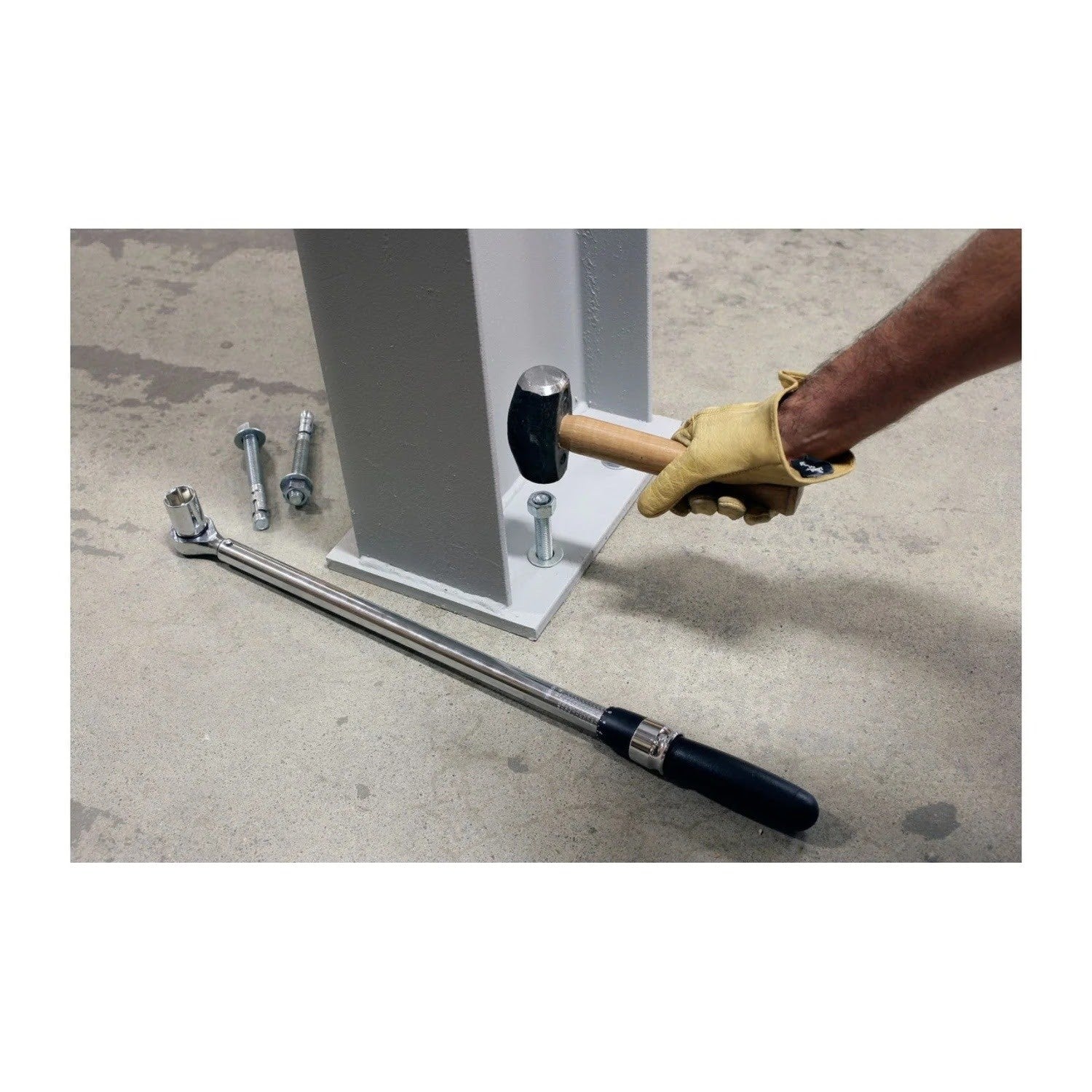

  4. Place the anchor in the fixture and drive it into the hole until the washer and nut are tight against the fixture.

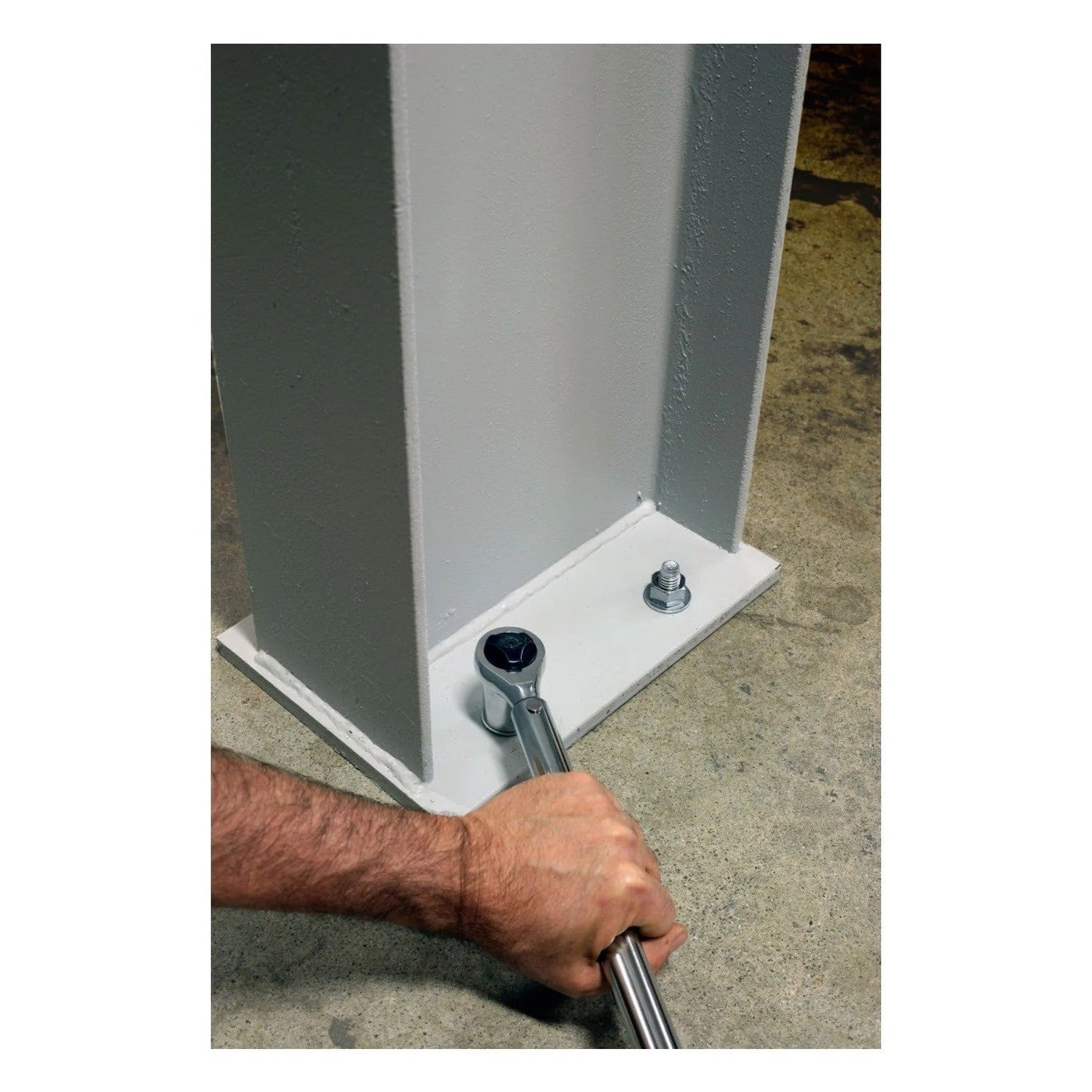

  5. Tighten to the required installation torque.

Simpson Strong-Tie STB2-50334S6F25 Specifications

Diameter 1/2 in.
Length 3-3/4 in.
Material 316 Stainless Steel
Drill bit size 1/2 in.
Fixture hole size 9/16 in.
Installation torque 45 ft. lbf.
Thread length 2-1/16 in.
Wrench size 3/4 in.
