Simpson Anchors | SKU:
STB2-504146SS

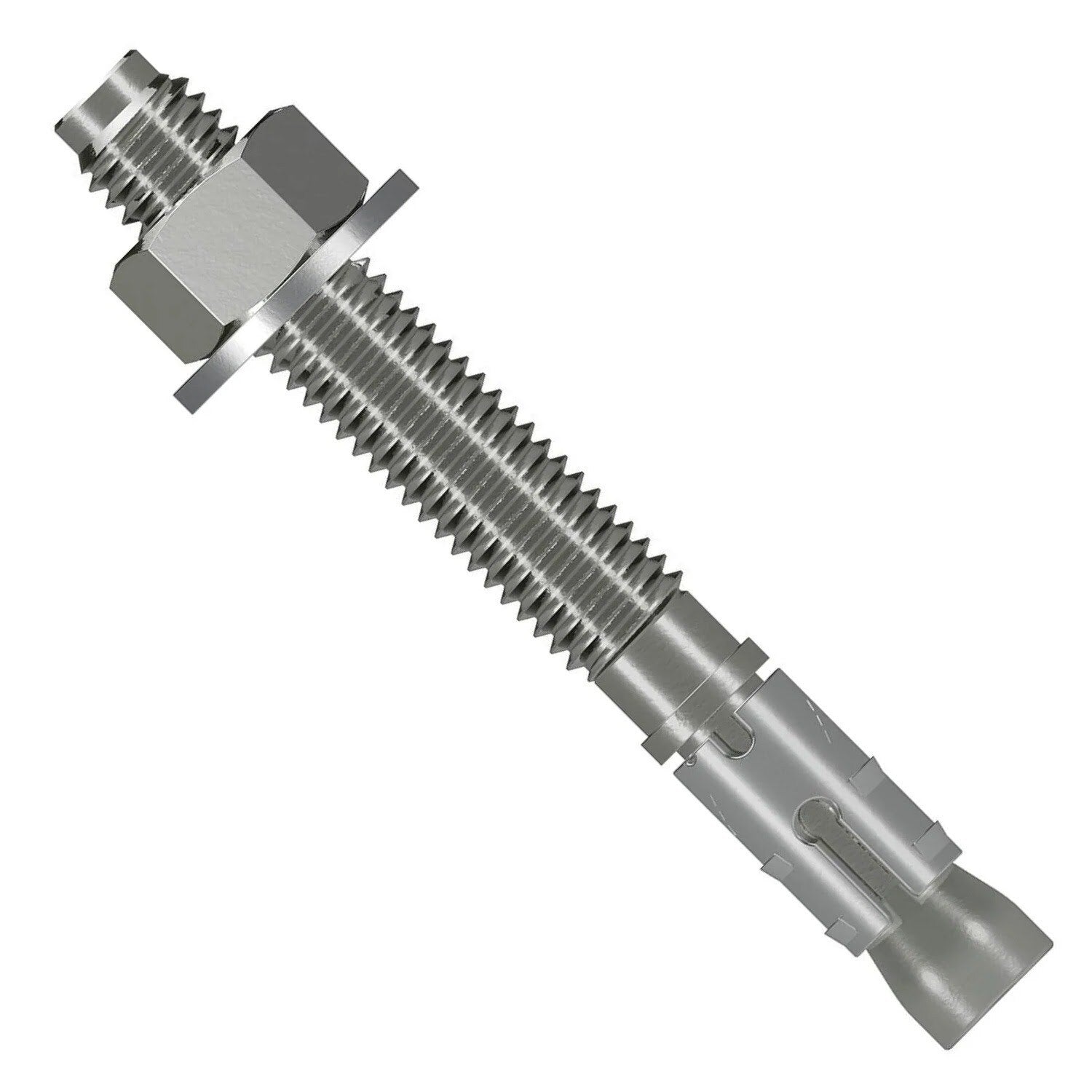

Simpson Strong-Tie STB2-504146SS Strong Bolt (1/2" x 4-1/4") Stainless-Steel Wedge Anchor - Unassembled (25 Pack)
$181.09
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-504146SS Description
Simpson Strong-Bolt 2 anchors are non-bottom-bearing, ICC-ES code compliant anchors made to be installed in cracked or uncracked concrete. They are qualified for both static and seismic loading and suitable for horizontal, vertical, and overhead applications.
Simpson Strong-Tie STB2-504146SS Includes
- (25) 1/2" x 4-1/4" Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-504146SS Features
- Non-bottom-bearing design for versatile installation
- ICC-ES code compliant for cracked and uncracked concrete
- Qualified for static and seismic loading
- Suitable for horizontal, vertical, and overhead applications
- Made from 316 stainless steel for corrosion resistance
Simpson Strong-Tie STB2-504146SS Applications
- Concrete anchoring in cracked or uncracked surfaces
- Seismic and static load applications
- Horizontal, vertical, and overhead installations
Simpson Strong-Tie STB2-504146SS Installation Overview
- Drill a 1/2" hole into the base material to the specified depth.
- Insert the anchor into the hole and ensure proper alignment.
- Tighten the anchor using a wrench to the specified torque of 65 ft. lbs.
Simpson Strong-Tie STB2-504146SS Specifications
| Diameter | 1/2" |
| Length | 4-1/4" |
| Drill bit size | 1/2" |
| Installation torque | 65 ft. lbs |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 25 |
| Thread length | 2-9/16" |
NOTE: Do not use an impact wrench to set or tighten anchors. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity.
