Simpson Anchors | SKU:
STB2-50414F25
Simpson Strong-Tie STB2-50414F25 Strong-Bolt (2 1/2" x 4-1/4") Fully Assembled Wedge Anchor (25 Pack)
$23.28
Unit price
/
Unavailable
Description
Description
Simpson STB2-50414F25 Description

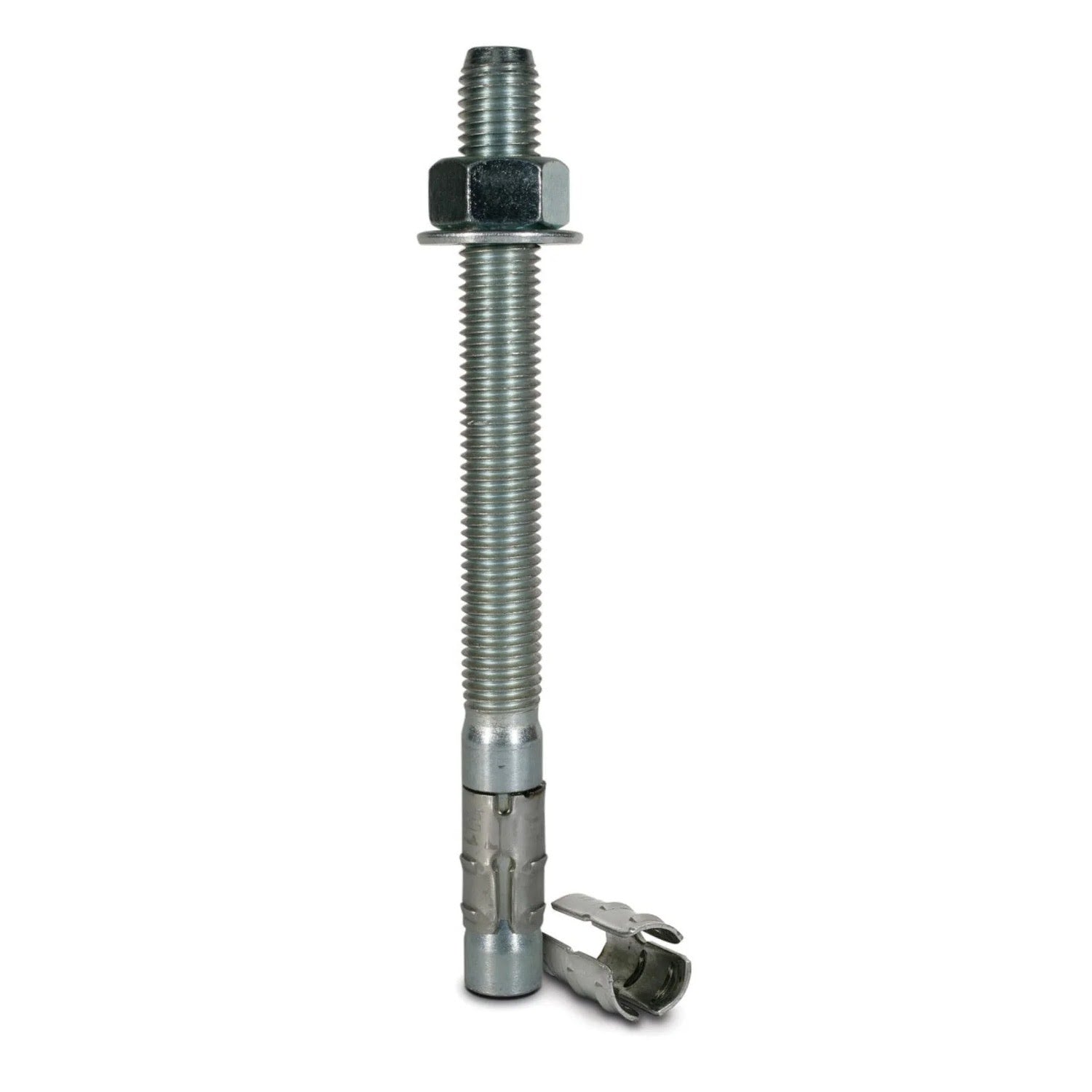

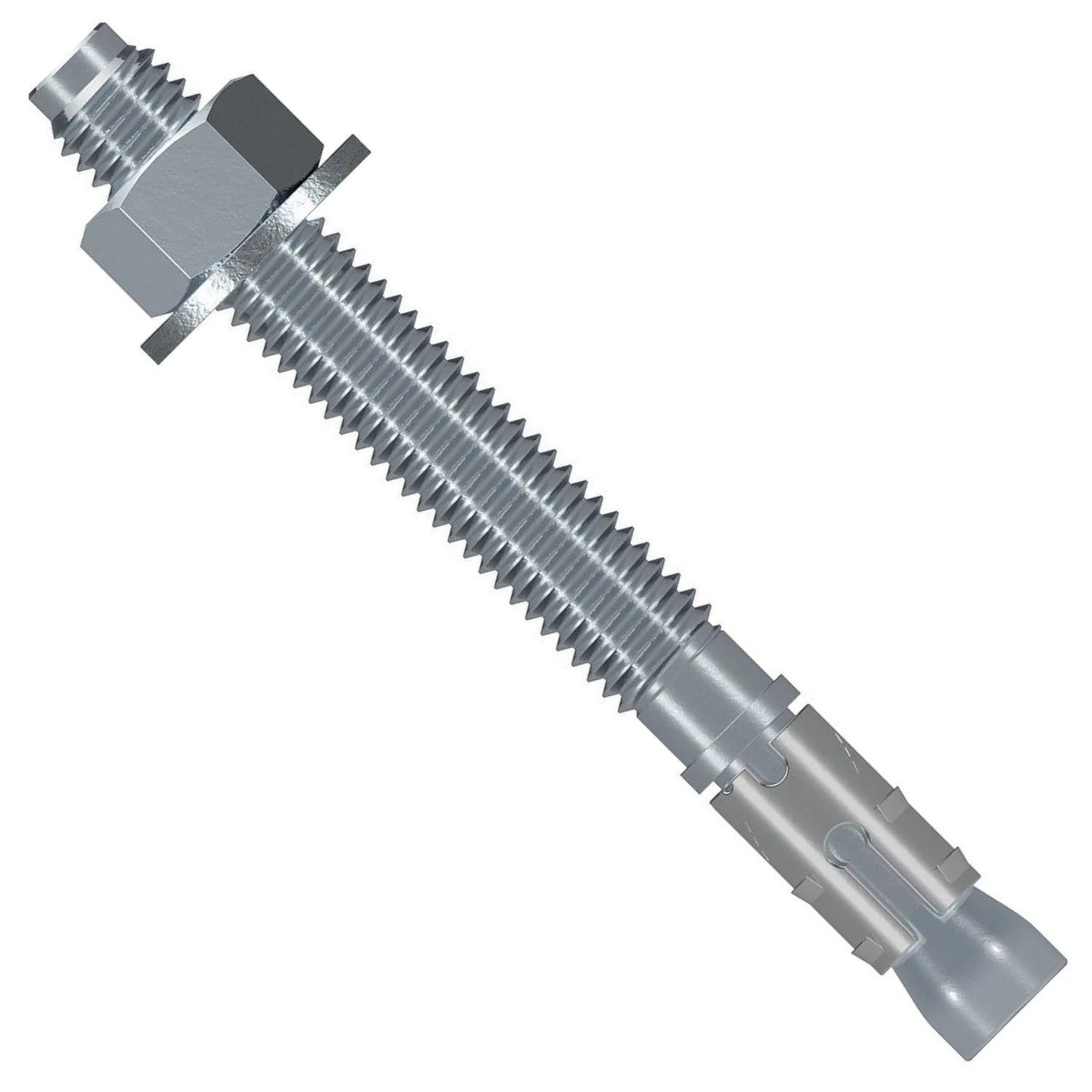

The Simpson Strong-Bolt 2 Wedge Anchors are engineered for reliable performance in both cracked and uncracked concrete, and masonry applications. These fully assembled anchors are suitable for static and seismic loading conditions, making them ideal for a variety of construction projects.
Simpson STB2-50414F25 Includes
- (25) 1/2 in. x 4-1/4 in. Strong-Bolt 2 Wedge Anchor
Simpson STB2-50414F25 Features

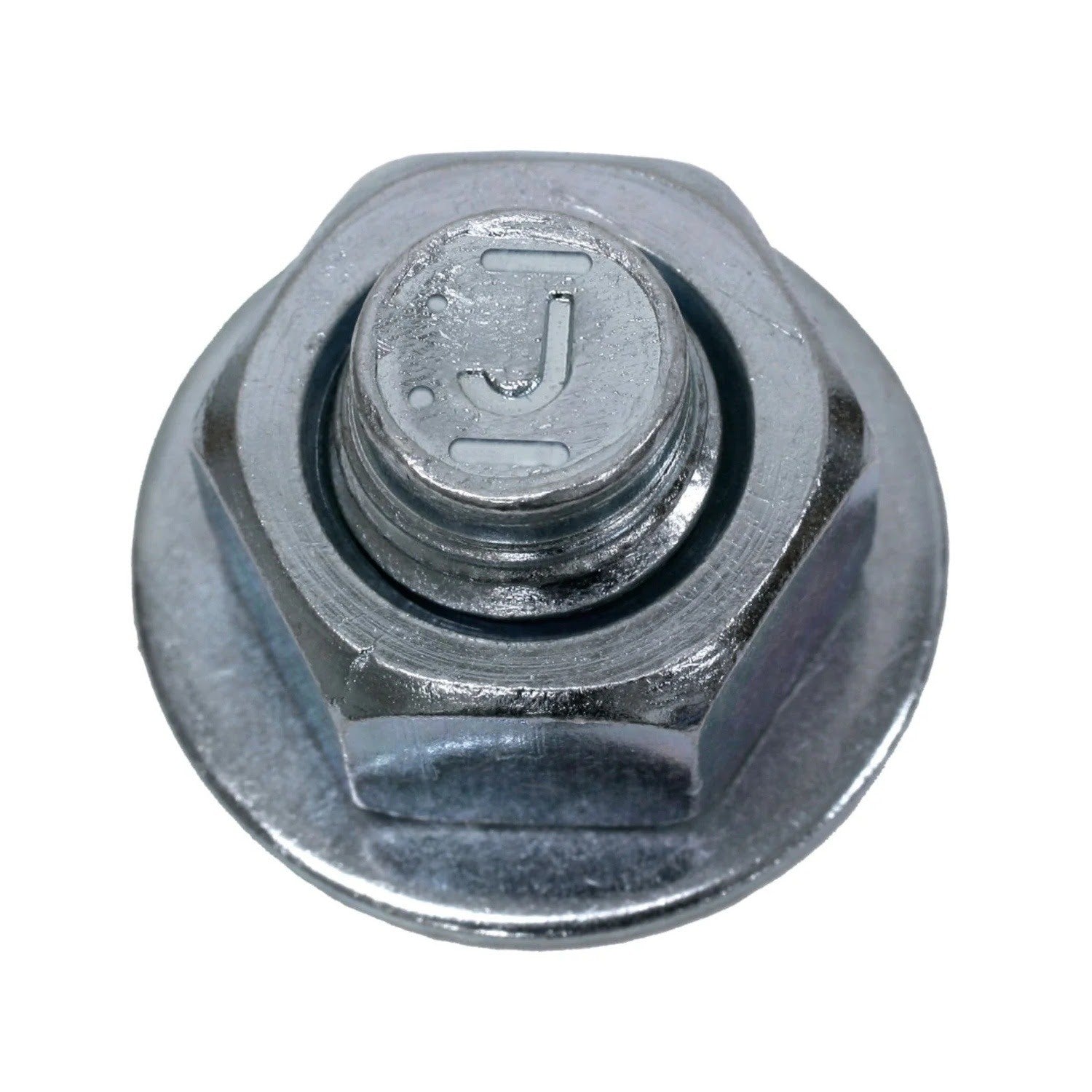

- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical and overhead applications
- Qualified for minimum concrete thickness of 3 1/4"
- Standard fractional sizes fit standard fixtures and install with common drill bit and tool sizes
- Tested per ACI355.2 and AC193
Simpson STB2-50414F25 Applications

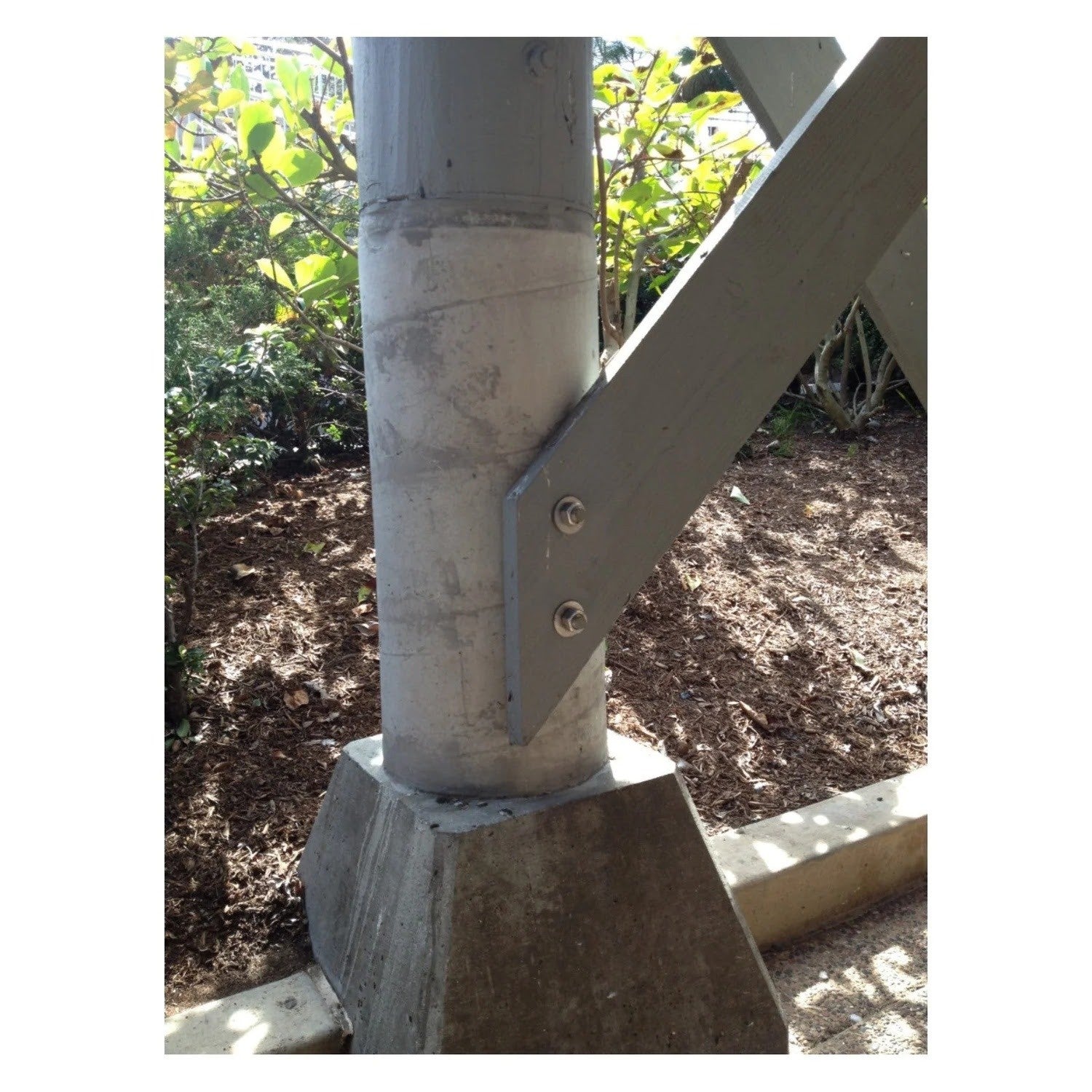

- Anchoring structural and non-structural elements such as pipes, struts, and fixtures
- Overhead indoor construction
- Mounting electrical equipment
- Warehouse racking

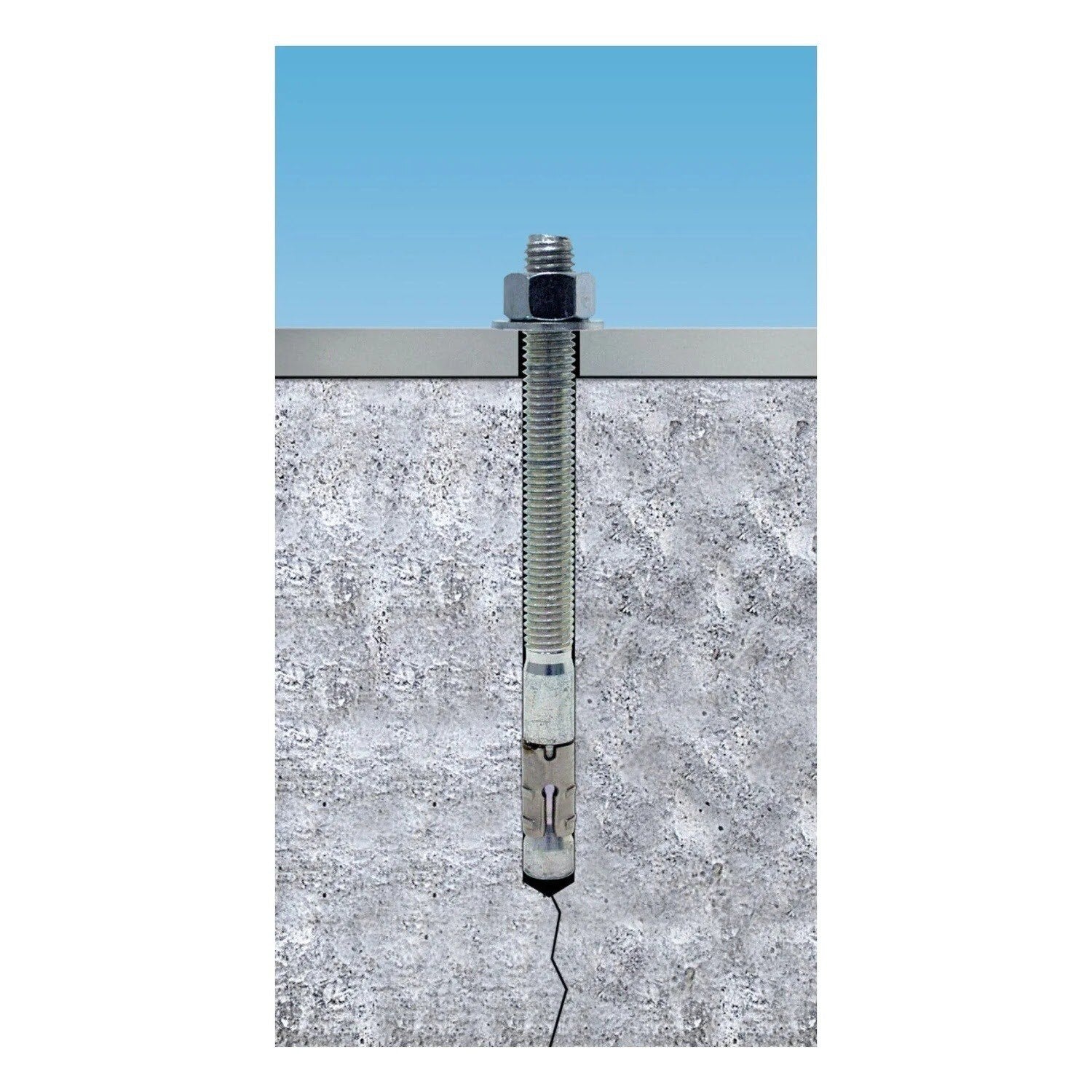

Simpson STB2-50414F25 Installation Overview
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
- Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor.
- Place the anchor in the fixture, and drive it into the hole until the washer and nut are tight against the fixture.
- Tighten to the required installation torque.
Simpson STB2-50414F25 Specifications
| Diameter | 1/2" |
| Finish | Zinc Plated |
| Length | 4-1/4" |
| Material | Carbon Steel |
| Drill bit size | 1/2" |
| Thread length | 2-9/16" |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
