Simpson Anchors | SKU:
STB2-50414MGR25

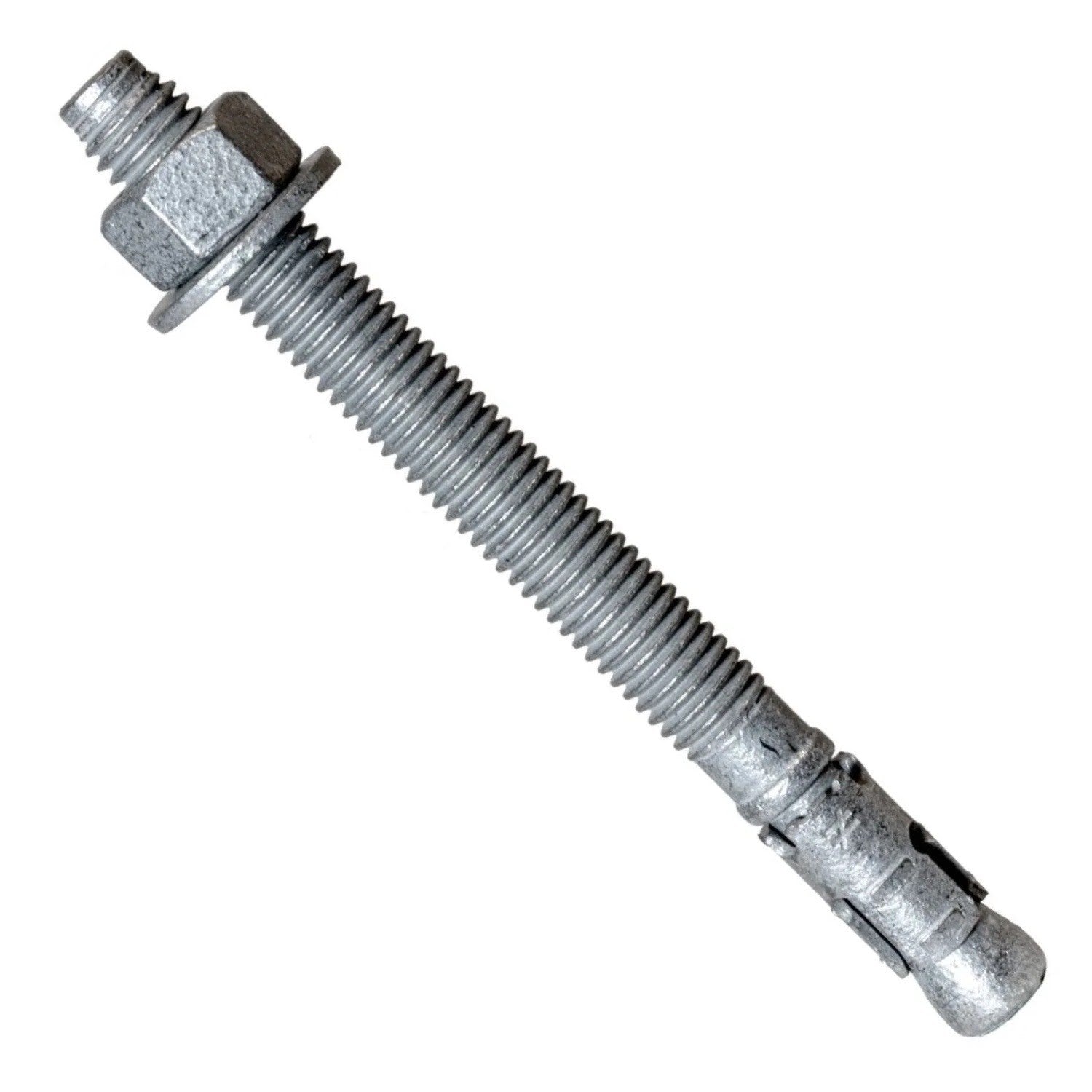

Simpson Strong-Tie STB2-50414MGR25 Strong-Bolt (2 1/2" x 4-1/4") Mechanically Galvanized Wedge Anchor (25 Pack)
$47.11
Unit price
/
Unavailable
Description
Description
Simpson STB2-50414MGR25 Description
The Strong-Bolt 2 Wedge Anchor is a reliable solution for securing fixtures in concrete, featuring a mechanically galvanized finish and compatibility with cracked and uncracked concrete.
Simpson STB2-50414MGR25 Includes
- (25) 1/2 in. x 4-1/4 in. Mechanically Galvanized Wedge Anchor
Simpson STB2-50414MGR25 Features
- Chamfered top prevents mushrooming during installation
- Suitable for horizontal, vertical, and overhead applications
- Tested for minimum concrete thickness of 3 1/4"
- Standard ANSI fractional sizes for compatibility with common tools
- Qualified for static and seismic loading
Simpson STB2-50414MGR25 Applications
- Securing fixtures in cracked and uncracked concrete
- Horizontal, vertical, and overhead anchoring
- Static and seismic load applications
Simpson STB2-50414MGR25 Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter
- Clean the hole using compressed air
- Assemble the anchor with nut and washer
- Insert the anchor into the hole and tighten to the required torque
Simpson STB2-50414MGR25 Specifications
| Diameter | 1/2" |
| Length | 4-1/4" |
| Material | Carbon steel |
| Finish | Mechanically Galvanized |
| Drill Bit Size | 1/2" |
| Thread Length | 2-9/16" |
NOTE: Ensure proper installation torque is applied to achieve optimal performance.
