Simpson Anchors | SKU:
STB2-50414P1

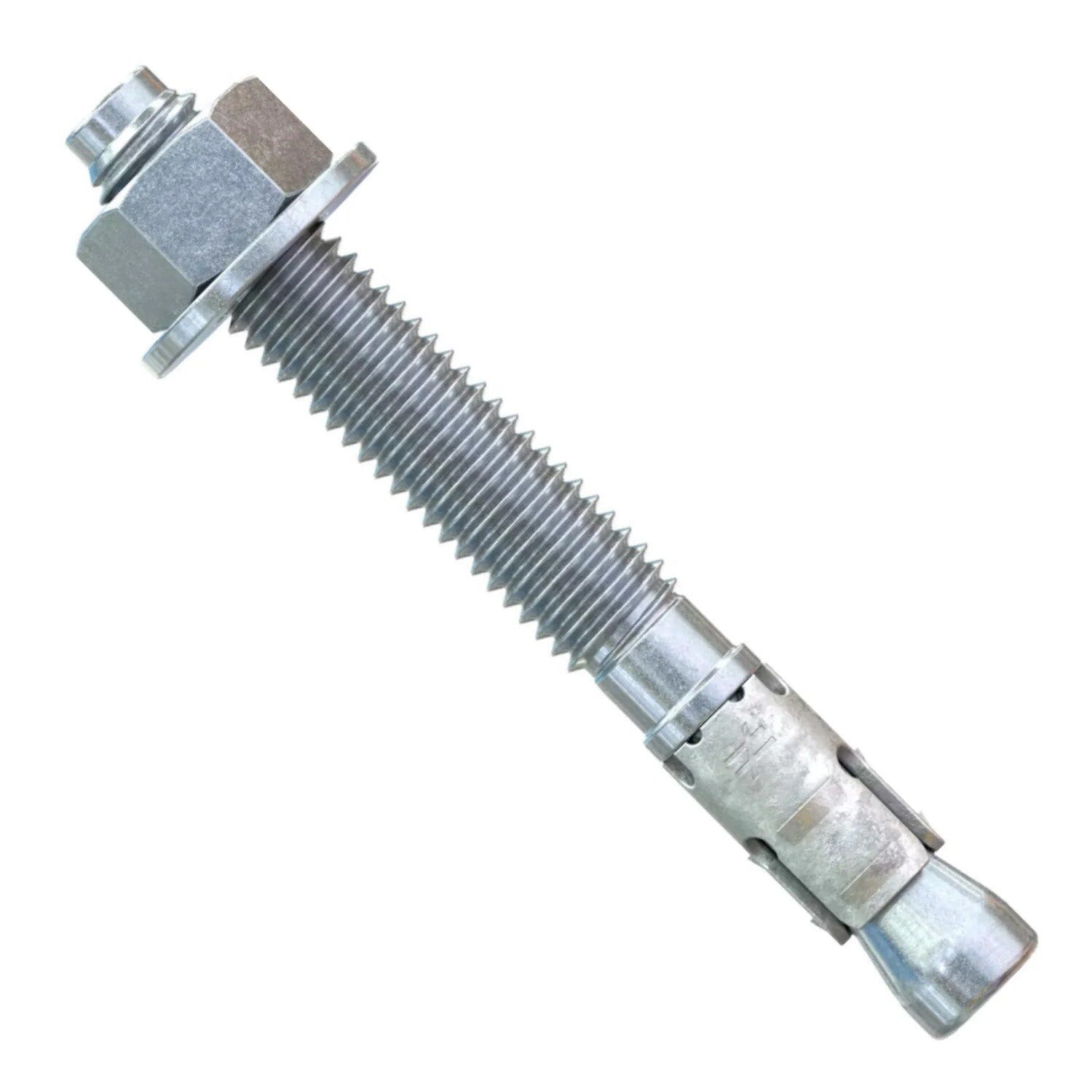

Simpson Strong-Tie STB2-50414P1 Strong Bolt (1/2" x 4-1/4") Wedge Anchor - Zinc Plated (1 Piece)
$2.98
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-50414P1 Description
The Strong-Bolt 2 Wedge Anchor is a reliable solution for anchoring in cracked or uncracked concrete, suitable for static and seismic loading conditions.
Simpson Strong-Tie STB2-50414P1 Includes
- (1) Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-50414P1 Features
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications
- Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-steel deck thickness of 2 1/2" and 3 1/4"
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested per ACI355.2 and AC193
Simpson Strong-Tie STB2-50414P1 Applications
- Anchoring in cracked or uncracked concrete
- Static and seismic loading conditions
- Horizontal, vertical, and overhead applications
Simpson Strong-Tie STB2-50414P1 Installation Overview
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
- Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor.
- Place the anchor in the fixture, and drive it into the hole until the washer and nut are tight against the fixture.
- Tighten to the required installation torque.
Simpson Strong-Tie STB2-50414P1 Specifications
| Diameter | 1/2" |
| Finish | Zinc Plated |
| Length | 4-1/4" |
| Material | Carbon Steel |
| Drill bit size | 1/2" |
| Installation torque | 60 ft. lbs |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity.
