Simpson Anchors  |  SKU: STB2-50414S6F25  |  Barcode: 707392030829

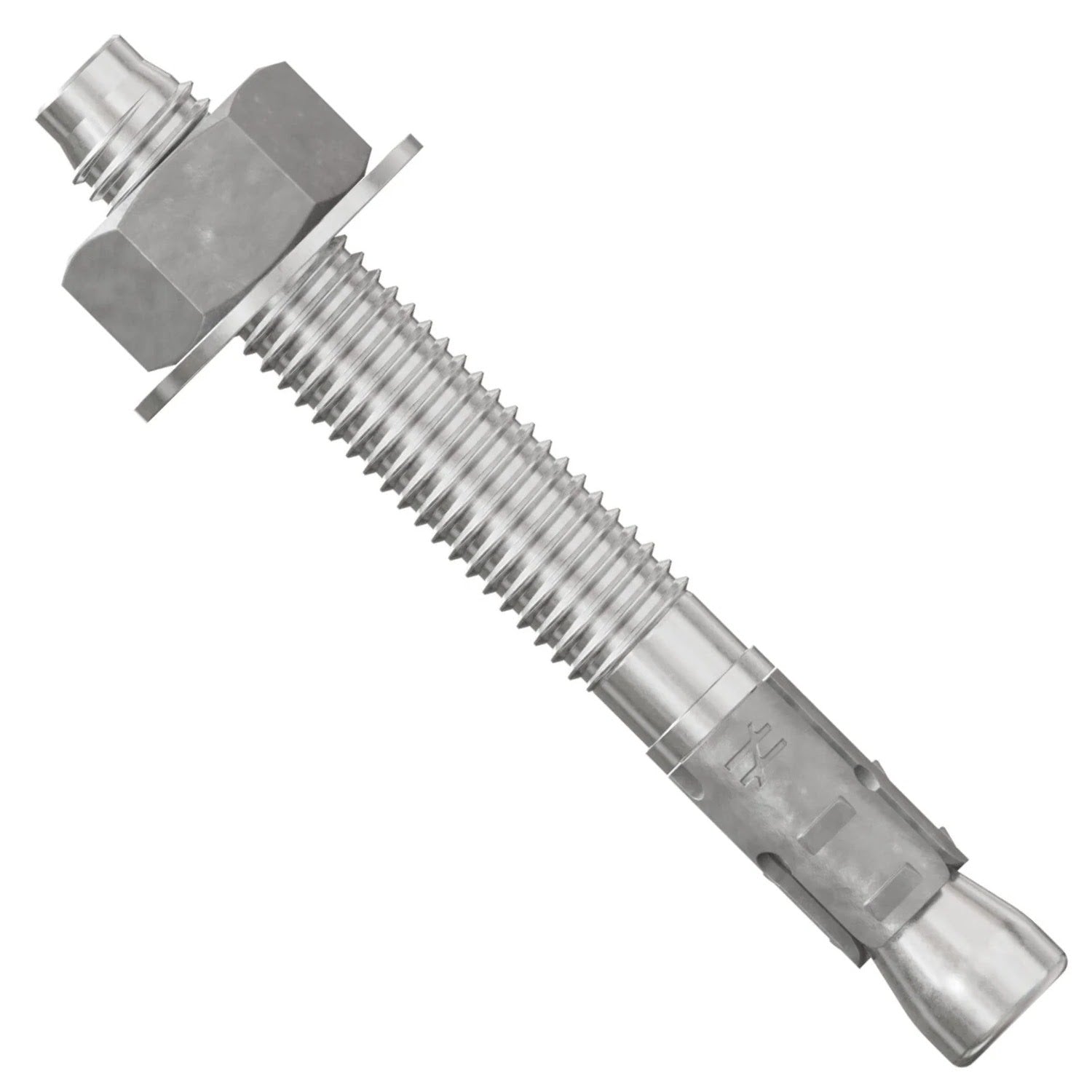

Simpson Strong-Tie STB2-50414S6F25 Strong-Bolt (1/2" x 4-1/4") Stainless-Steel Wedge Anchor - Fully Assembledl (25 Pack)

$193.28

Description

Simpson Strong-Tie STB2-50414S6F25 Description

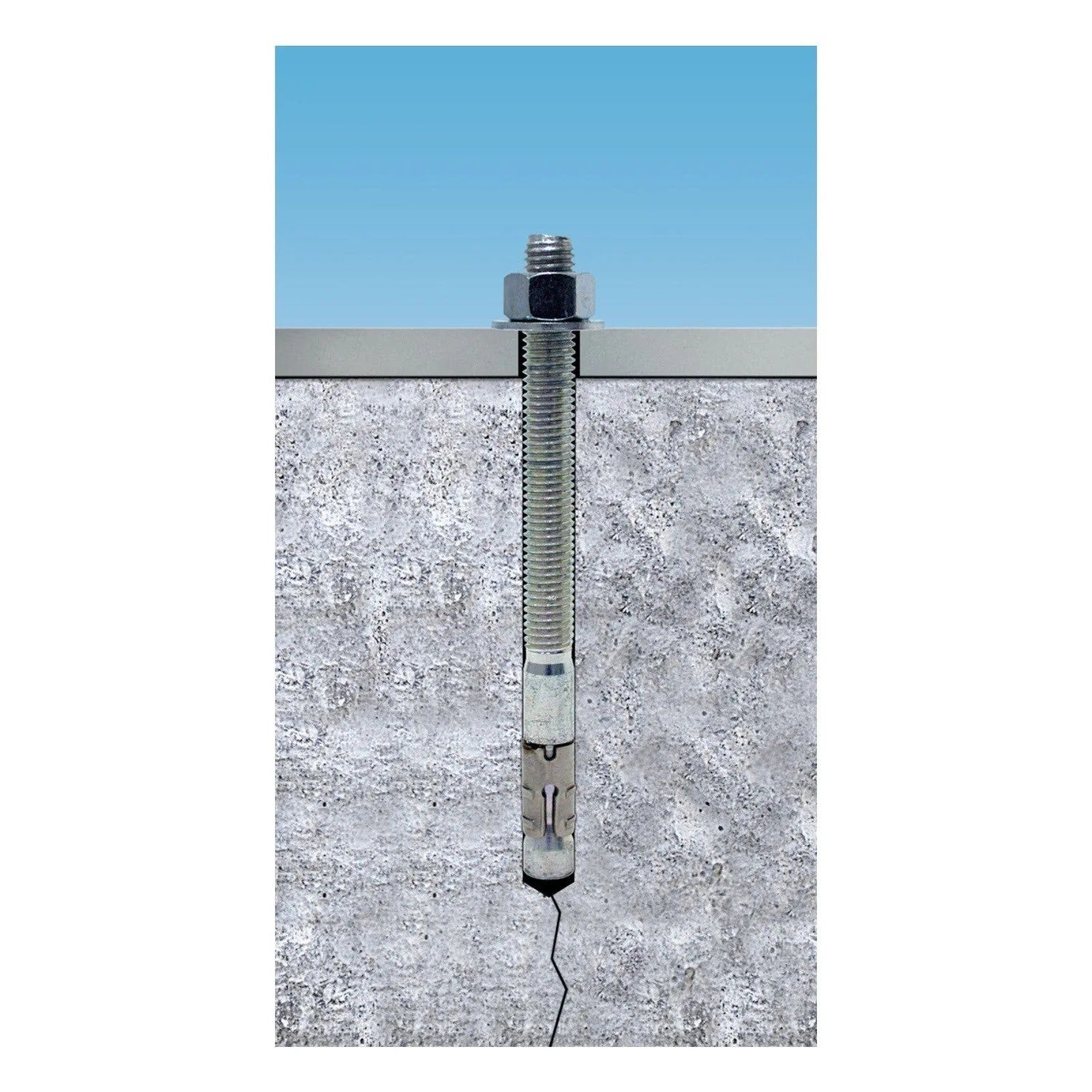

The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors are engineered for maximum performance in corrosive environments, ideal for heavy-duty fastening into cracked or uncracked concrete.

Simpson Strong-Tie STB2-50414S6F25 Includes

  • (25) 1/2 in. x 4-1/4 in. Type 316 Stainless-Steel Wedge Anchor

Simpson Strong-Tie STB2-50414S6F25 Features

  • 316 Stainless Steel Construction for exceptional corrosion resistance
  • Fully assembled with nut and washer for ease of installation

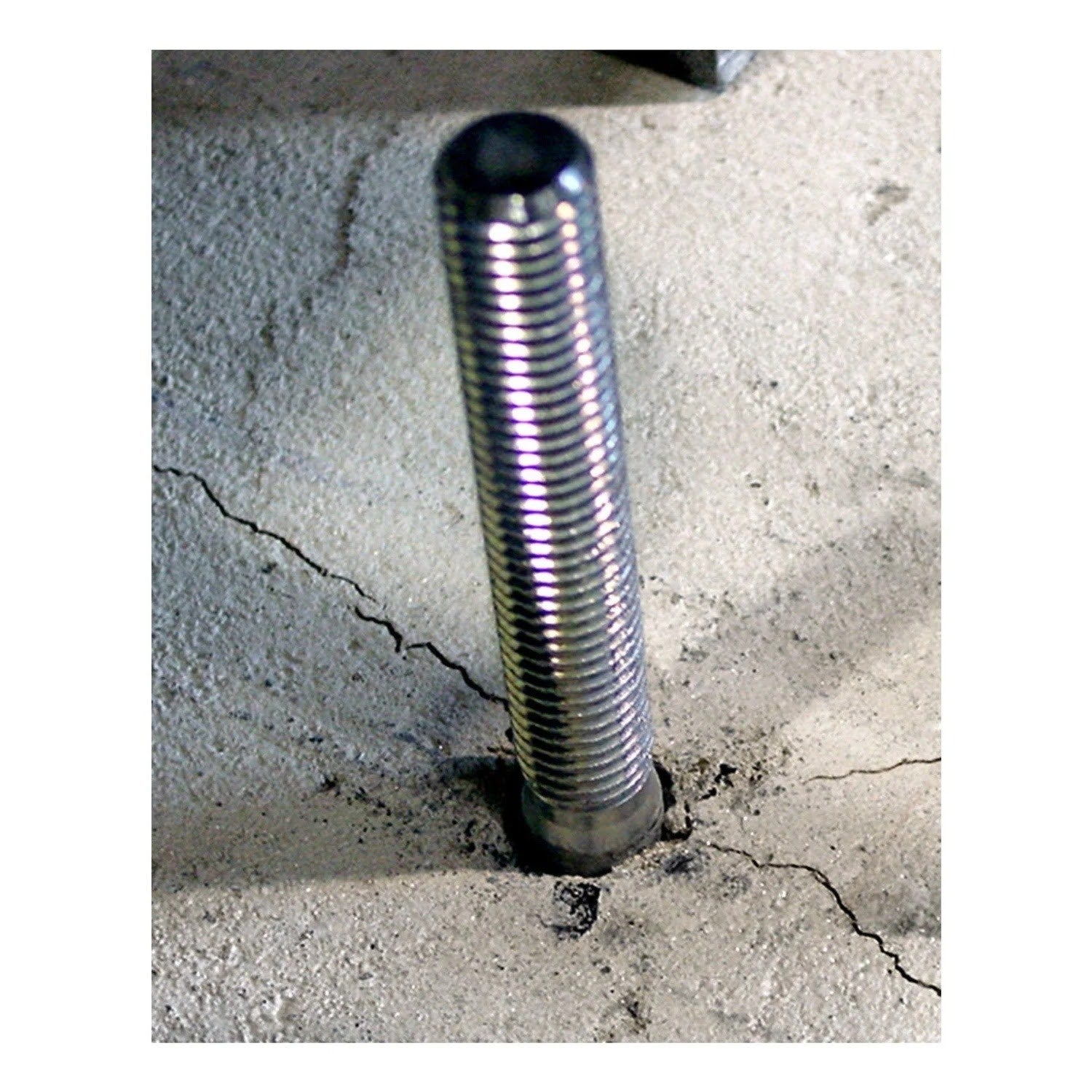

  • Code-compliant performance for cracked and uncracked concrete
  • Suitable for structural supports, machinery, and railing systems
  • Available in multiple sizes for various applications

Simpson Strong-Tie STB2-50414S6F25 Applications

  • Marine environments: Ideal for coastal and offshore applications
  • Wastewater facilities: Resistant to chemical exposure
  • Heavy-duty construction: Suitable for structural connections
  • Residential and commercial projects: Anchoring handrails and machinery

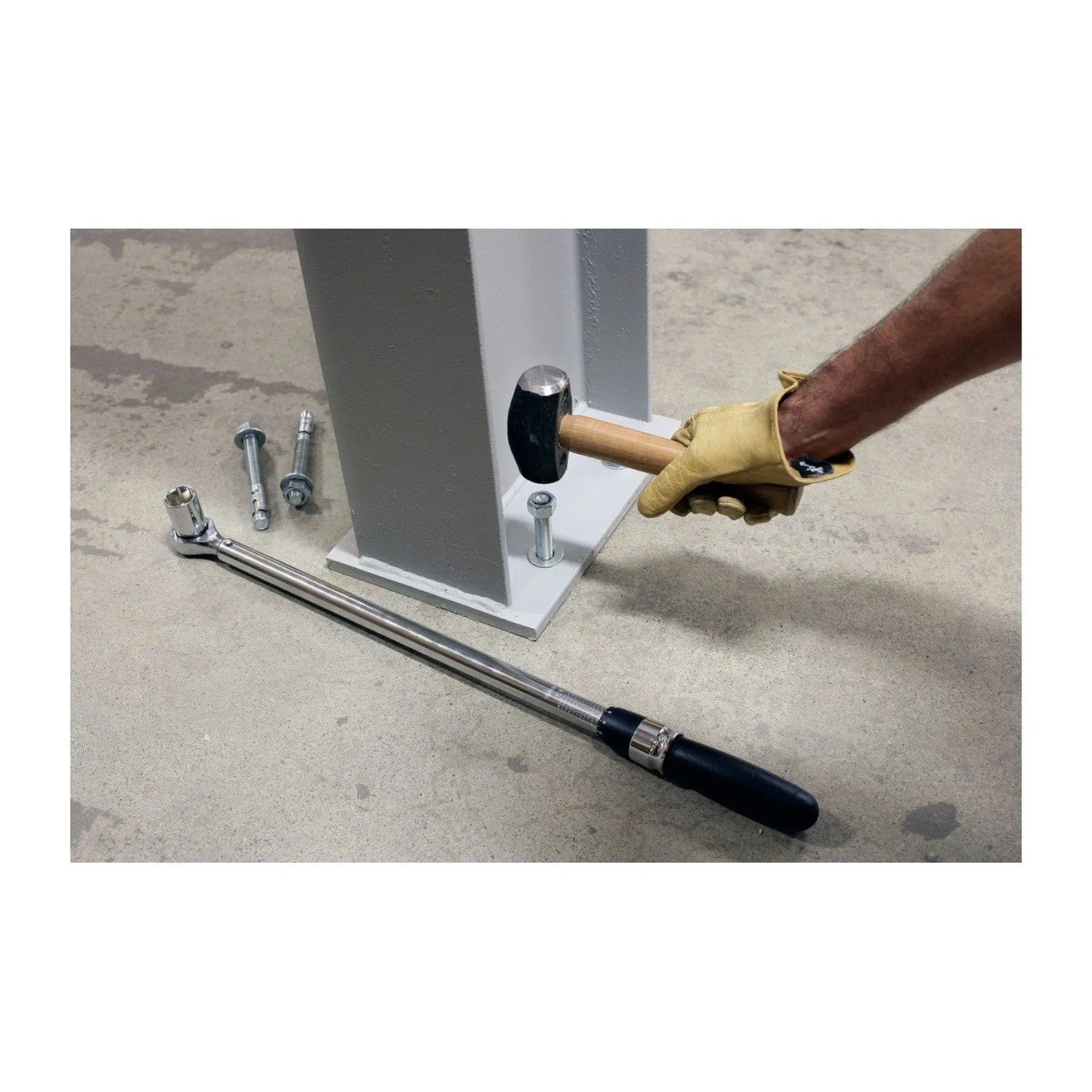

Simpson Strong-Tie STB2-50414S6F25 Installation Overview

  1. Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
  2. Blow the hole clean using compressed air or ensure it is deep enough to accommodate embedment depth.
  3. Assemble the anchor with the nut and washer, ensuring the nut is flush with the anchor top.

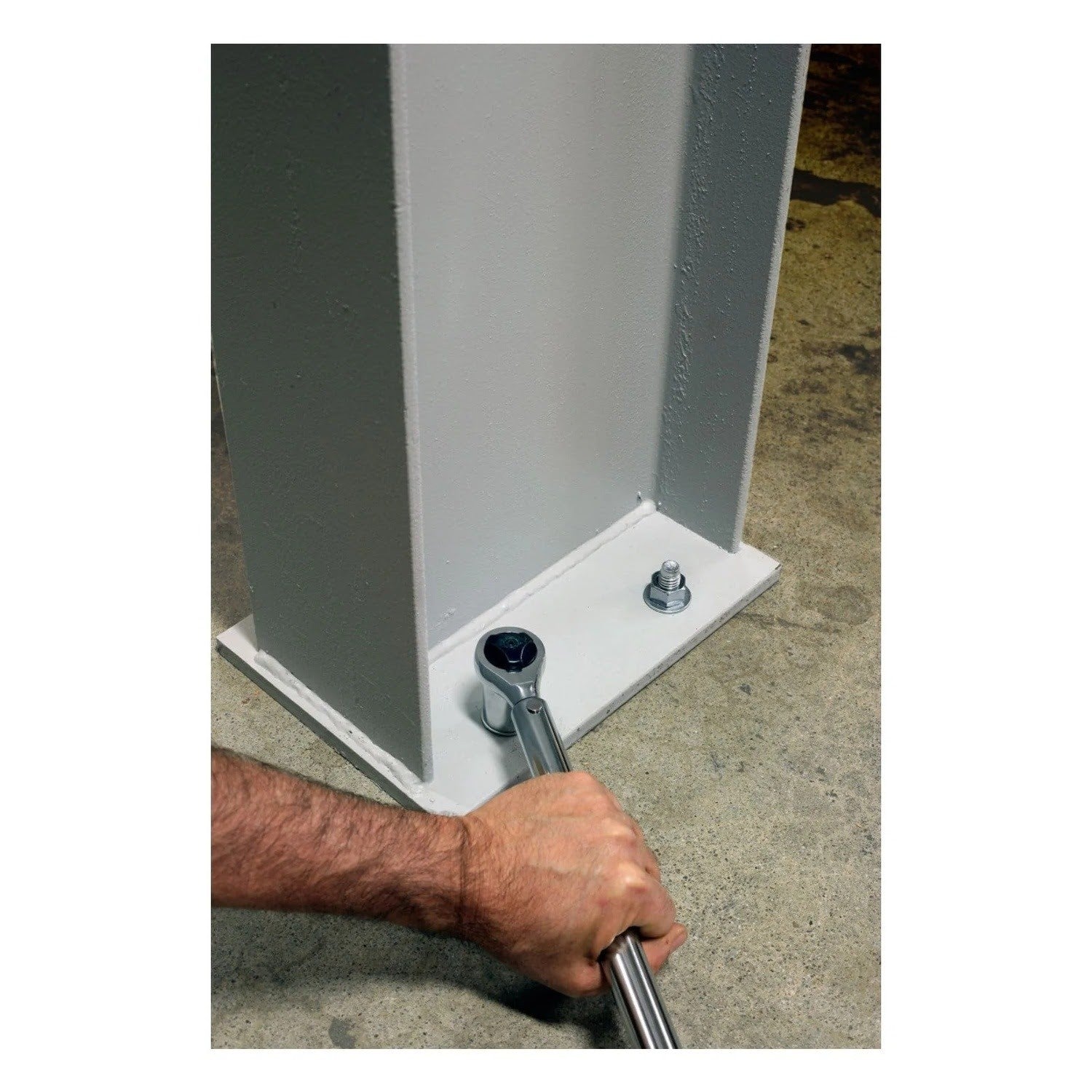

  4. Insert the anchor into the hole and tighten to the required installation torque.

Simpson Strong-Tie STB2-50414S6F25 Specifications

Material 316 Stainless Steel
Diameter 1/2 in.
Length 4-1/4 in.
Drill Bit Size 1/2 in.
Fixture Hole Size 9/16 in.
Installation Torque 45 ft. lbf.
Thread Length 2-9/16 in.
Wrench Size 3/4 in.
