Simpson Anchors  |  SKU: STB2-50434  |  Barcode: 707392317227

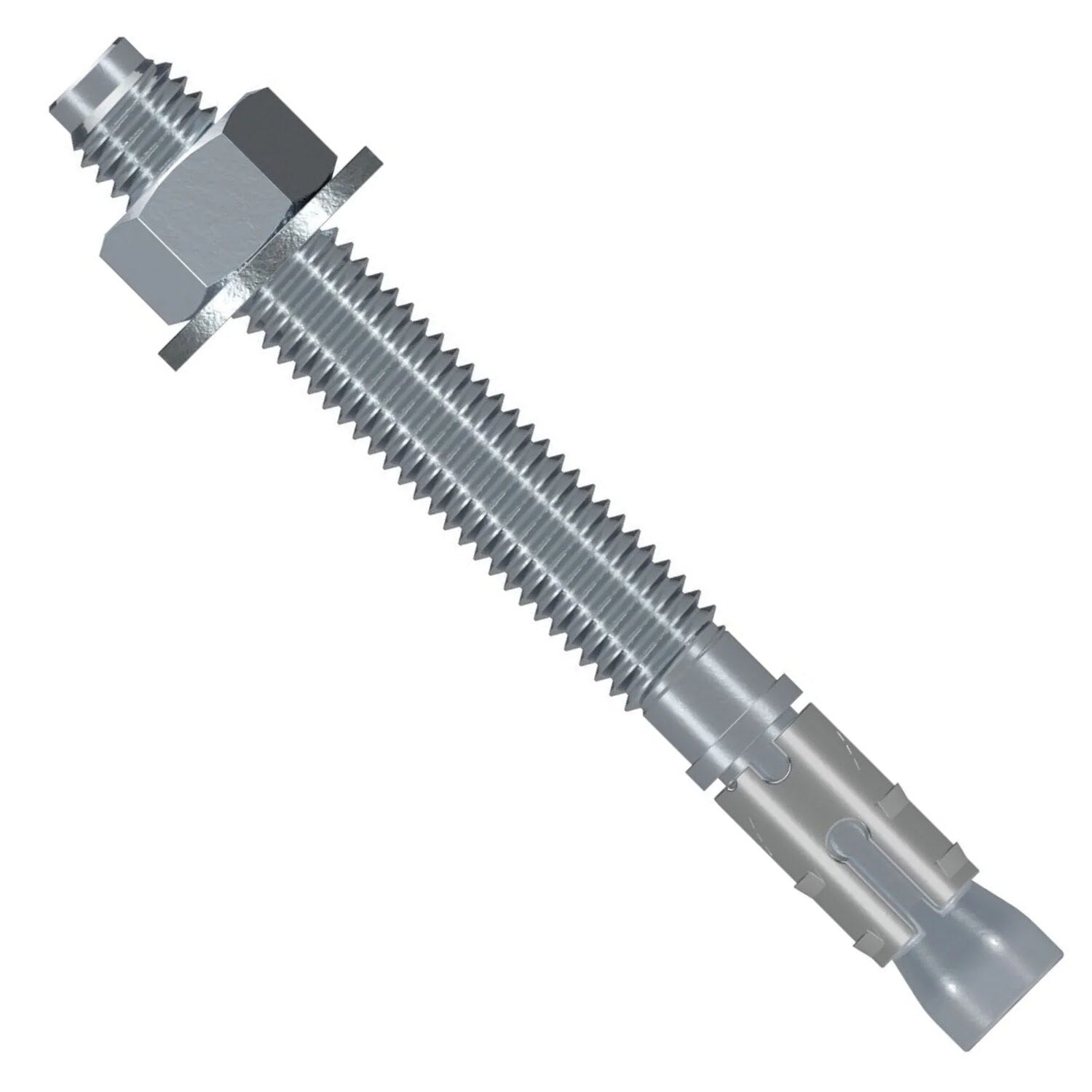

Simpson STB2-50434 Strong-Bolt 2 Wedge Anchor Zinc Plated (25 Pack)

$27.30 $27.62

Description

Simpson STB2-50434 Description

The Simpson Strong-Bolt 2 Wedge Anchors are designed for reliable performance in cracked and uncracked concrete and masonry applications, suitable for static and seismic loading conditions.

Simpson STB2-50434 Includes

  • (25) Strong-Bolt 2 Wedge Anchor Zinc Plated

Simpson STB2-50434 Features

  • Chamfered top prevents mushrooming during installation
  • Qualified for static and seismic loading conditions
  • Suitable for horizontal, vertical, and overhead applications
  • Tested per ACI355.2 and AC193
  • Zinc-plated carbon steel construction

Simpson STB2-50434 Applications

  • Anchoring structural and non-structural elements in concrete and masonry
  • Mounting pipes, struts, and fixtures
  • Overhead indoor construction
  • Securing warehouse racking
  • Installing electrical equipment

Simpson STB2-50434 Installation Overview

  1. Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
  2. Blow the hole clean using compressed air.
  3. Assemble the anchor with nut and washer, ensuring the nut is flush with the anchor top.
  4. Place the anchor in the fixture and drive it into the hole.
  5. Tighten to the required installation torque.

Simpson STB2-50434 Specifications

Diameter 1/2"
Finish Zinc Plated
Length 4-3/4"
Material Carbon Steel
Drill Bit Size 1/2"
Thread Length 3-1/16"
Quantity 25

NOTE: Ensure proper installation torque is applied to achieve optimal performance.
