Simpson Anchors | SKU:
STB2-504344SS

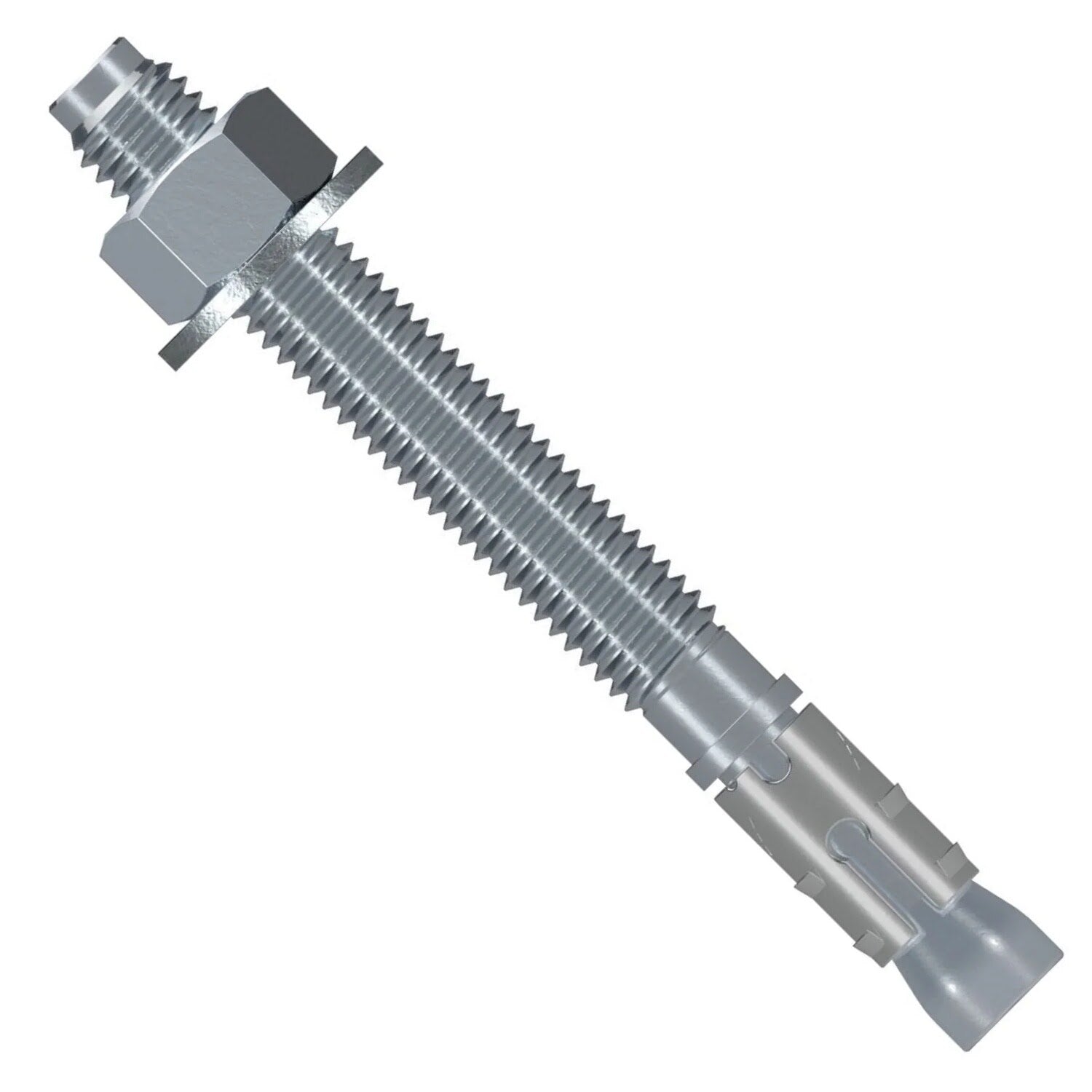

Simpson Strong-Tie STB2-504344SS Strong Bolt (1/2" x 4-3/4") Stainless-Steel Wedge Anchor - Unassembledl (25 Pack)
$109.13
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-504344SS Description
The Strong-Bolt 2 Wedge Anchor is a reliable and durable solution for anchoring in cracked or uncracked concrete. Made from 304 stainless steel, it is suitable for static and seismic loading conditions.
Simpson Strong-Tie STB2-504344SS Includes
- (25) Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-504344SS Features
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications
- Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-steel deck
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested per ACI355.2 and AC193
Simpson Strong-Tie STB2-504344SS Applications
- Concrete anchoring in cracked or uncracked concrete
- Seismic and static load applications
- Horizontal, vertical, and overhead installations
Simpson Strong-Tie STB2-504344SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air or ensure it is deep enough to accommodate embedment depth and dust.
- Assemble the anchor with nut and washer, place it in the fixture, and drive it into the hole.
- Tighten the anchor to the required installation torque.
Simpson Strong-Tie STB2-504344SS Specifications
| Material | 304 Stainless Steel |
| Diameter | 1/2" |
| Length | 4-3/4" |
| Drill Bit Size | 1/2" |
| Thread Length | 3-1/16" |
| Installation Torque | 65 ft. lbs |
NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity.
