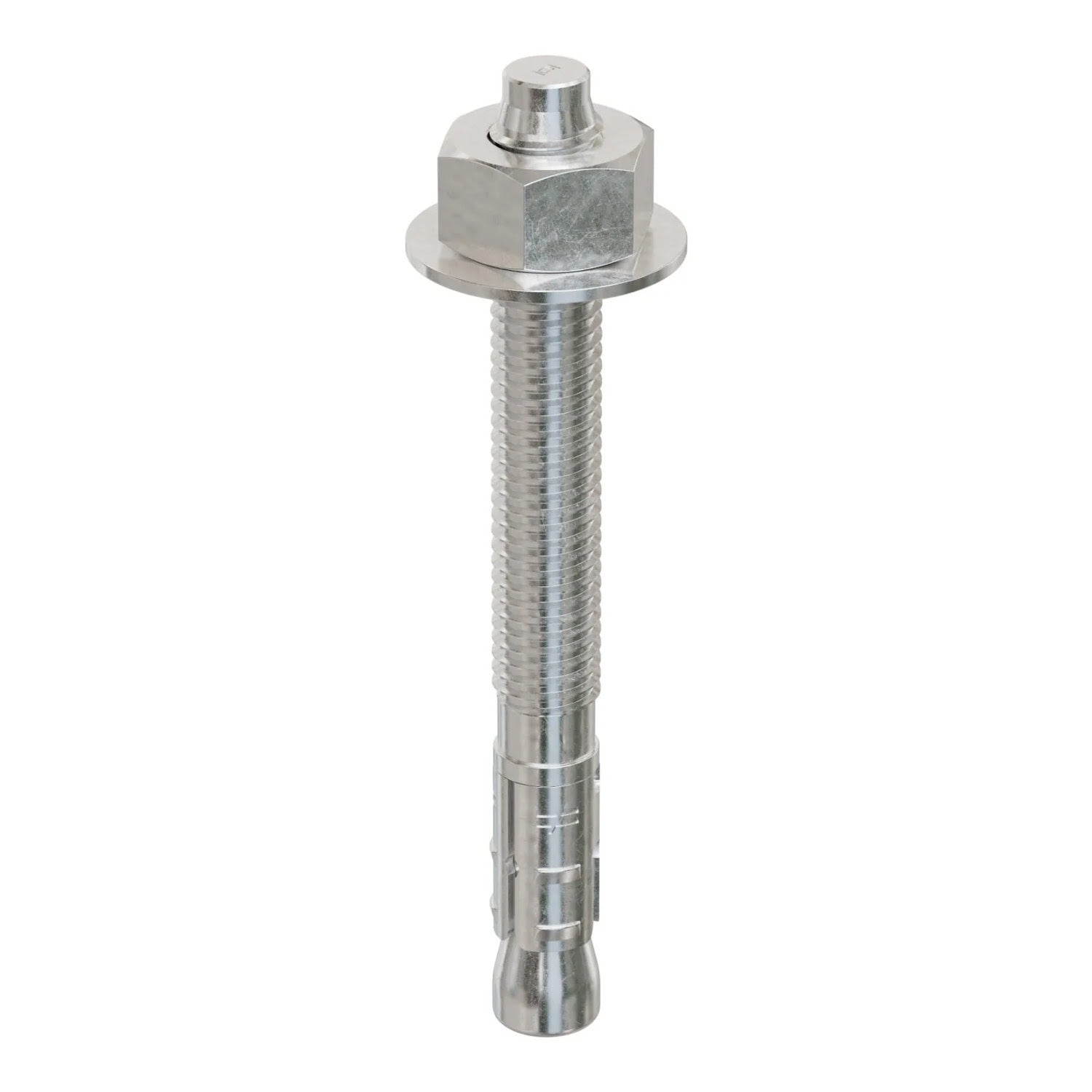

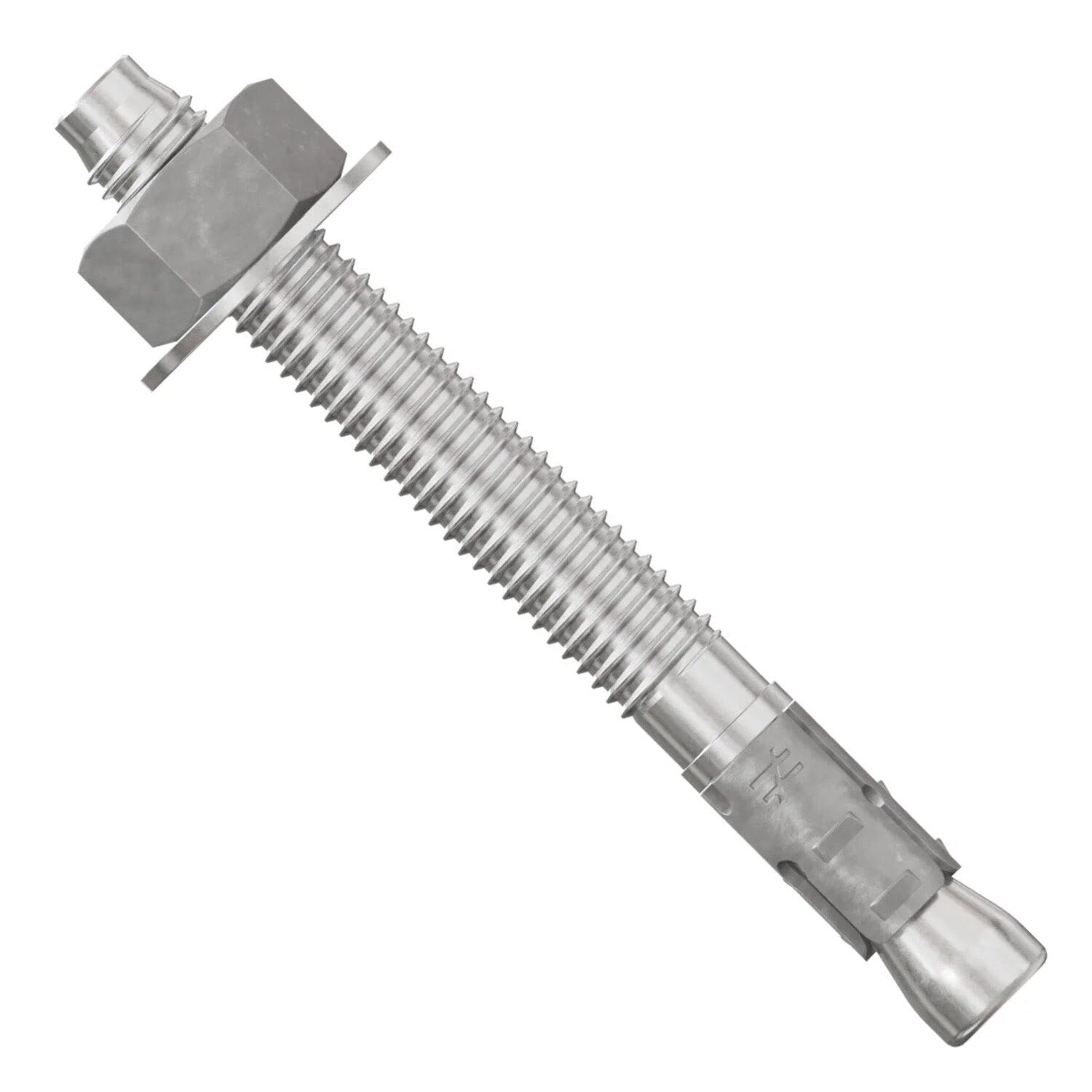

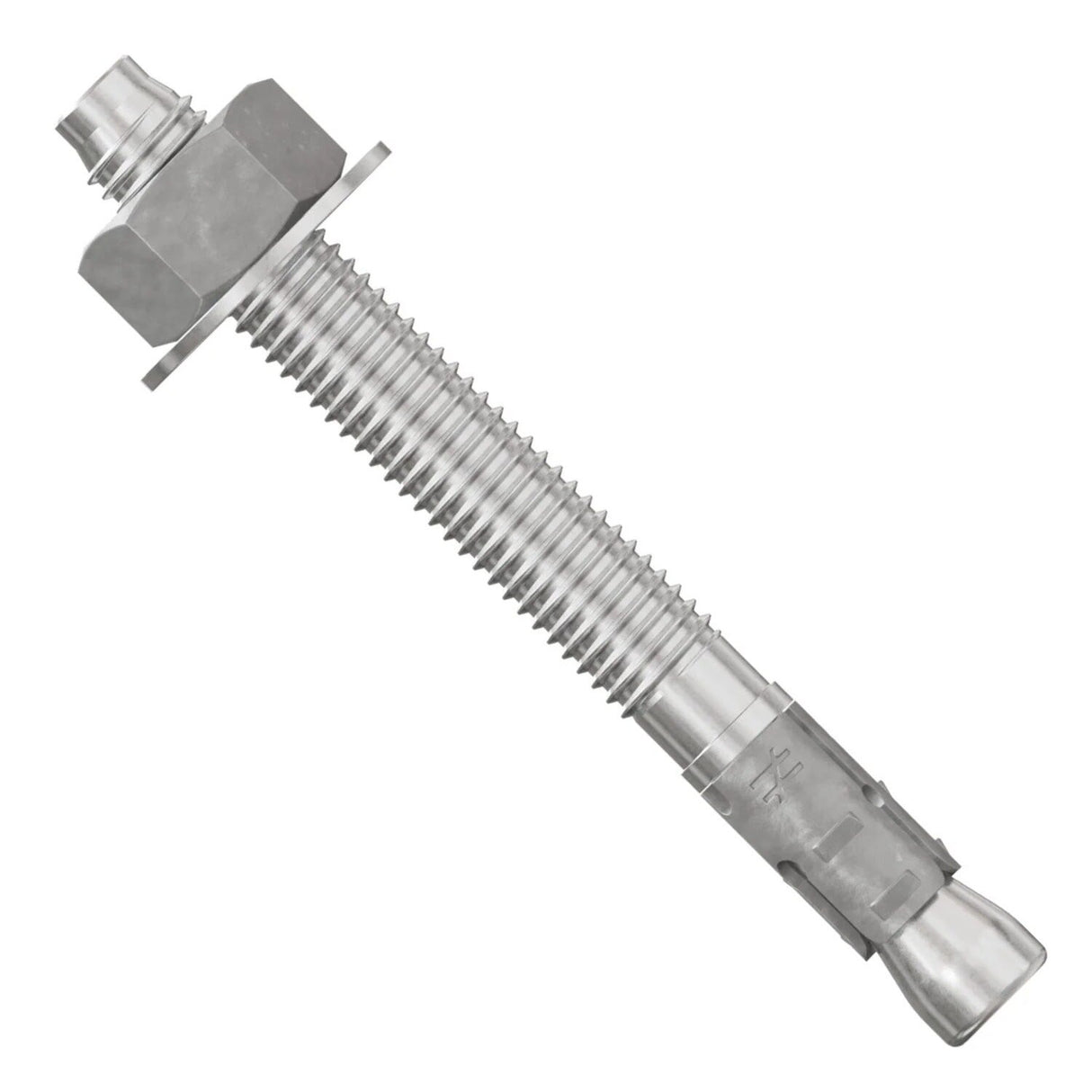

Simpson Strong-Tie STB2-50434S6F25 Strong-Bolt (1/2" x 4-3/4") Stainless-Steel Wedge Anchor - Fully Assembled (25 Pack)
Description
Description
Simpson Strong-Tie STB2-50434S6F25 Description
The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors are designed for maximum performance in corrosive environments, featuring 316 stainless steel construction for durability and ease of installation.
Simpson Strong-Tie STB2-50434S6F25 Includes
- (25) 1/2 in. x 4-3/4 in. Type 316 Stainless-Steel Wedge Anchor
Simpson Strong-Tie STB2-50434S6F25 Features
- 316 Stainless Steel Construction for corrosion resistance
- Fully assembled with nut and washer for easy installation
- ICC-ES ESR-3037 code listed for cracked and uncracked concrete
- Suitable for structural supports, machinery, and railing systems
- Available in multiple sizes for various applications
Simpson Strong-Tie STB2-50434S6F25 Applications
- Anchoring structural supports in corrosive environments
- Securing machinery and equipment
- Installing railing systems in residential and commercial settings
- Reinforcing connections in coastal or marine constructions

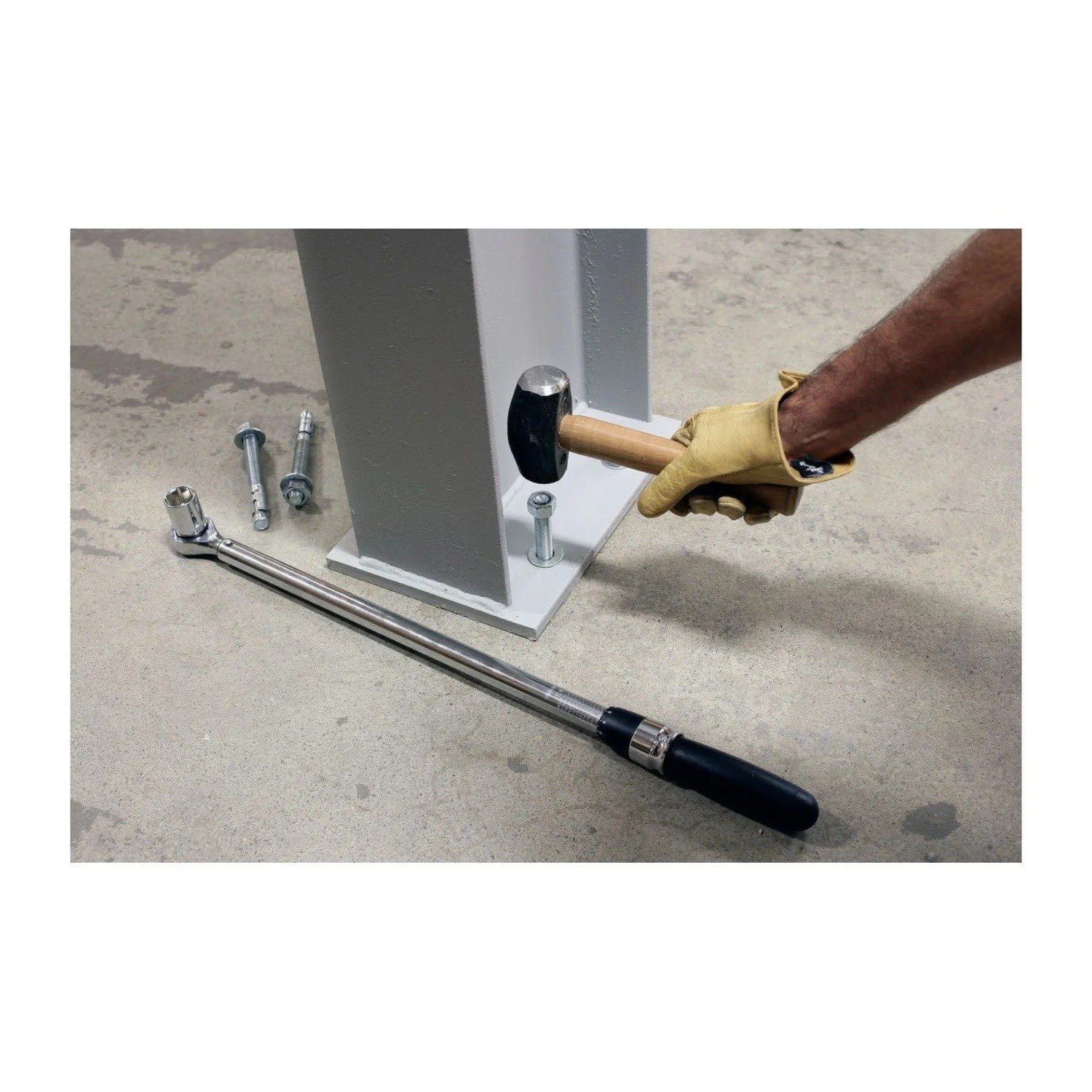

Simpson Strong-Tie STB2-50434S6F25 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air or ensure it is deep enough to accommodate embedment depth.
- Assemble the anchor with the nut and washer, place it in the fixture, and drive it into the hole.

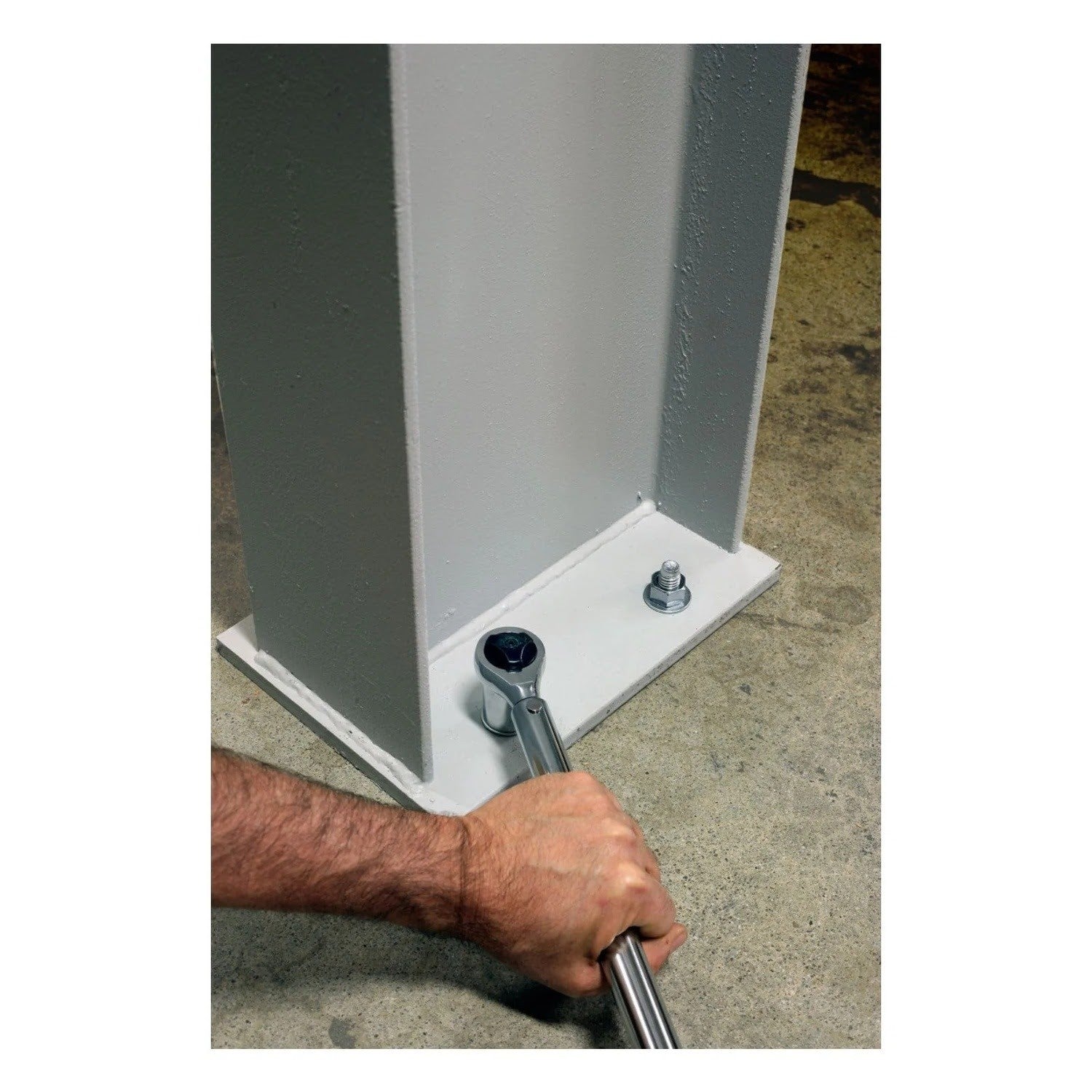

- Tighten the nut to the required installation torque.
Simpson Strong-Tie STB2-50434S6F25 Specifications
Diameter | 1/2 in. |
Length | 4-3/4 in. |
Material | 316 Stainless Steel |
Drill Bit Size | 1/2 in. |
Fixture Hole Size | 9/16 in. |
Installation Torque | 45 ft. lbf. |
Thread Length | 3-1/16 in. |
Wrench Size | 3/4 in. |
