Simpson Strong-Tie STB2-505126SS Strong Bolt (1/2" x 5-1/2") Stainless-Steel Wedge Anchor - Unassembled (25 Pack)
Free Shipping
$226.85
Unit price
/
Unavailable
Description
Description
Simpson STB2-505126SS Description

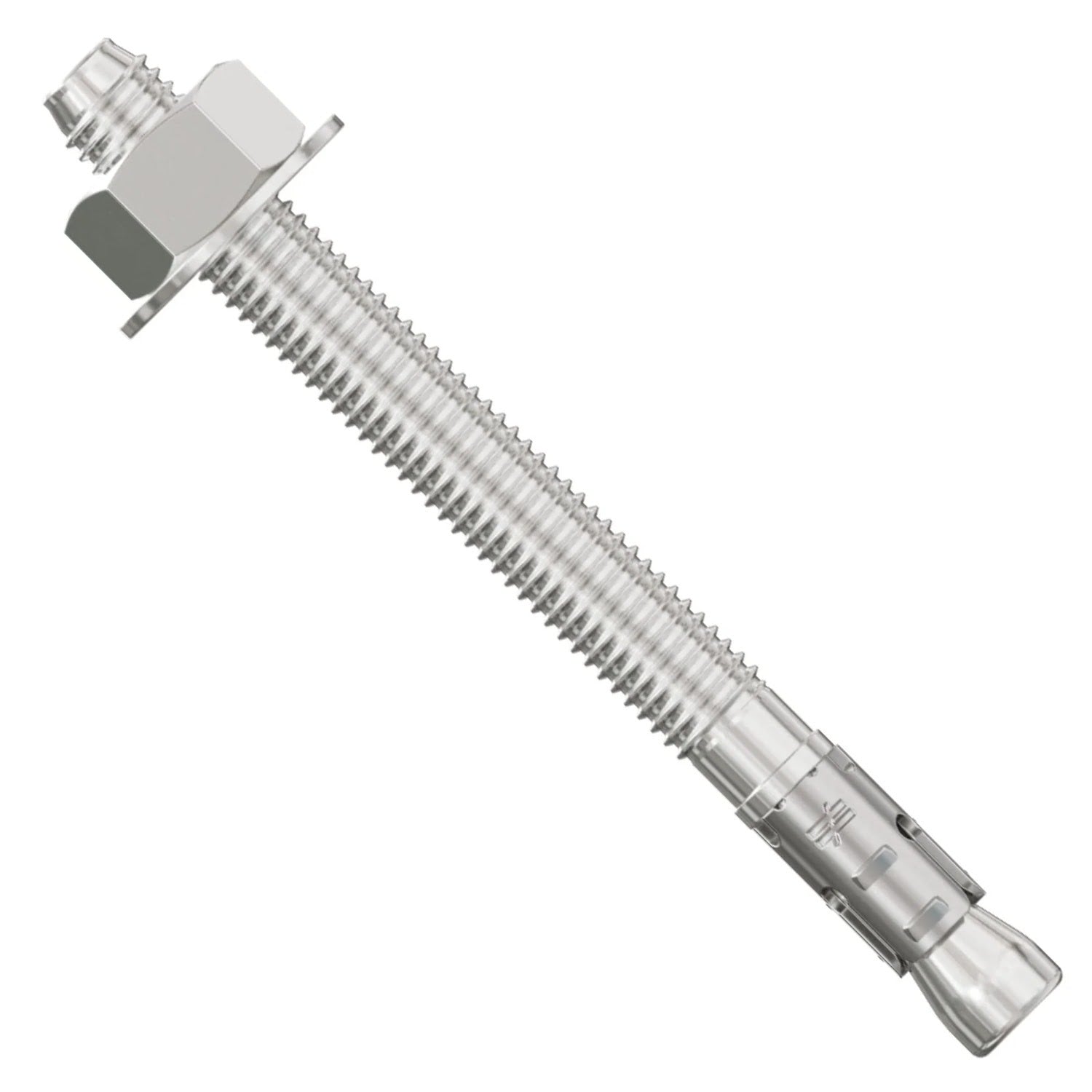

The Strong-Bolt 2 Wedge Anchor is a high-performance anchor designed for use in cracked and uncracked concrete. Made from Type 316 stainless steel, it is suitable for static and seismic loading conditions.
Simpson STB2-505126SS Includes
- (25) Strong-Bolt 2 Wedge Anchor Type 316 Stainless Steel
Simpson STB2-505126SS Features
- Chamfered top prevents mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Fits standard fixtures and installs with common drill bit sizes
- Tested per ACI355.2 and AC193
Simpson STB2-505126SS Applications
- Concrete anchoring in cracked and uncracked concrete
- Seismic applications requiring reliable anchoring
- Horizontal, vertical, and overhead installations
Simpson STB2-505126SS Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter
- Clean the hole using compressed air
- Assemble the anchor with nut and washer
- Drive the anchor into the hole until tight against the fixture
- Tighten to the specified installation torque
Simpson STB2-505126SS Specifications
| Material | Type 316 Stainless Steel |
| Diameter | 1/2" |
| Length | 5-1/2" |
| Drill Bit Size | 1/2" |
| Installation Torque | 65 ft. lbs |
| Thread Length | 3-13/16" |
| Quantity | 25 |
NOTE: Ensure proper installation torque is applied to achieve optimal performance.
