Simpson Anchors | SKU:
STB2-50512C10

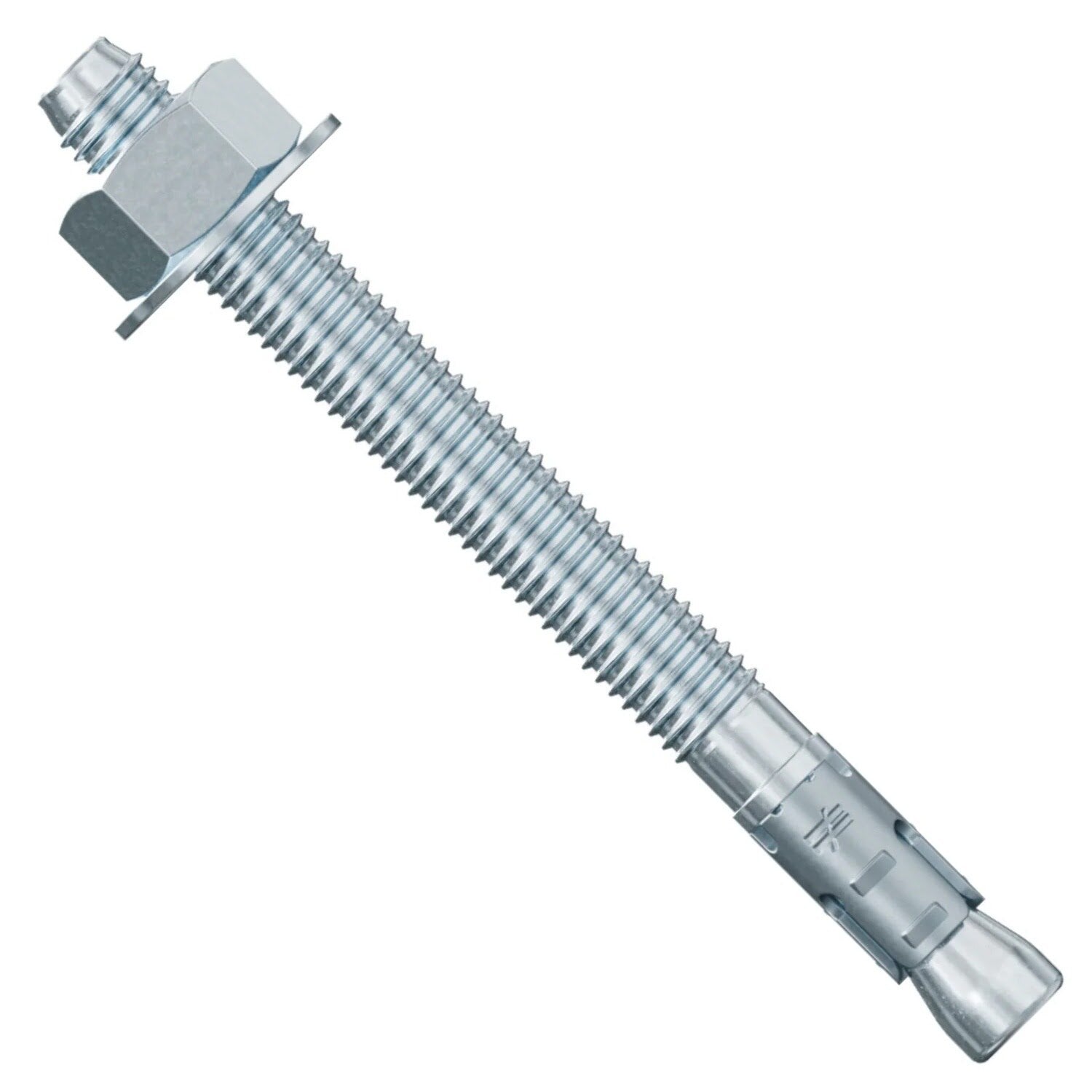

Simpson Strong-Tie STB2-50512C10 Strong-Bolt (1/2" x 5-1/2") Carbon Steel Wedge Anchor (10 Pack)
$12.91
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie STB2-50512C10 Description
The Simpson Strong-Bolt 2 Wedge Anchor is a reliable, ICC-ES code compliant anchor designed for cracked or uncracked concrete. It is suitable for static and seismic loading in various applications.
Simpson Strong-Tie STB2-50512C10 Includes
- (10) 1/2 in. x 5-1/2 in. Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-50512C10 Features
- Non-bottom-bearing design for versatile installation
- ICC-ES code compliant for cracked and uncracked concrete
- Qualified for static and seismic loading
- Zinc plated for corrosion resistance
- Suitable for horizontal, vertical, and overhead applications
Simpson Strong-Tie STB2-50512C10 Applications
- Concrete anchoring in cracked or uncracked surfaces
- Seismic and static load applications
- Horizontal, vertical, and overhead installations
Simpson Strong-Tie STB2-50512C10 Installation Overview
- Drill a 1/2 in. hole in the base material to the specified depth.
- Insert the anchor into the hole and tap it until flush with the surface.
- Tighten the anchor using a wrench to the specified torque of 60 ft. lbs.
Simpson Strong-Tie STB2-50512C10 Specifications
| Diameter | 1/2 in. |
| Finish | Zinc Plated |
| Length | 5-1/2 in. |
| Material | Carbon Steel |
| Drill bit size | 1/2 in. |
| Installation torque | 60 ft. lbs |
| Quantity | 10 |
NOTE: Do not use an impact wrench to set or tighten anchors. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity.
