Simpson Anchors | SKU: STB2-50700 | Barcode: 707392176022

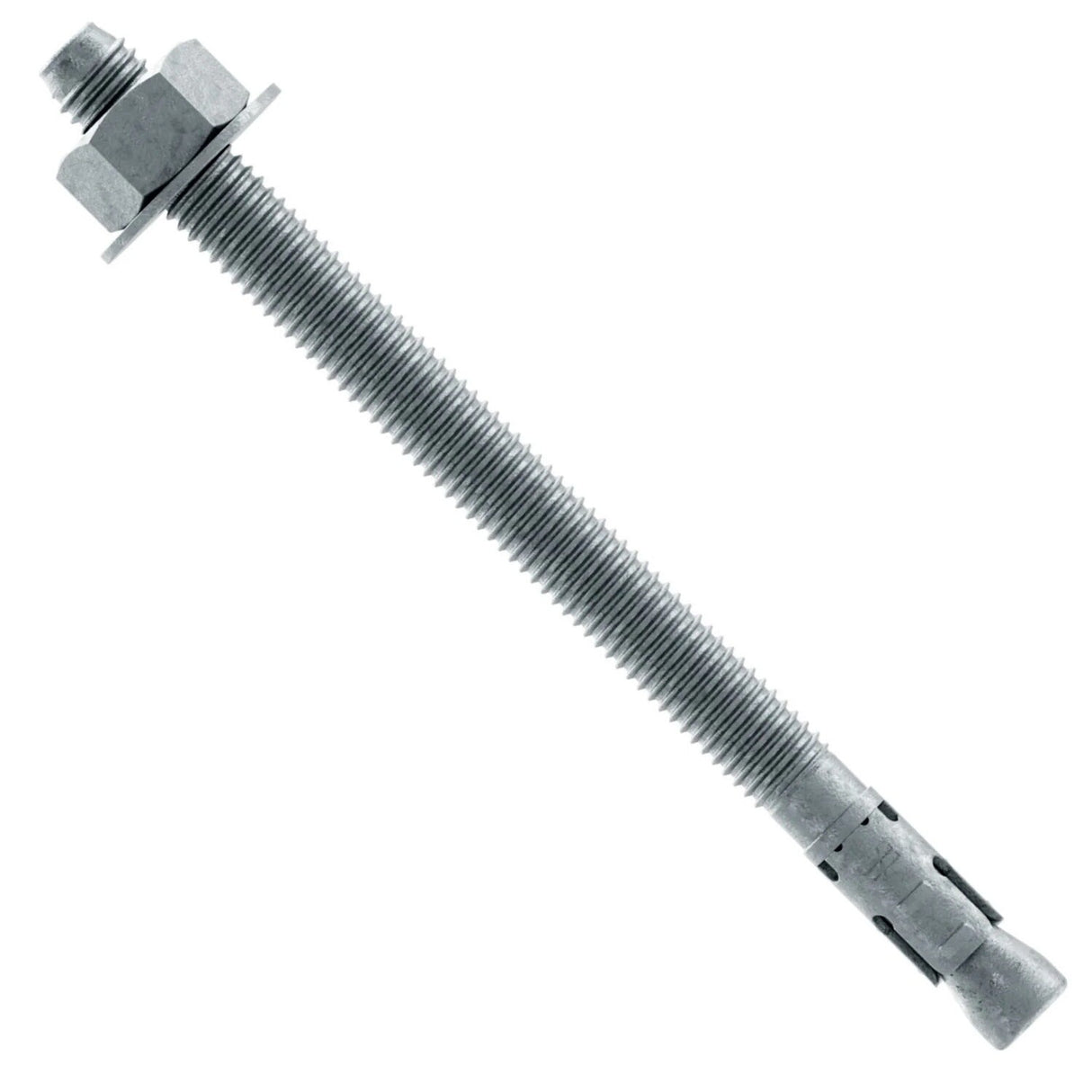

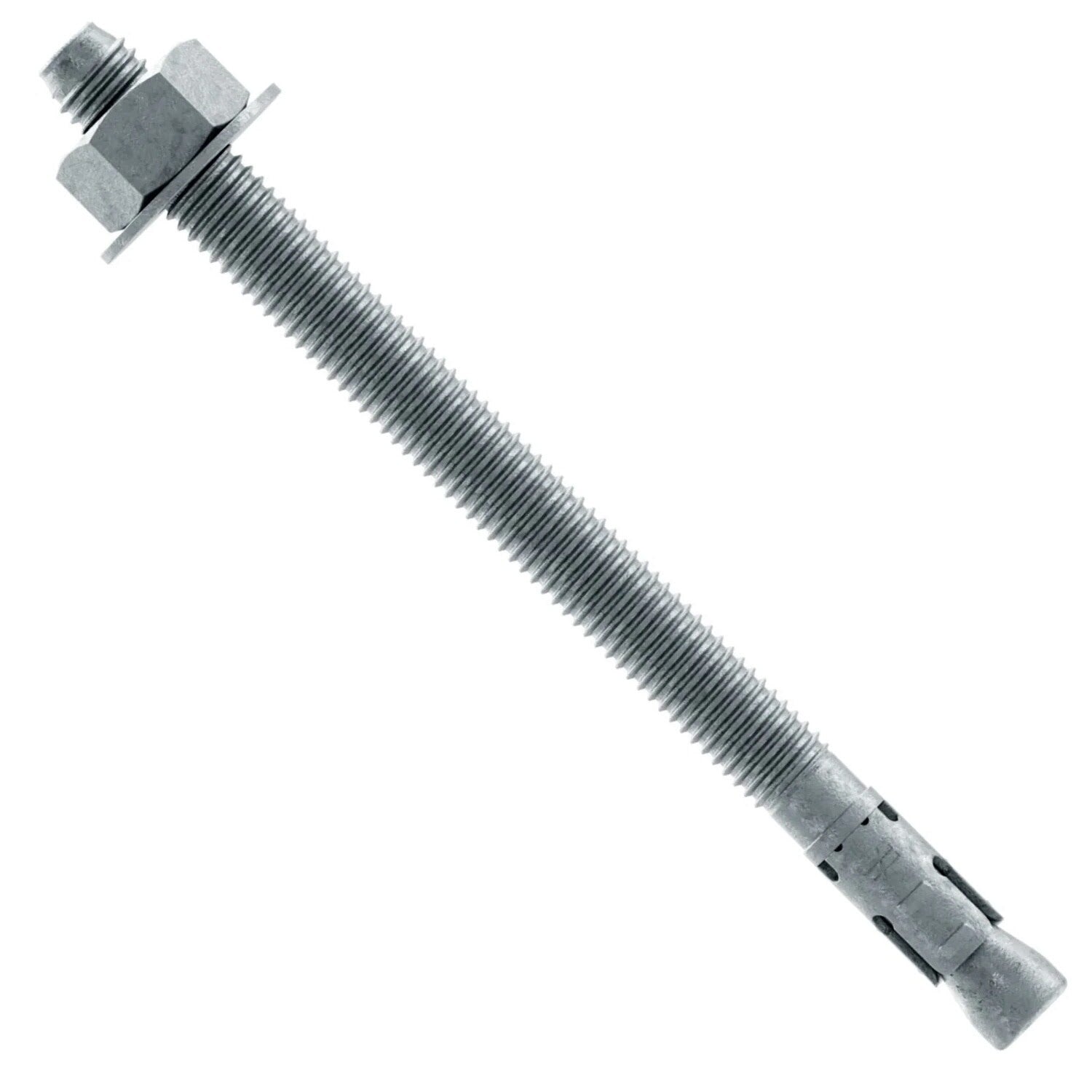

Simpson Strong-Tie STB2-50700 Strong Bolt (1/2" x 7") Wedge Anchor for Concrete Applications (25 Pack)

Name: Simpson Strong-Tie STB2-50700 Strong Bolt (1/2" x 7") Wedge Anchor for Concrete Applications (25 Pack)
Brand: Simpson Anchors
SKU: 248524
Price: 27.22 USD
Availability: InStock

$27.22 ~~$34.00~~

NOTE: This item is ineligible for free shipping

Description

Simpson Strong-Tie STB2-50700 Description

The Simpson Strong-Tie Strong-Bolt 2 Wedge Anchors are engineered for reliable performance in both cracked and uncracked concrete, and masonry applications. These fully assembled anchors are suitable for static and seismic loading conditions, making them ideal for a variety of construction projects.

Simpson Strong-Tie STB2-50700 Includes

(25) 1/2 in. x 7 in. Strong-Bolt 2 Wedge Anchor

Simpson Strong-Tie STB2-50700 Features

Chamfered top designed to prevent mushrooming during installation
Qualified for static and seismic loading conditions (seismic design categories A through F)
Suitable for horizontal, vertical and overhead applications
Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-steel deck thickness of 2 1/2" and 3 1/4"
Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
Tested per ACI355.2 and AC193

Simpson Strong-Tie STB2-50700 Applications

Anchoring structural and non-structural elements such as pipes, struts, and fixtures
Overhead indoor construction
Mounting electrical equipment
Warehouse racking

Simpson Strong-Tie STB2-50700 Installation Overview

Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor.
Place the anchor in the fixture, and drive it into the hole until the washer and nut are tight against the fixture.
Tighten to the required installation torque.

Simpson Strong-Tie STB2-50700 Specifications

Diameter	1/2"
Length	7"
Material	Carbon Steel
Finish	Zinc Plated
Thread Length	5-5/16"
Drill Bit Size	1/2"

NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity.
