Simpson Anchors | SKU:
STB2-507006SS
Simpson Strong-Tie STB2-507006SS Strong-Bolt 2 (1/2" x 7") Stainless Steel Wedge Anchor - Unassembled (25 Pack)
Free Shipping
$276.53
Unit price
/
Unavailable
Description
Description
Simpson STB2-507006SS Description
The Strong-Bolt 2 Wedge Anchor is a high-performance anchor designed for use in cracked and uncracked concrete. Made from Type 316 stainless steel, it is suitable for static and seismic loading conditions.
Simpson STB2-507006SS Includes
- (25) Strong-Bolt 2 Wedge Anchor Type 316 Stainless Steel
Simpson STB2-507006SS Features
- Chamfered top prevents mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Standard fractional sizes for compatibility with common tools
- Tested per ACI355.2 and AC193
Simpson STB2-507006SS Applications
- Concrete anchoring in cracked and uncracked concrete
- Seismic applications requiring reliable anchoring
- Horizontal, vertical, and overhead installations

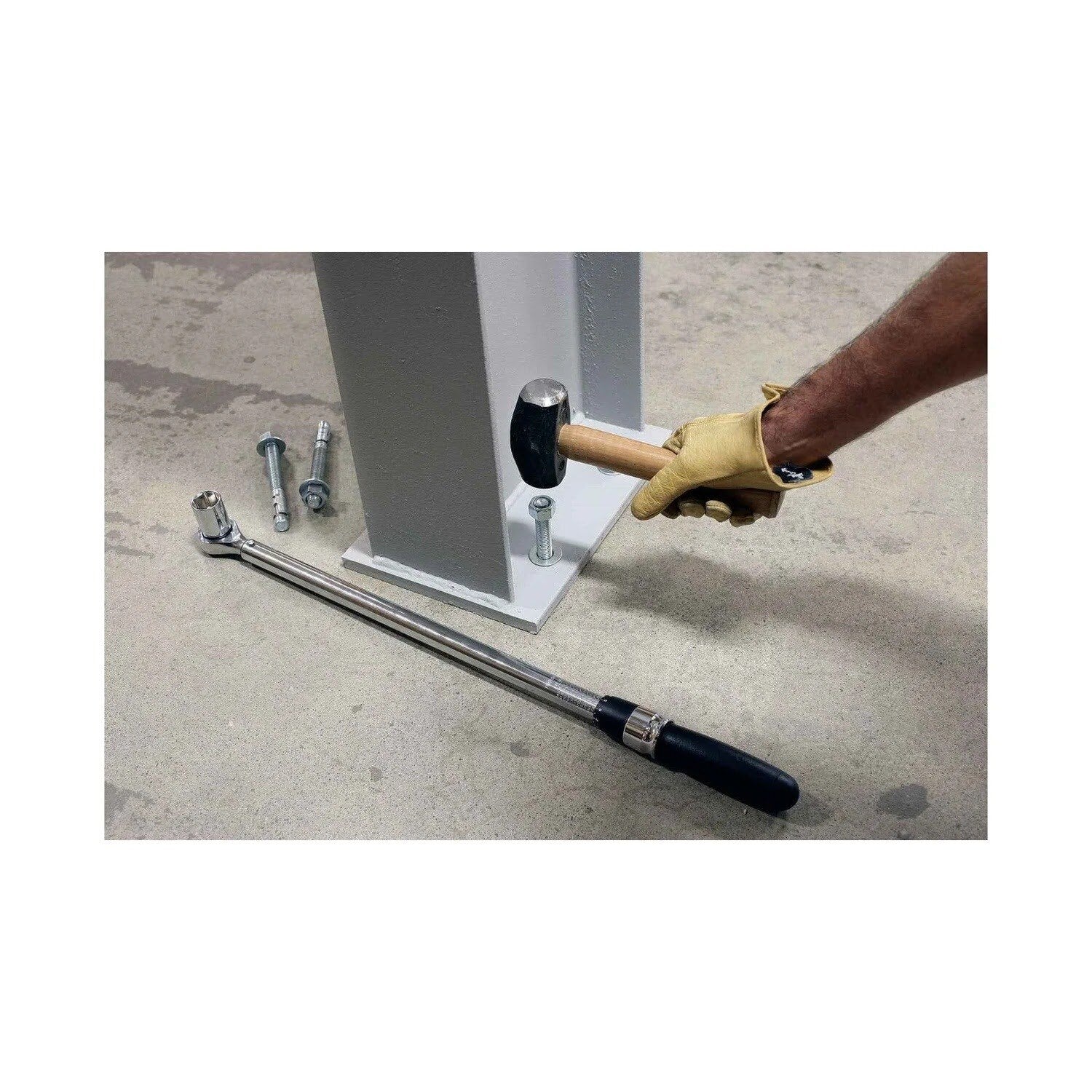

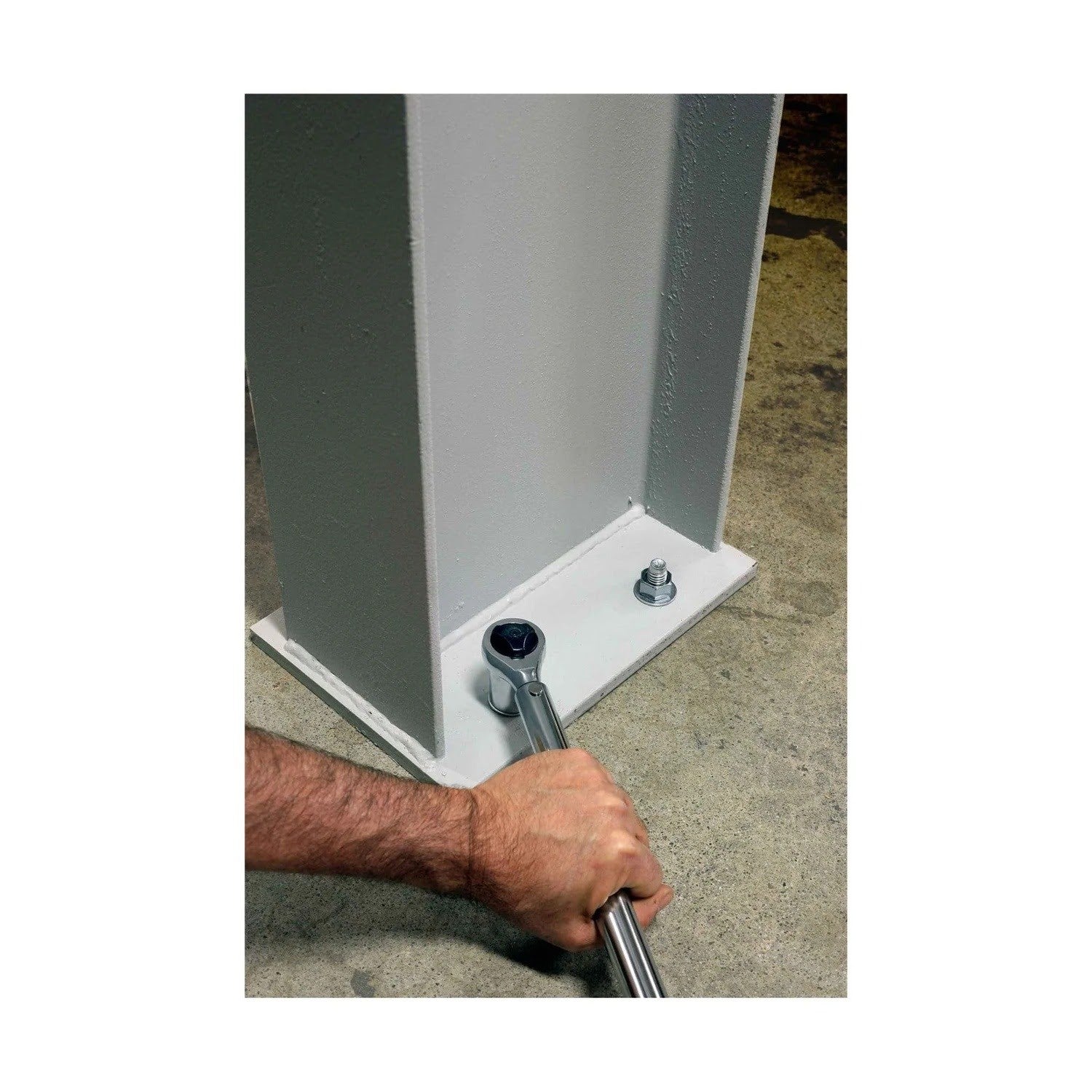

Simpson STB2-507006SS Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter
- Clean the hole using compressed air
- Assemble the anchor with nut and washer
- Insert the anchor into the hole and tighten to specified torque
Simpson STB2-507006SS Specifications
| Material | Type 316 Stainless Steel |
| Diameter | 1/2" |
| Length | 7" |
| Drill Bit Size | 1/2" |
| Installation Torque | 65 ft. lbs |
| Thread Length | 5-5/16" |
| Quantity | 25 |
NOTE: Ensure proper installation torque is applied to achieve optimal performance.
